Limited 2024 Availability
Party Barge 16 DLX
2025
PARTY BARGE® 16 DLX
w/ 20 ELPT FourStroke Mercury® FourStroke
Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$17995
USD
|
Overview

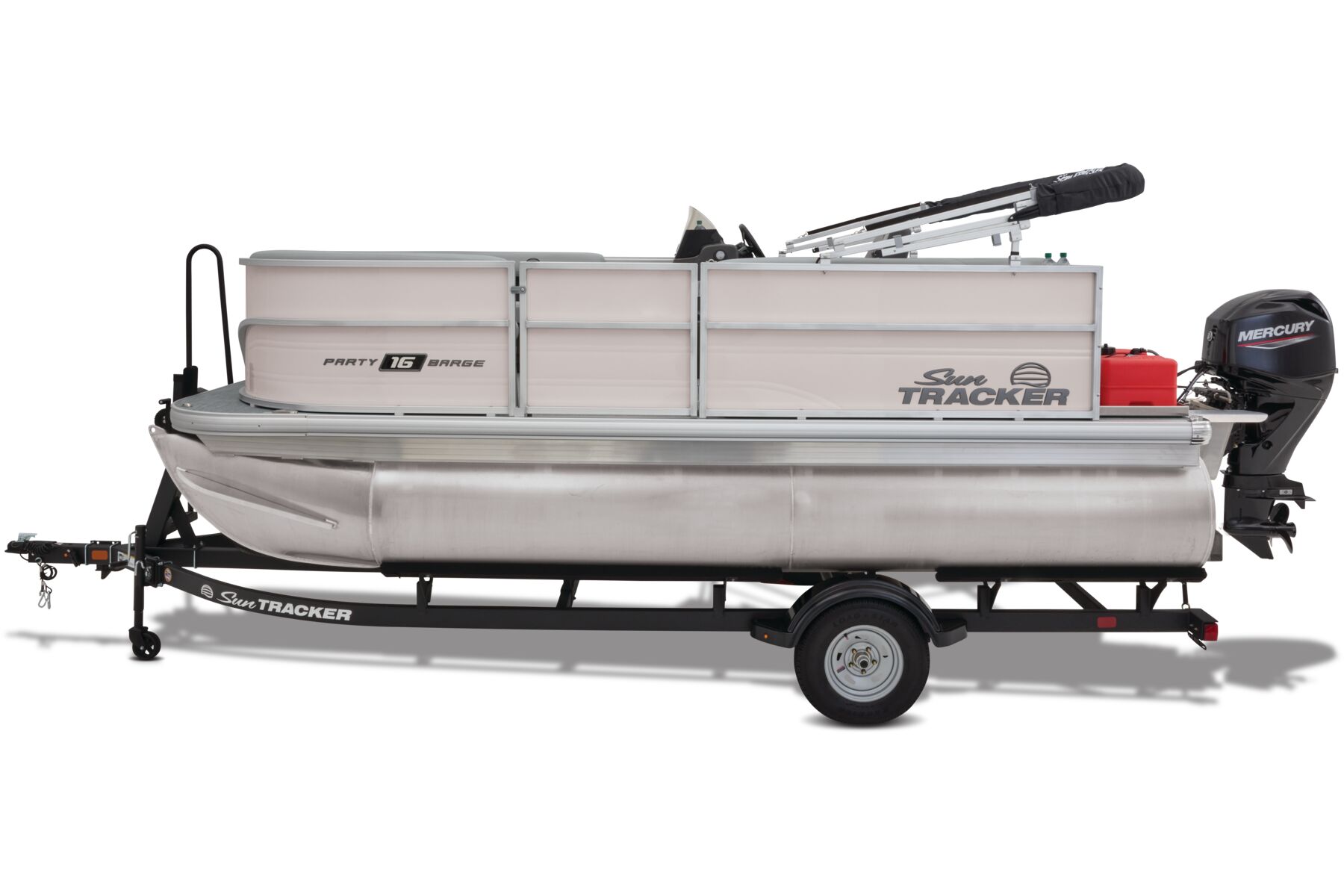

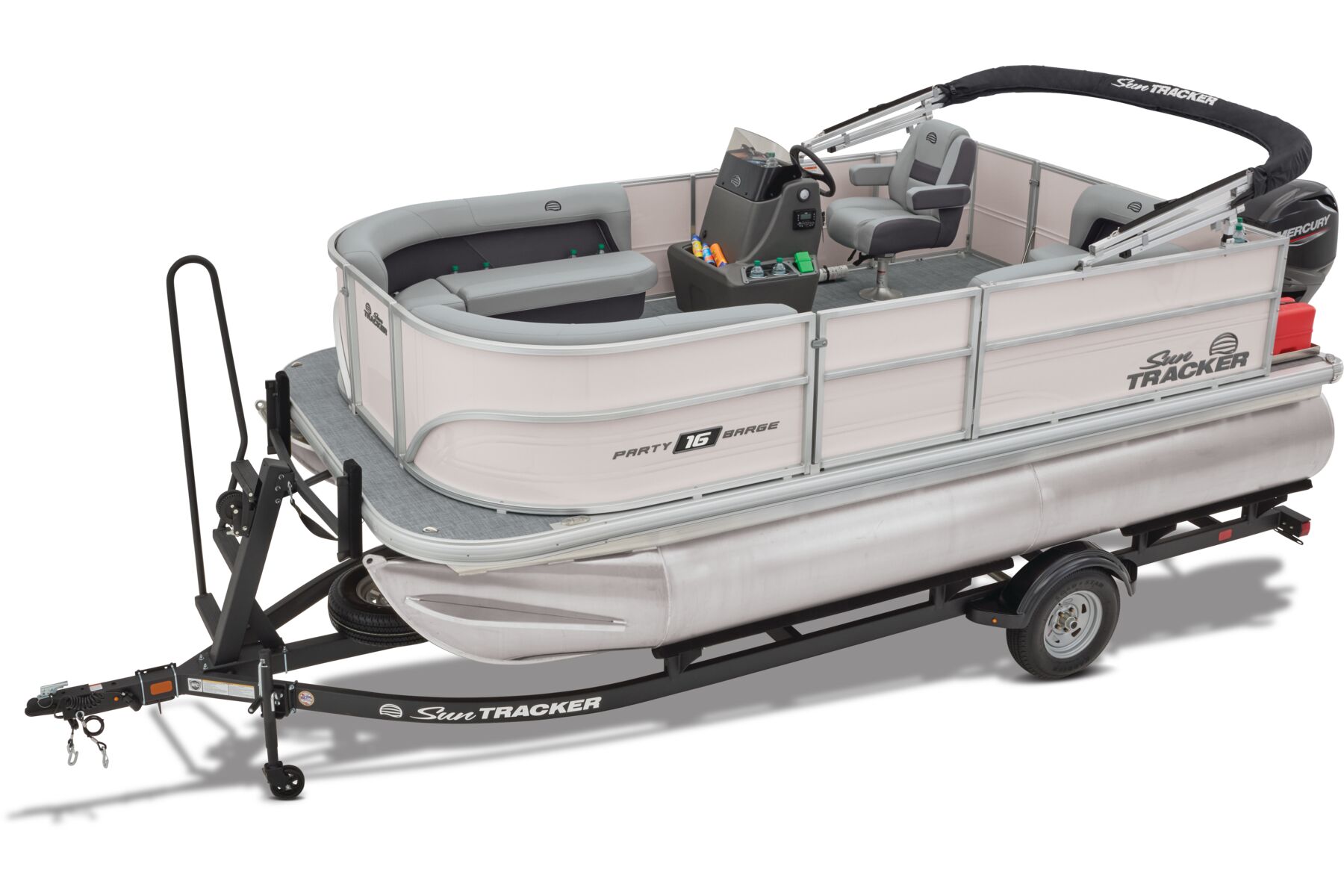

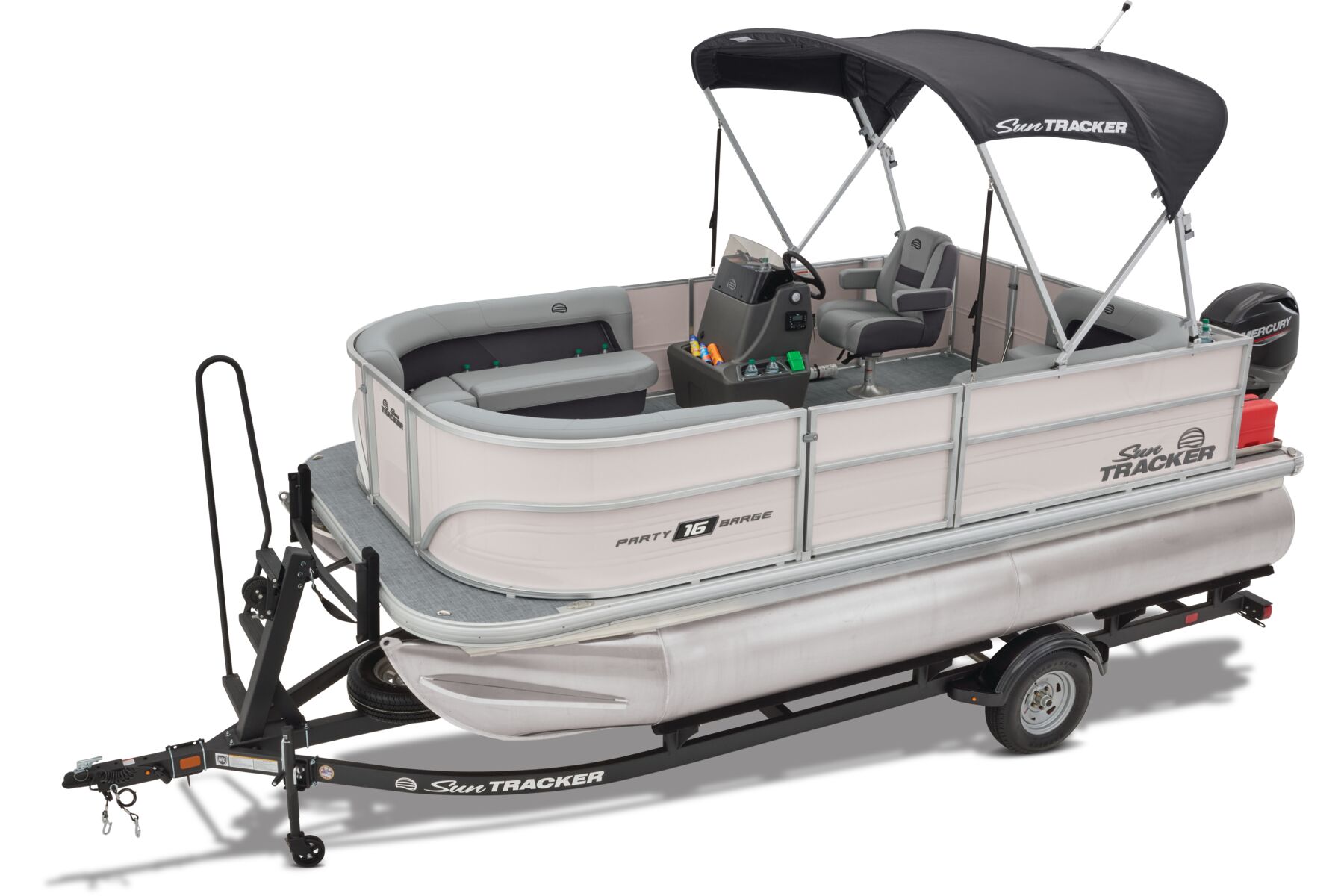

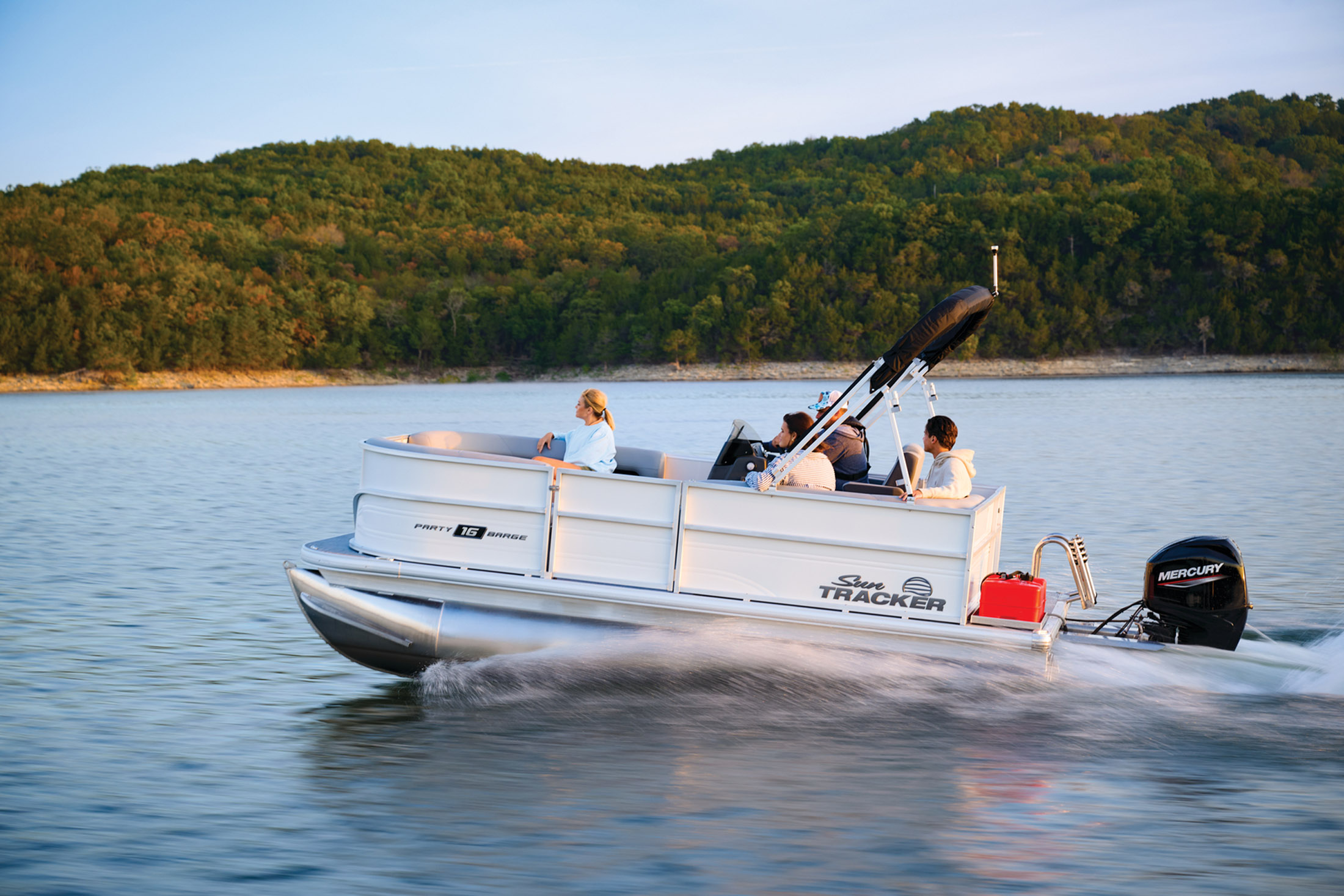

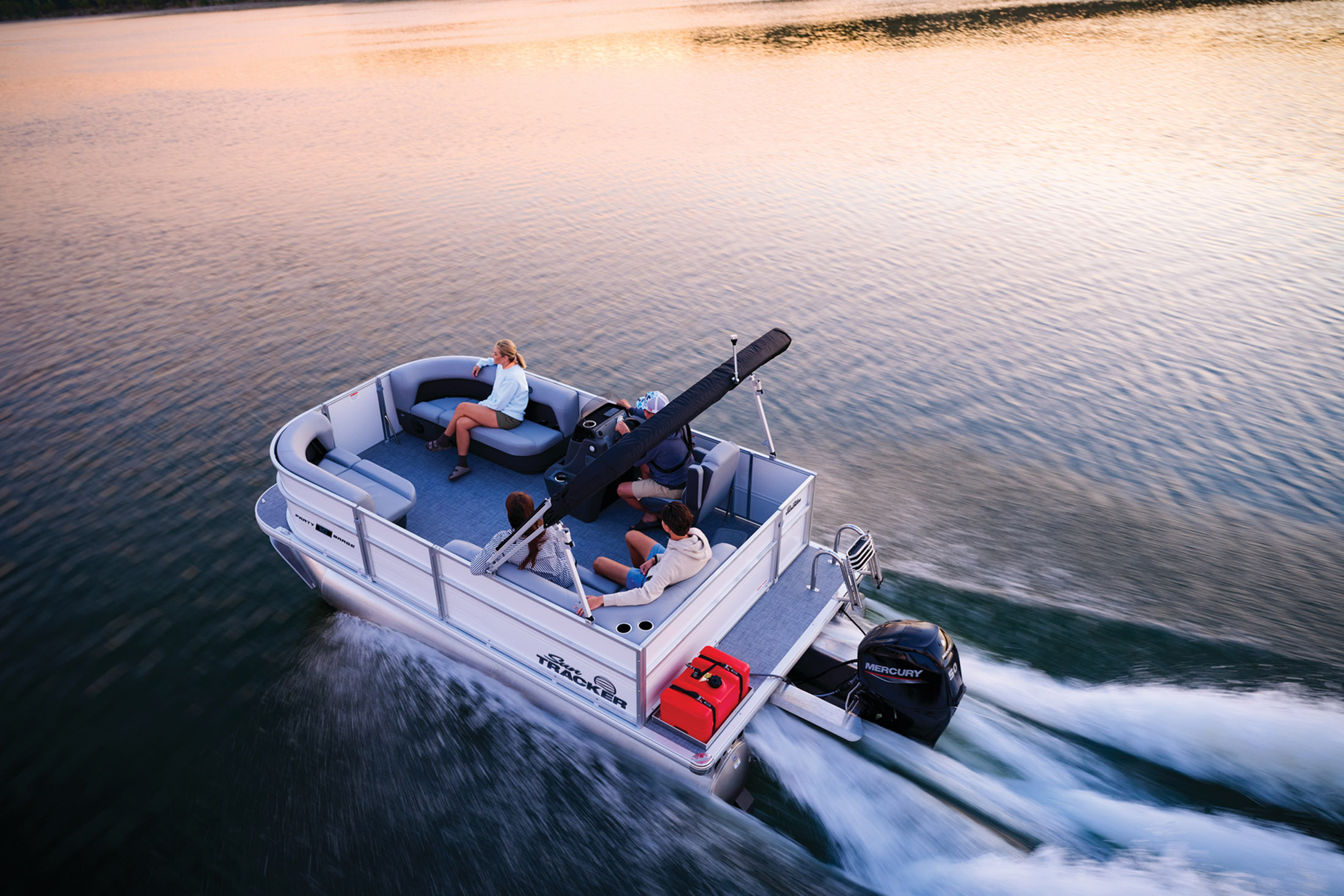

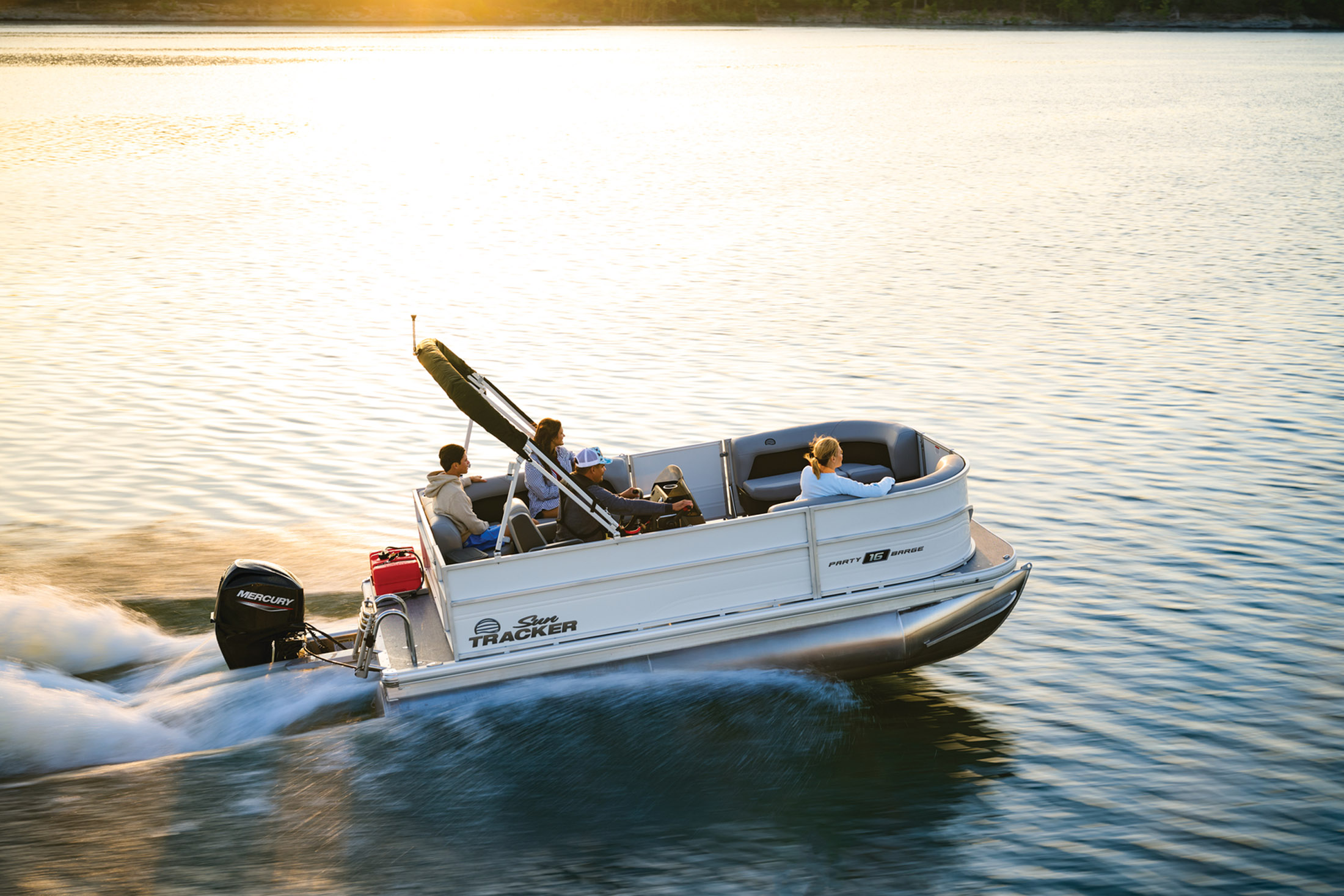

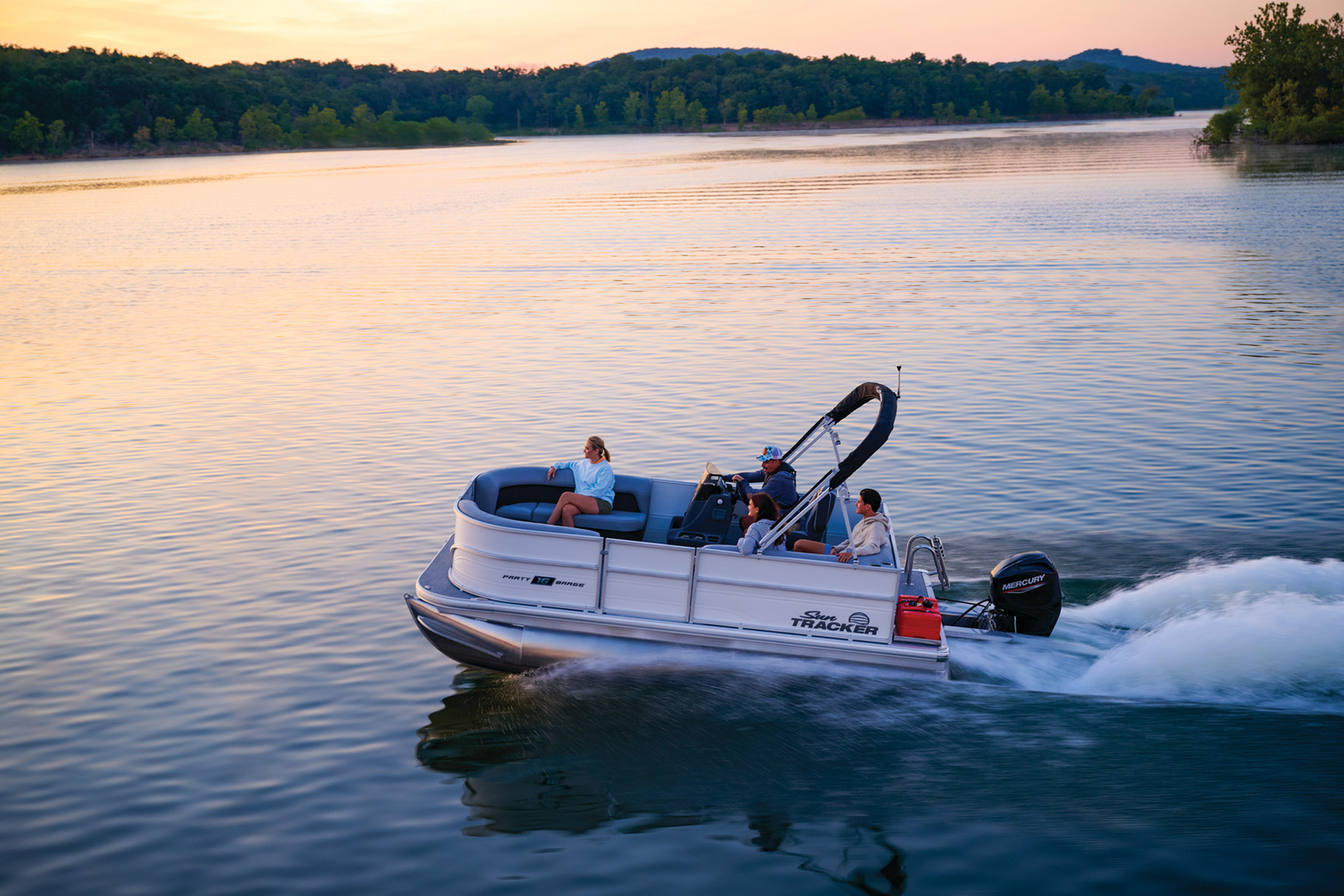

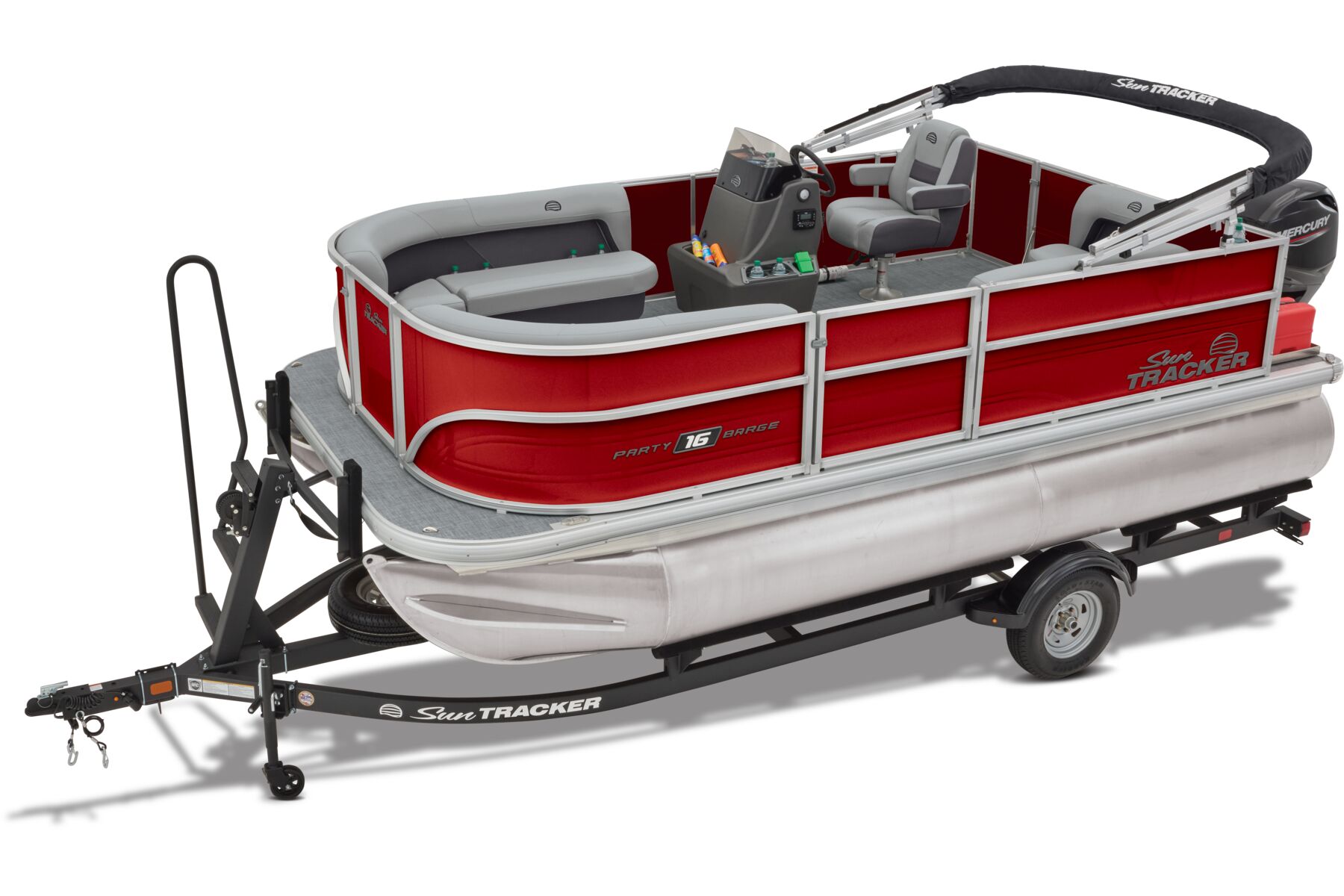

Cruise into the lake life with the 2025 SUN TRACKER® PARTY BARGE® 16 DLX.

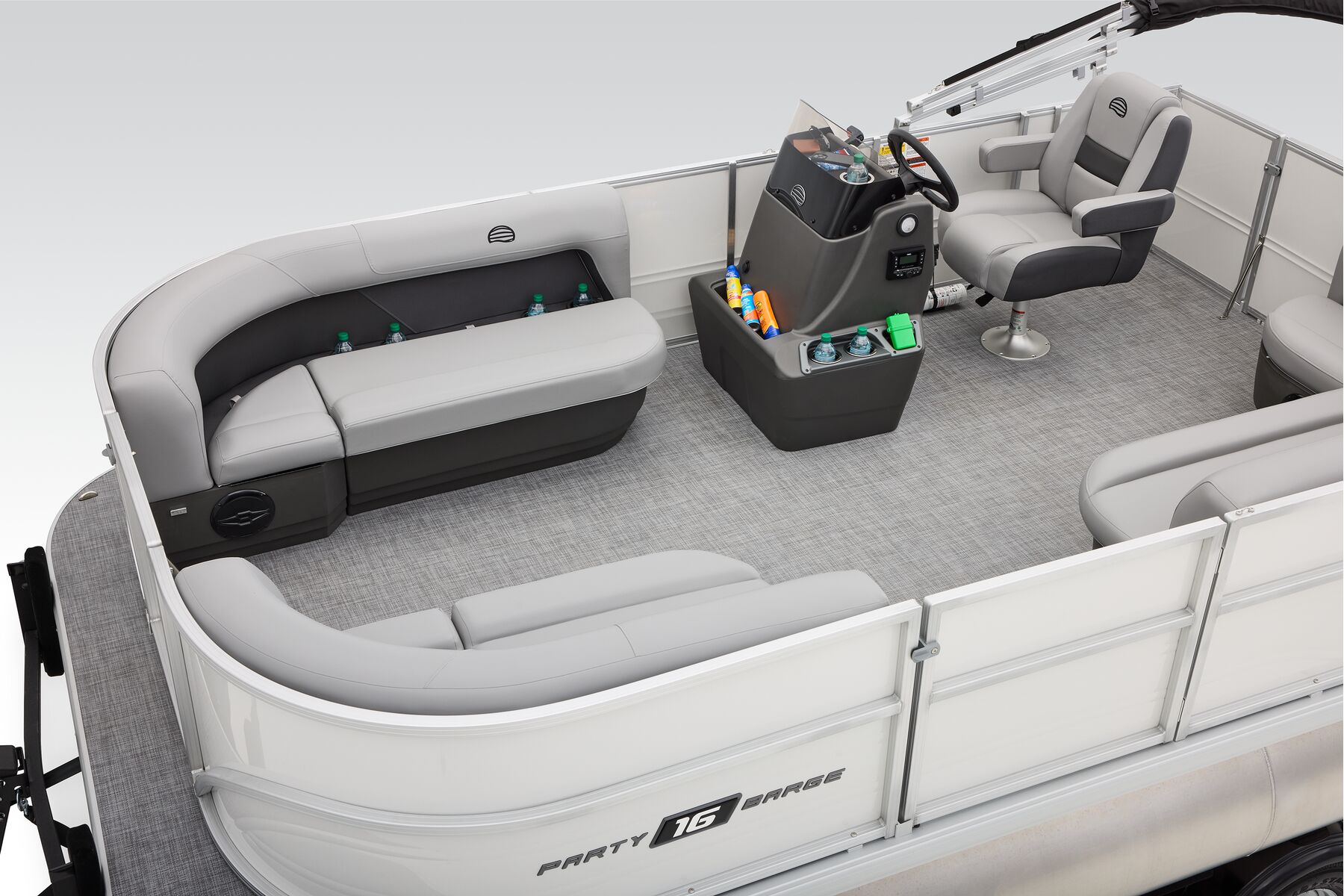

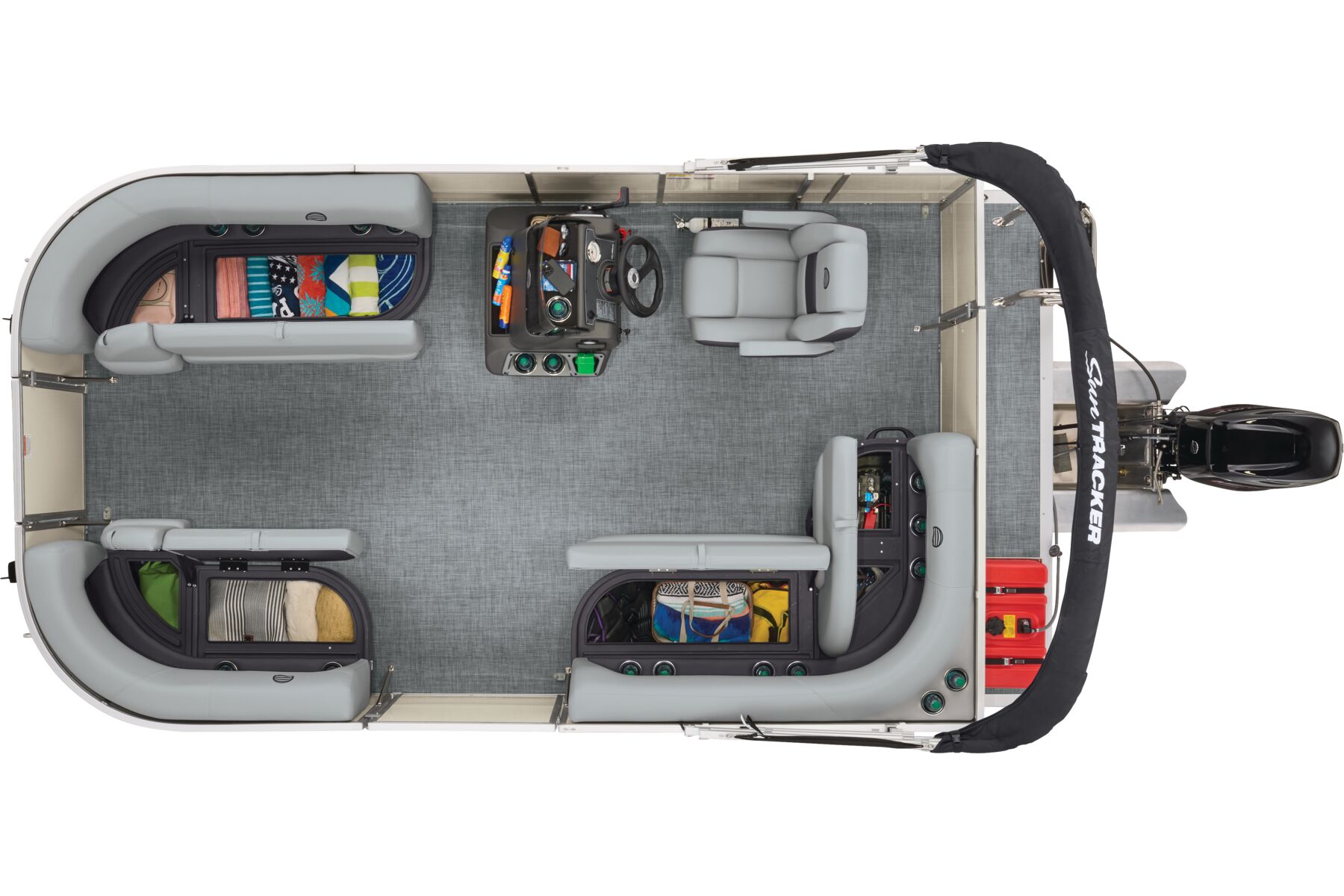

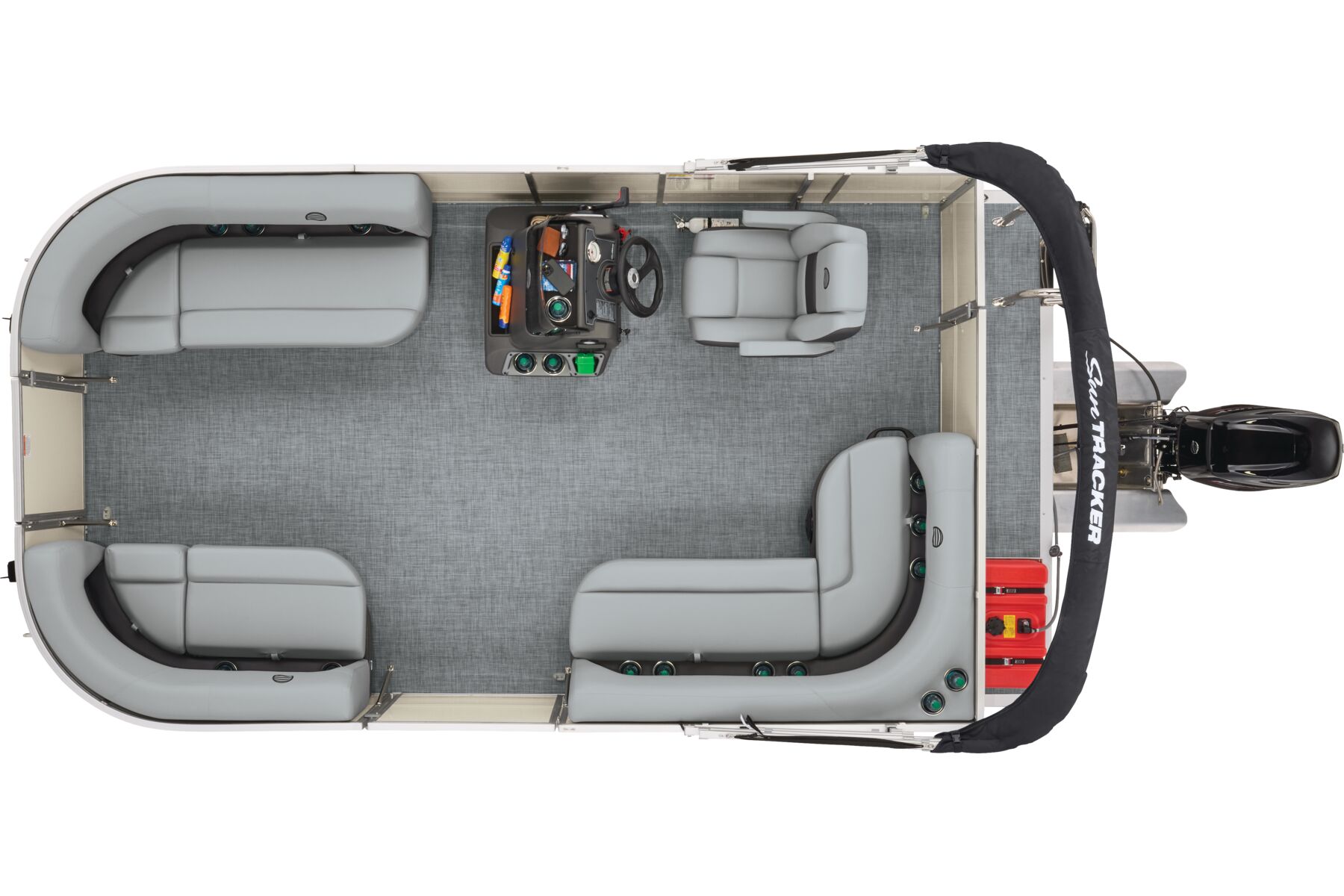

The most compact pontoon boat in the SUN TRACKER® family makes towing a breeze. Its deck has plenty of room for a crew of 7 friends and family. Let them kick back on the 3 luxurious corner lounges while the pilot sits at the helm in the swiveling captain’s chair. Each seat is wrapped in luxurious and durable vinyl. The wraparound fence sports a port wheelchair-accessible gate. You’ll also find gates at the fore and rear boarding platforms.

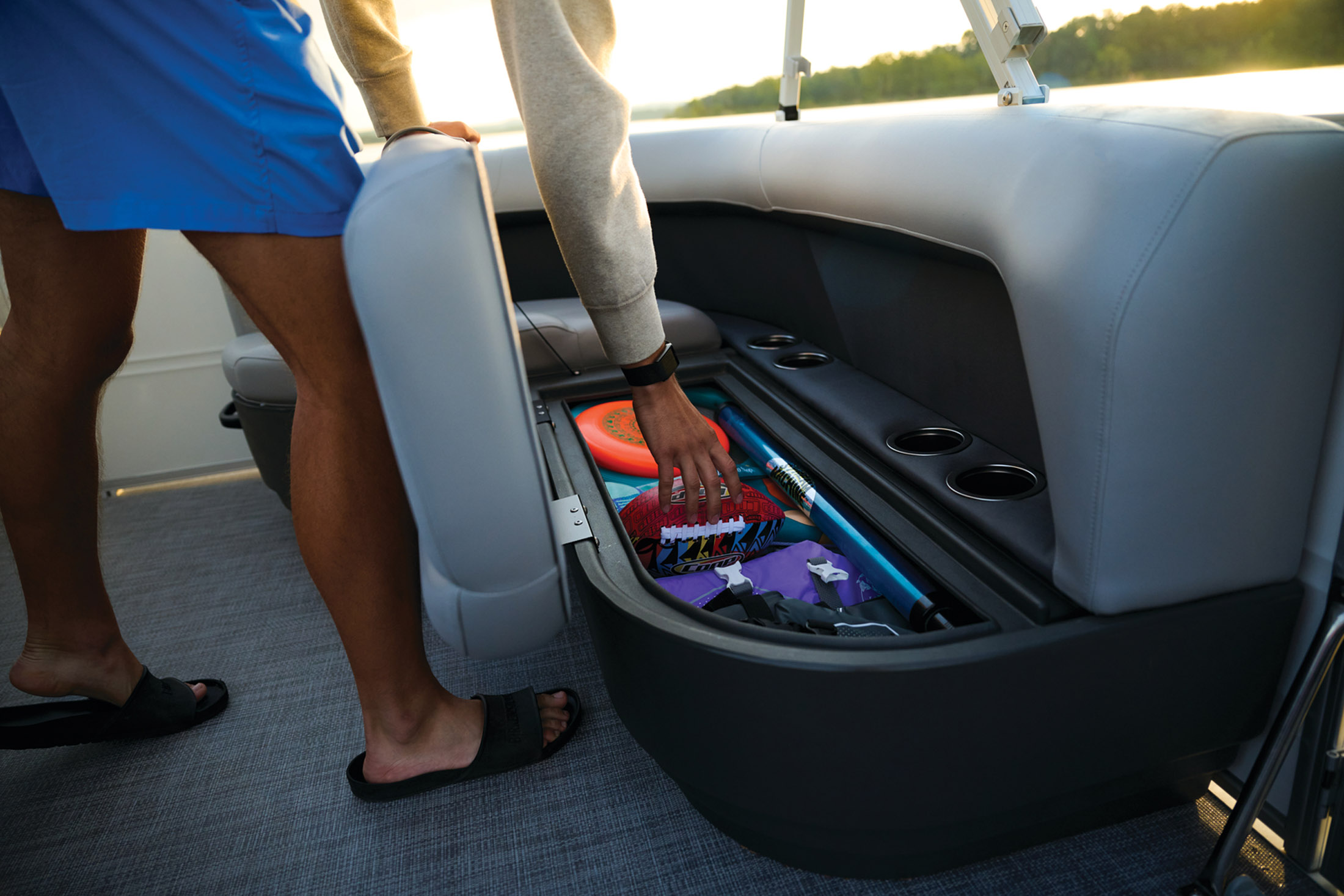

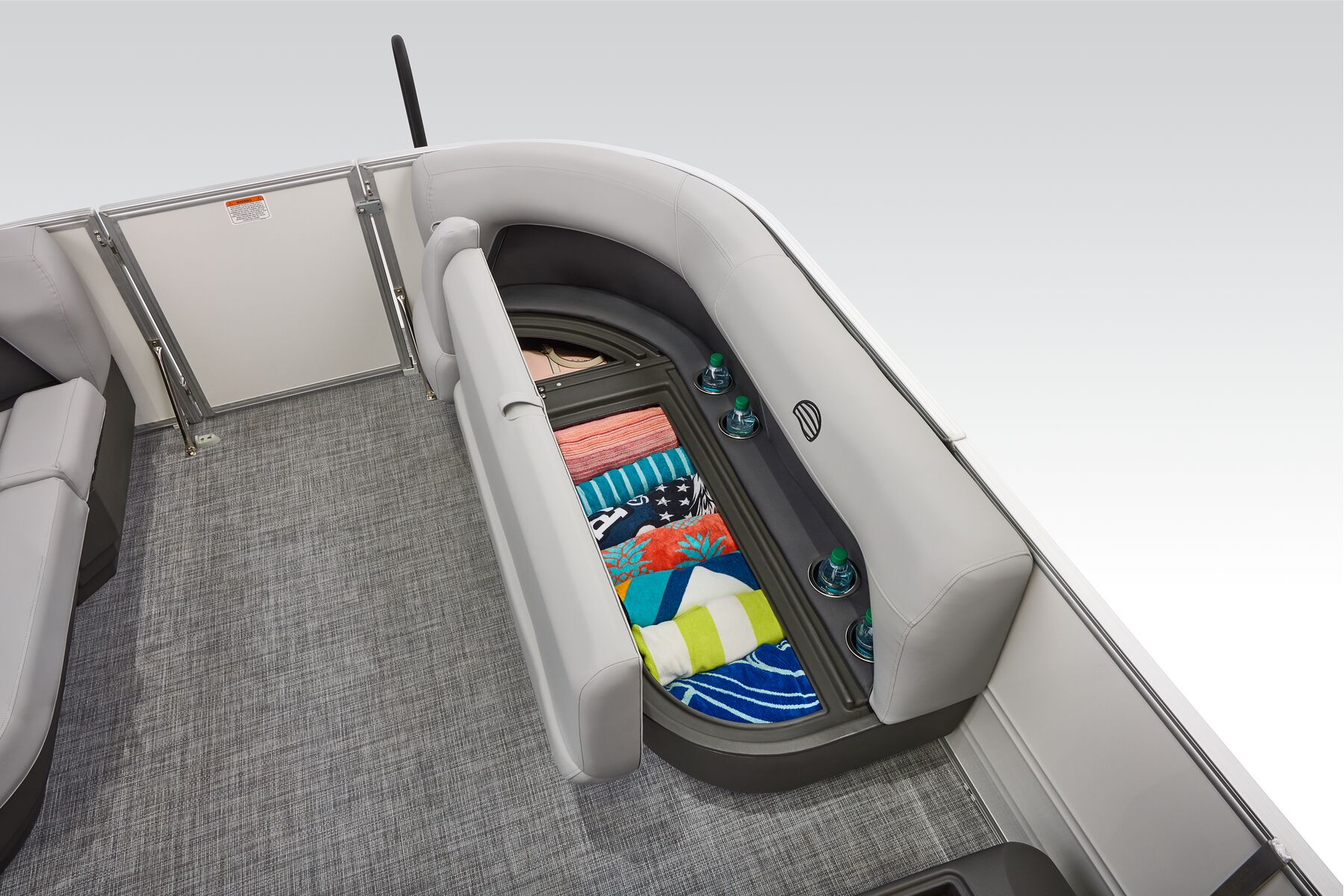

Stash rods and reels, water toys for the kids, and other gear in the lounges’ hidden under-seat storage areas. Bring the party to life with the standard Bluetooth®-compatible Wet Sounds® stereo. When the sun’s beating down, stay cool in the shade of the 7’ bimini top.

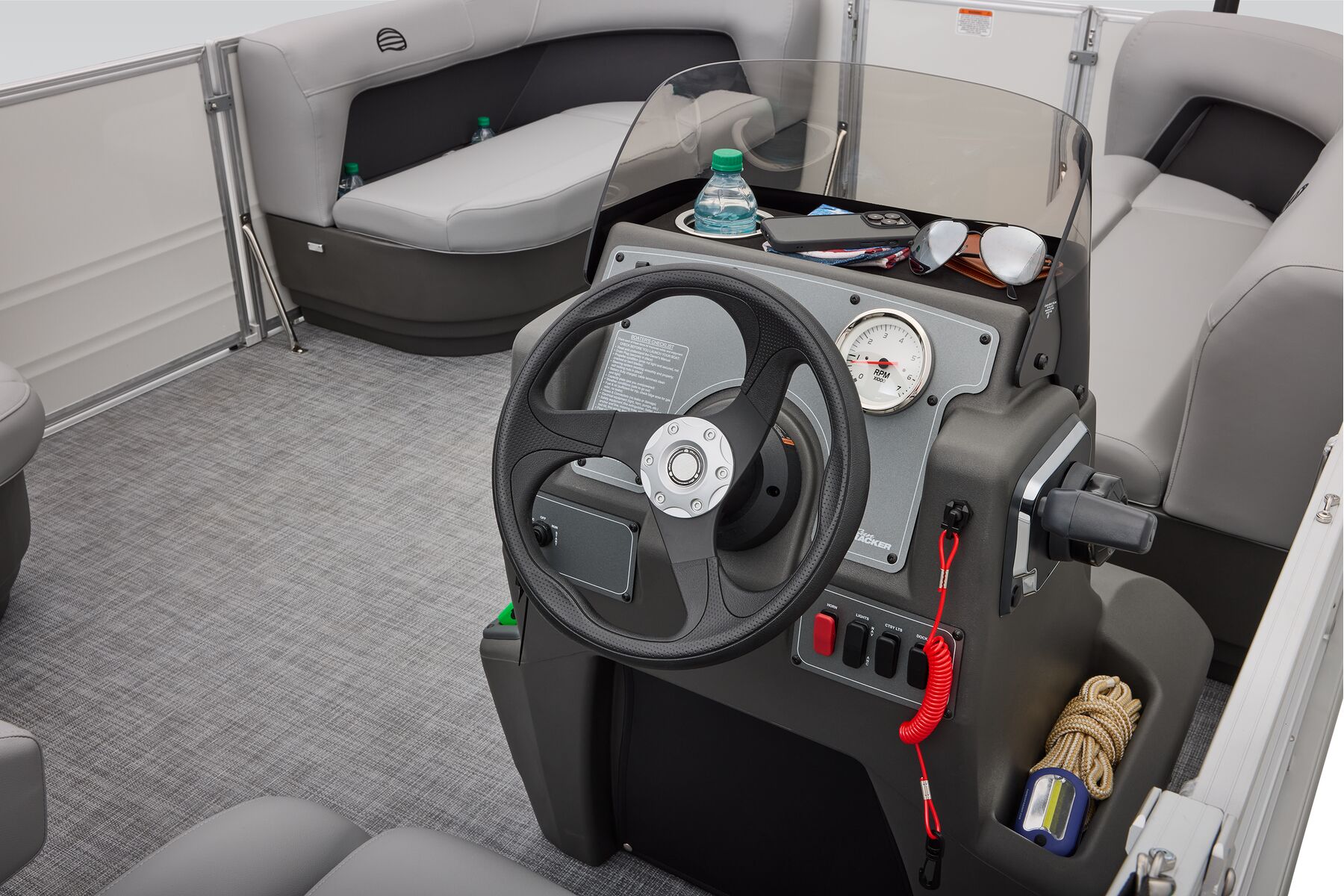

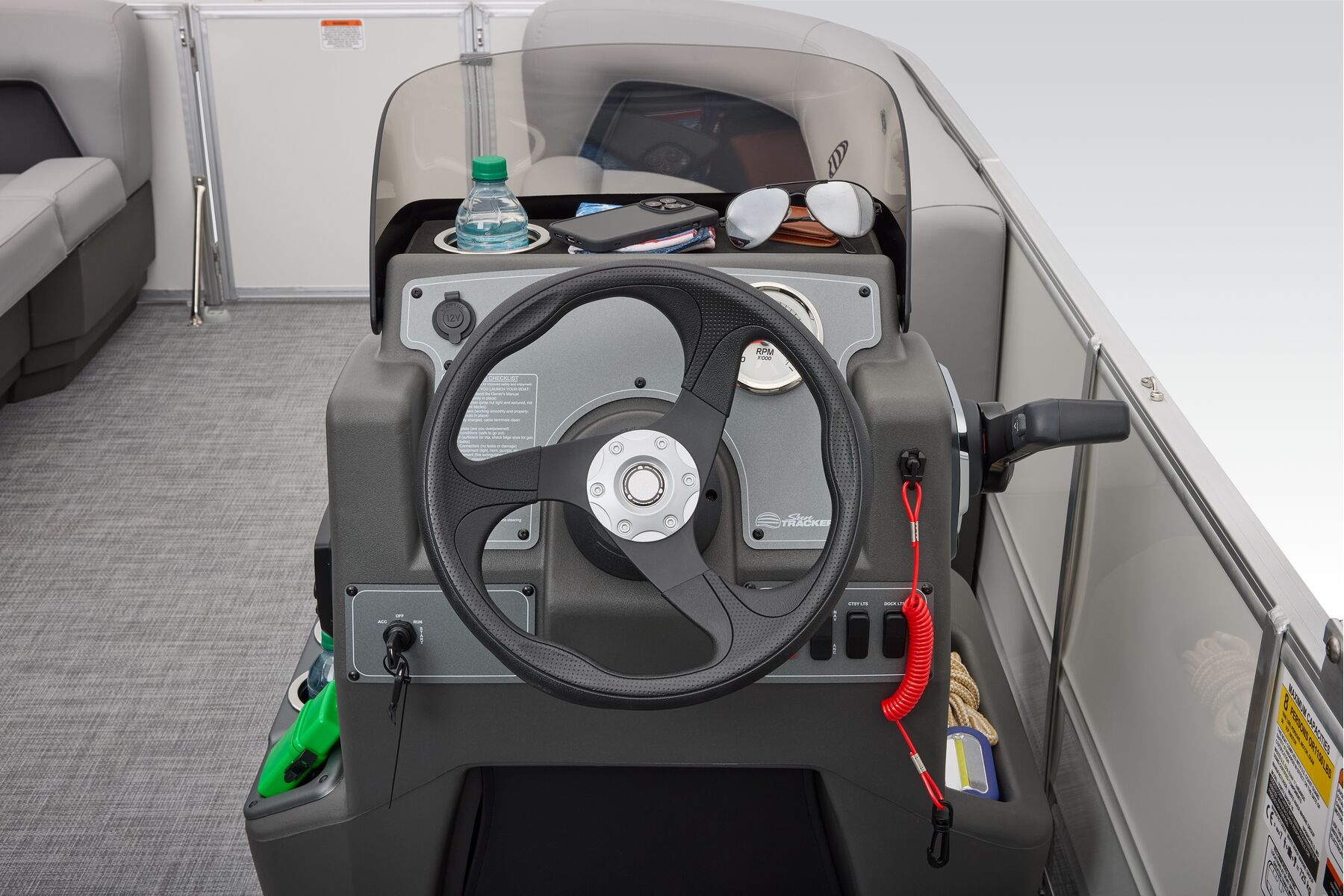

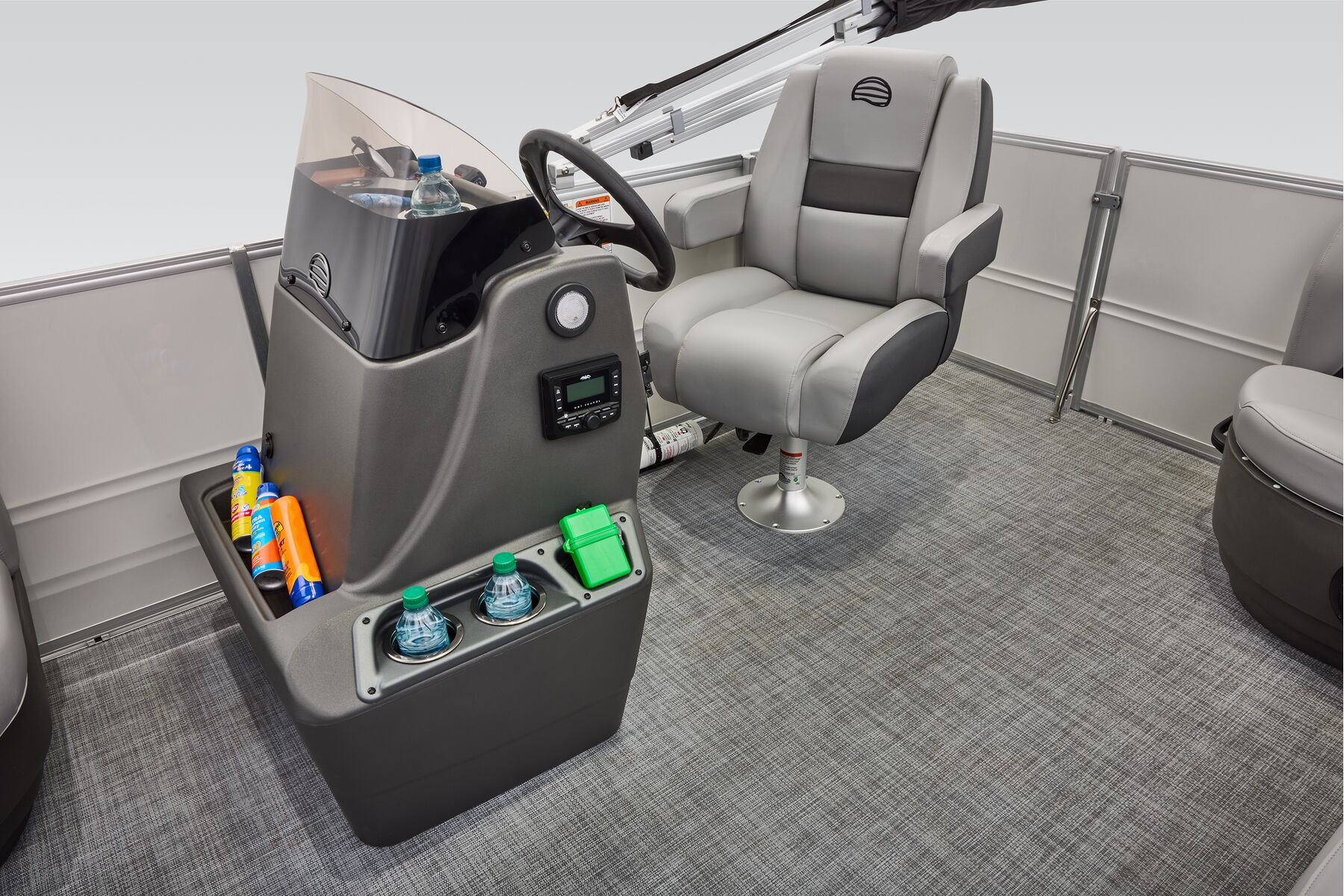

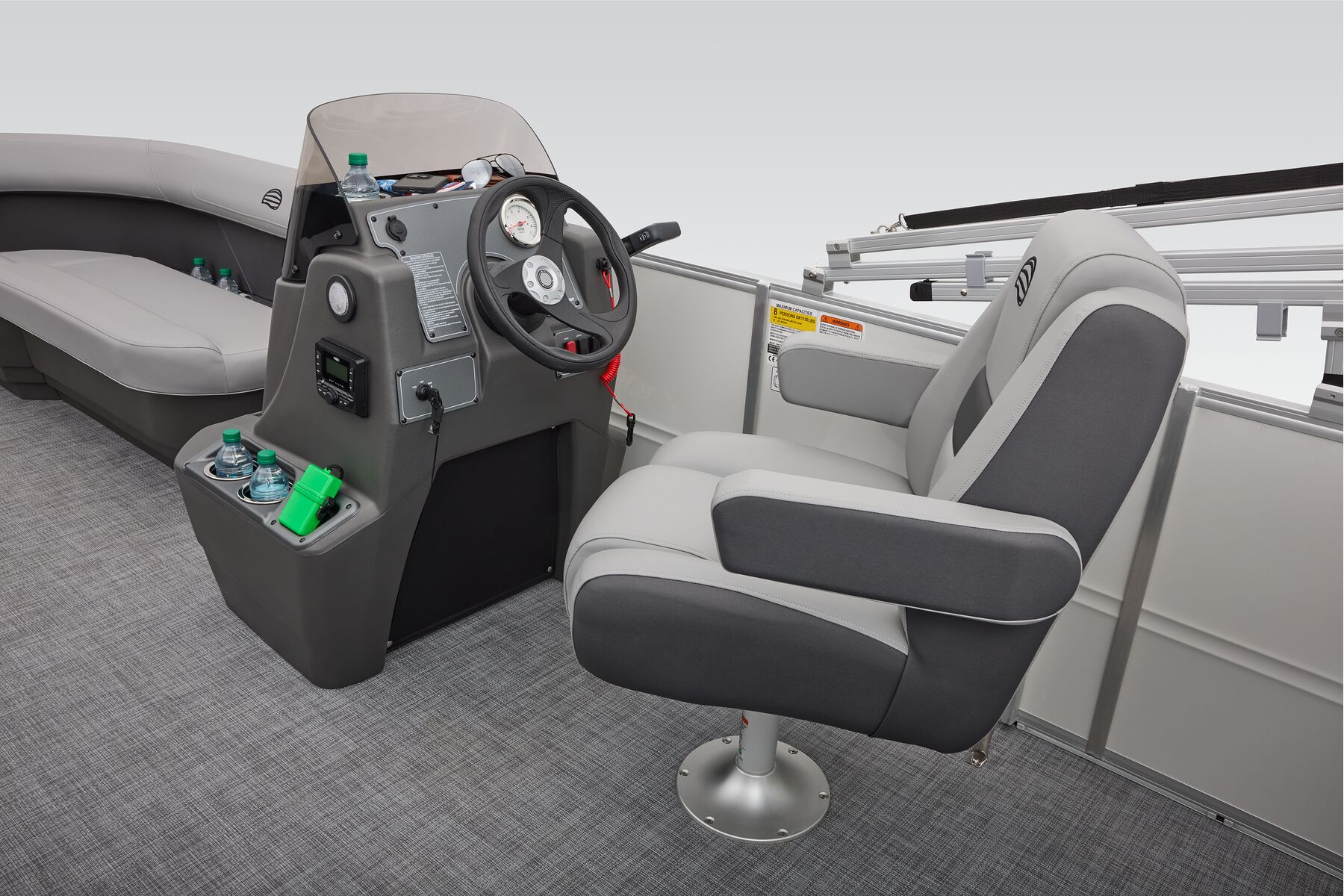

The captain can stand or sit proudly at the fiberglass-reinforced console equipped with a sport steering wheel and Mercury® binnacle control box. A storage space below the console holds extra snacks and supplies.

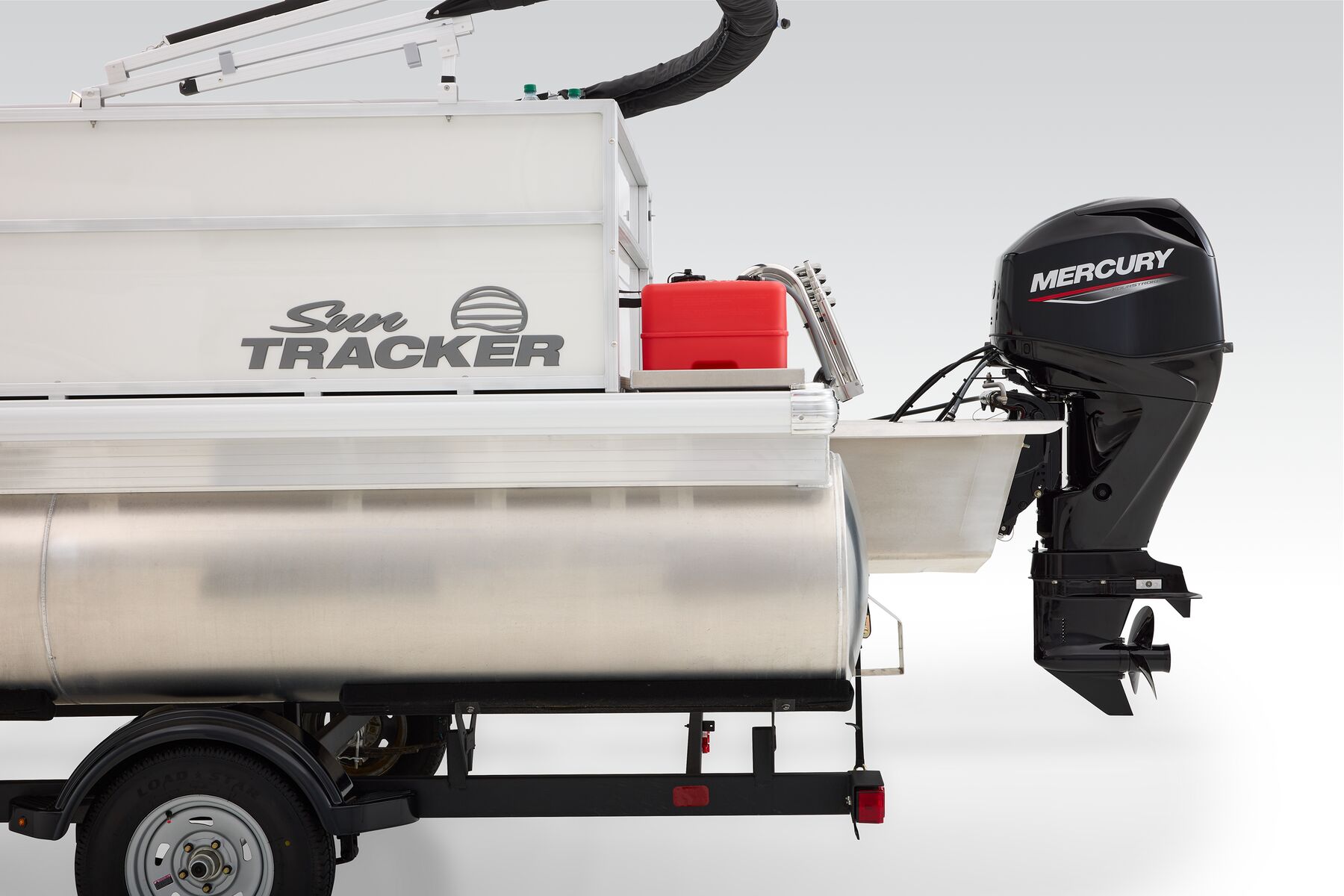

The PARTY BARGE® 16 DLX comes standard with a 20hp Mercury® ELPT FourStroke outboard motor and has a recommended maximum 50hp rating.
Key Features
Bimini Top
7' polyester Bimini top with easy-adjusting straps.

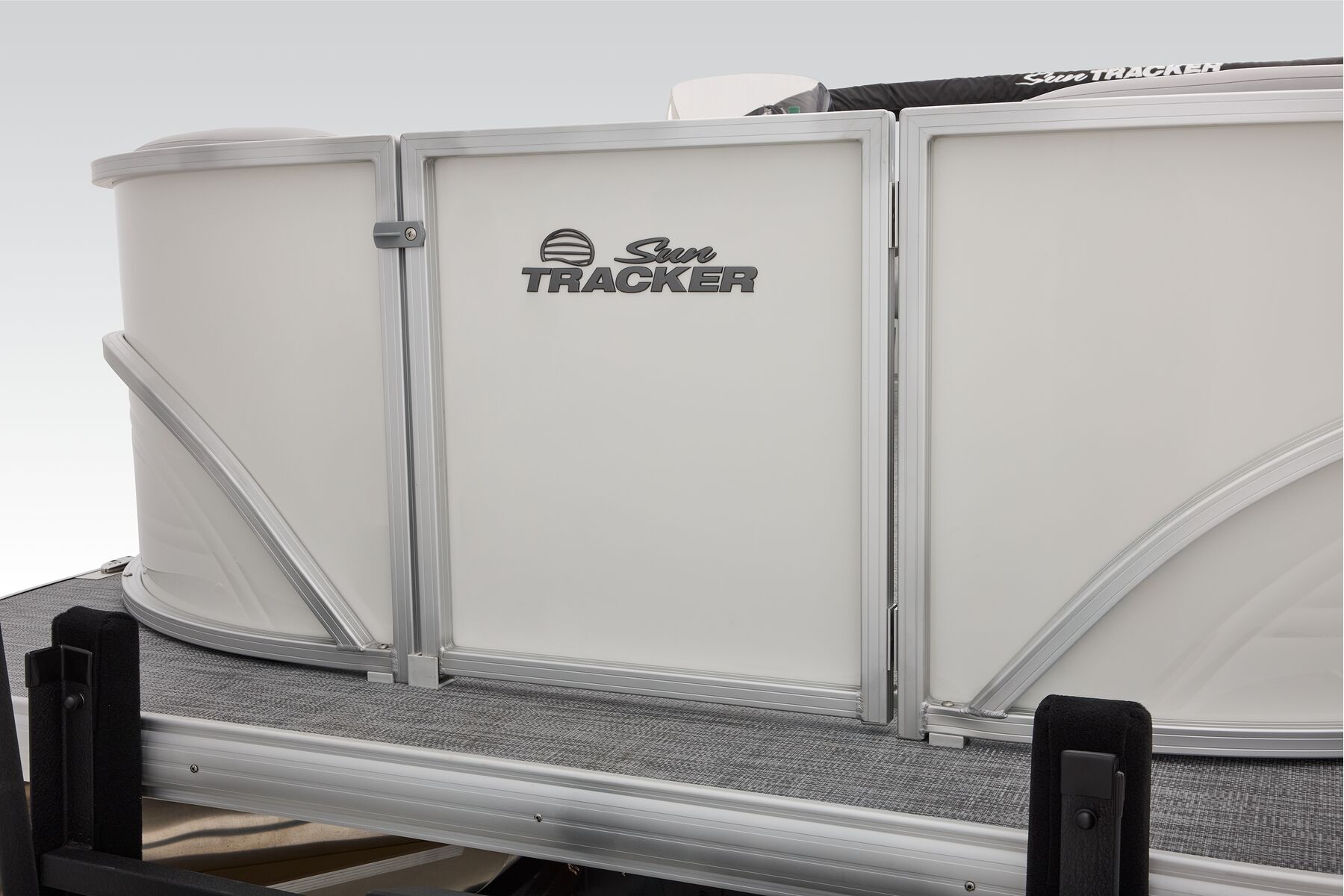

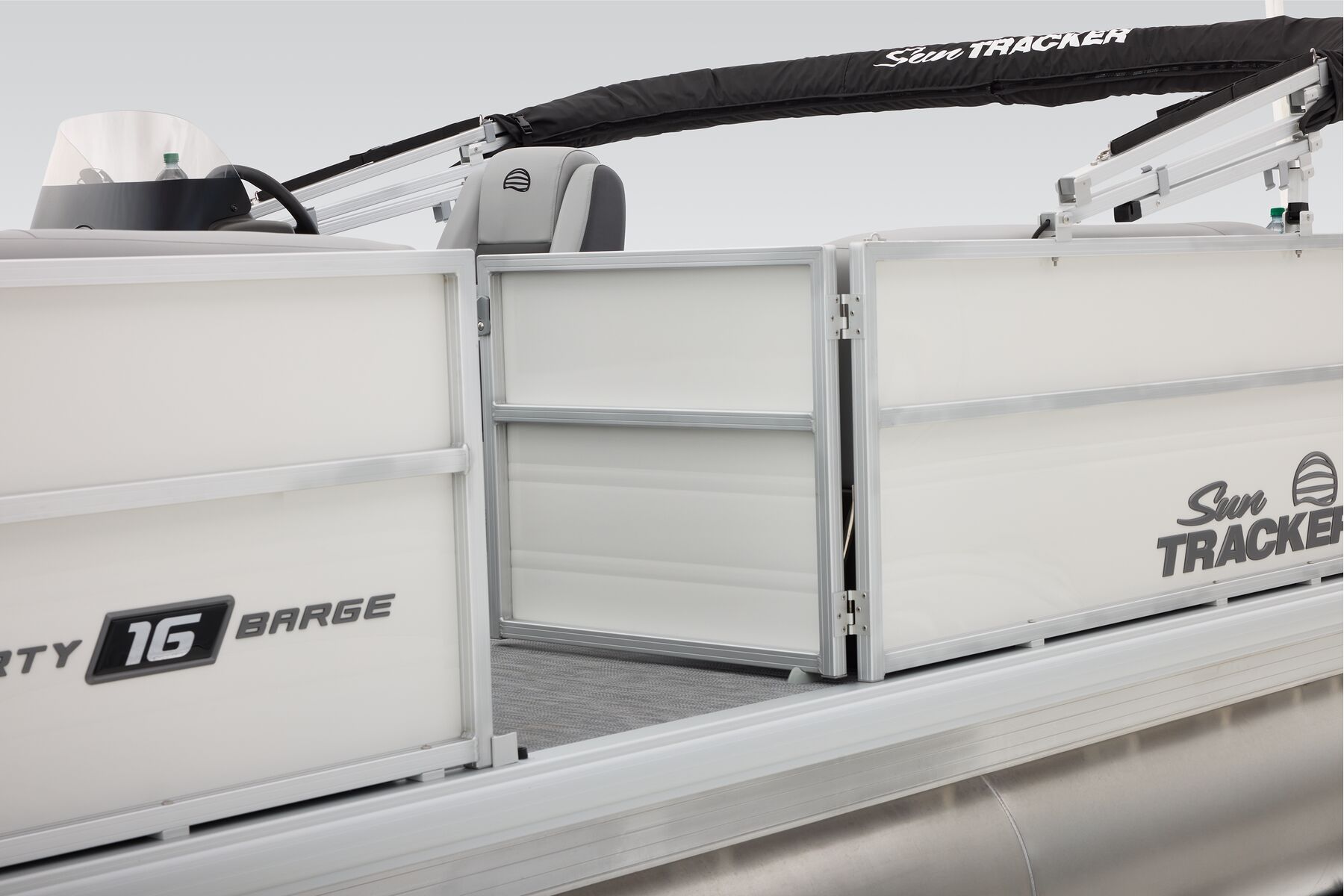

Port Gate
The port side gate is wide enough to accommodate wheelchair access and easier loading and unloading of larger gear items.

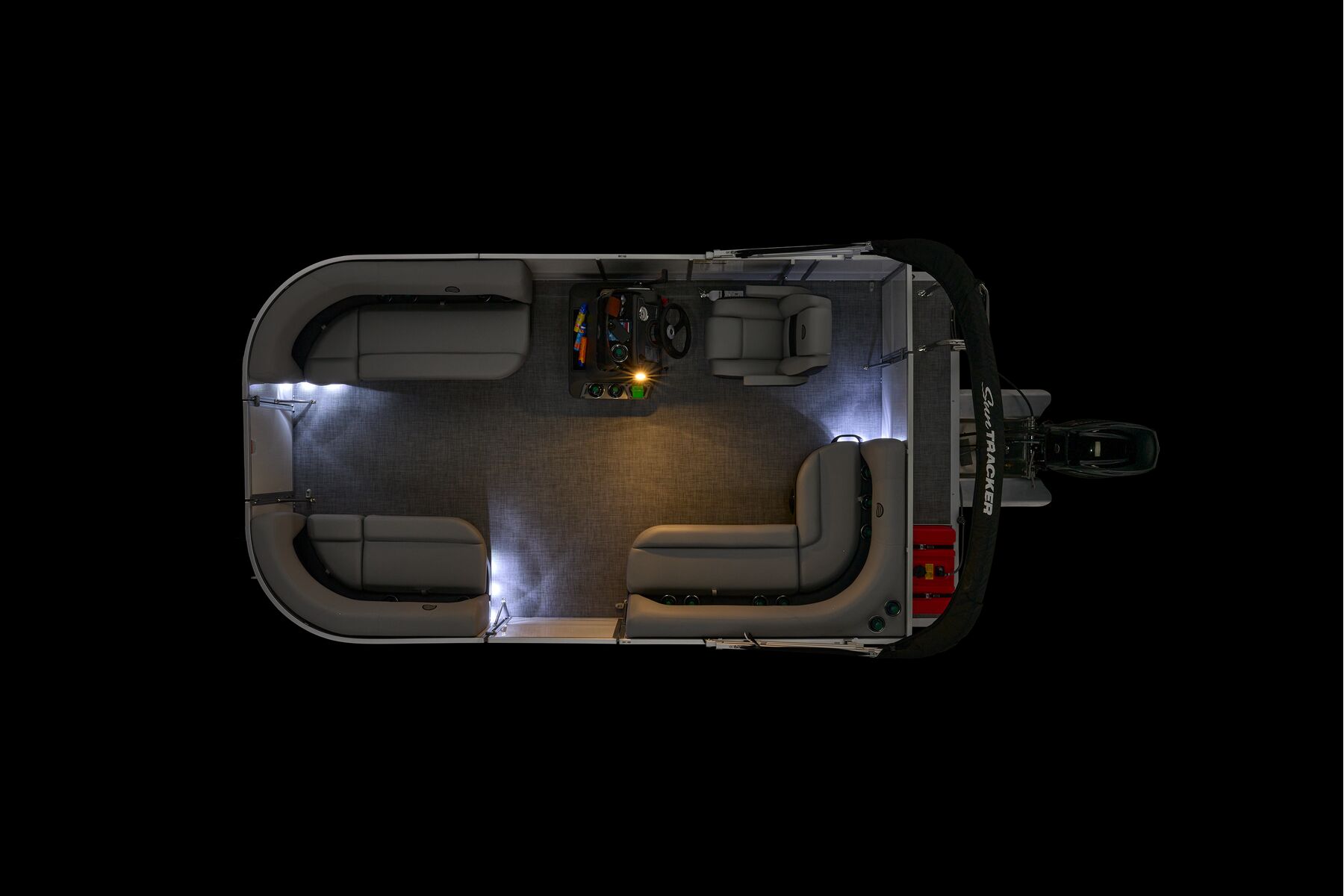

Interior Lighting
Courtesy lighting throughout the interior gives your crew visibility even when the sun calls it a day before you do.
Gallery
Specifications
| Length | 5.61 m | 18' 5'' |
| Deck Length | 4.88 m | 16' |
| Deck Width | 2.44 m | 8' |
| Max. Recommended HP | 50 HP | |
| Fuel Capacity | 34.07 L | 9 gal. |
| Pontoon Log Length | 5.05 m | 16' 7'' |
| Pontoon Log Diameter | 60.96 cm | 24'' |
| Pontoon Log Material | 0.080 5052 marine alloy | |
| Max. Person Capacity | 8 persons |
| Max. Person Weight | 521.63 kg | 1150 lbs. |
| Max. Person, Motor & Gear Weight | 725.75 kg | 1600 lbs. |
| Interior Depth | 60.96 cm | 24'' |
| Average Dry Weight | 594.21 kg | 1310 lbs. |
| Average Package Weight | 1102.23 kg | 2430 lbs. |
| Package Height | 2.64 m | 8' 8'' |
| Package Width | 2.51 m | 8' 3'' |
| Towing Length | 7.65 m | 25' 1'' |
| Storage Length | 7.57 m | 24' 10'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 9.9 ELPT FourStroke Command Thrust ProKicker | - |
$17870 USD
|
Select Dealer | ||
| 20 ELPT FourStroke | 12-14 mph |
$17995 USD
|
Select Dealer | ||
| 50 ELPT FourStroke | - |
$21395 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
- NMMA® certified
- 7' (2.13 m) polyester Bimini top w/easy-adjusting straps, trailering-position arms & protective boot (Black canvas)
- Easy-to-use, manual Bimini top deployment system
- Built-in LED docking lights

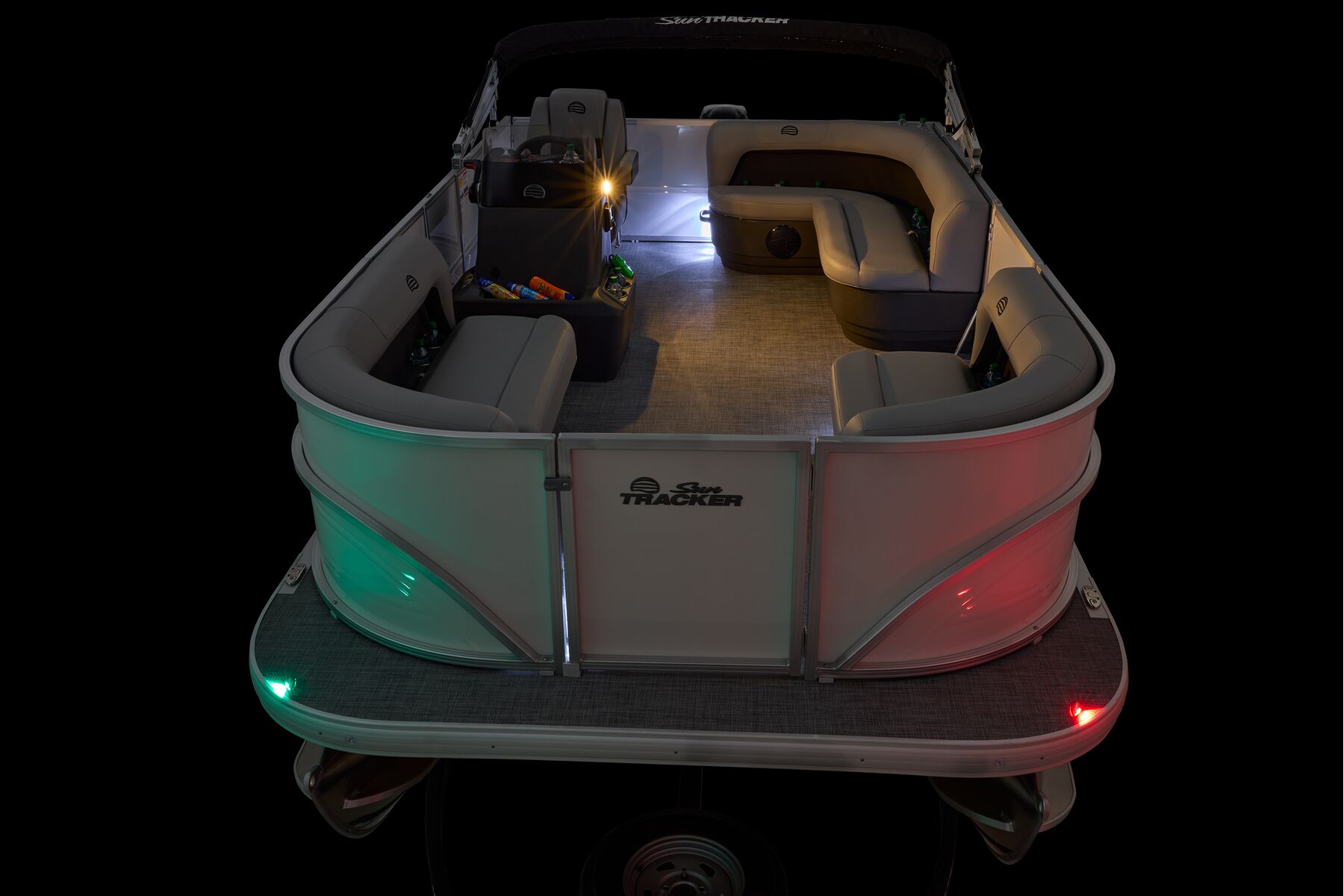

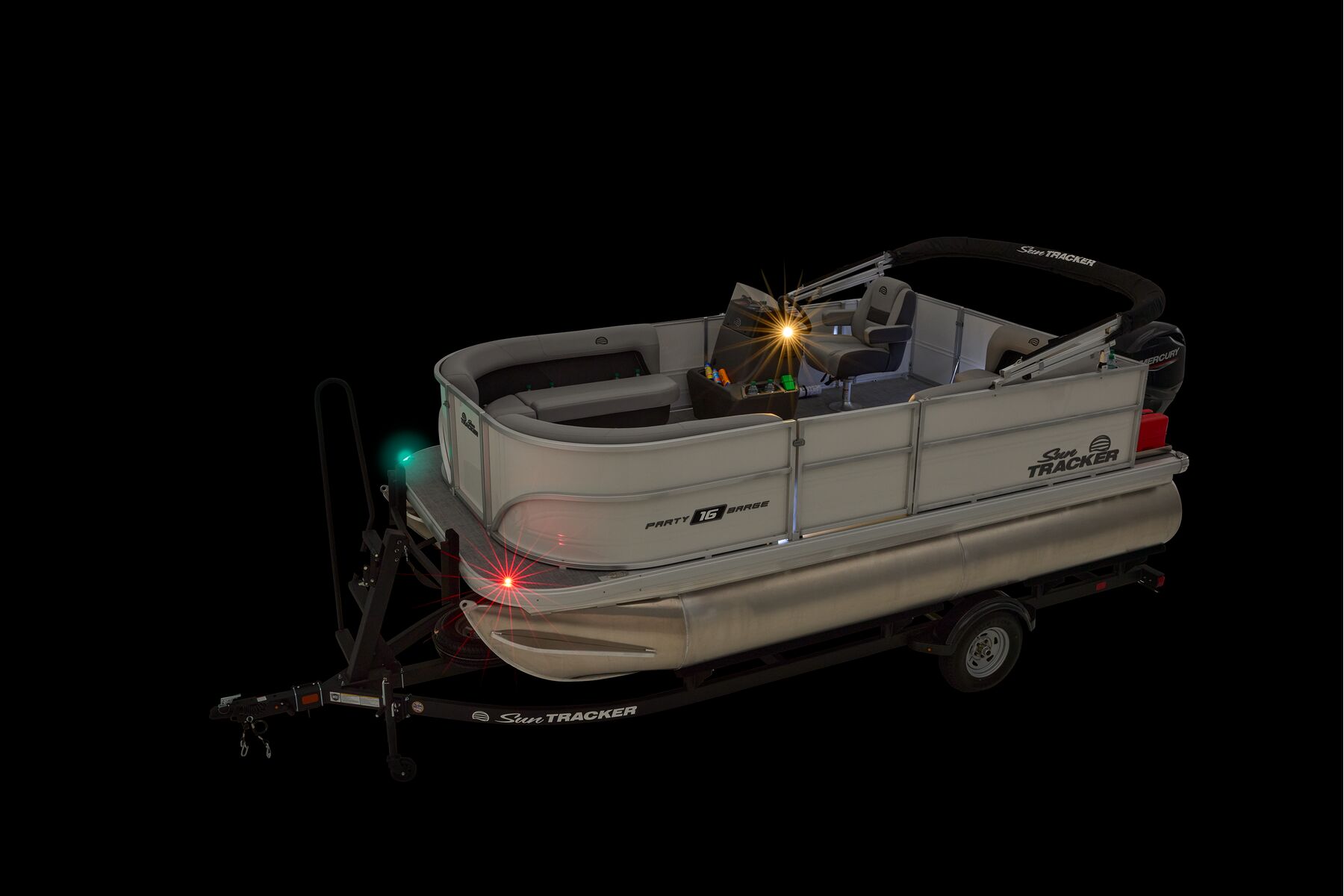

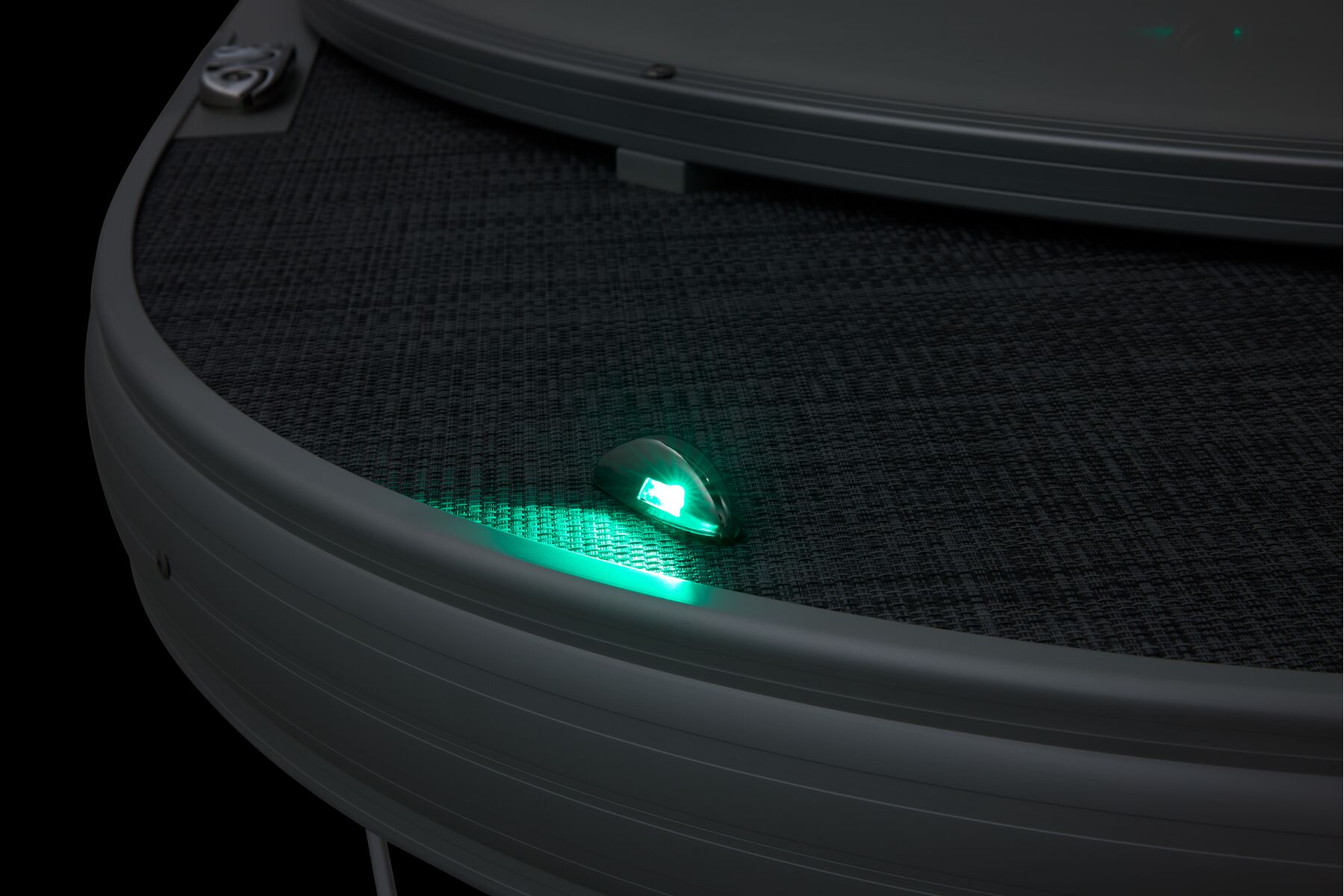

- Built-in LED navigation & anchor lights

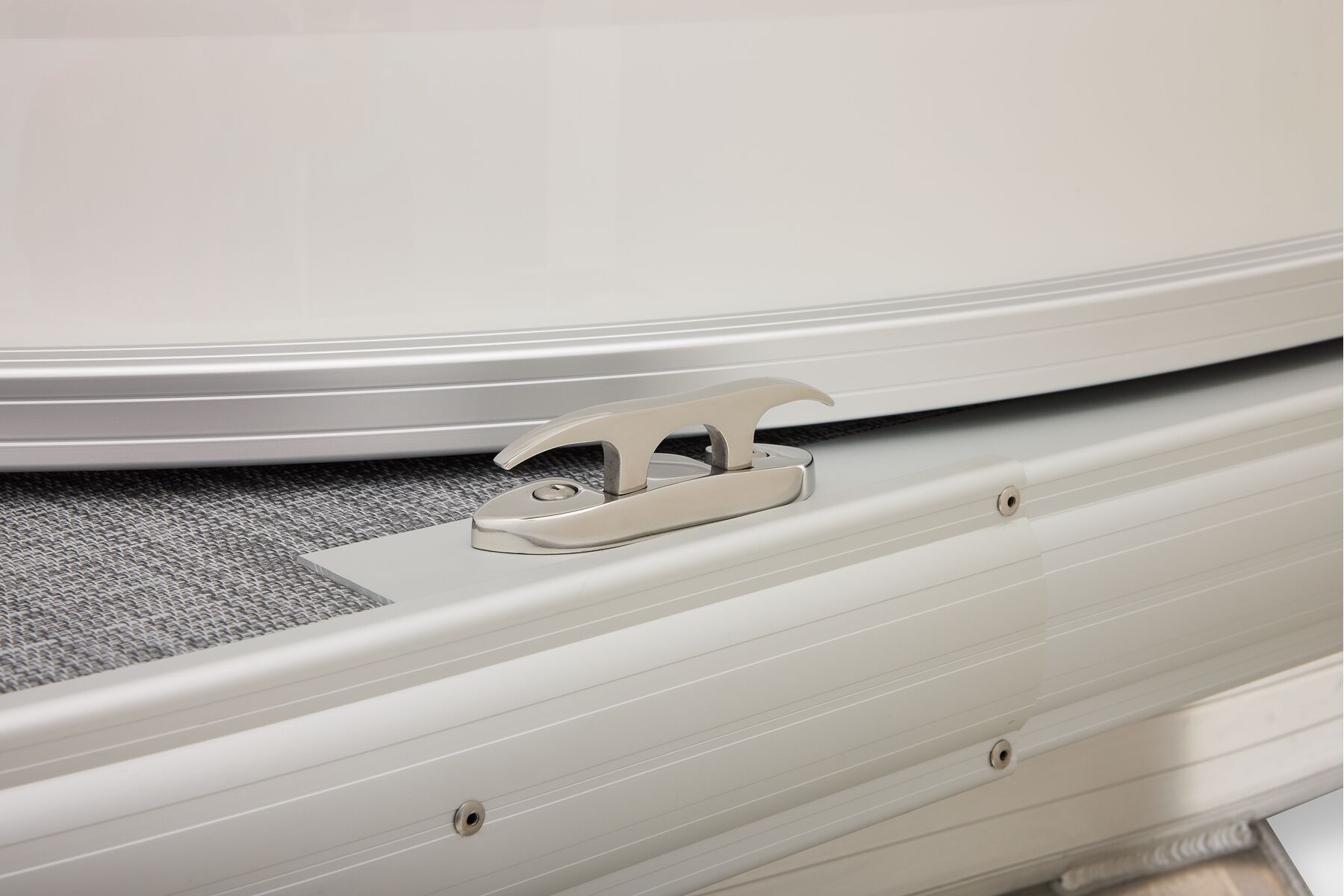

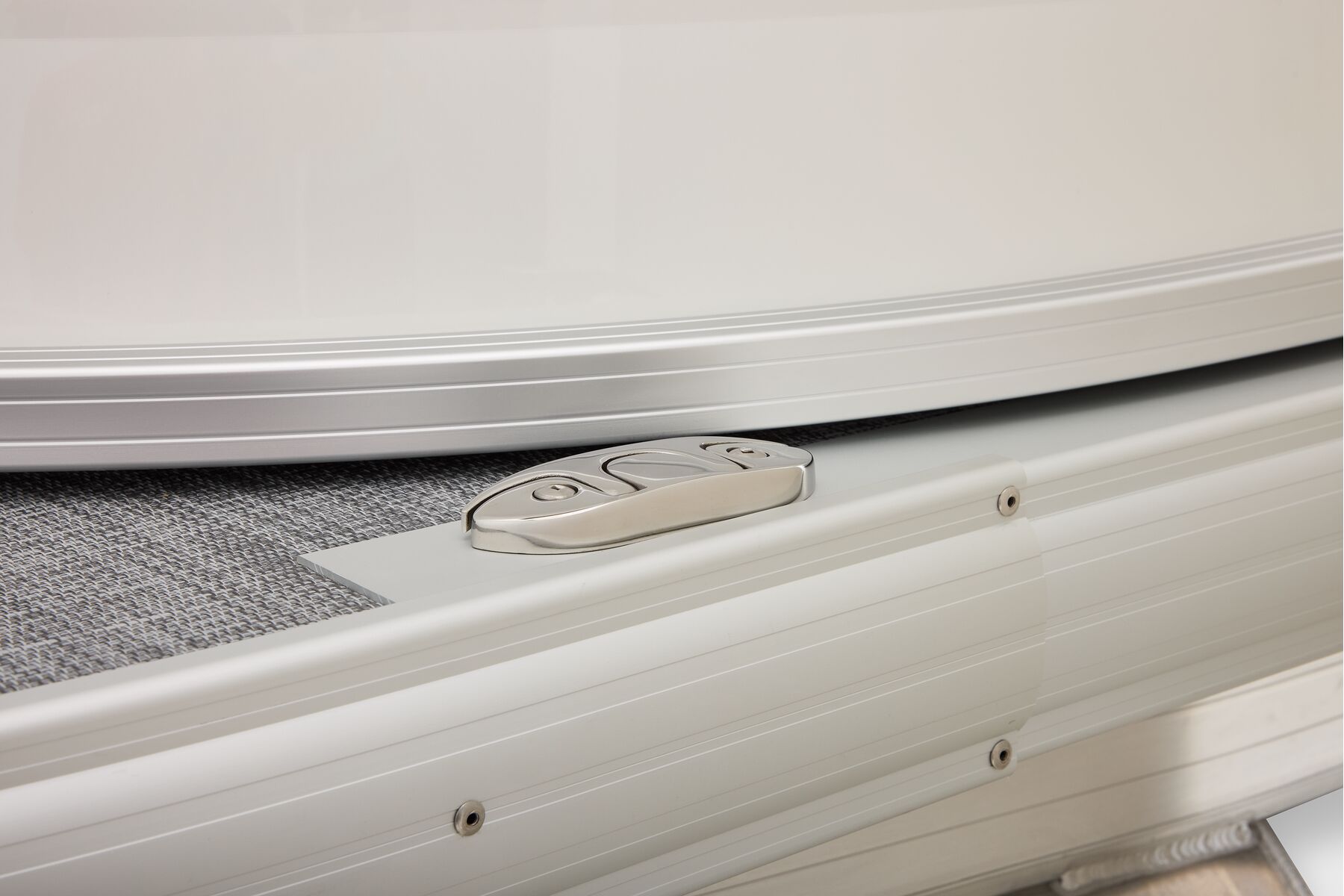

- 4 stainless steel mooring cleats
- Port wheelchair-accessible gate

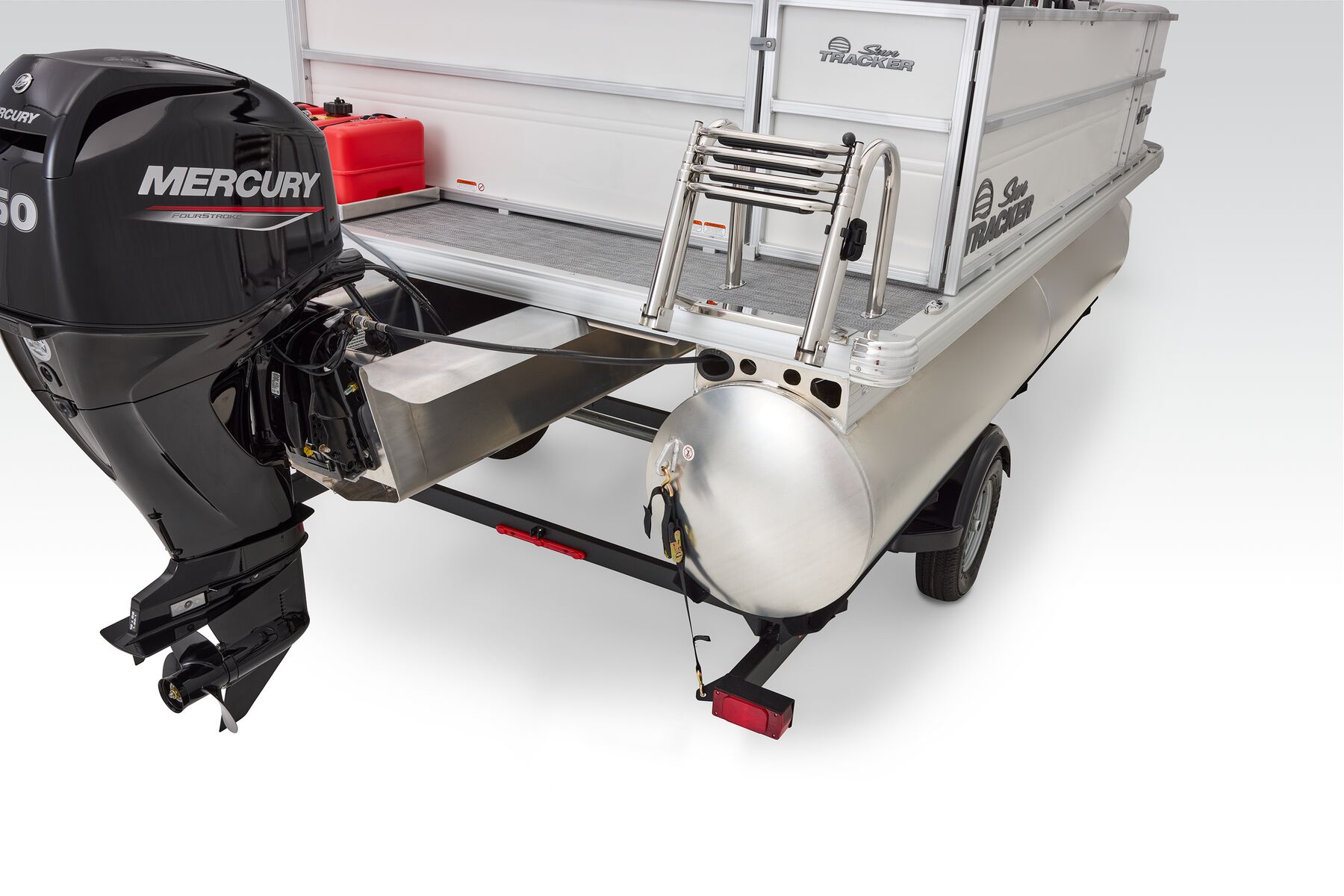

- Fore & rear boarding platforms w/rear 4-step telescoping boarding ladders & grab rails
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
Console
- Wraparound tinted windscreen

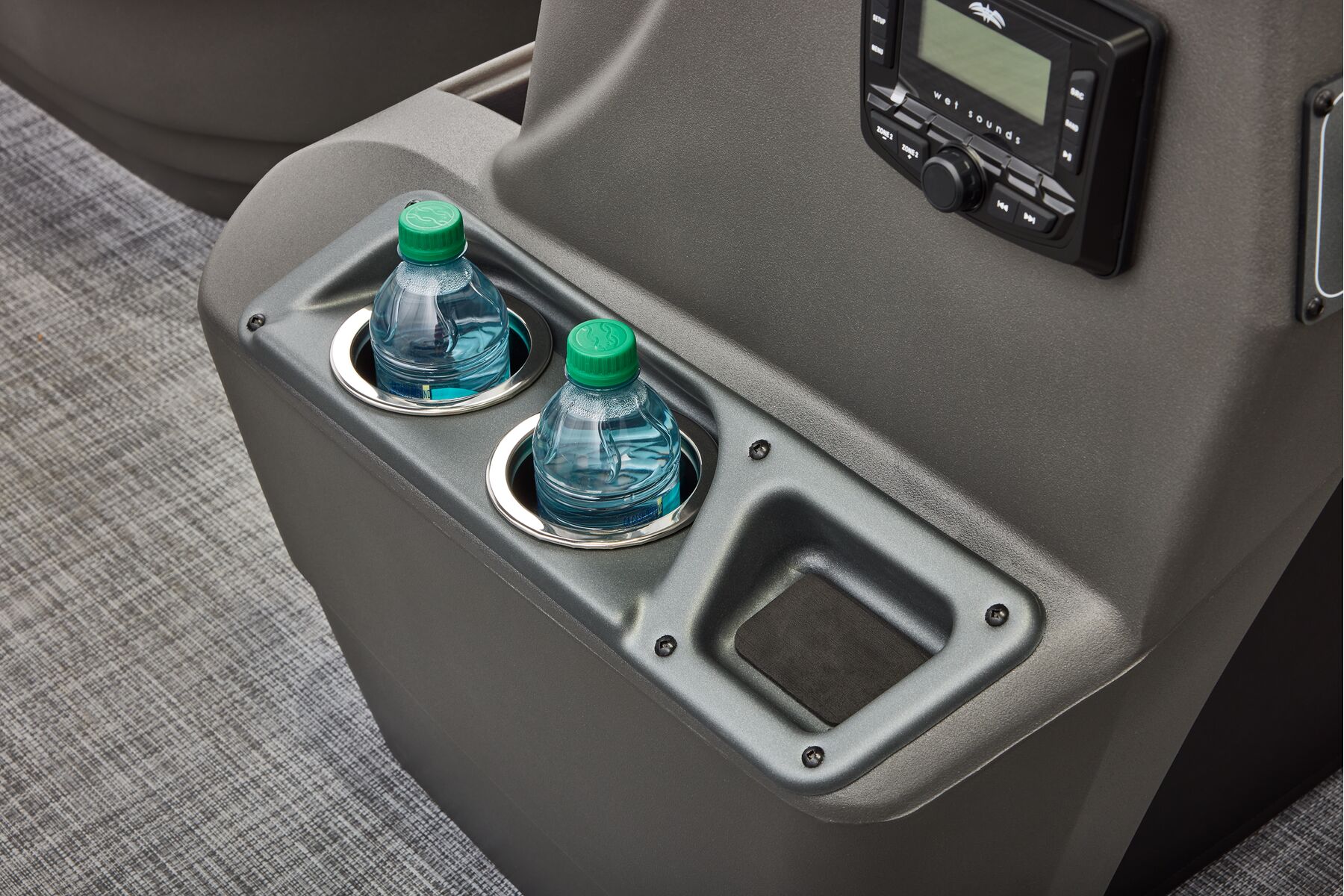

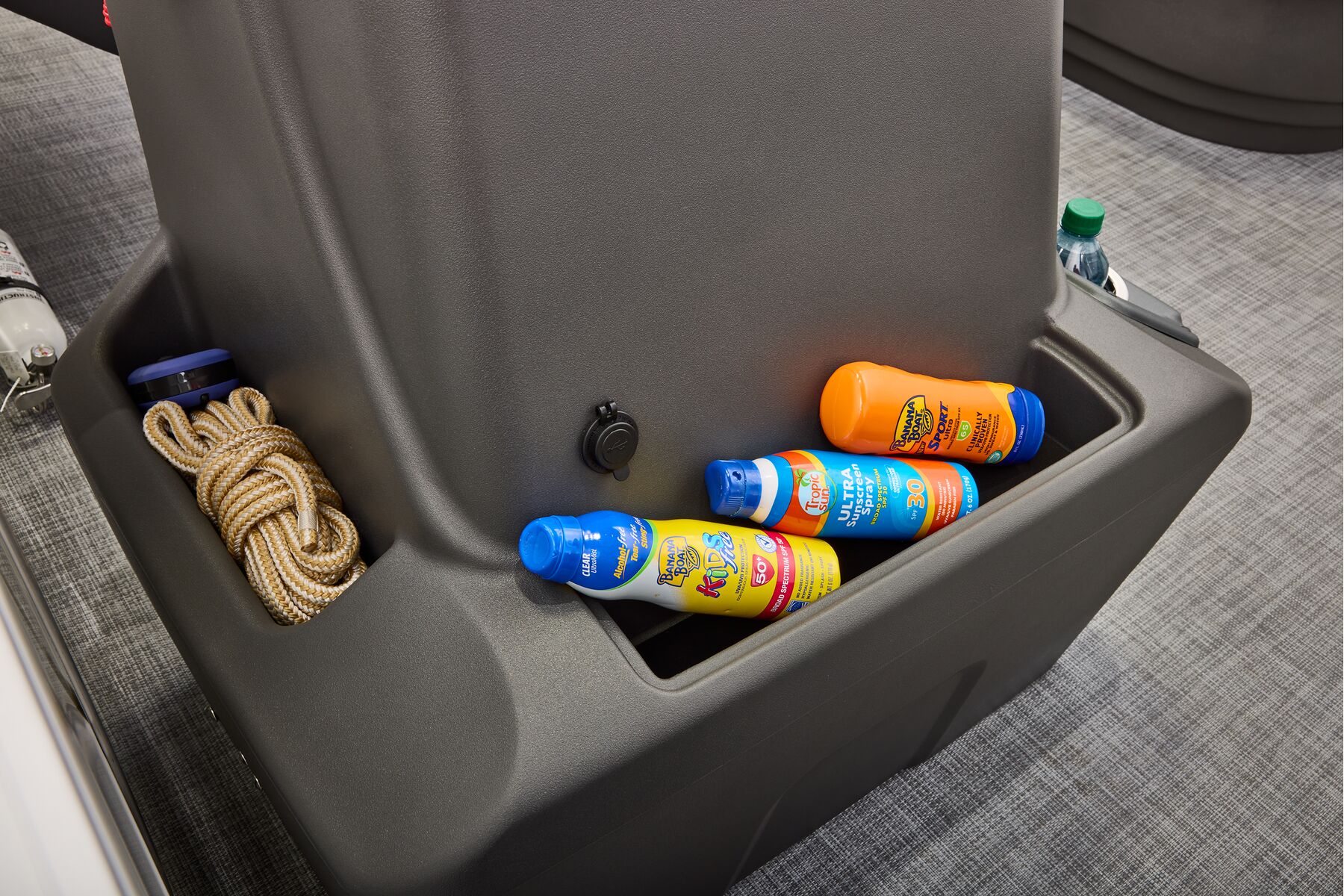

- Driver console w/integrated storage, drink holders & side-mounted controls
- 4:2 ratio no-feedback steering w/sport steering wheel

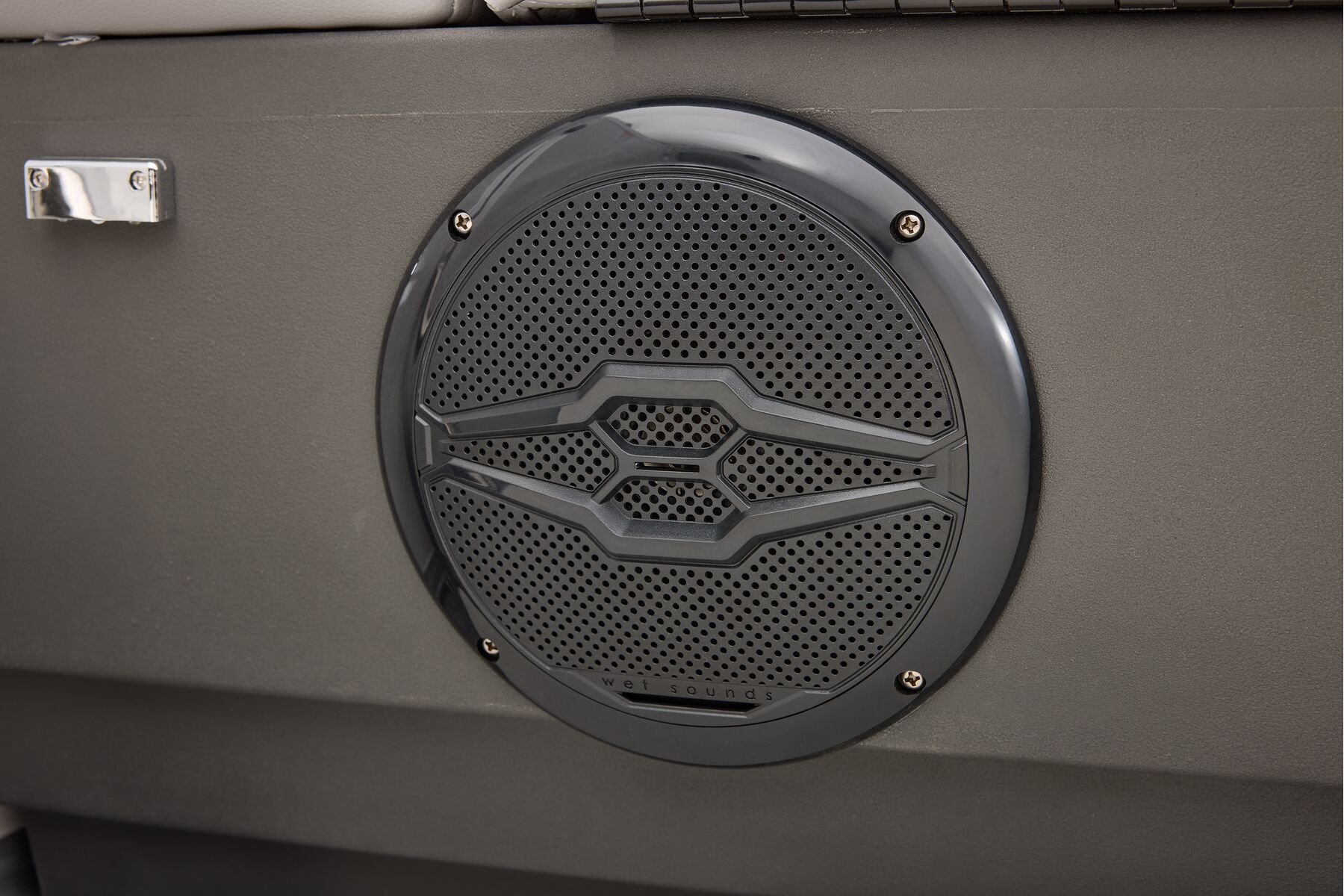

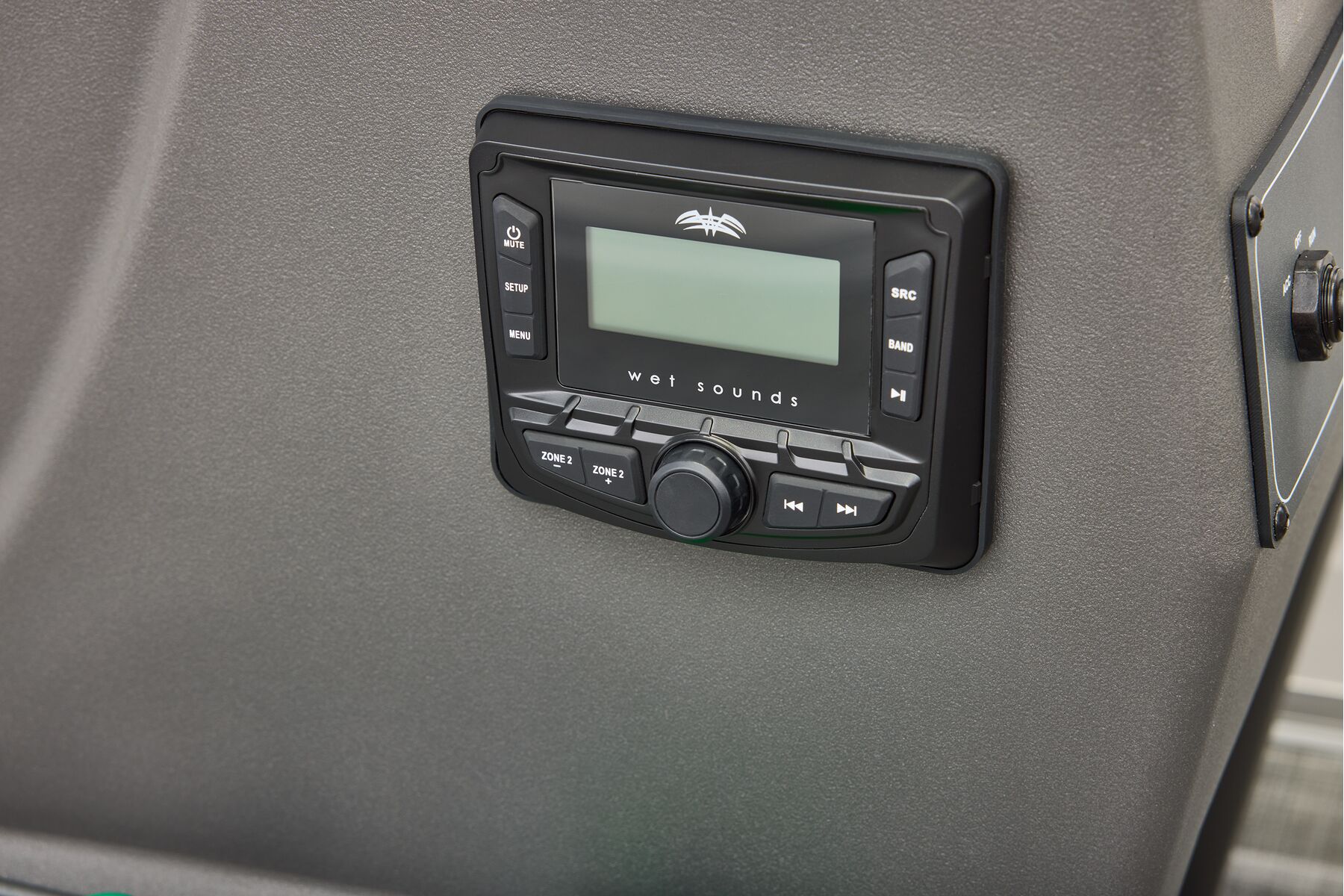

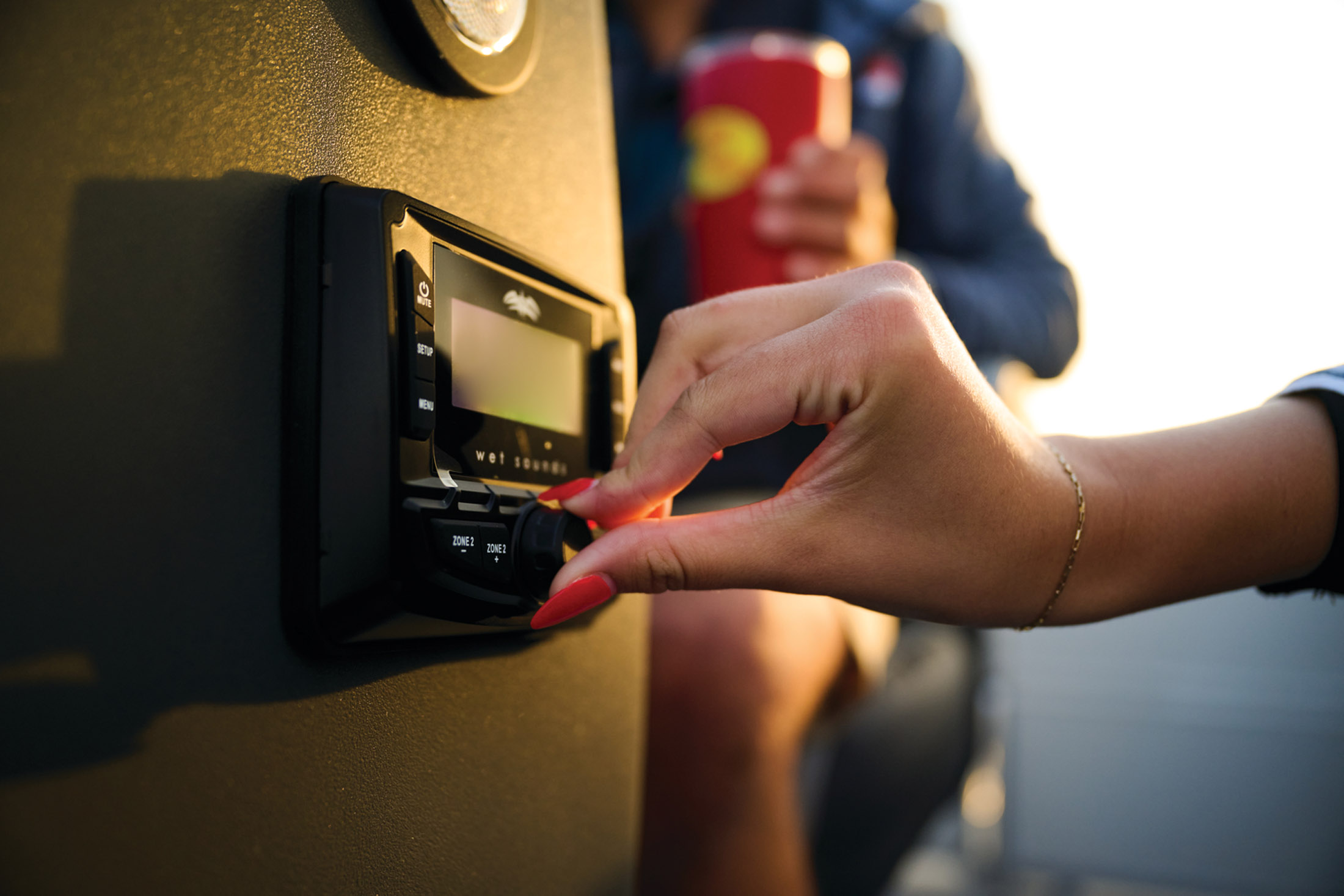

- Wet Sounds® stereo w/Bluetooth® & two 6.5" (16.51 cm) upholstery speakers
- Illuminated tachometer & fuel gauge

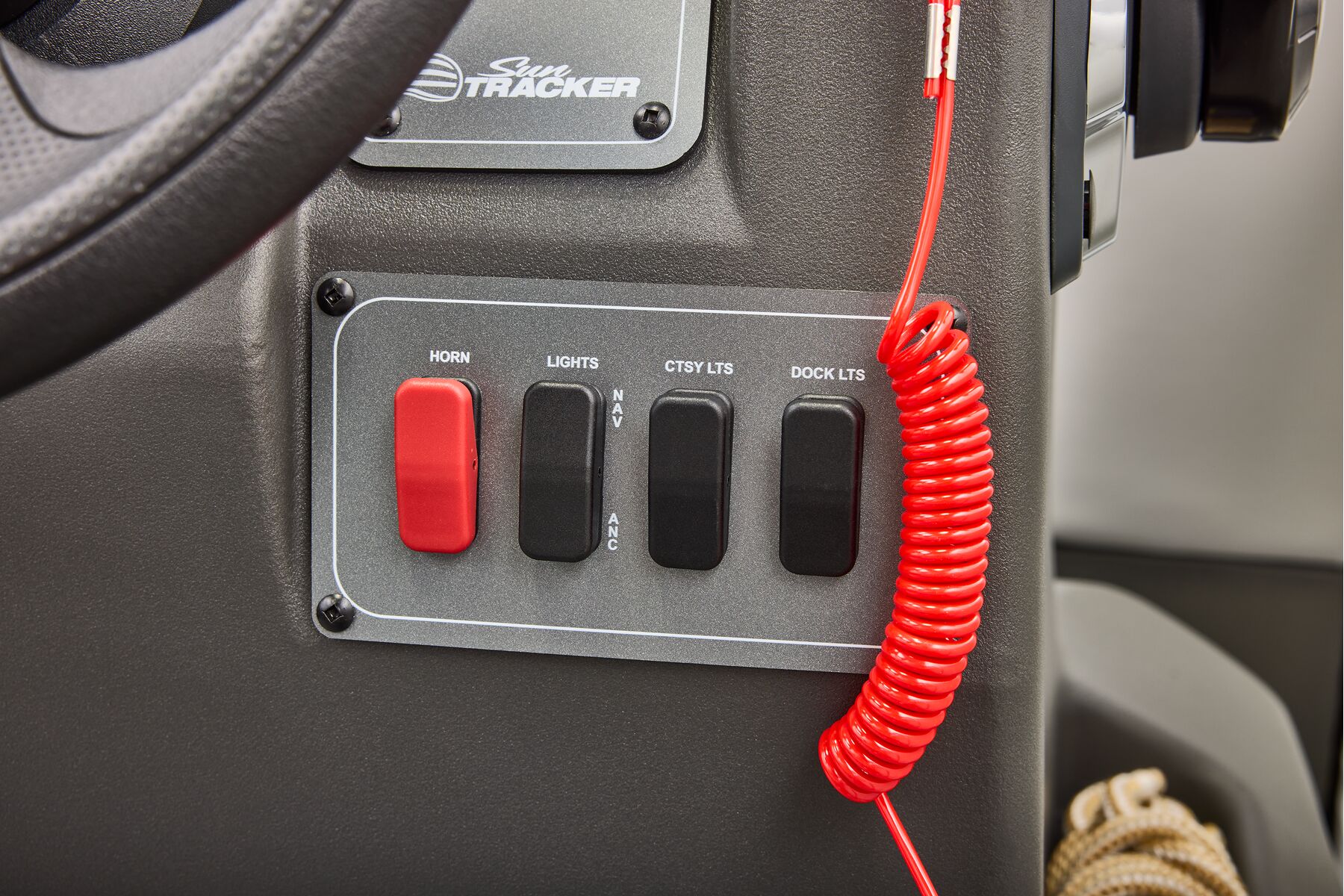

- Rocker switches
- USB charging receptacle

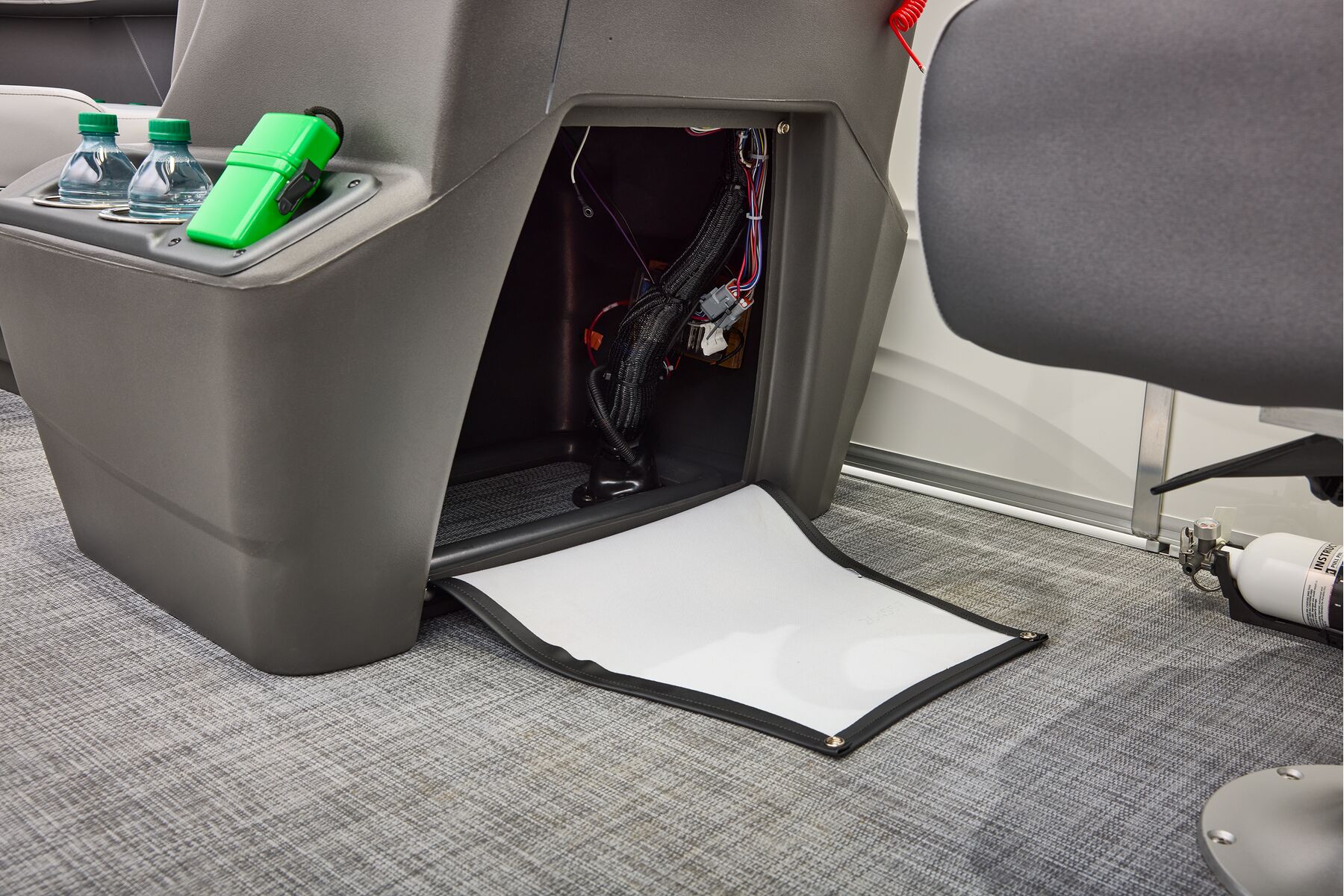

- Below-console storage space w/curtain
Interior

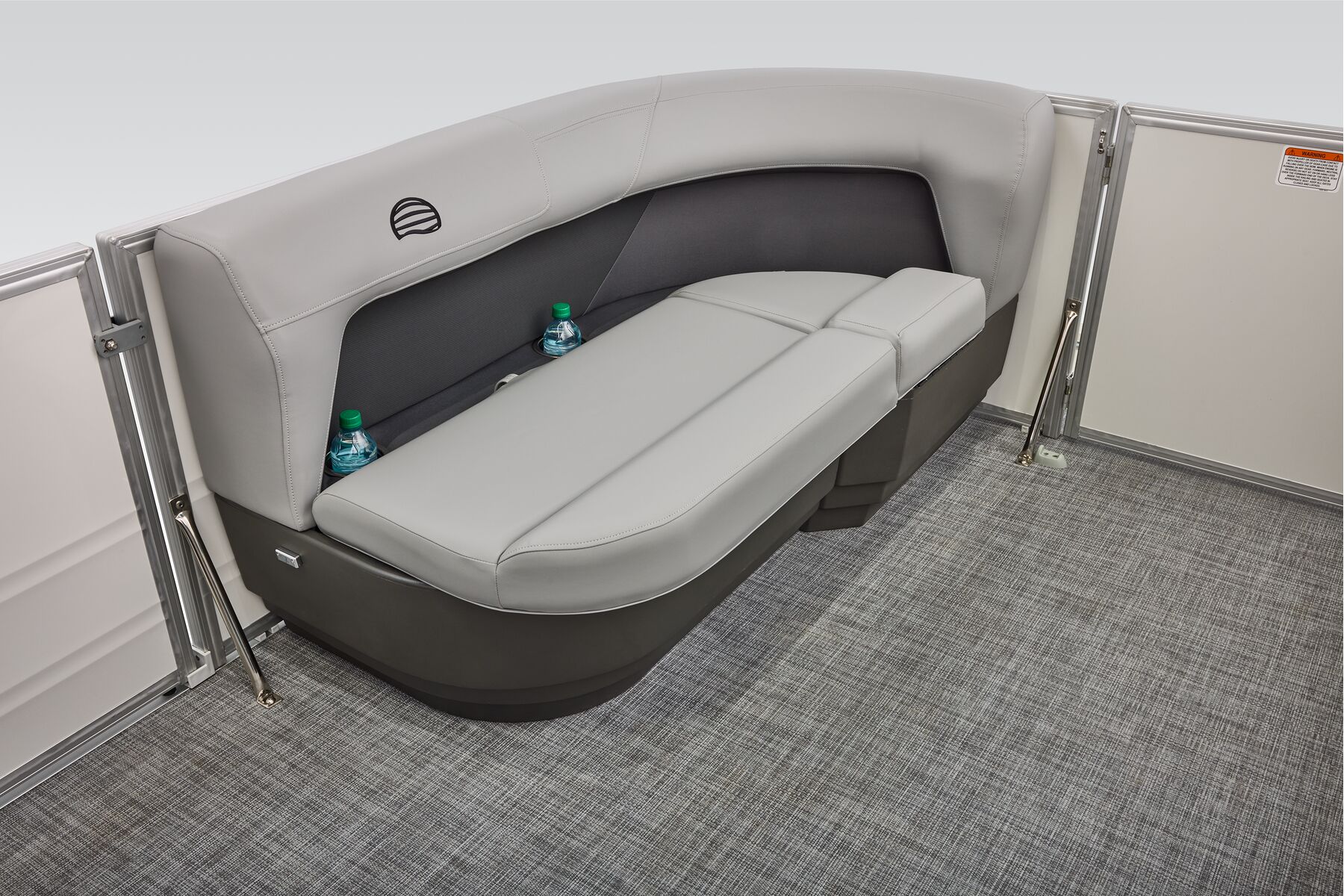

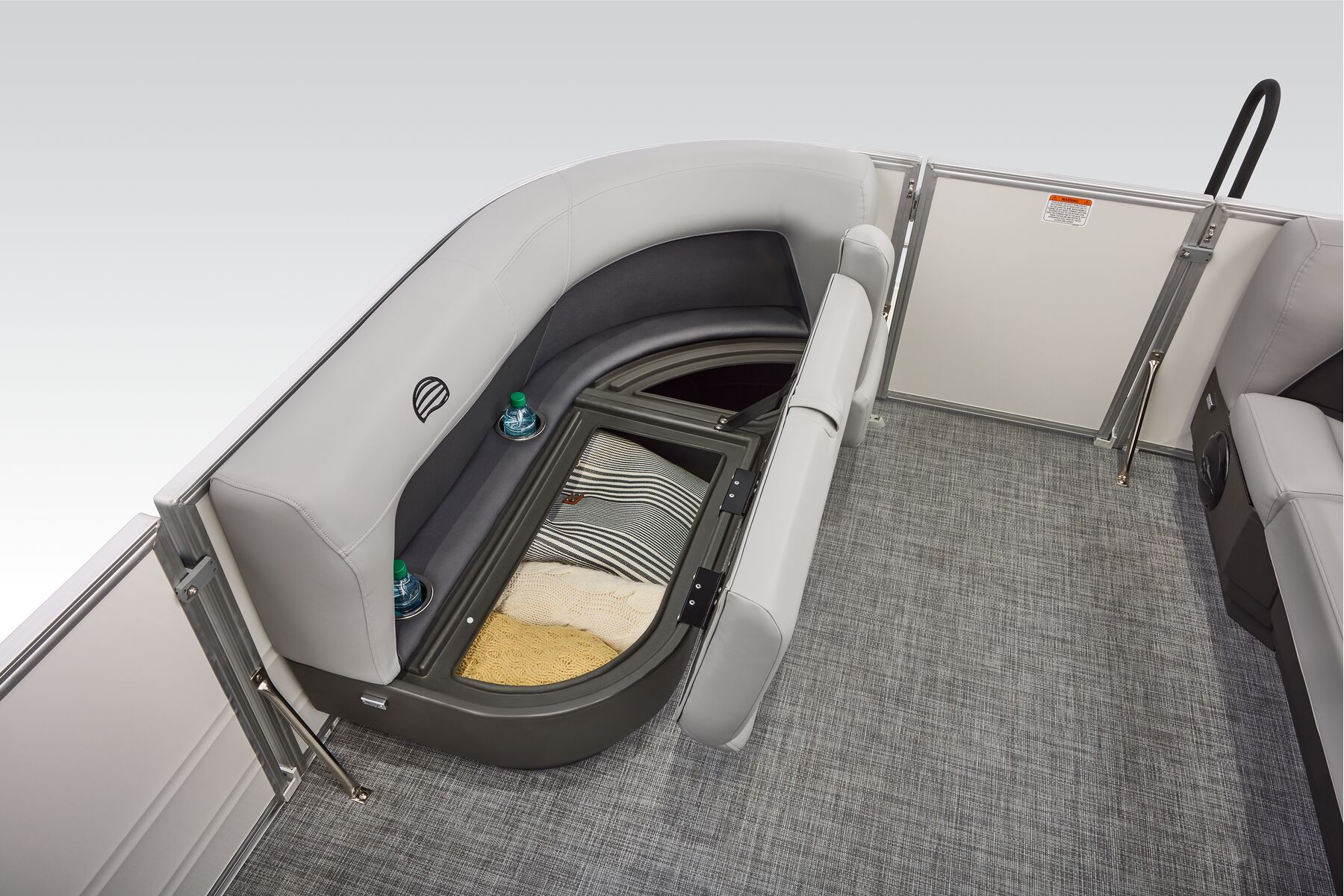

- Bow port & starboard couches w/underseat storage

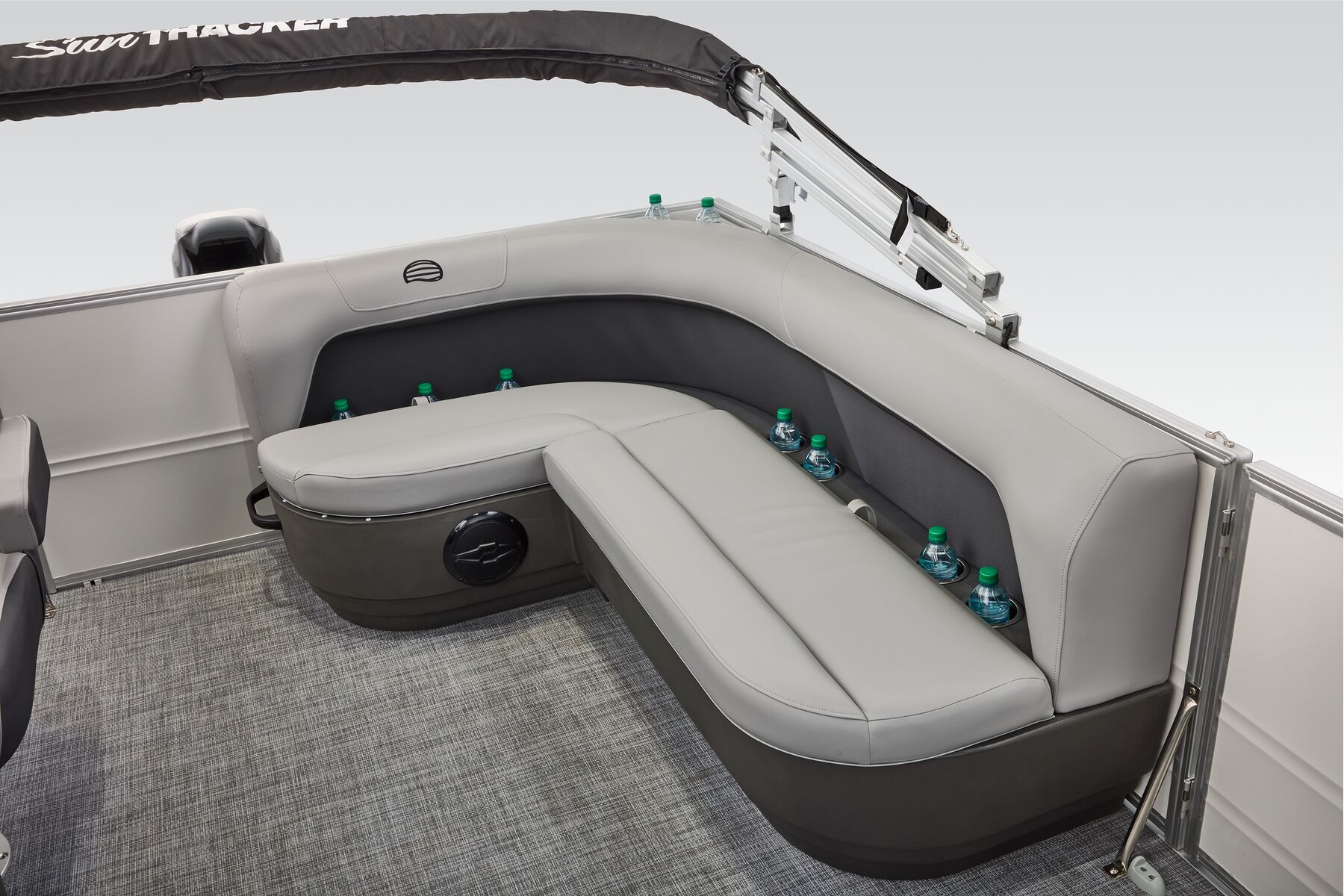

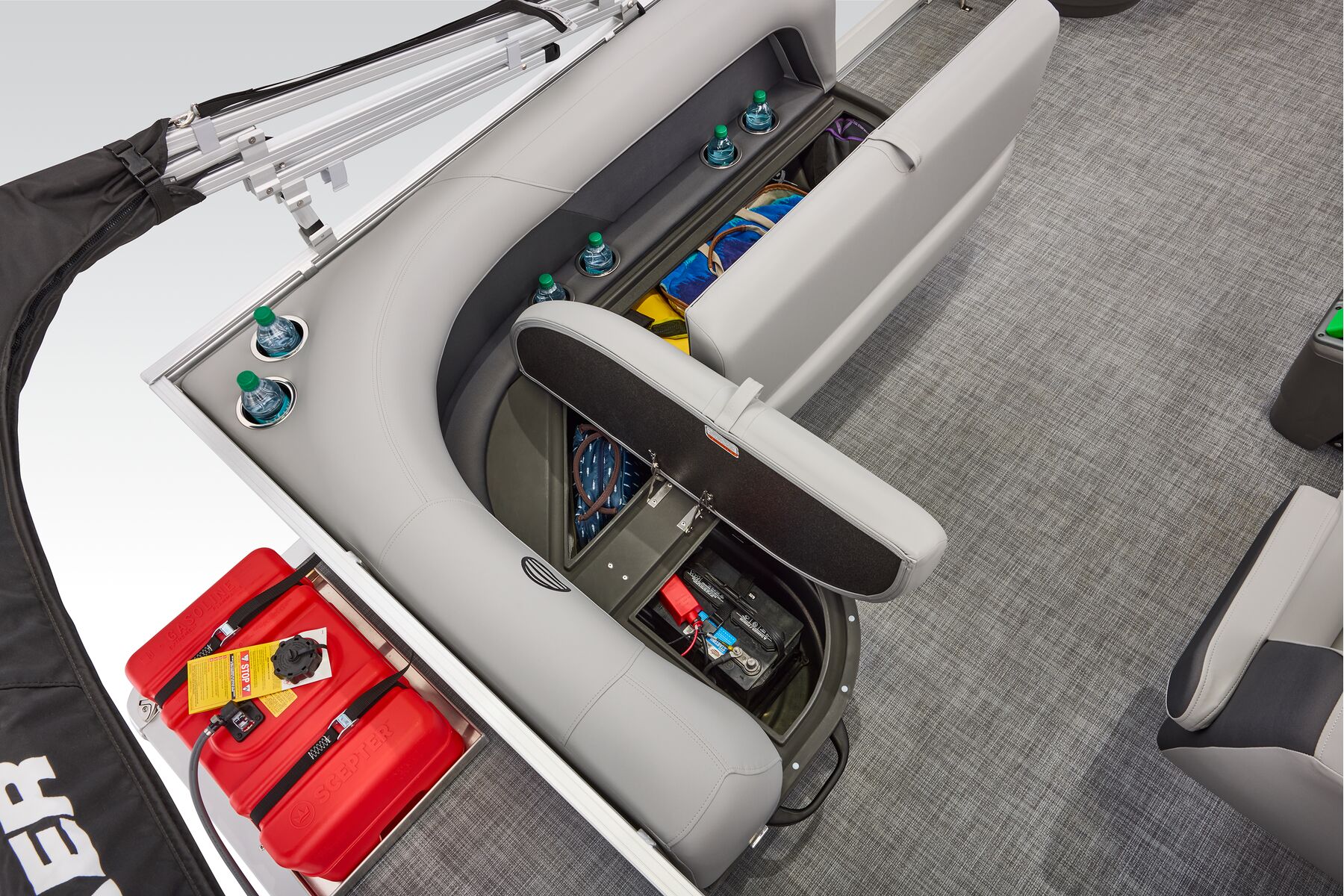

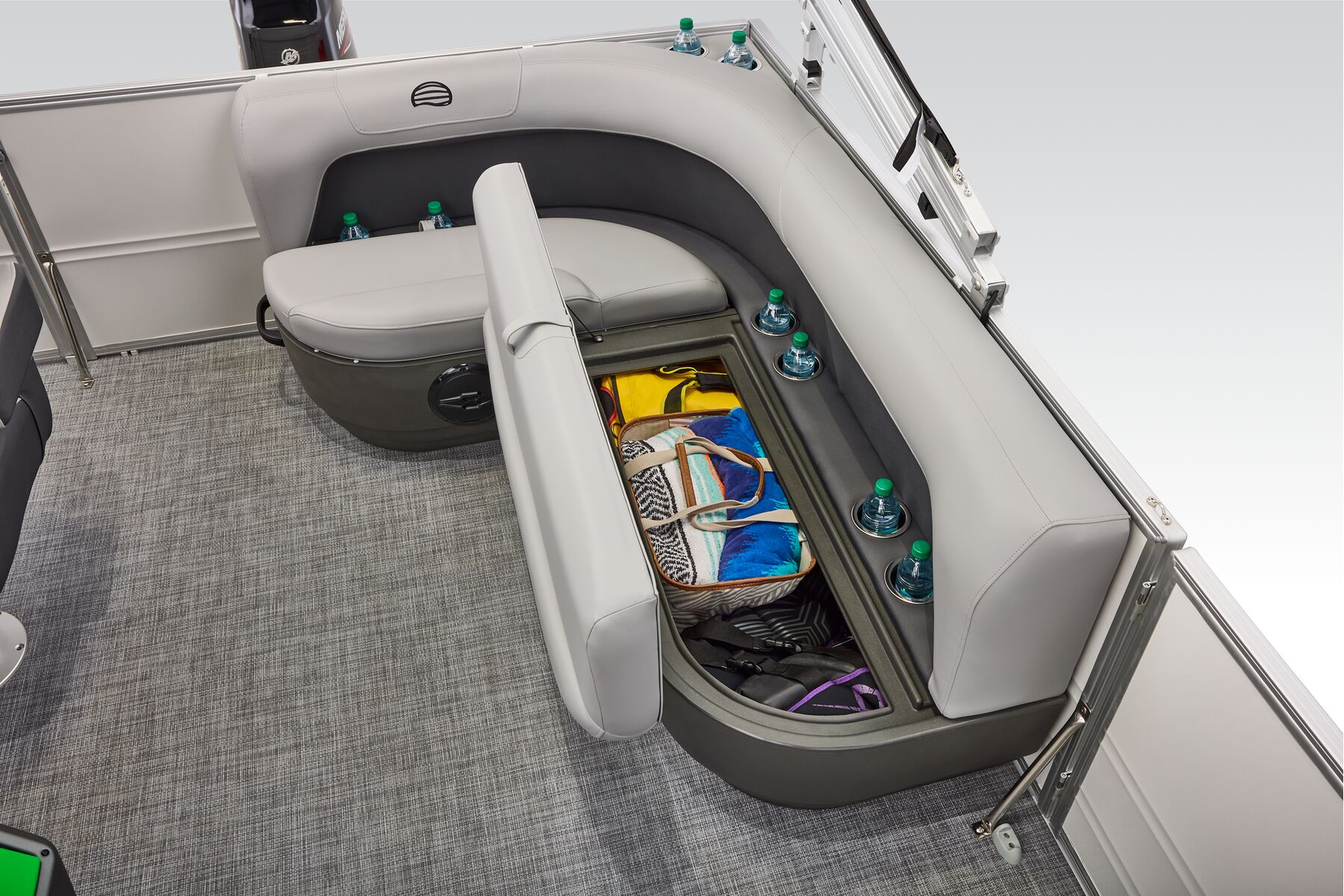

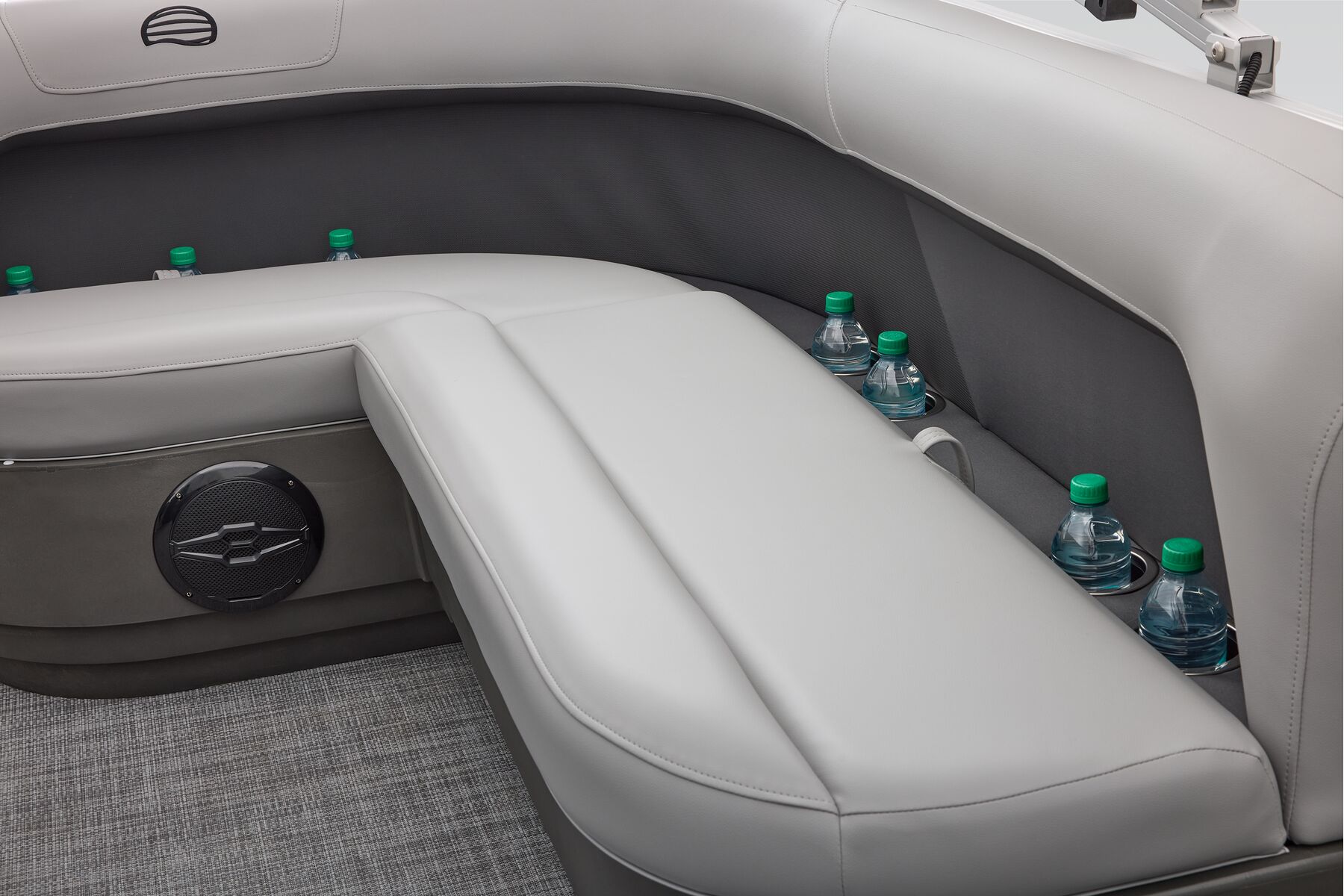

- Aft L-lounge couches w/underseat storage

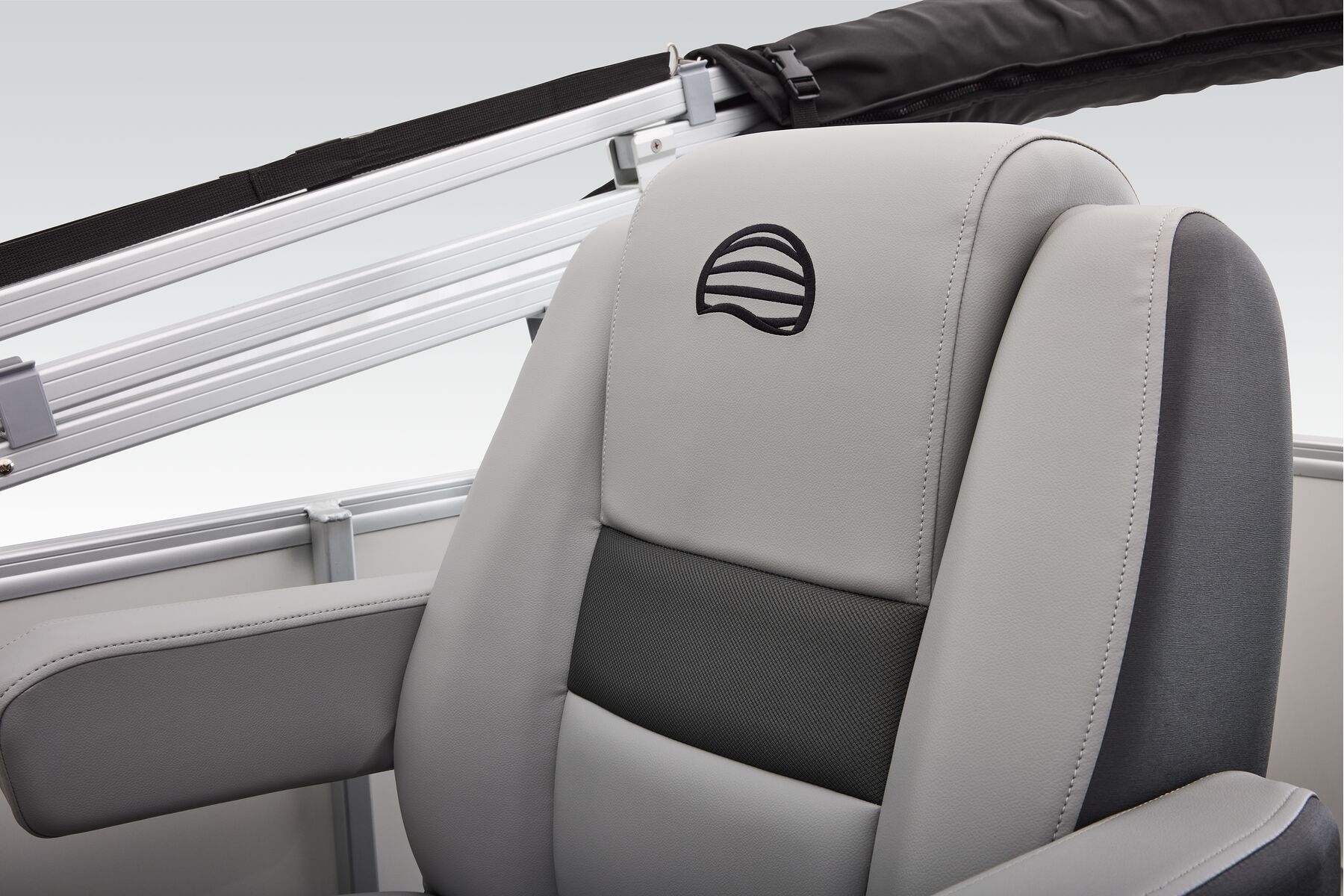

- Adjustable & swiveling helm bucket seat
- Interior courtesy lighting

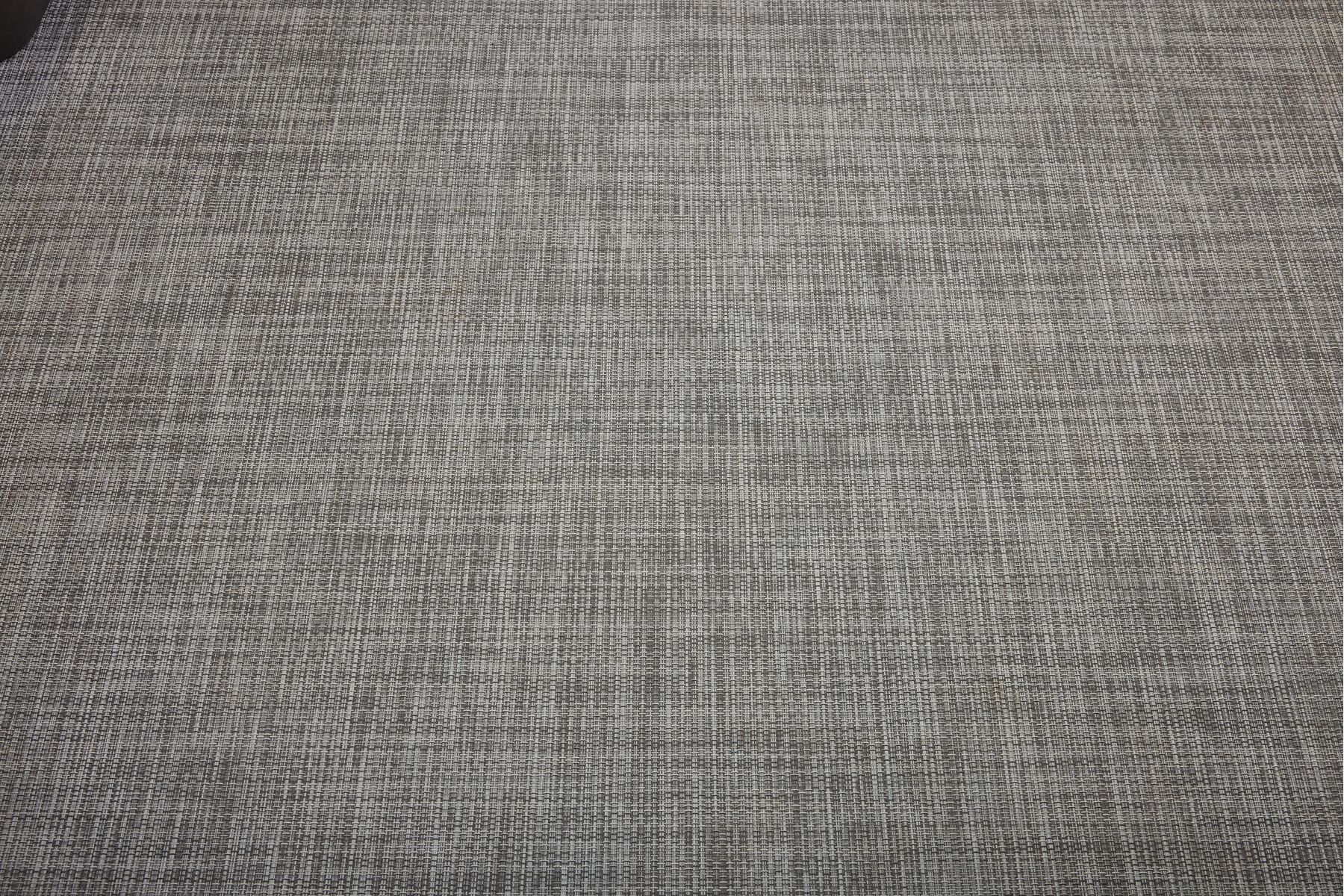

- Woven 16-oz. (.45 kg) marine-grade flooring throughout
- Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
Performance
- 24" (60.96 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
- Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
- Heavy-duty aluminum U-channel reinforcement behind bow deck trim
- Reinforced bow structure
- All-aluminum box-beam transom for strength & longevity
- Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
- 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails
- Sound- & vibration-deadening fence insulation for a quiet ride
- Extruded & anodized aluminum deck edging w/polished aft corner covers
- Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
- Rotomolded storage & furniture for superior strength & longevity
- Gate latches & heavy-duty hinges that open inward
- Stainless or coated corrosion-resistant fasteners
- Factory-matched aluminum propeller
Exterior
- Color: Black or Charcoal fencing
- Fence design w/high-sheen finish for long-lasting cosmetics
- Elevated fence panels for deck drainage & ventilation
Electrical
- Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors
Options
