Limited 2024 Availability
Party Barge 22 XP3
2025
PARTY BARGE® 22 XP3
w/ 150 L FourStroke Mercury® FourStroke
Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$50995
USD
|
Overview

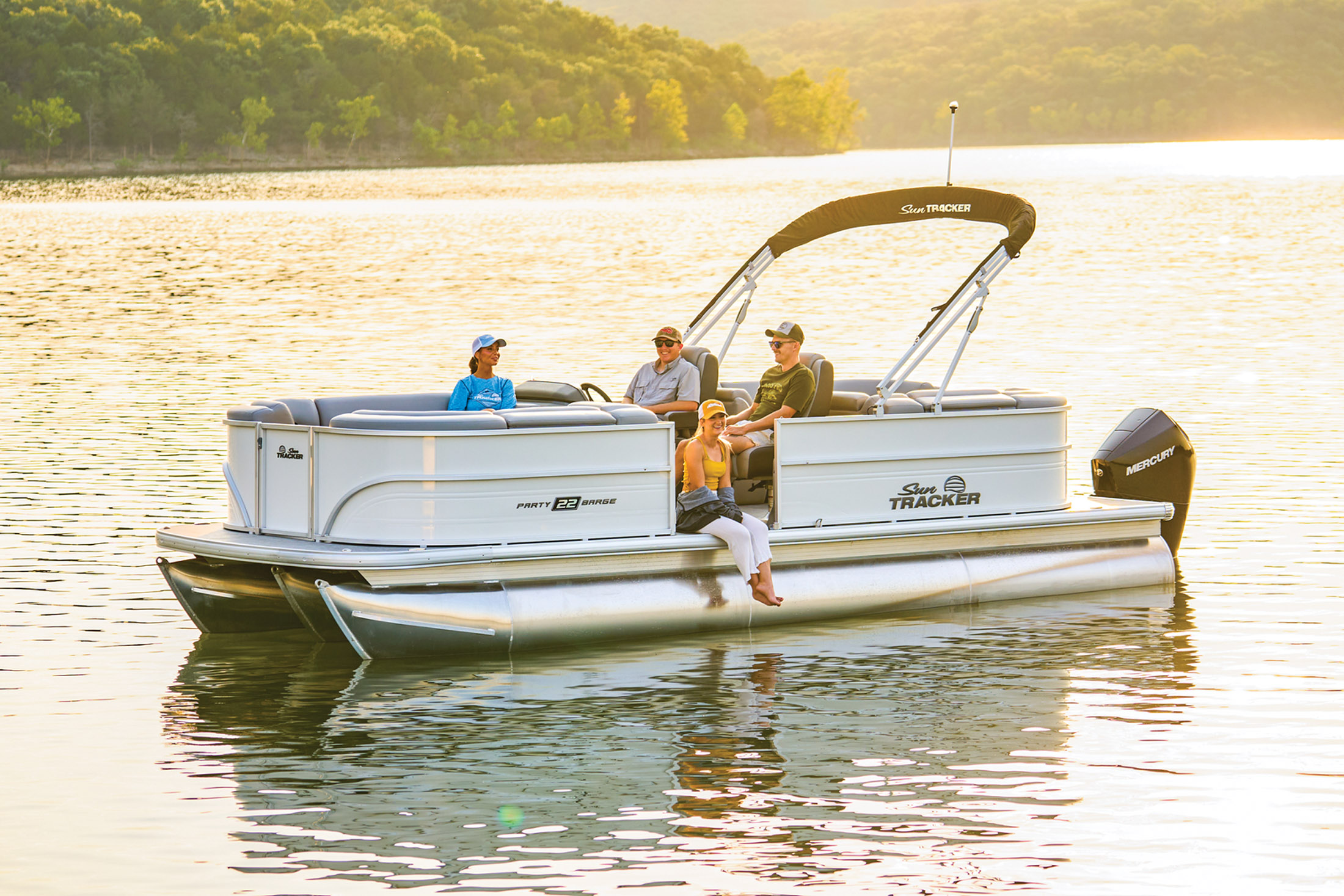

Why settle for 2 when you can get 3? The 2025 PARTY BARGE® 22 XP3 is the luxury tritoon boat that's going to turn your lake adventures up to 11!

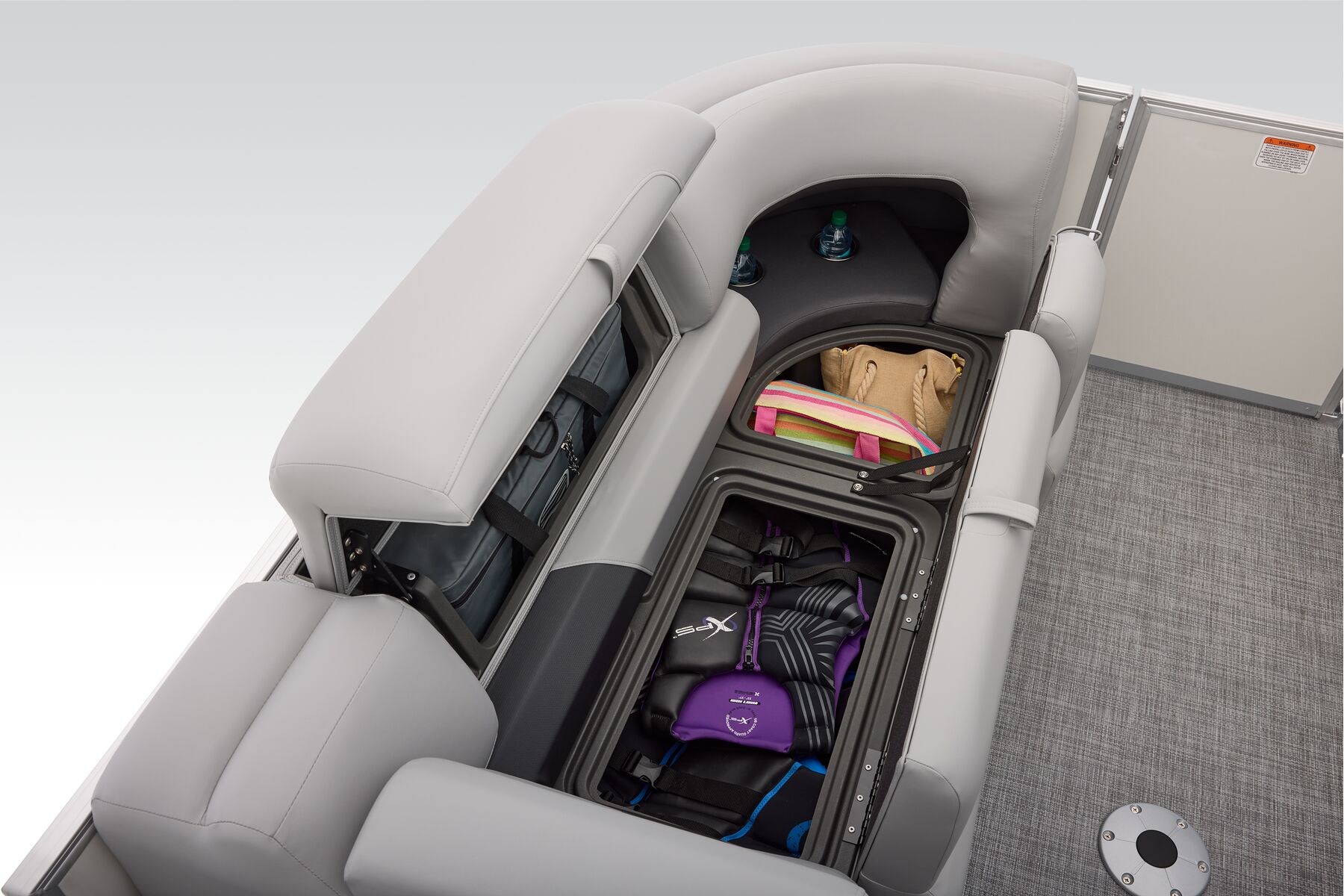

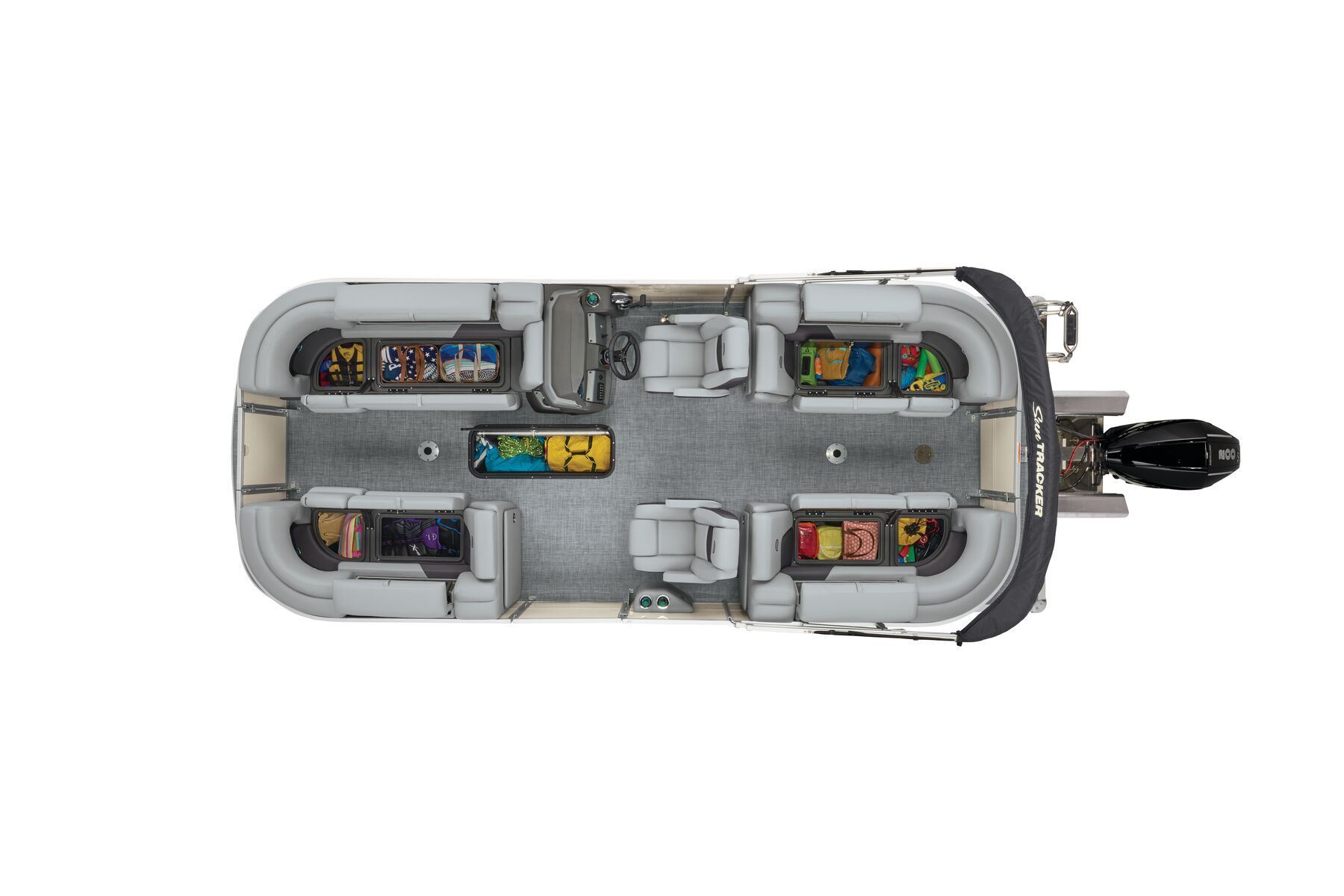

Speaking of 11—that's how big a crew this spacious SUN TRACKER® holds! And there's room for everyone to relax in this pontoon boat thanks to 4 corner lounges and 2 captain's chairs. Stash and secure plenty of gear in the in-deck storage compartment and the STOW MORE™ system, which puts hidden storage spaces under the lounges' seats and behind the seat backs.

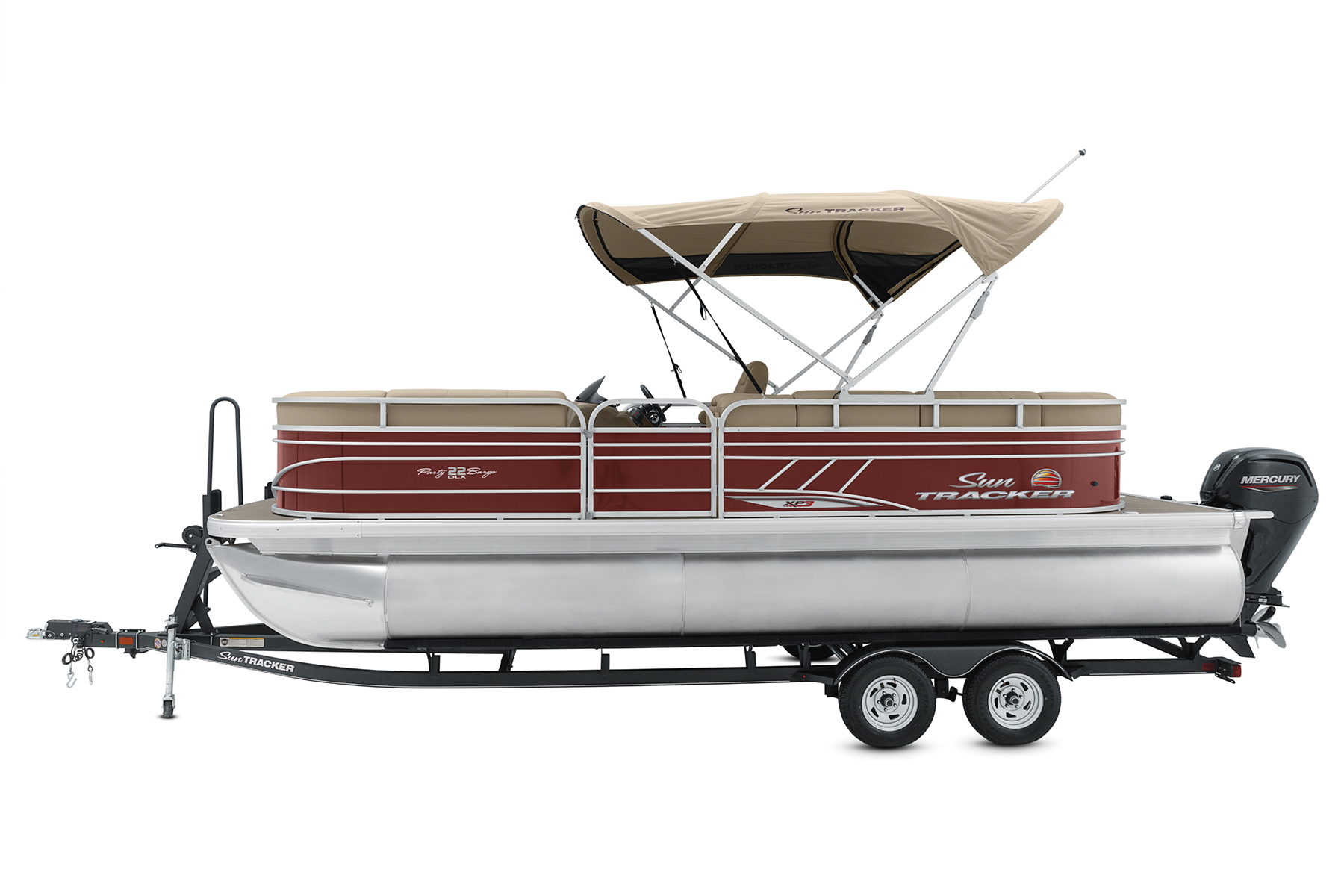

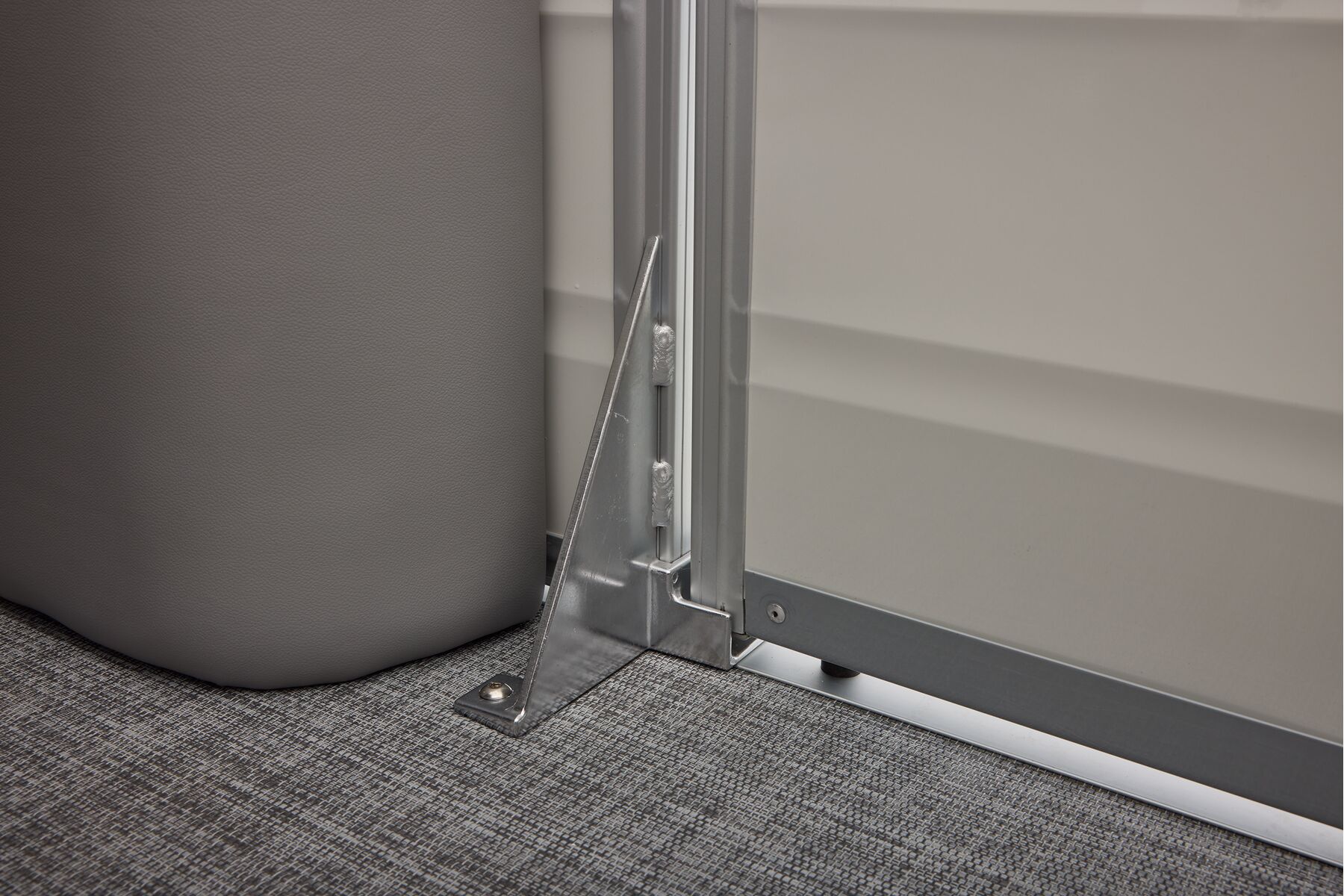

Access the PARTY BARGE® via the 3 inward-swinging gates, which includes a wheelchair-accessible port gate. The 10' QuickLift® bimini top extends out to provide plenty of shade on sunny days. The standard Wet Sounds® stereo is Bluetooth®-compatible and boasts 4 upholstery speakers. 2 in-floor anchor points allow you to customize your space with the included moveable table and optional ski-tow pylon.
This pontoon gets increased performance with the addition of a third pontoon log, as well as lifting strakes, underpinning, and hydraulic steering. The PARTY BARGE® 22 XP3 comes standard with a 150hp Mercury® L FourStroke outboard motor and has a recommended maximum 200hp rating.
Key Features
Underpinning
Deck underpinning comes standard with the XP3 model to deflect water down from the Z-bars for a smoother ride.

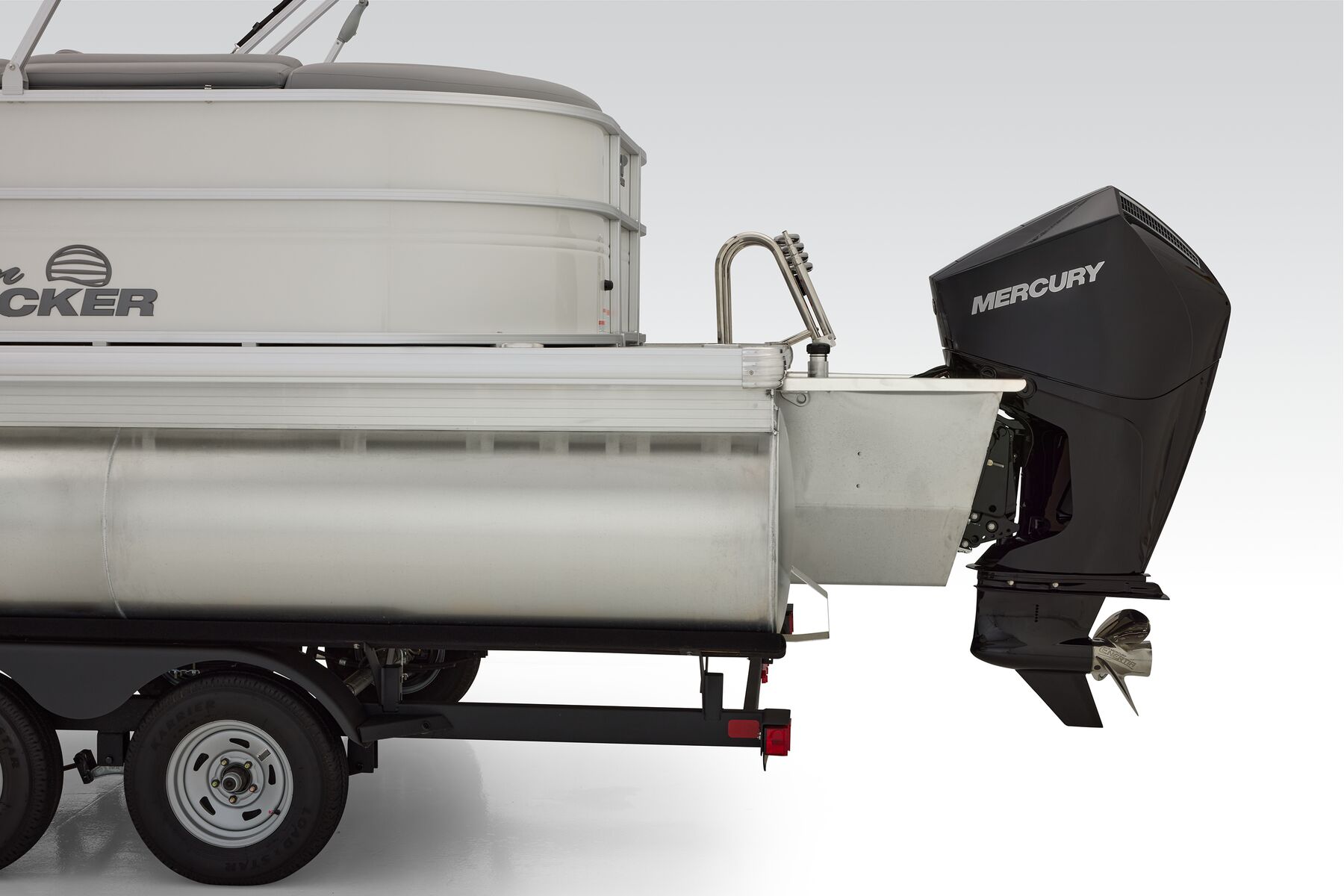

Extended motor pod
The motor pod is designed to put the motor farther back, allowing clean water to the prop for better performance.

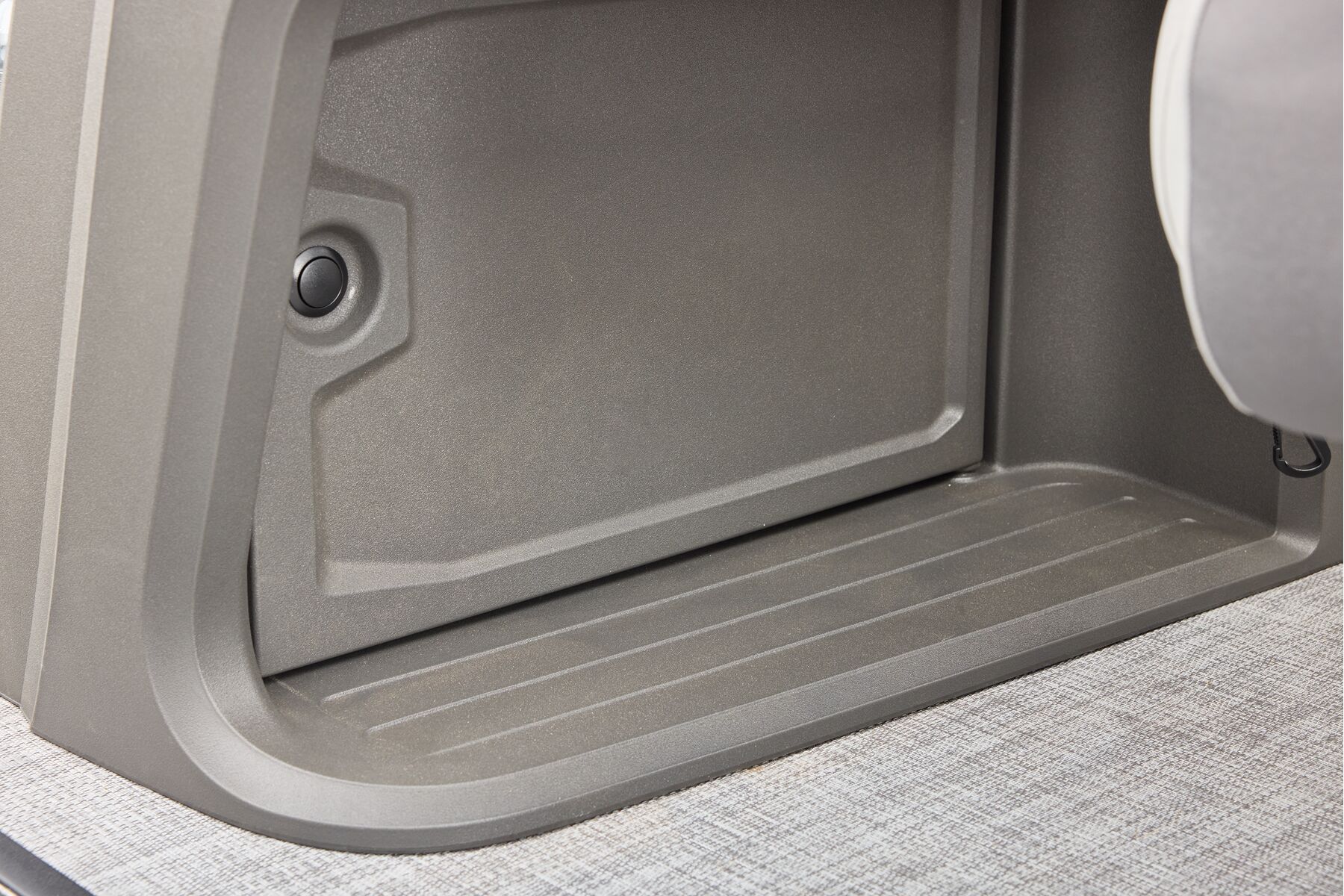

Rain channels

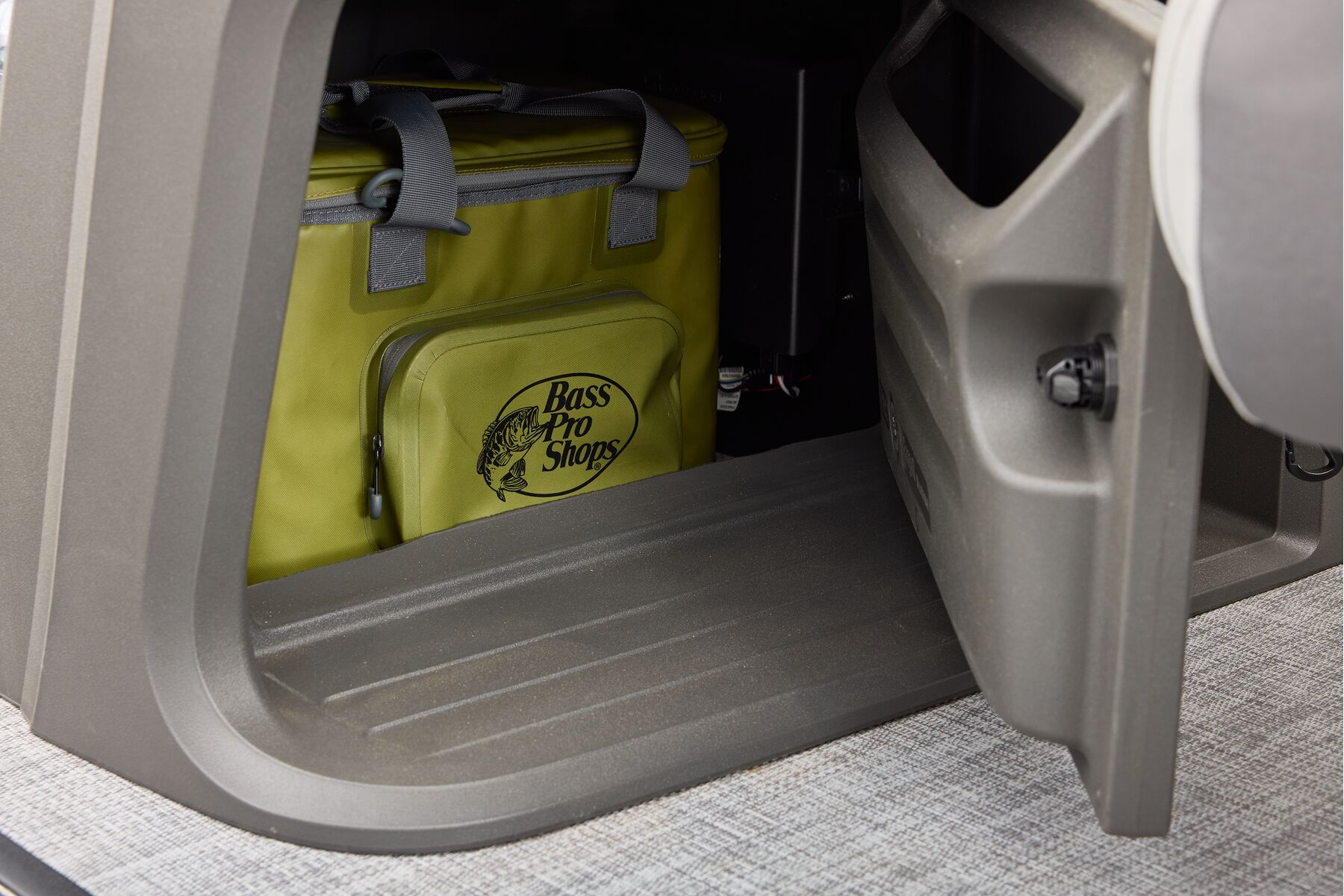

The rotomolded underseat storage features deep rain channels that drain water overboard to keep your gear drier.
Gallery
Specifications
| Length | 7.37 m | 24' 2'' |
| Deck Length | 6.73 m | 22' 1'' |
| Deck Width | 2.59 m | 8' 6'' |
| Max. Recommended HP | 200 HP | |
| Fuel Capacity | 196.82 L | 52 gal. |
| Pontoon Log Length | 6.78 m | 22' 3'' |
| Pontoon Log Diameter | 66.04 cm | 26'' |
| Pontoon Log Material | 0.100 5052 marine alloy | |
| Max. Person Capacity | 11 persons |
| Max. Person Weight | 725.75 kg | 1600 lbs. |
| Max. Person, Motor & Gear Weight | 1088.62 kg | 2400 lbs. |
| Interior Depth | 74.93 cm | 29.5'' |
| Average Dry Weight | 1351.71 kg | 2980 lbs. |
| Average Package Weight | 2256.62 kg | 4975 lbs. |
| Package Height | 2.72 m | 8' 11'' |
| Package Width | 2.59 m | 8' 6'' |
| Towing Length | 9.86 m | 32' 4'' |
| Storage Length | 9.86 m | 32' 4'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 150 L FourStroke | 31-40 mph |
$50995 USD
|
Select Dealer | ||
| 200 L FourStroke | - |
$55795 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
- NMMA® certified
- 10' (3.05 m) SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot (color-coordinated Black w/Charcoal fencing or Sand w/Copper Red fencing)

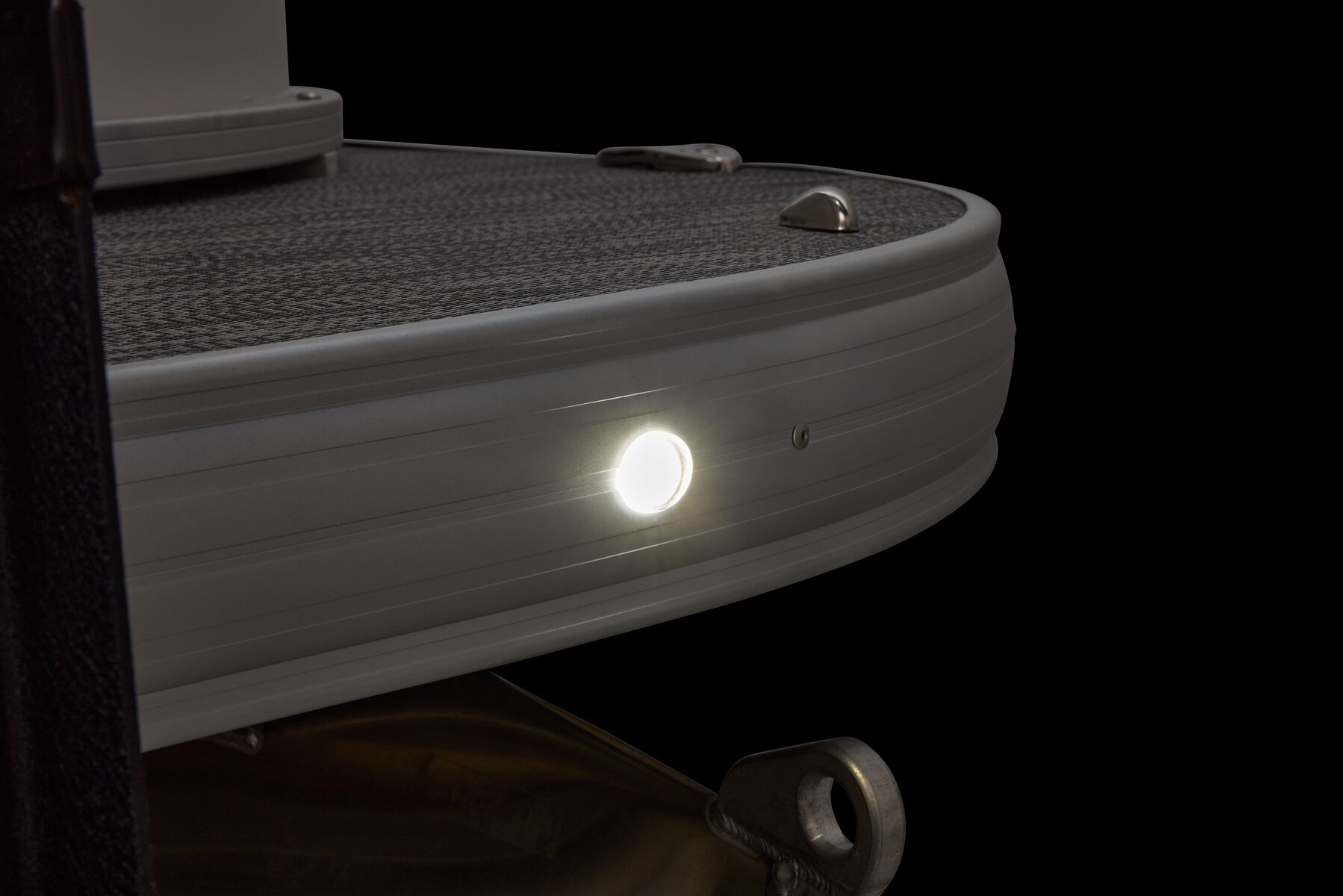

- Built-in LED docking lights

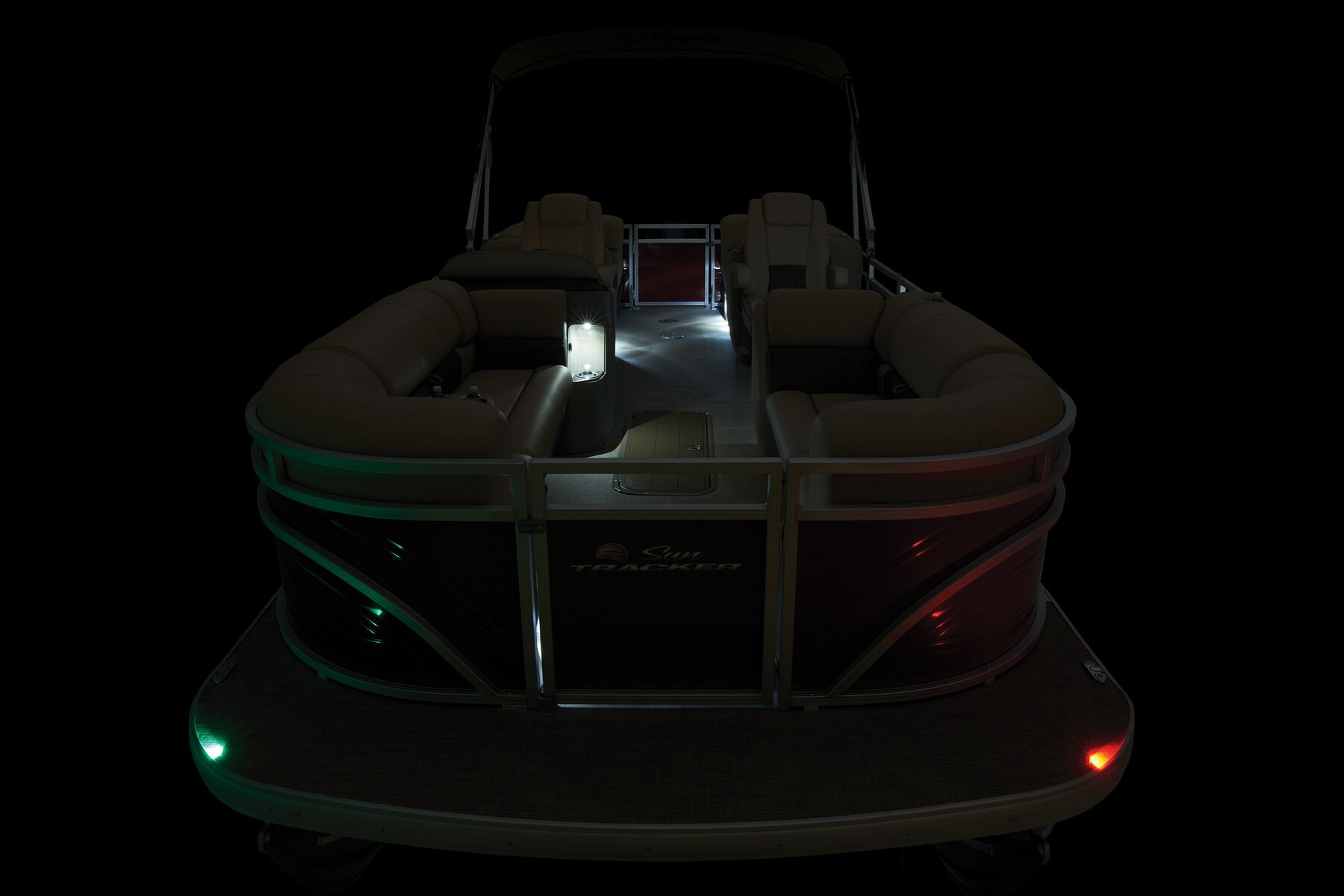

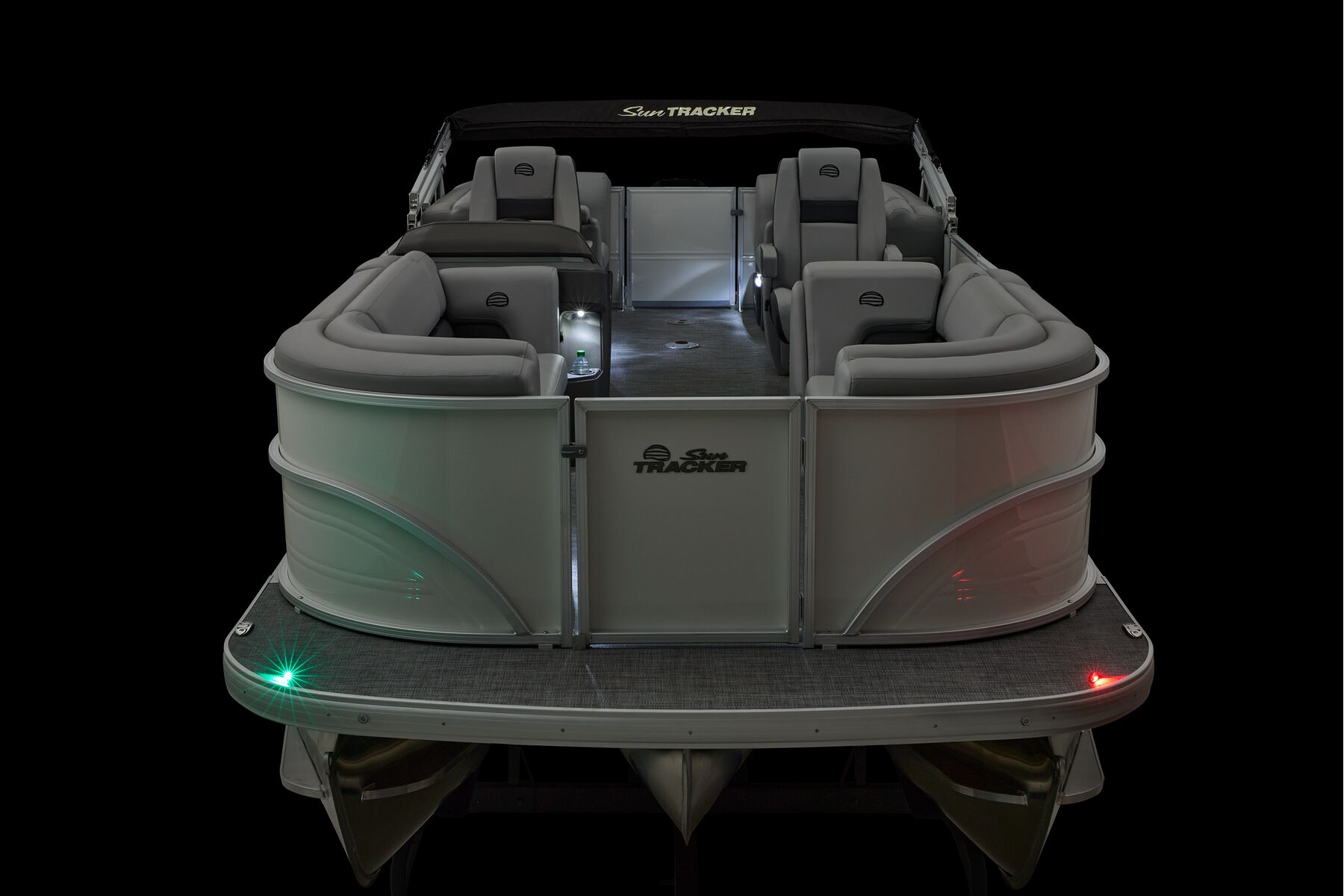

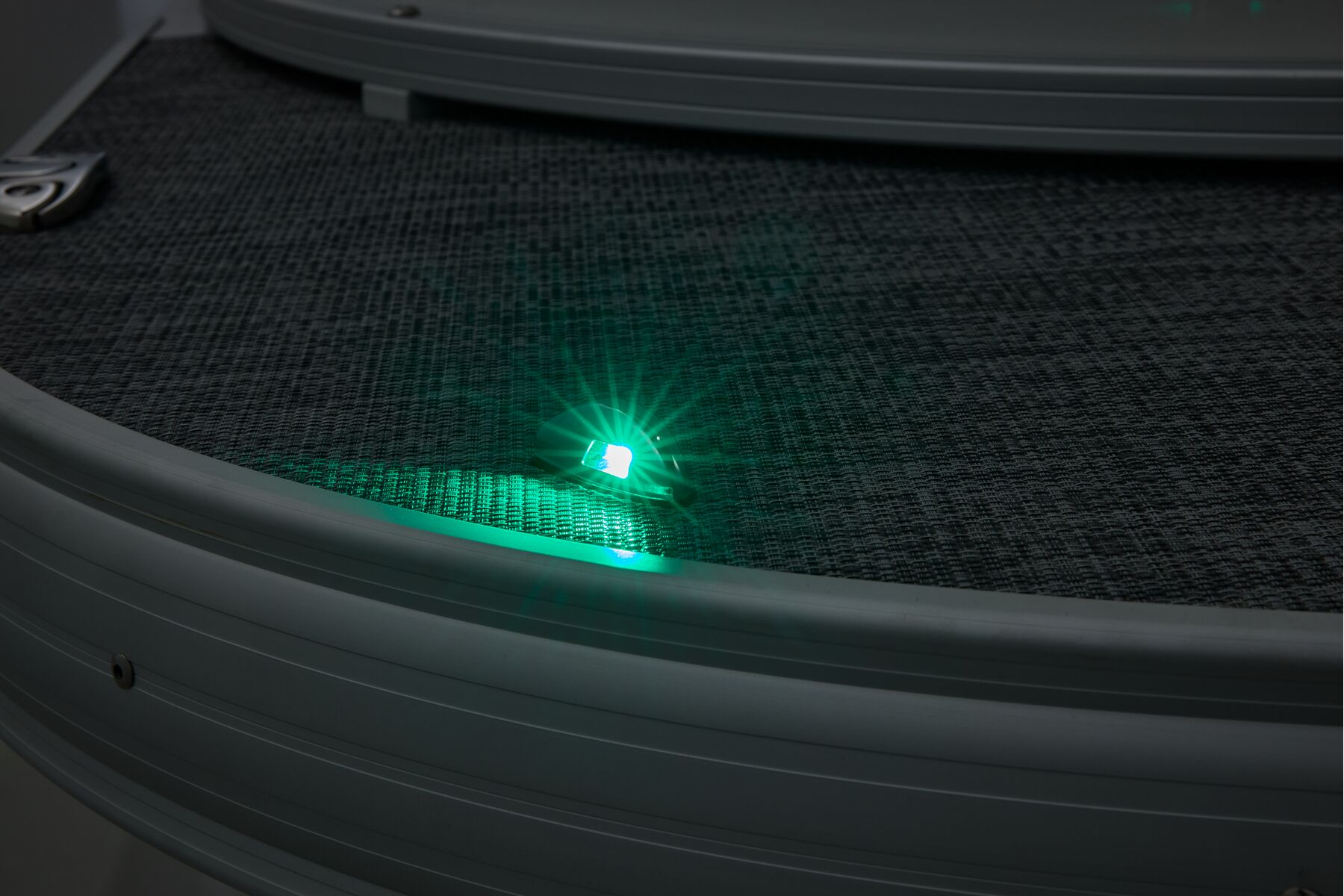

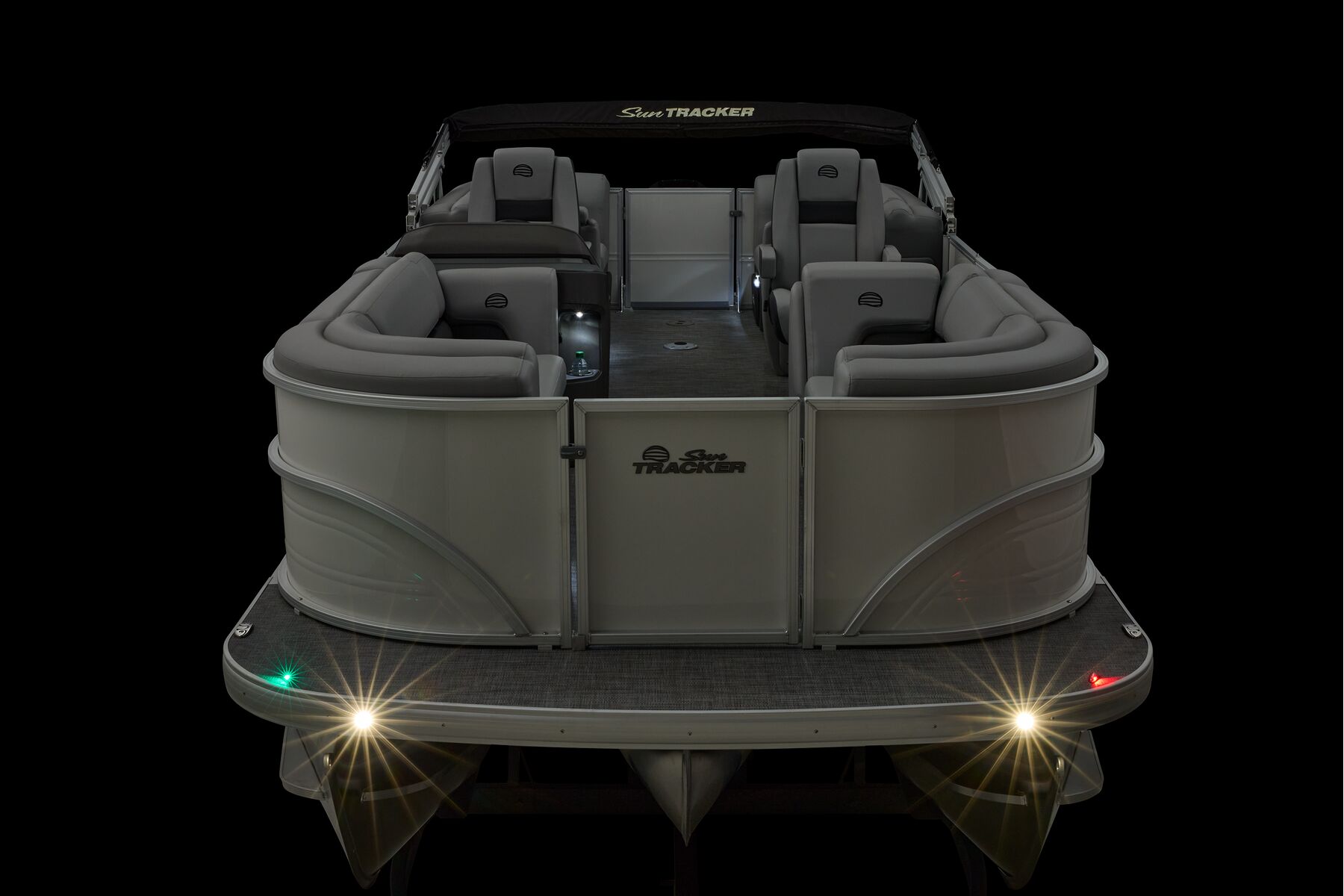

- Built-in LED navigation & anchor lights
- 4 folding mooring cleats & starboard side tie-off mooring eye
- Port wheelchair-accessible gate

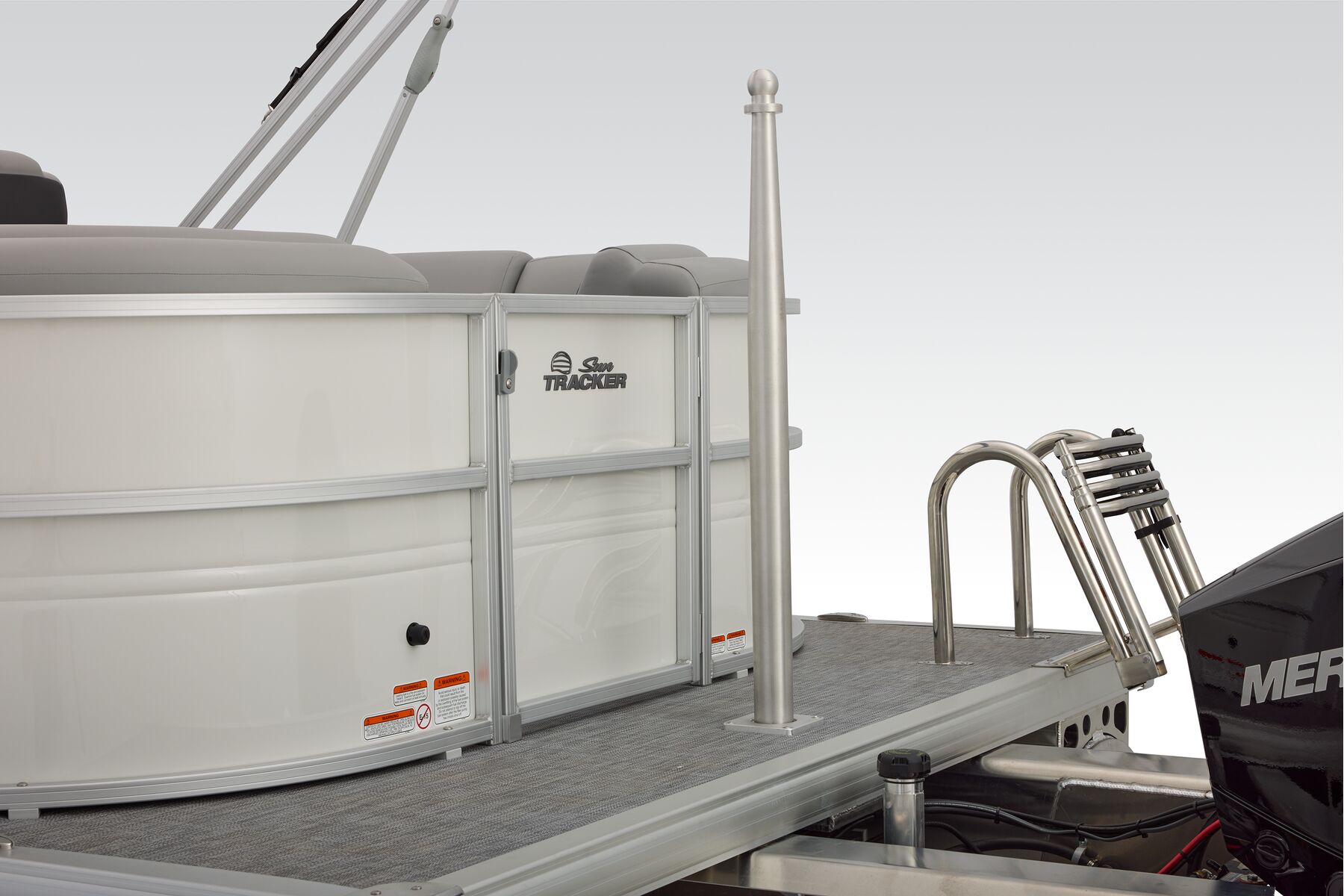

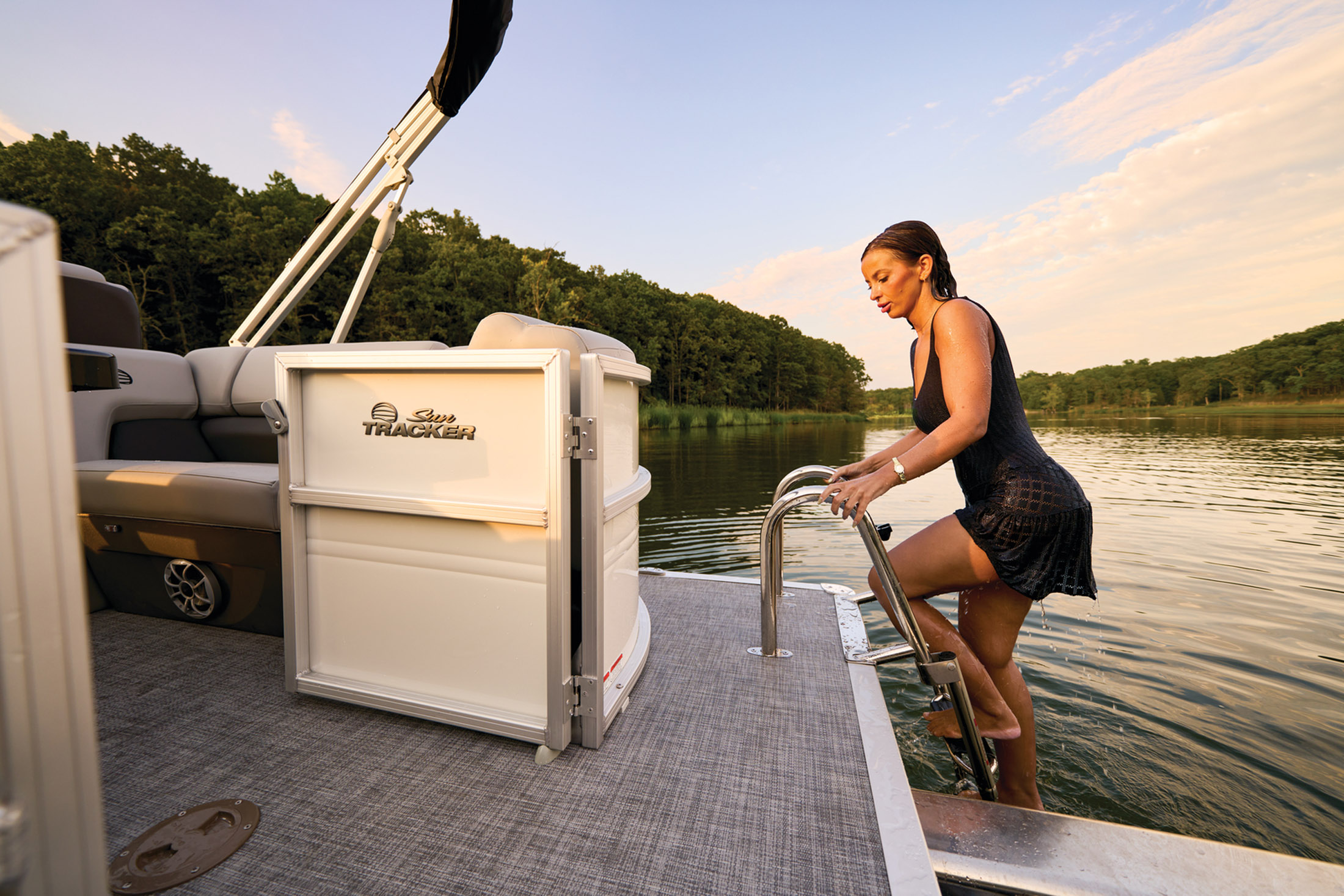

- Rear boarding platform w/4-step telescoping boarding ladder & grab rails
- Aft receptacle base for optional ski tow pylon
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
Console

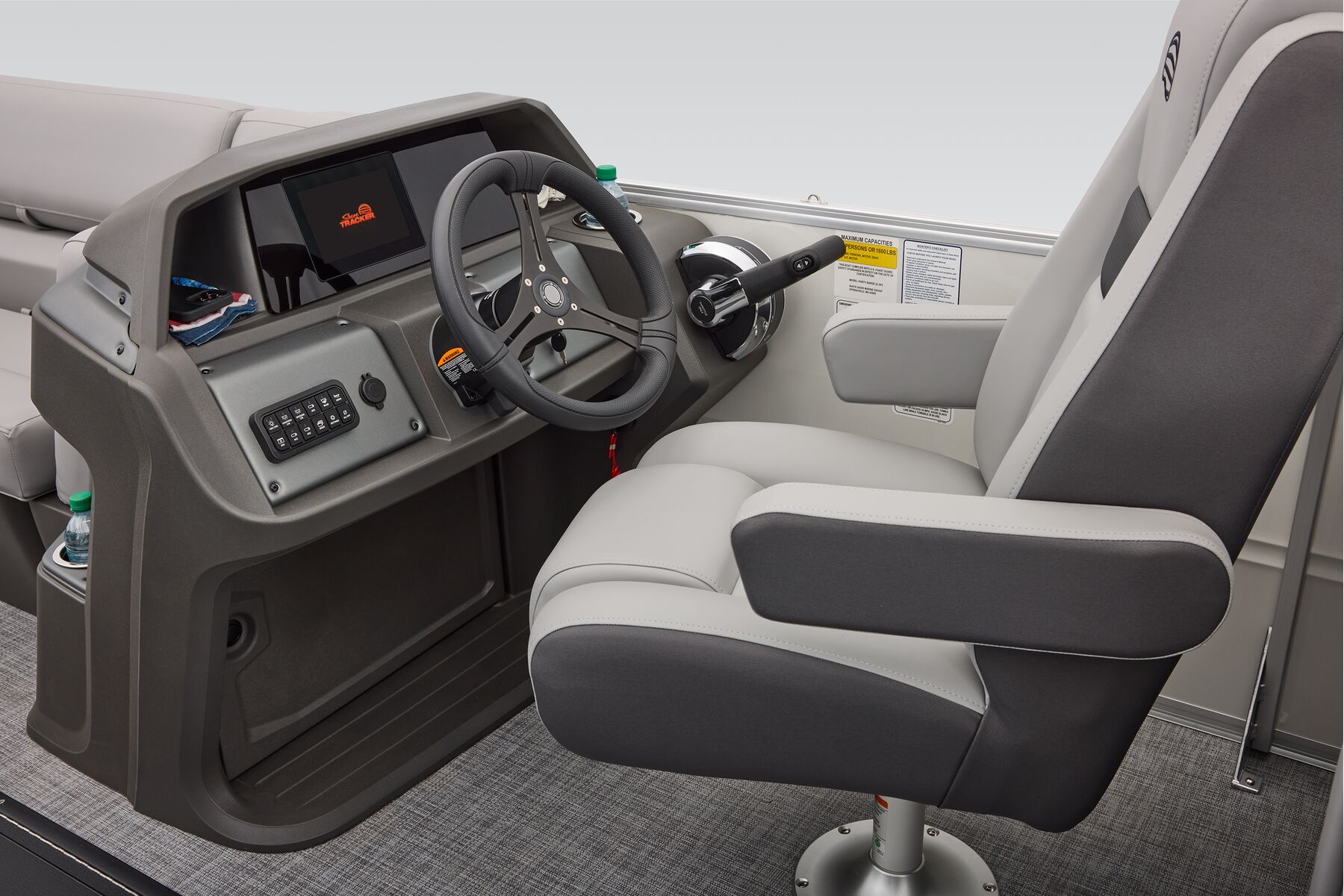

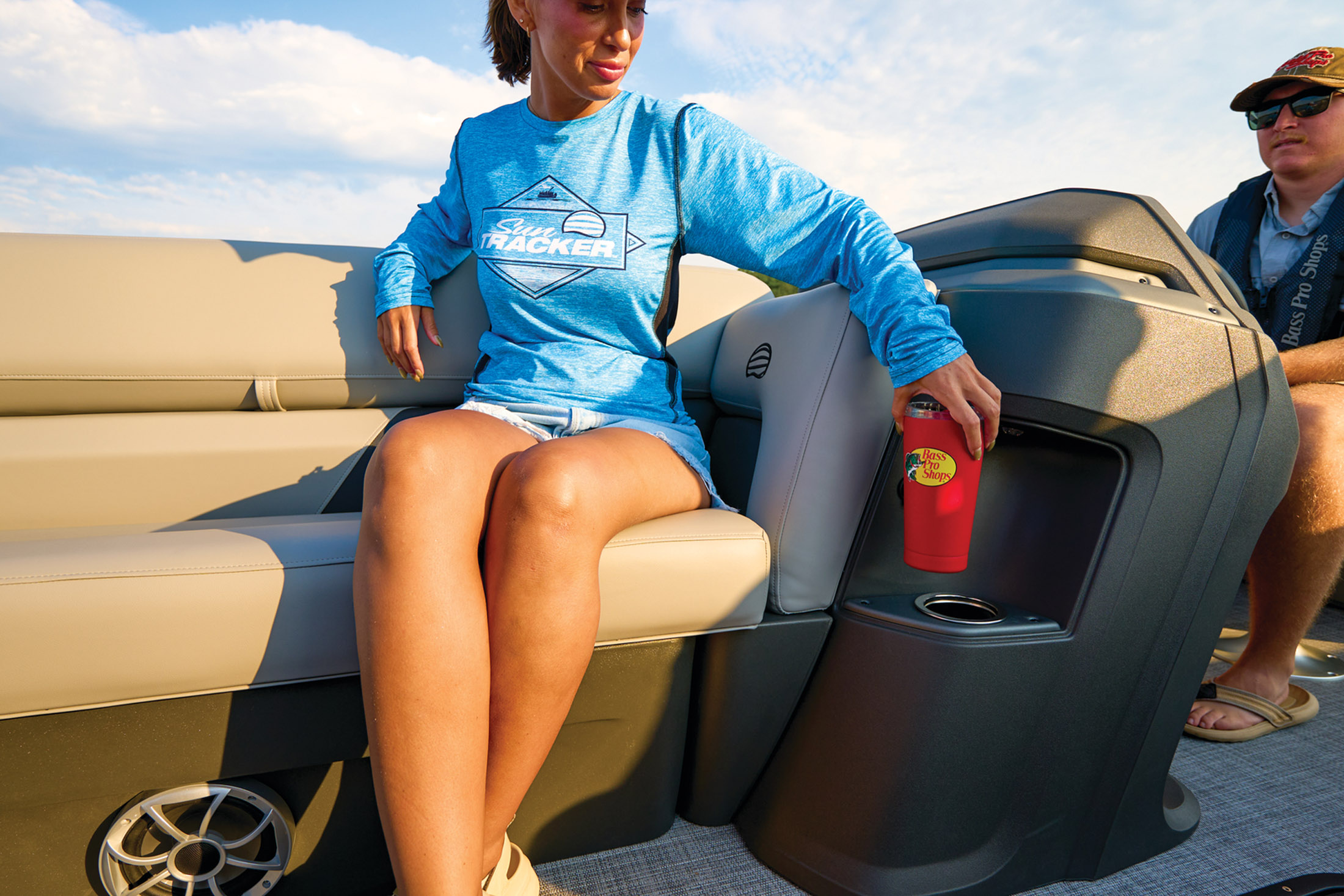

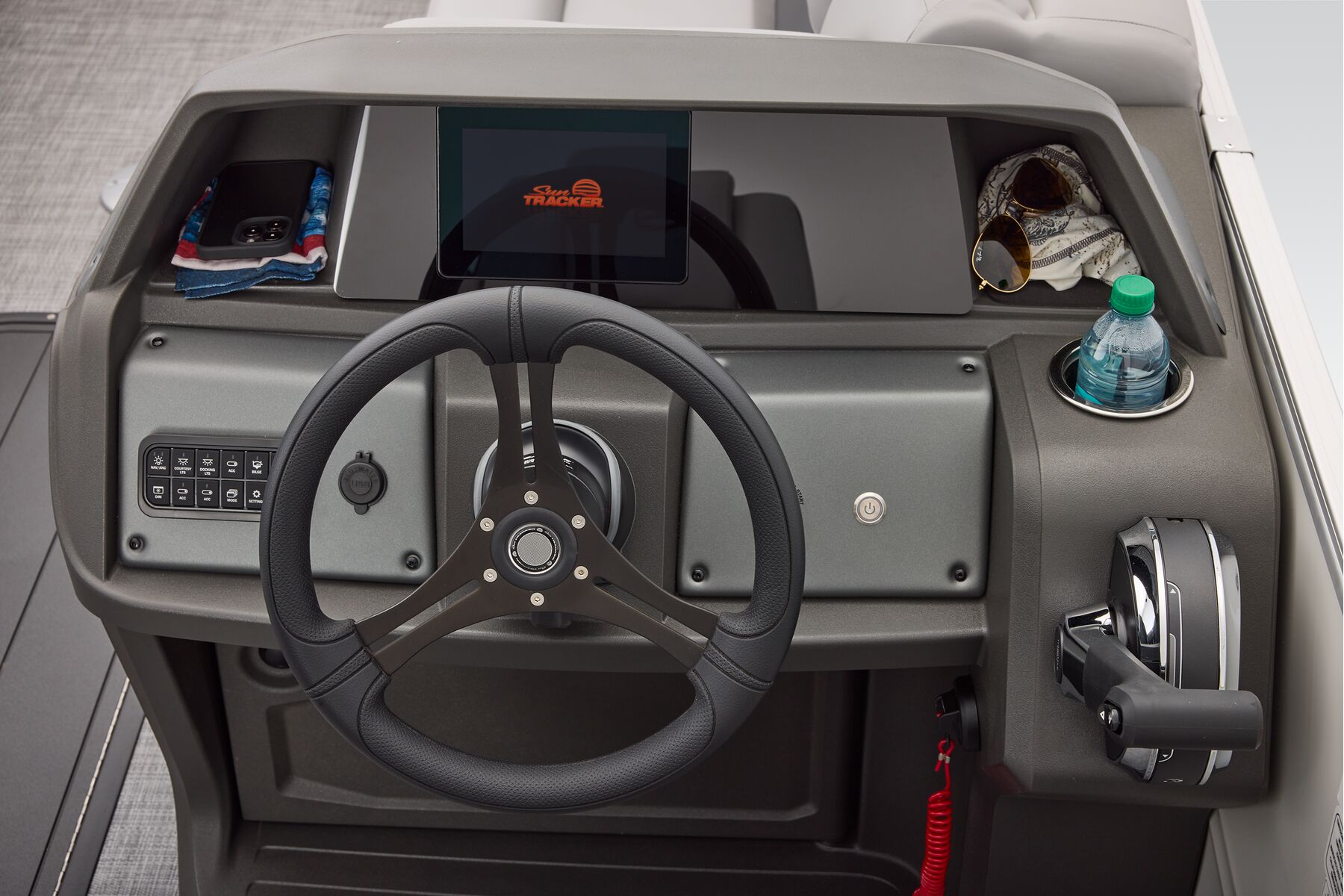

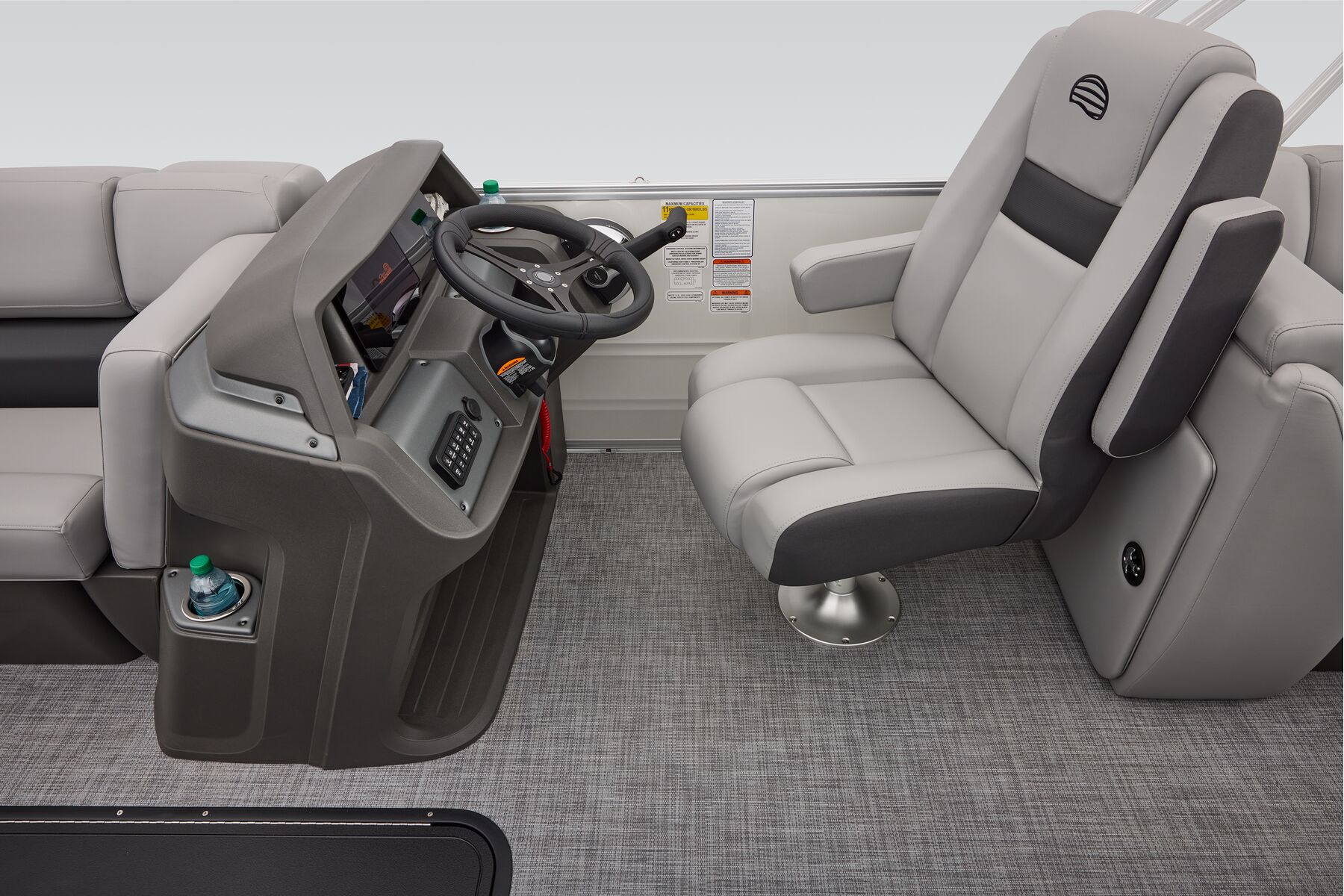

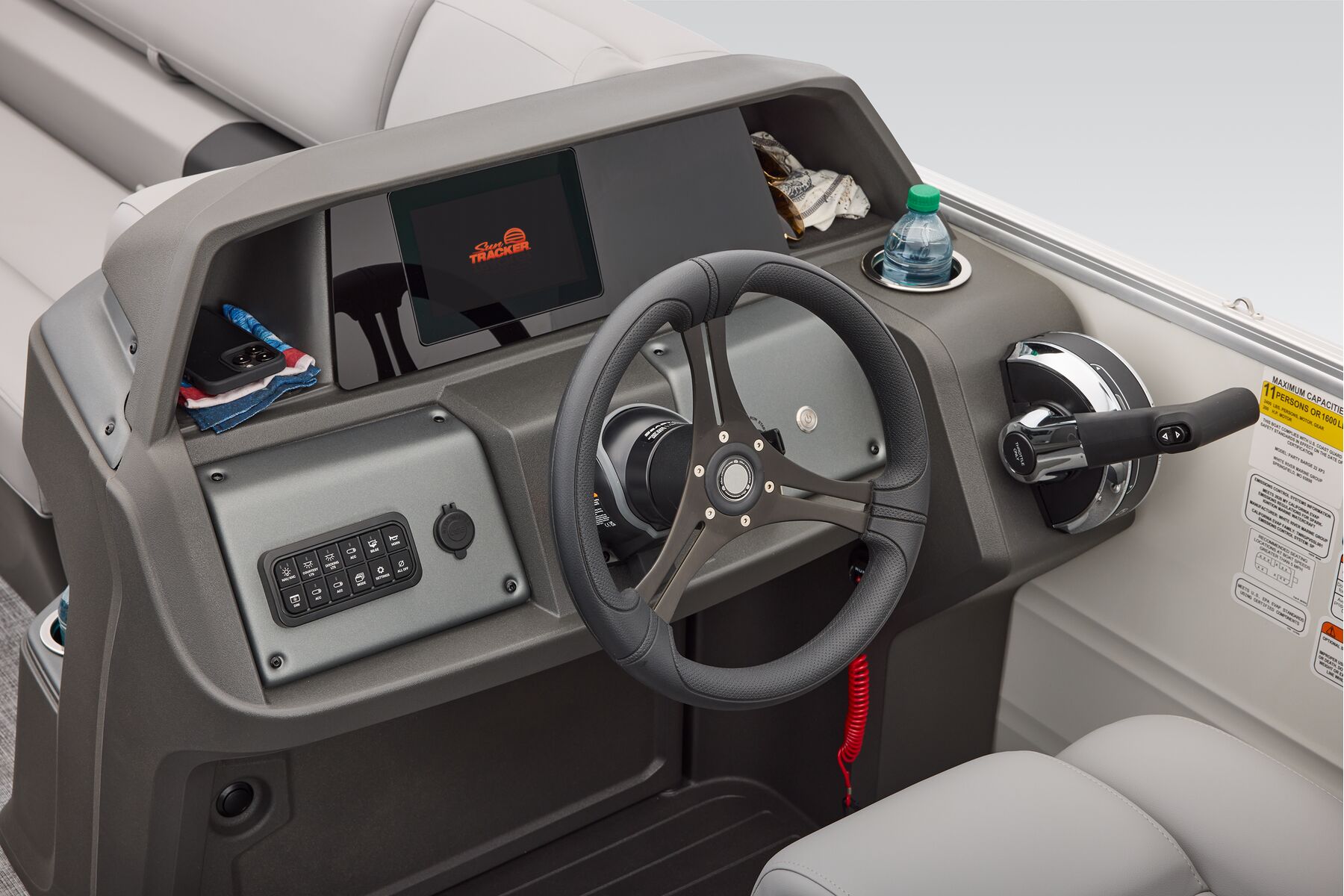

- Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls

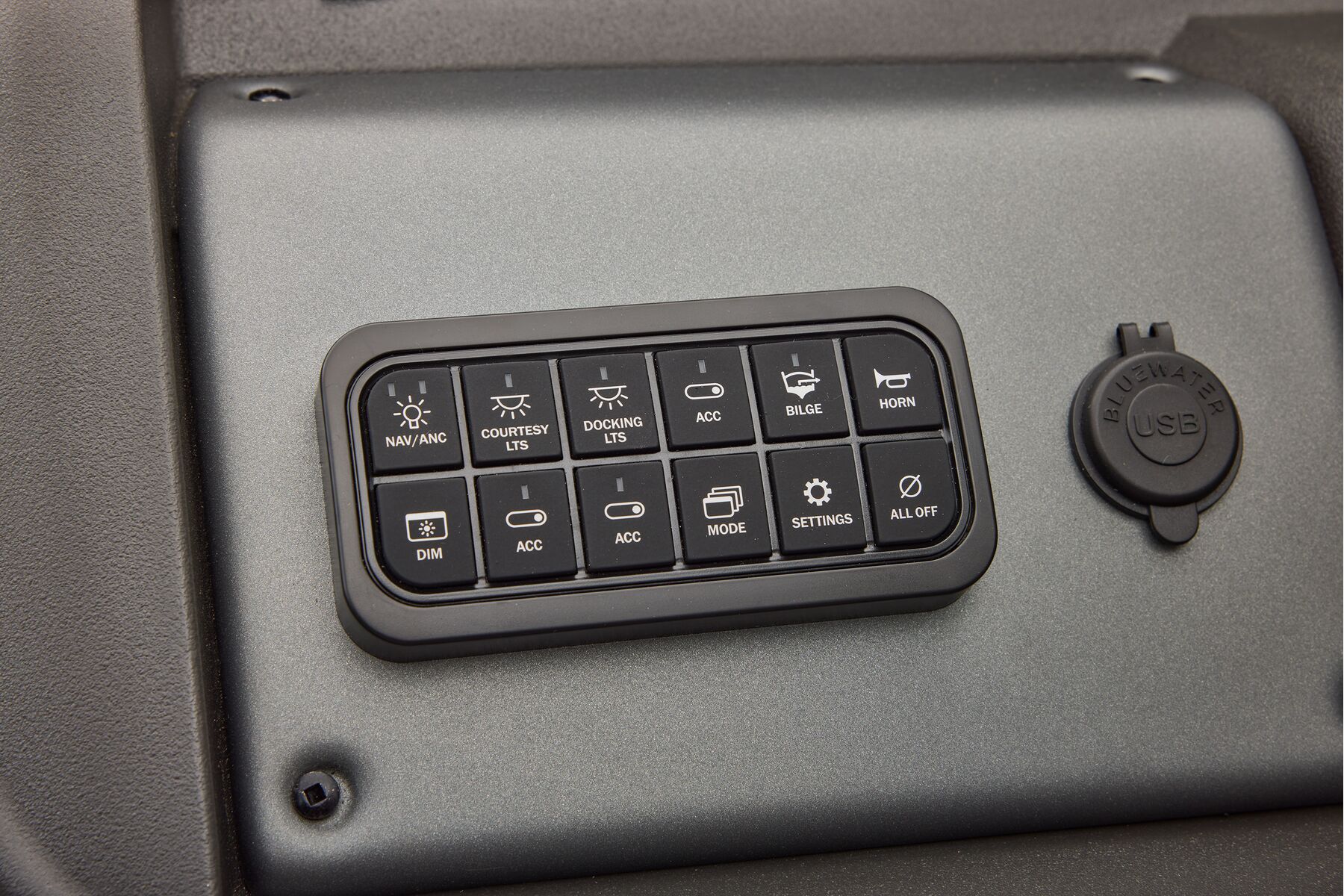

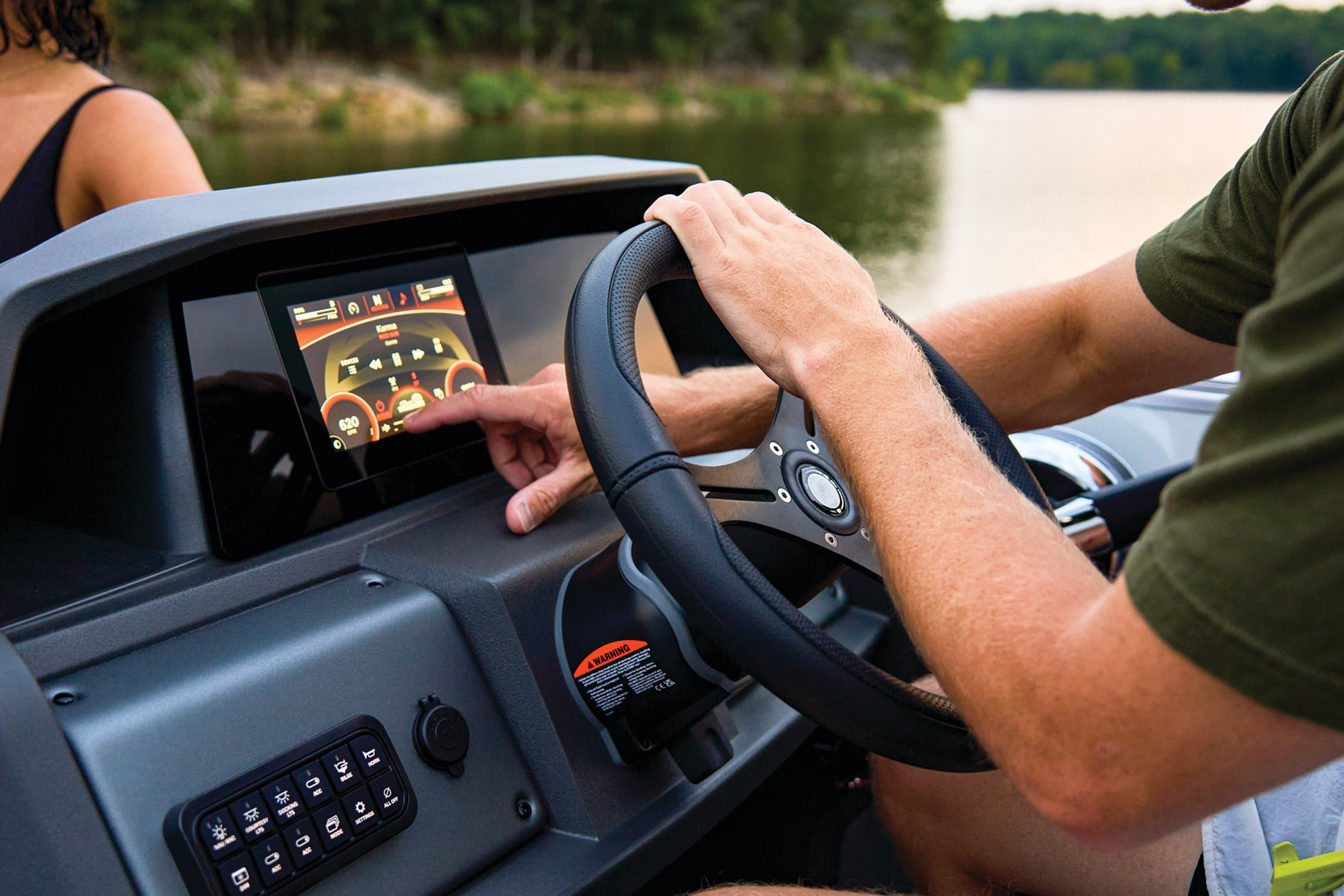

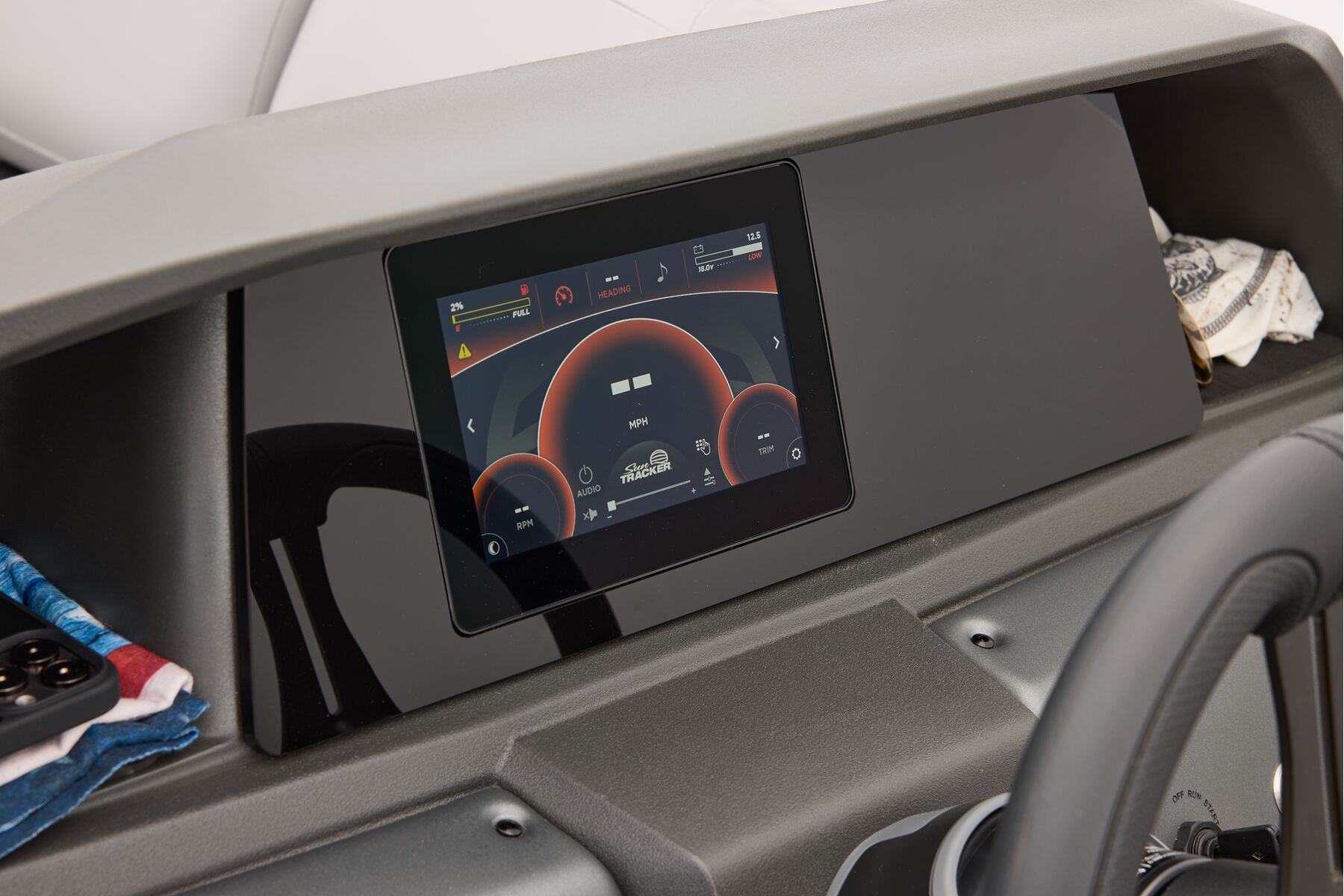

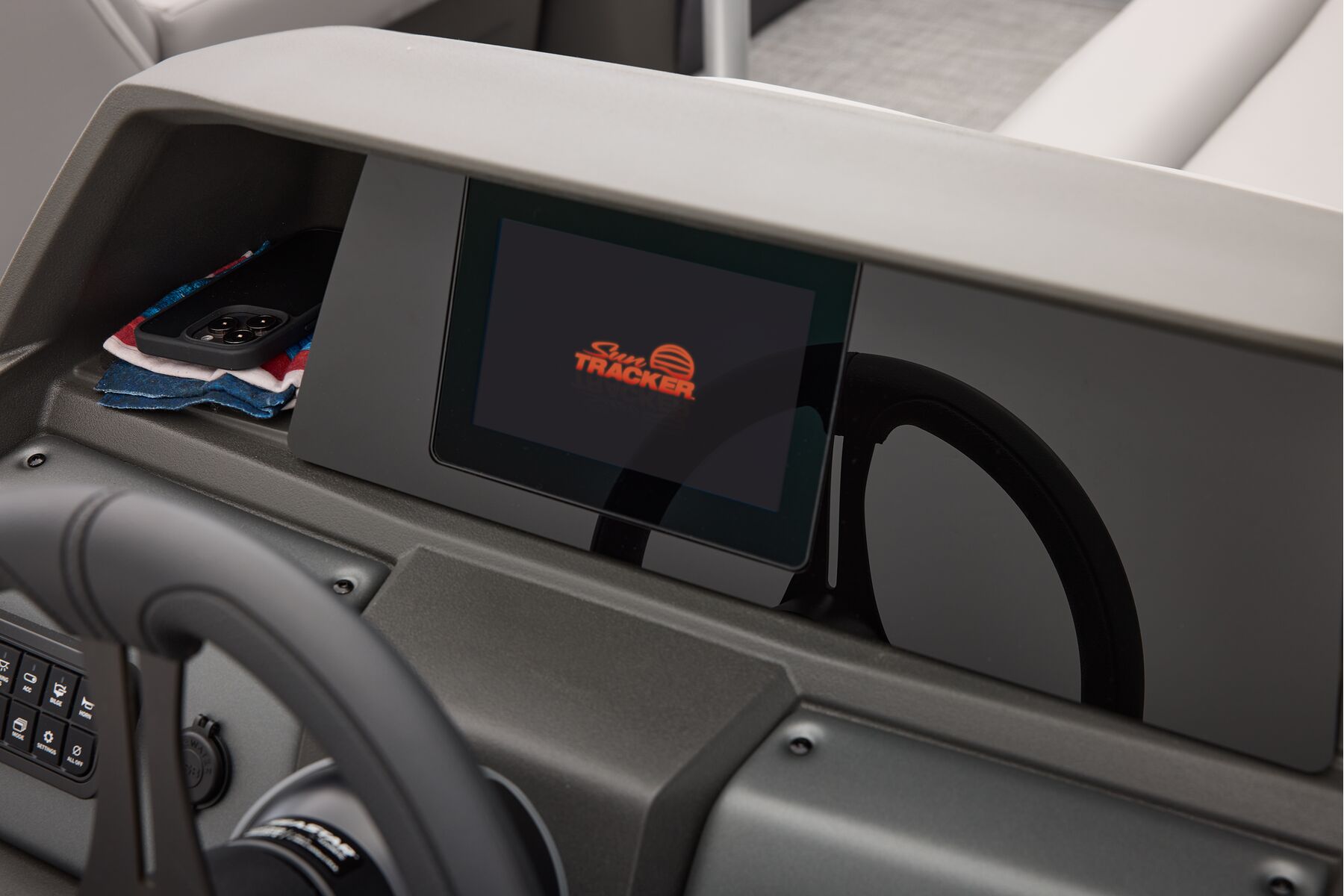

- SUN TRACKER FLARE™ touchscreen gauge display & 12-button switch panel
- Tilt hydraulic steering w/deluxe soft-touch steering wheel

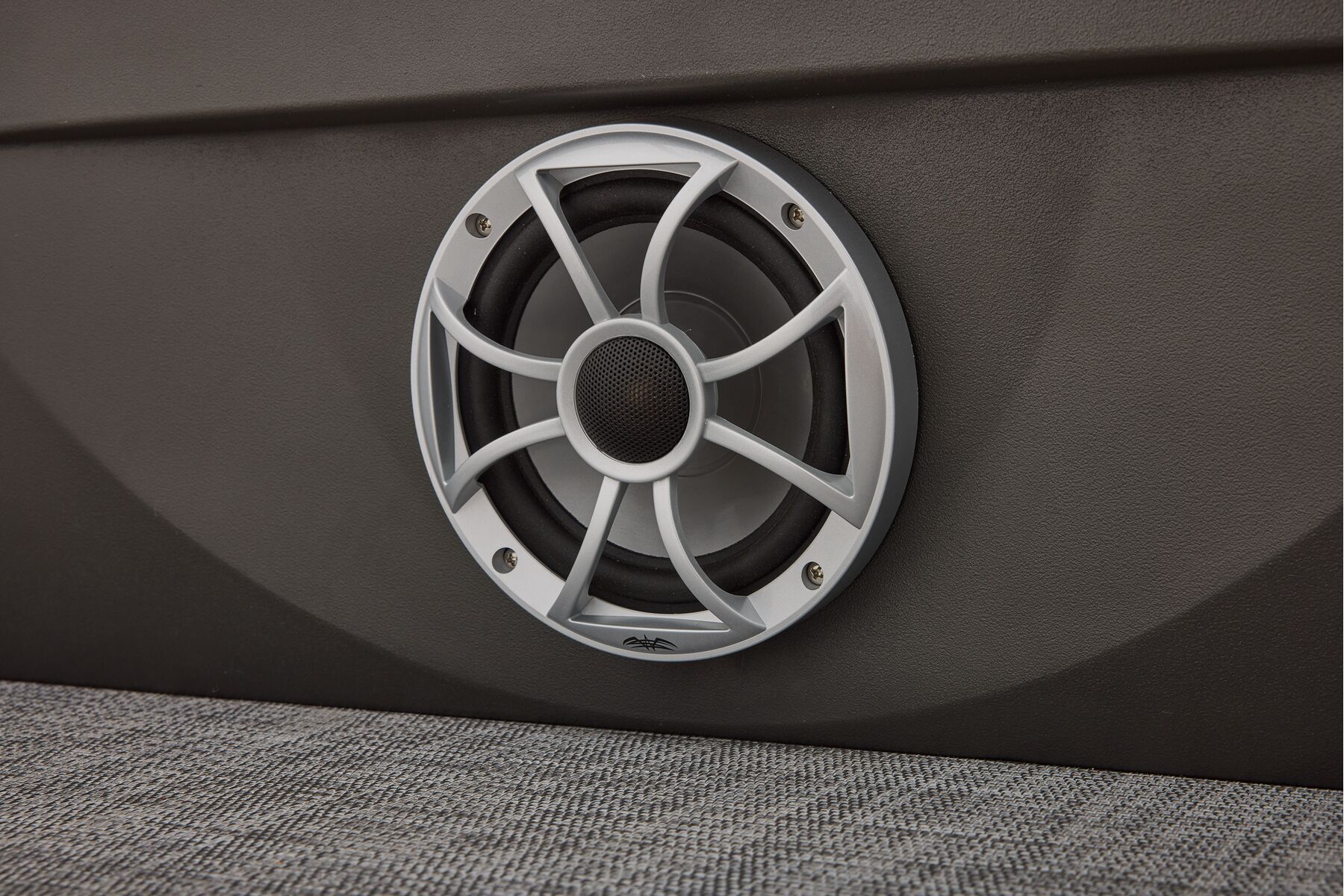

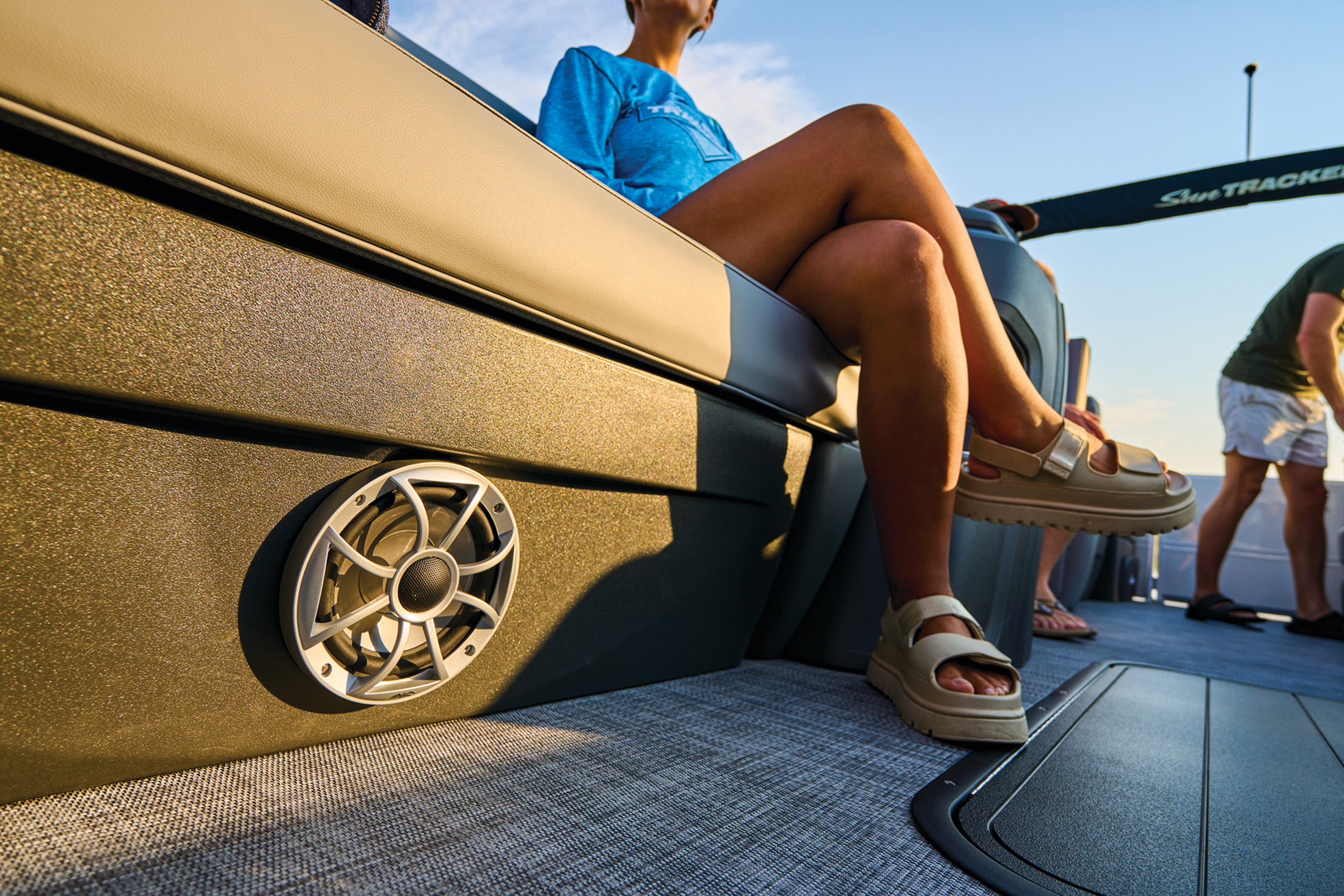

- Wet Sounds® stereo w/Bluetooth® & four 6.5" (16.51 cm) speakers, strategically located & shielded within the seat bases

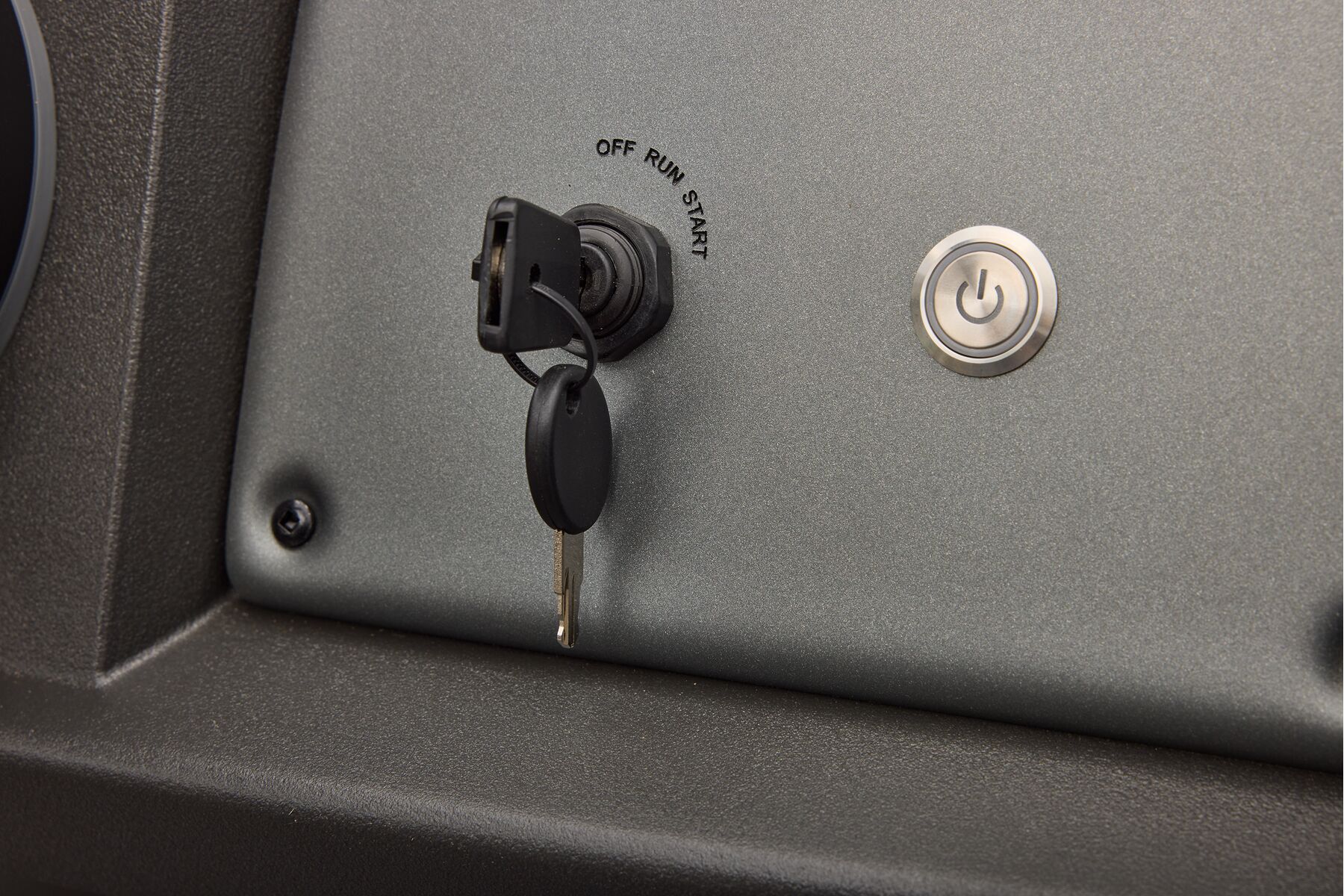

- Master power on/off switch
- Recessed mobile phone cubbies
- USB charging receptacle
Interior

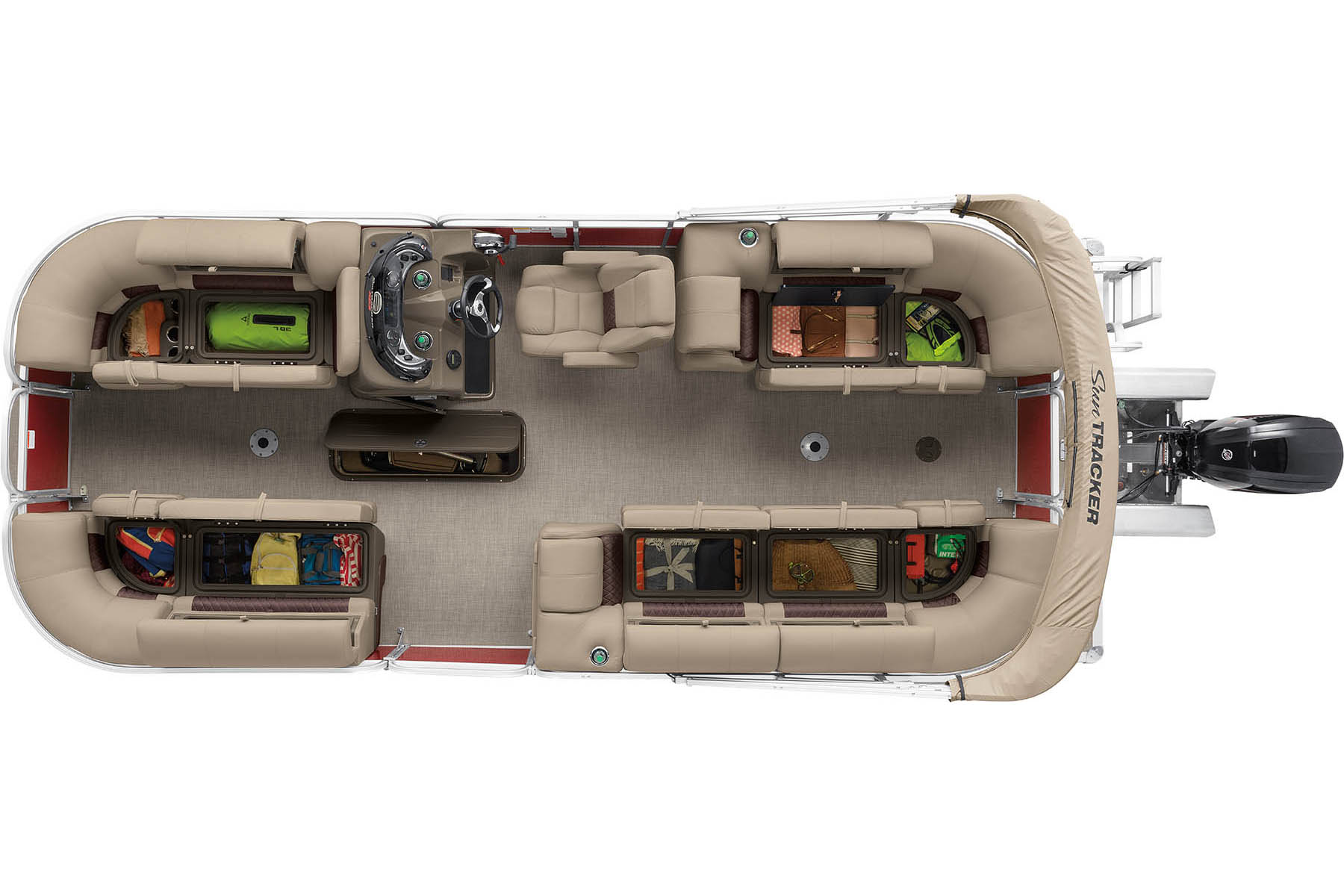

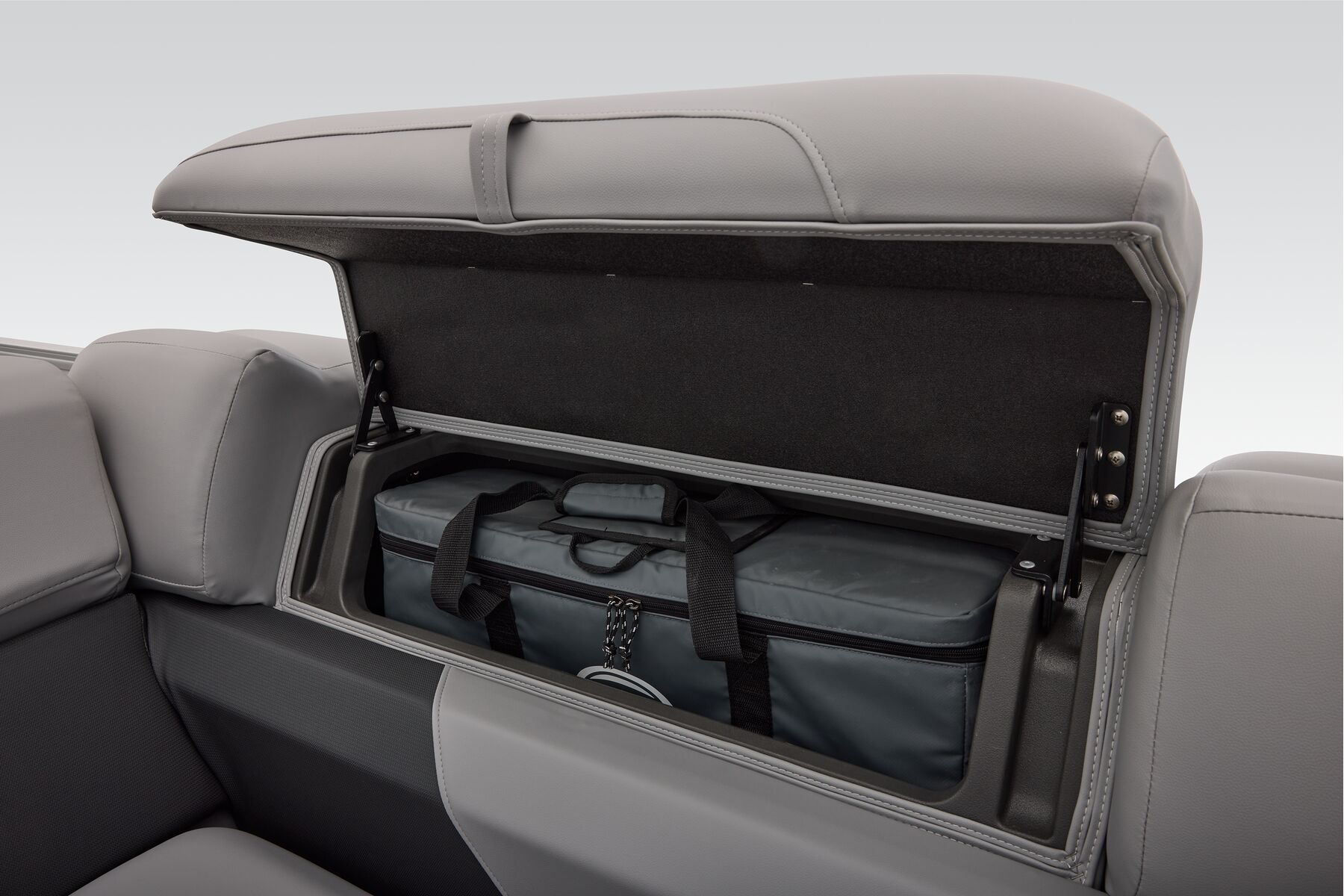

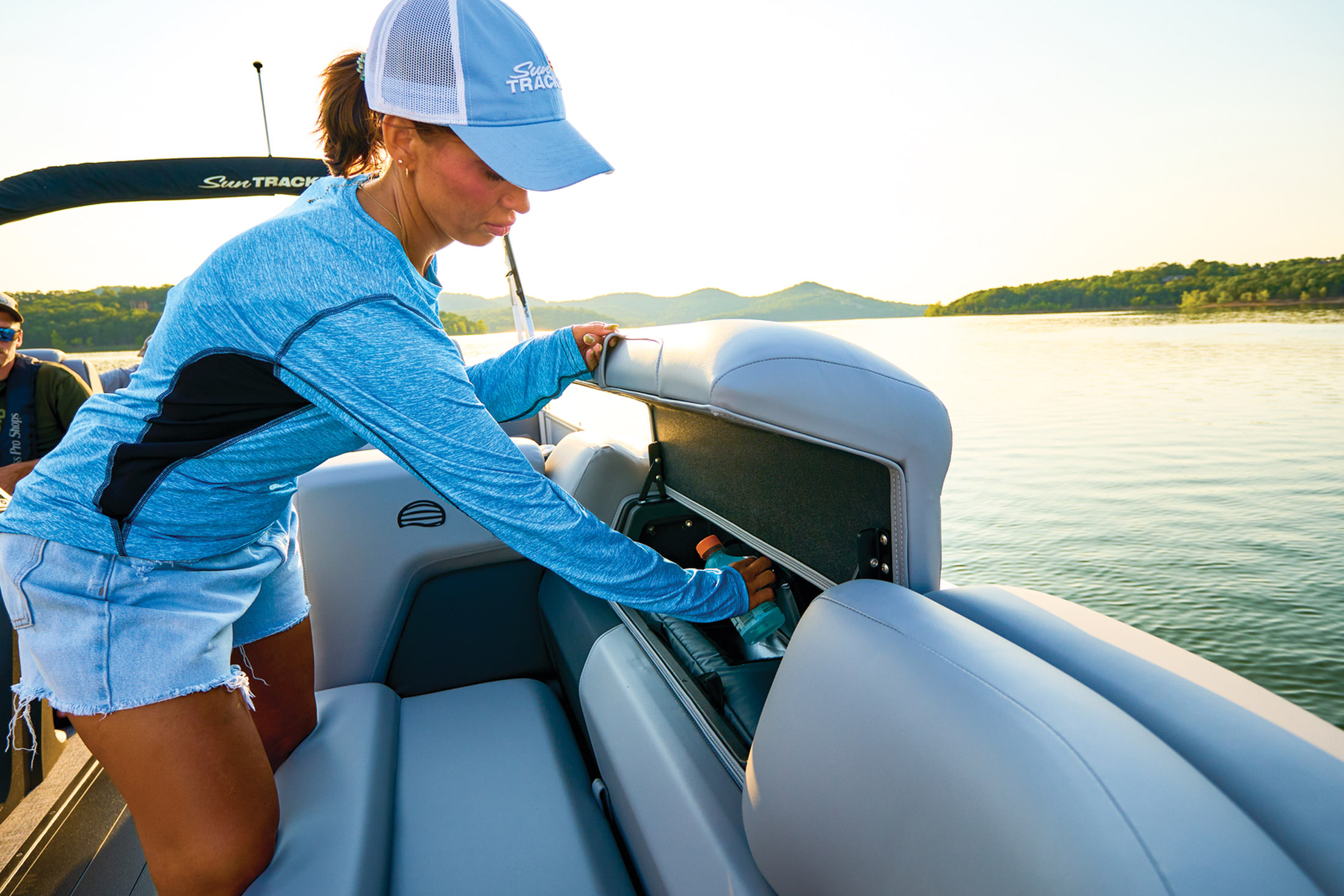

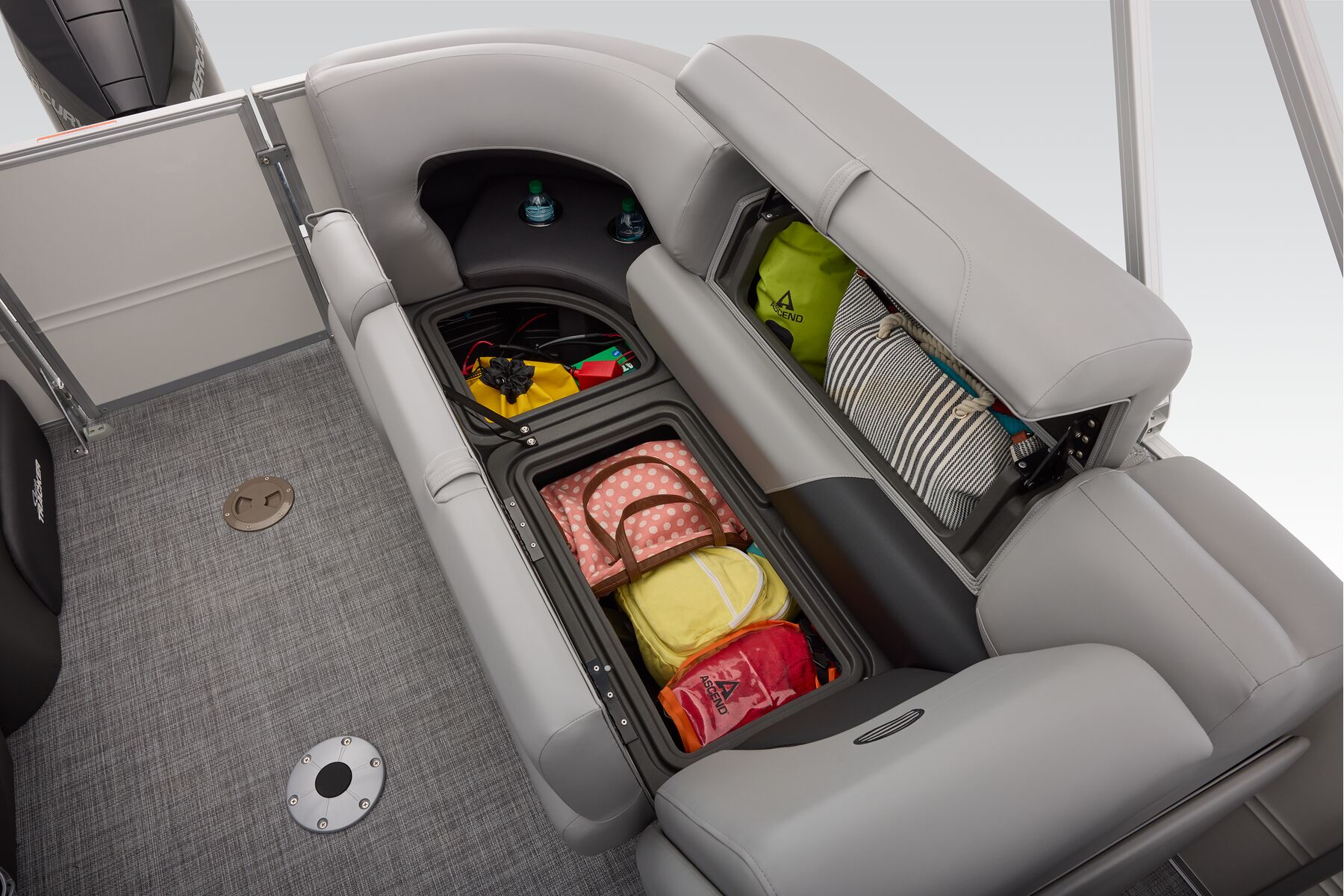

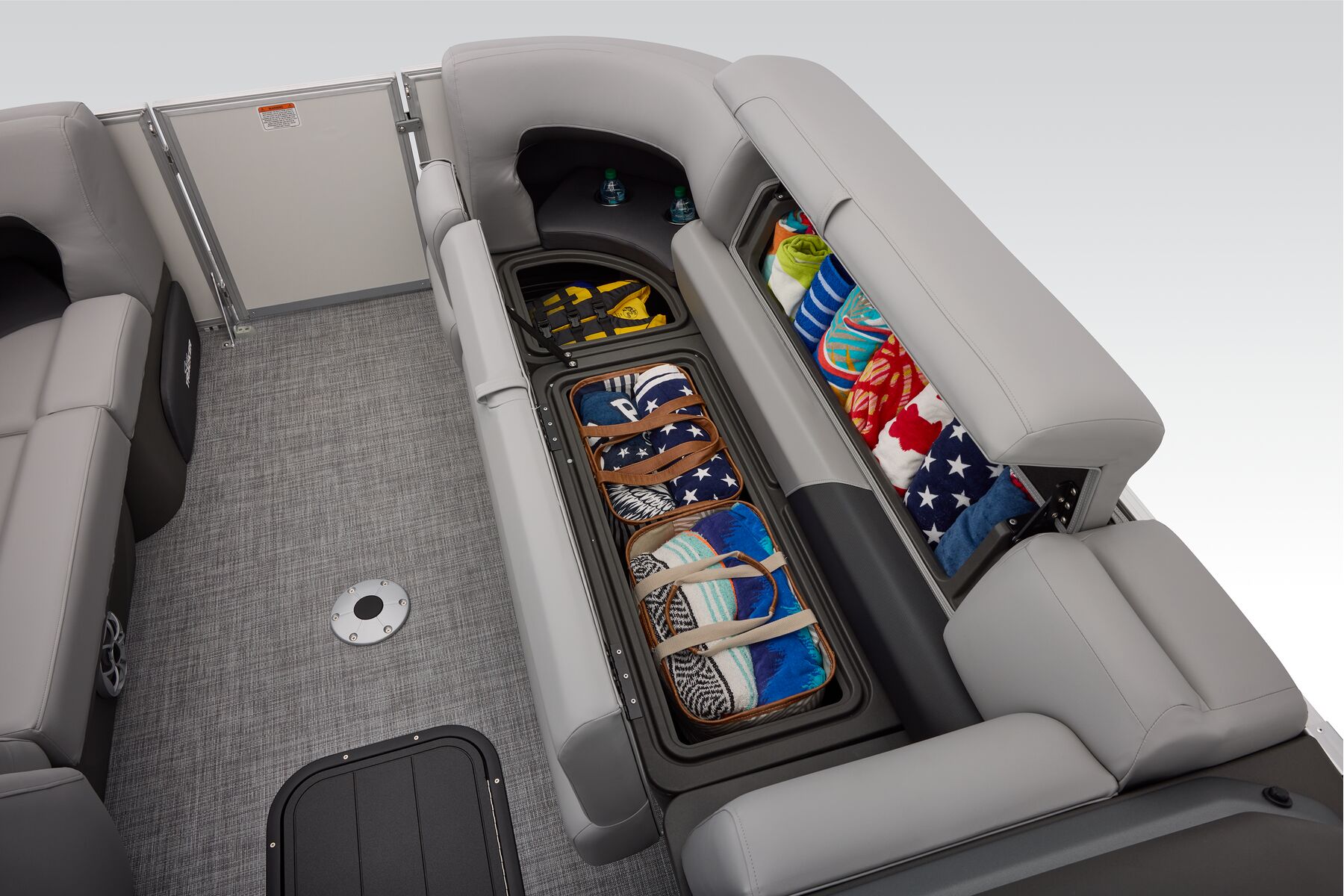

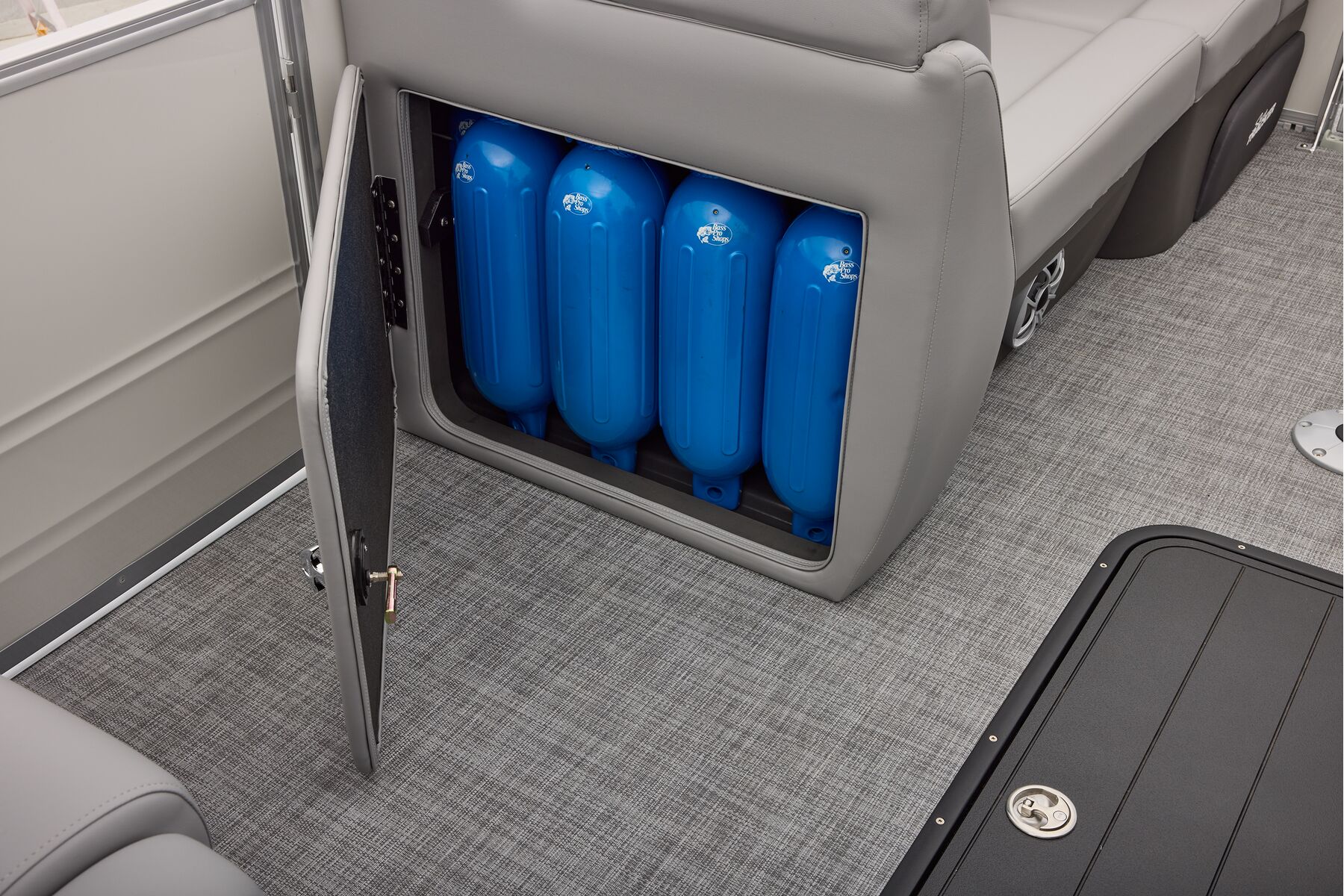

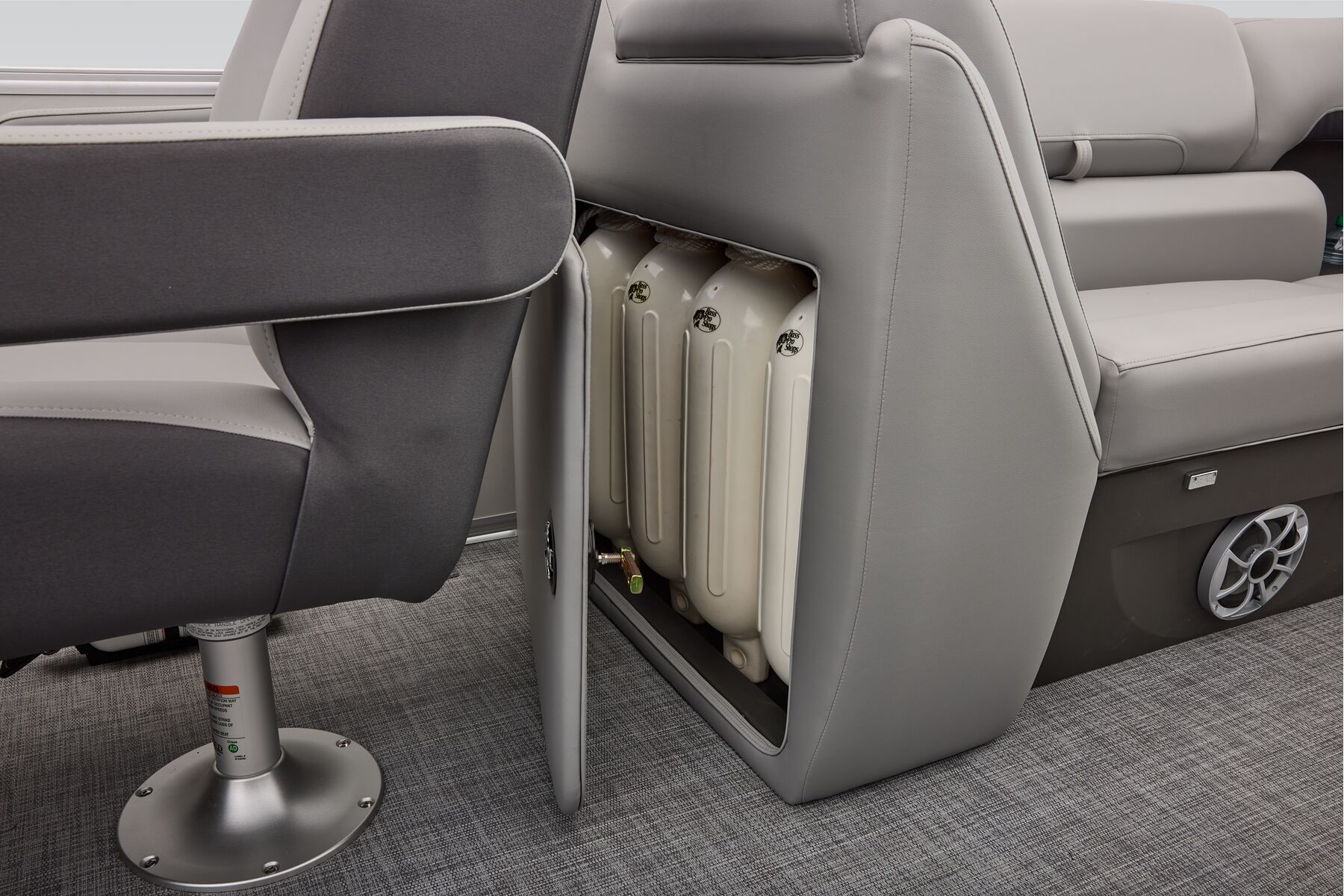

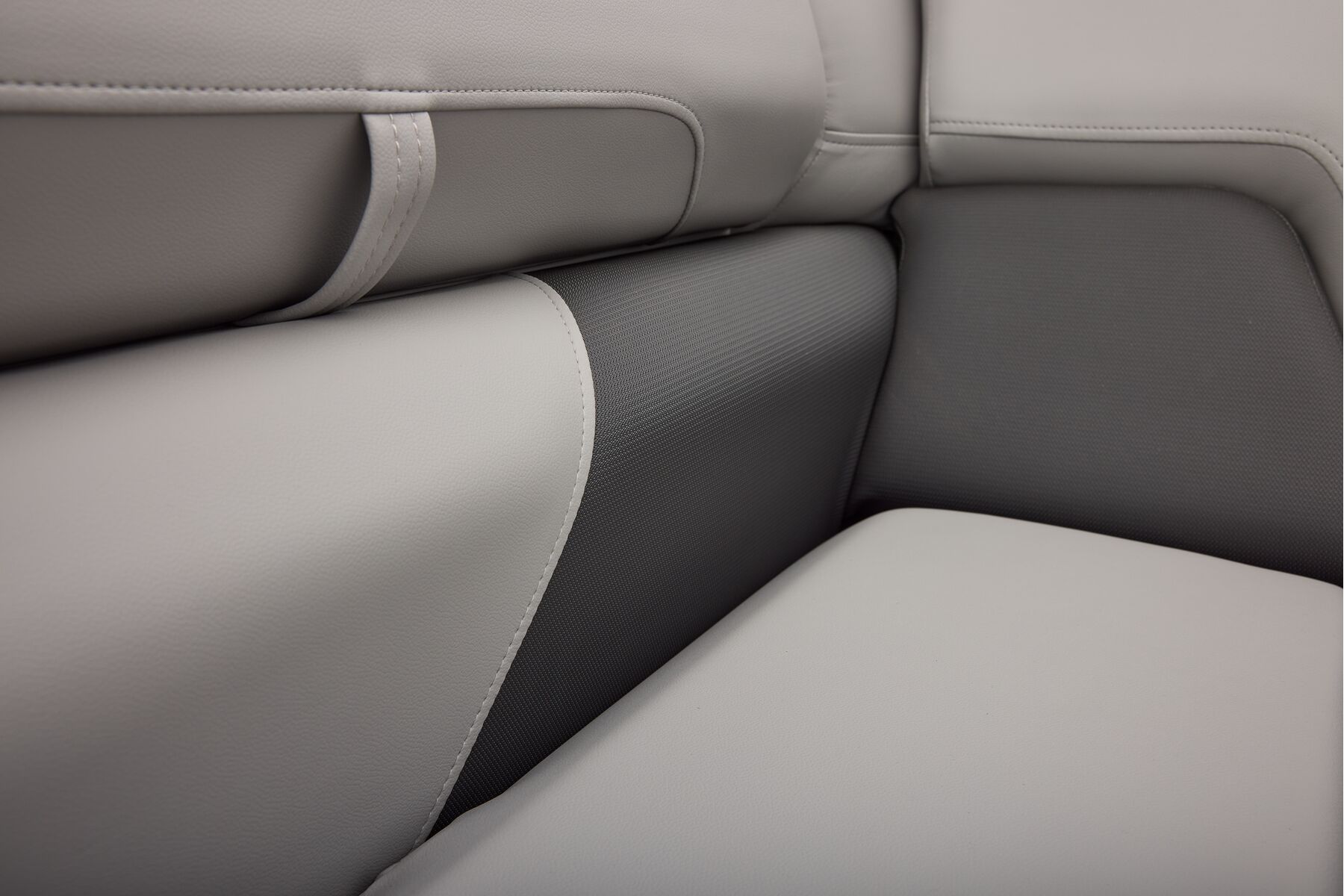

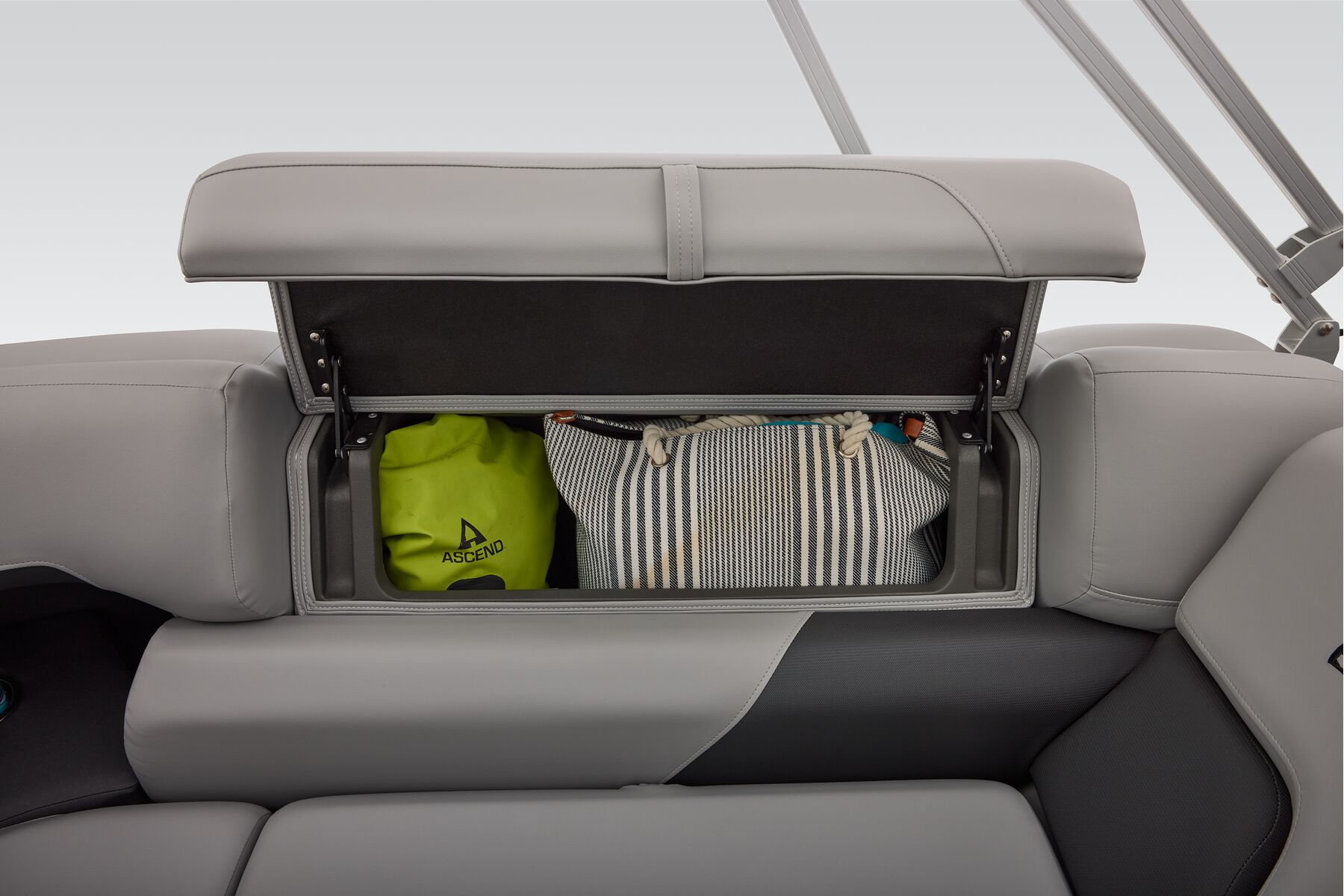

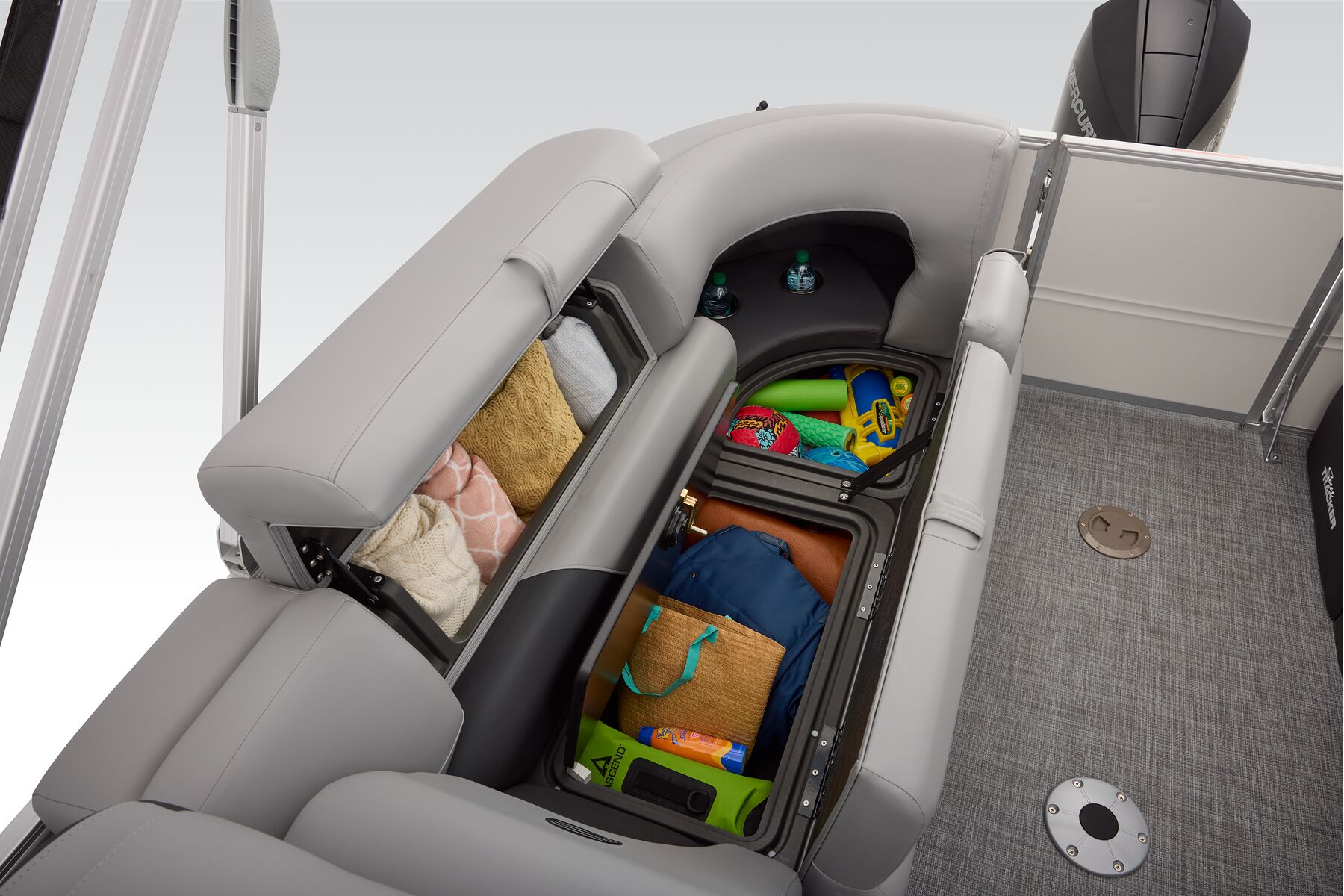

- Patented built-in STOW MORE™ seat-back storage system for all couches

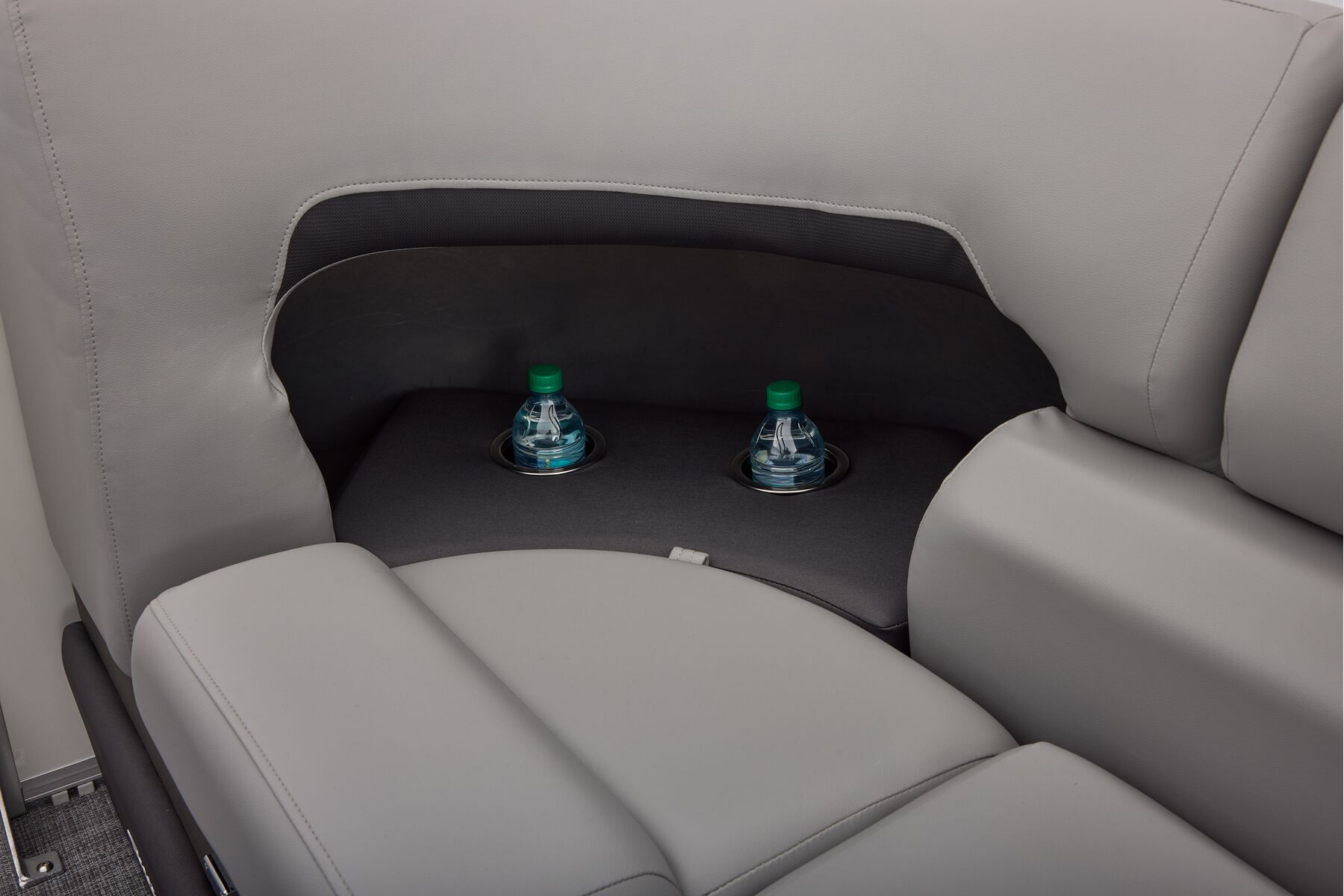

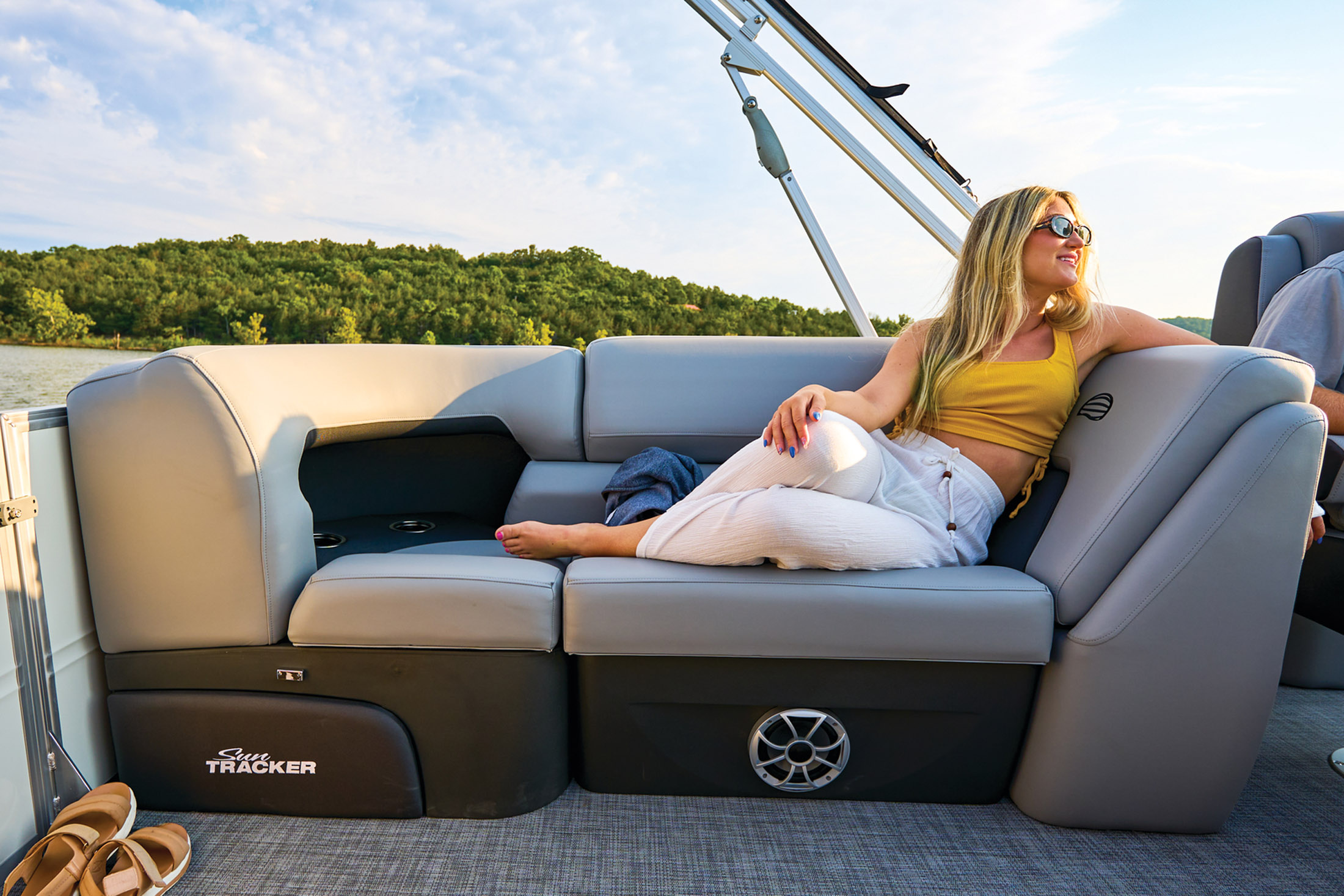

- Bow port couch w/STOW MORE™, underseat storage & armrest w/drink holder
- Bow starboard console couch w/STOW MORE™ & underseat storage

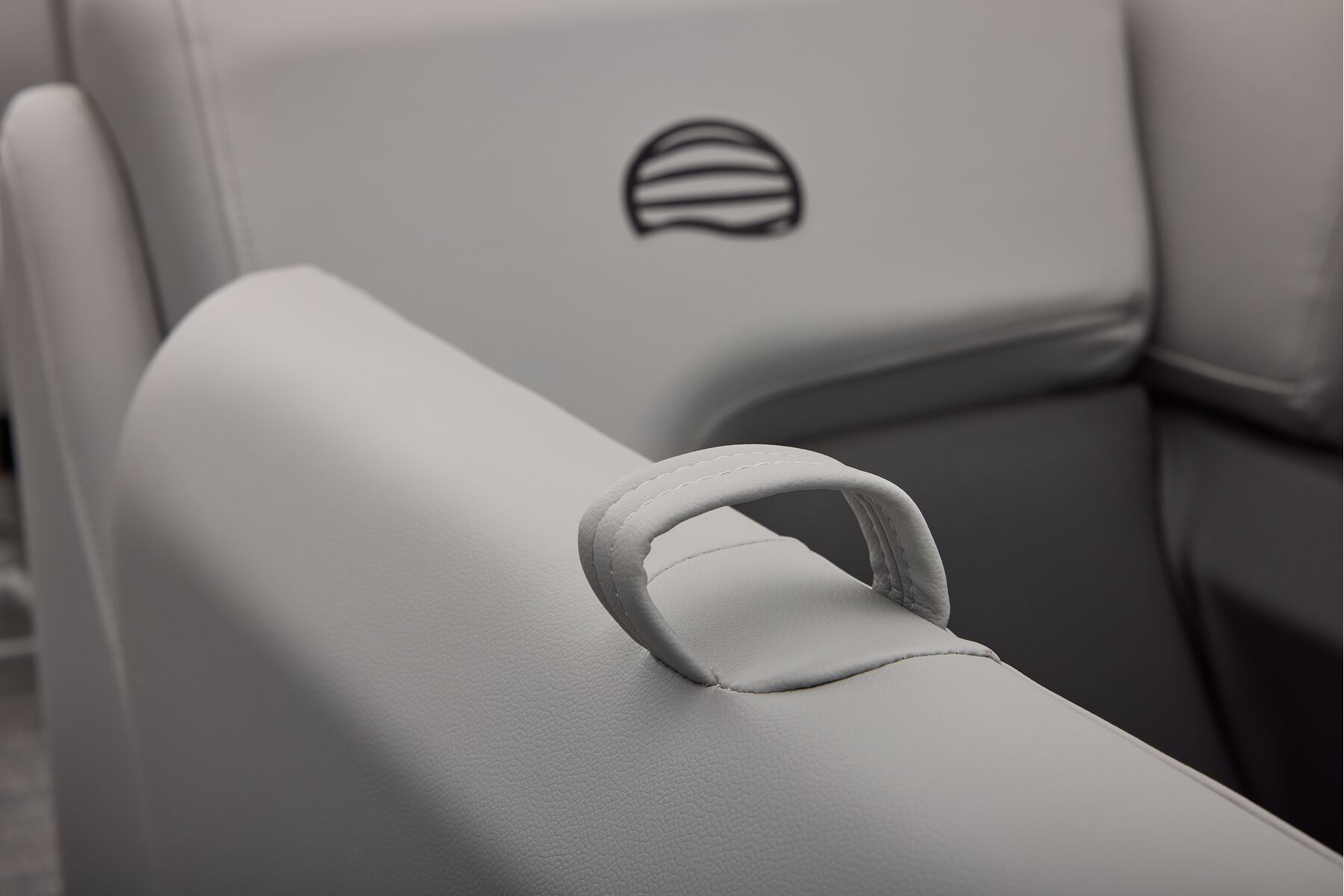

- 2 movable drink holders/armrests for couch seating

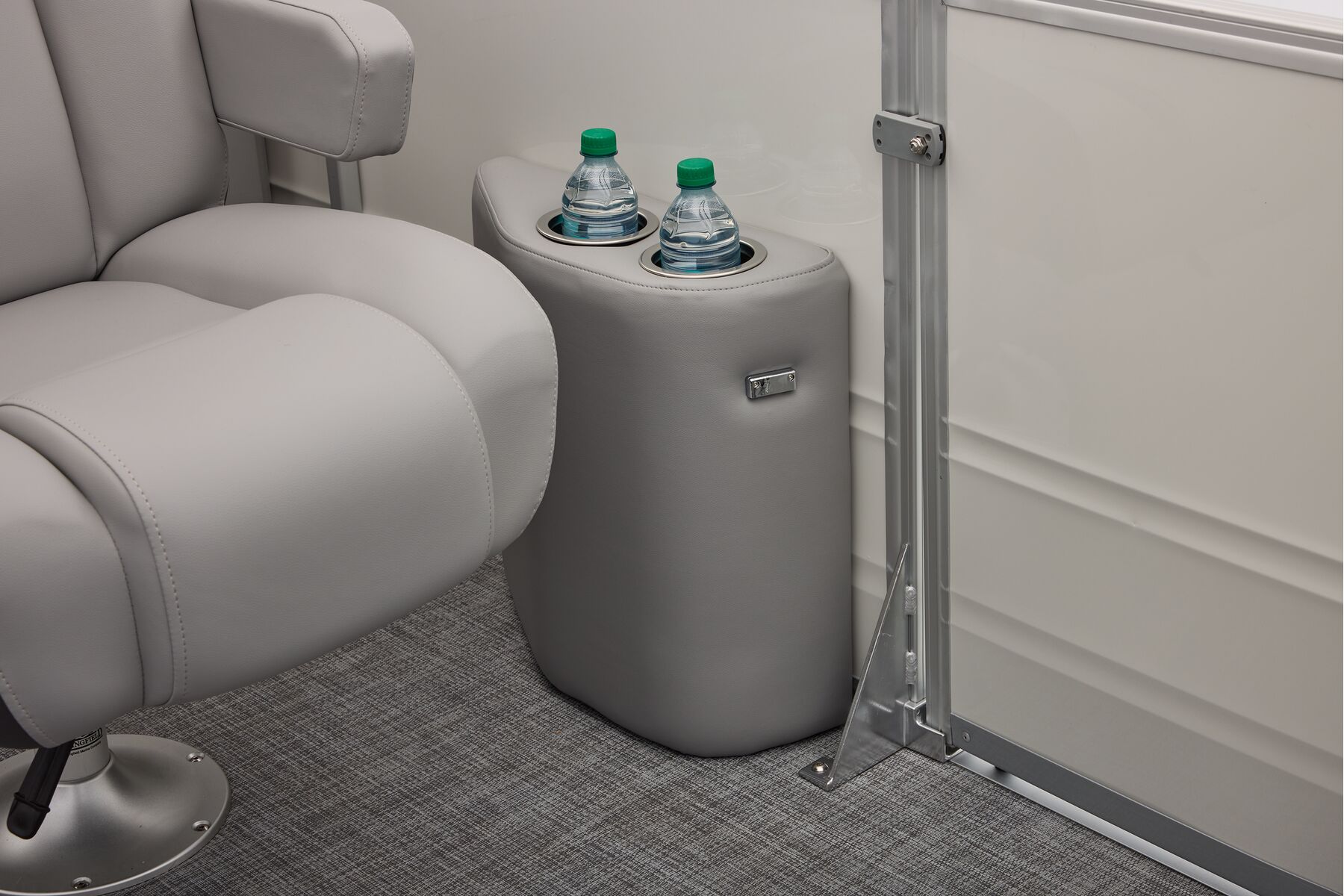

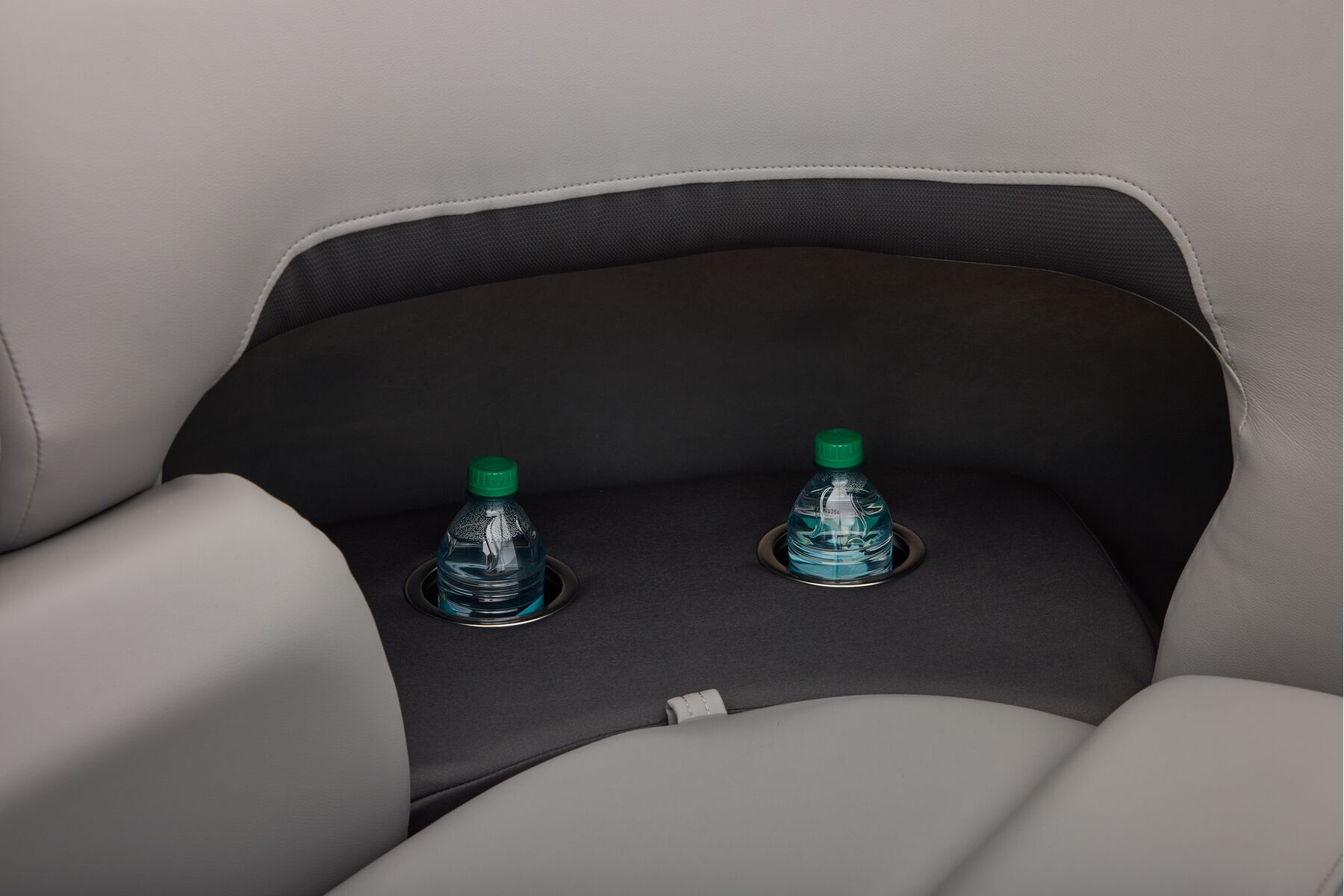

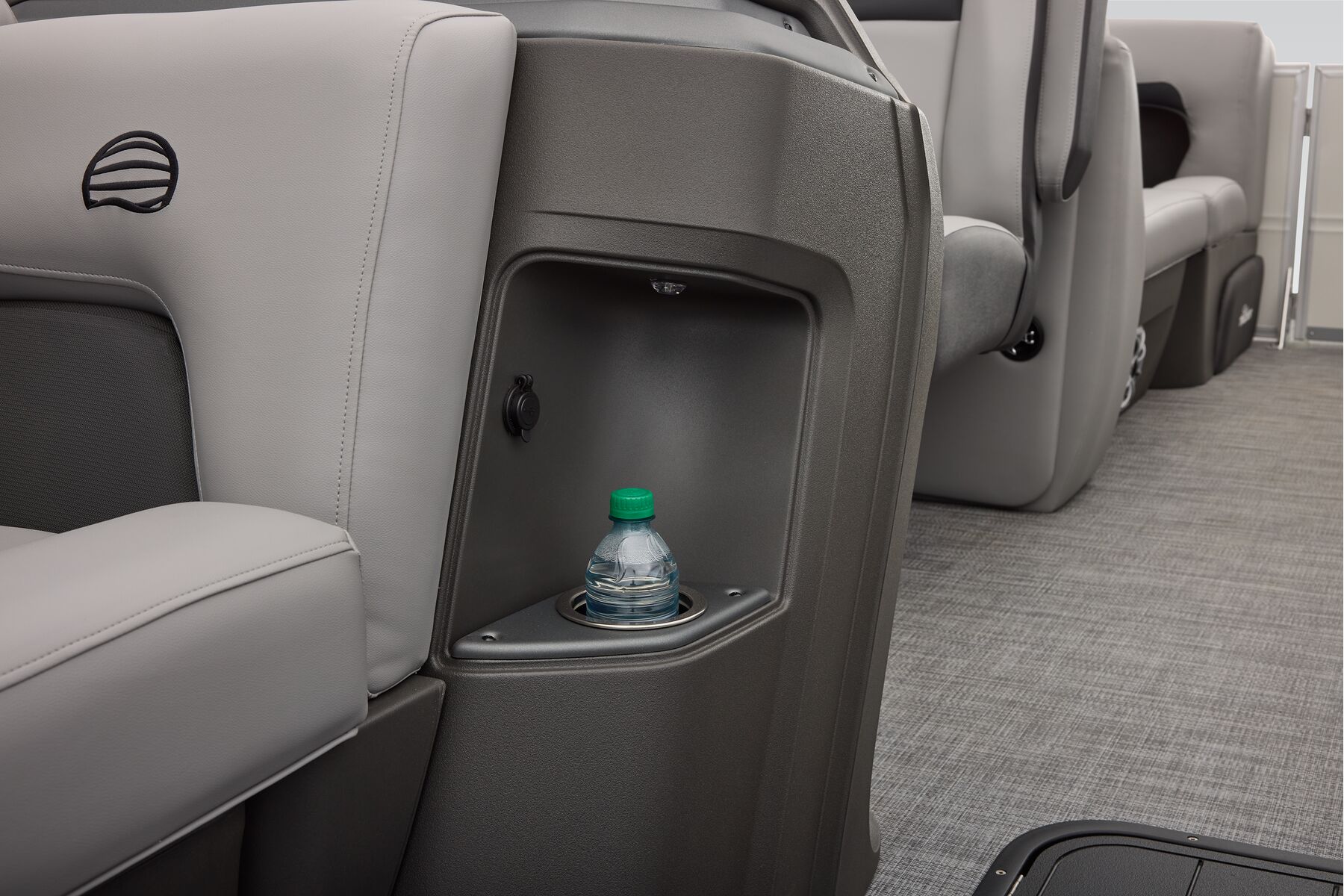

- Midship port side drink holder

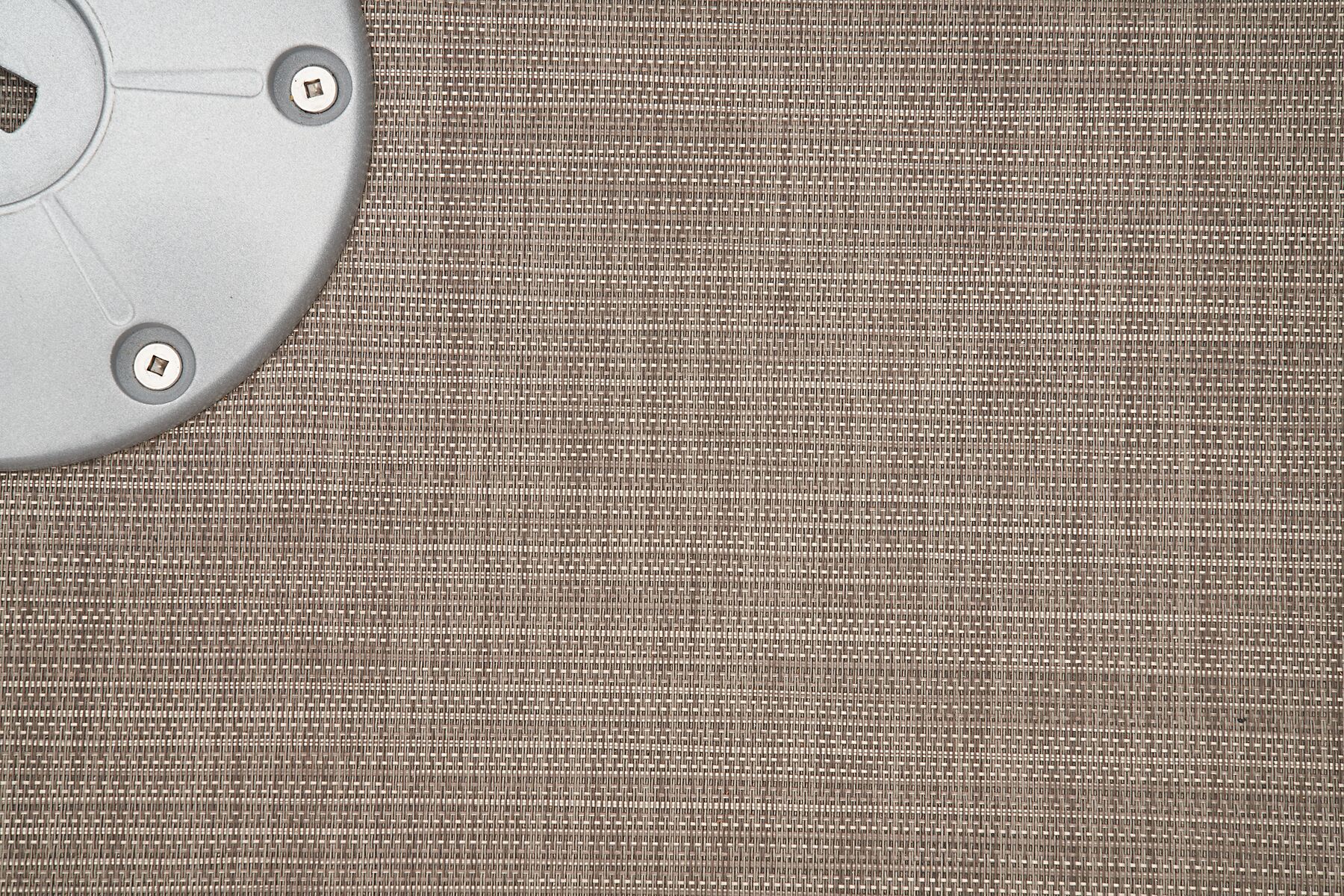

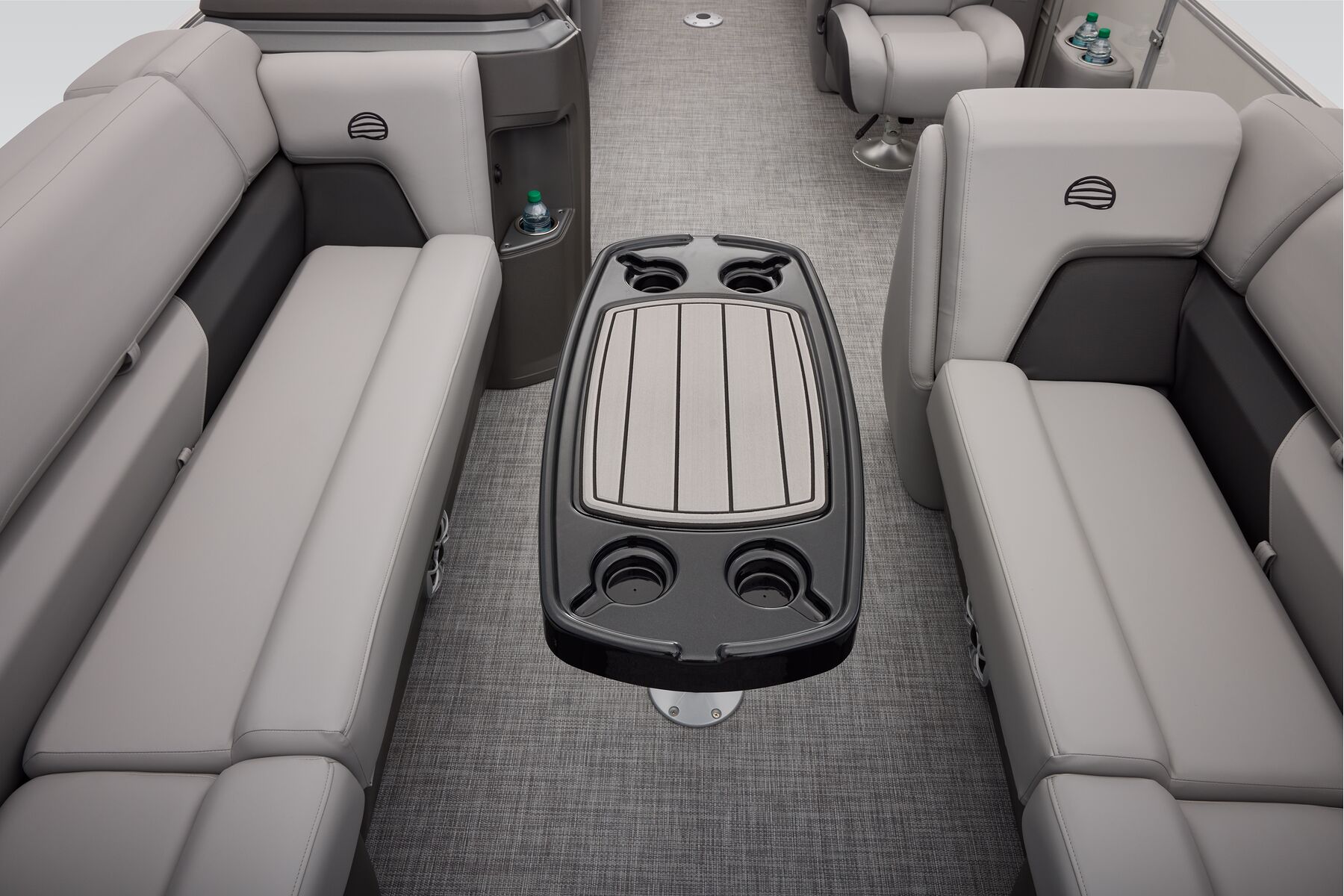

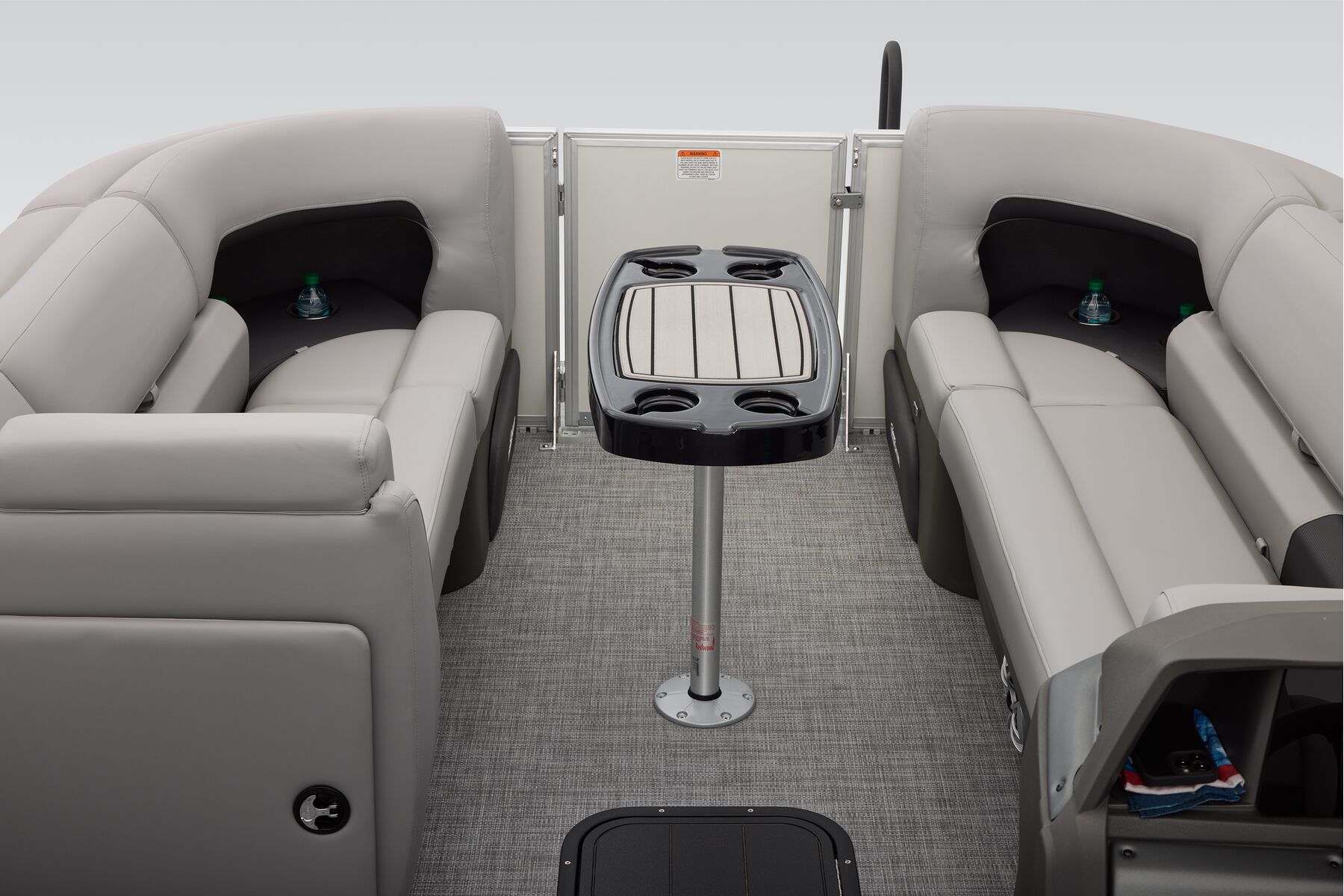

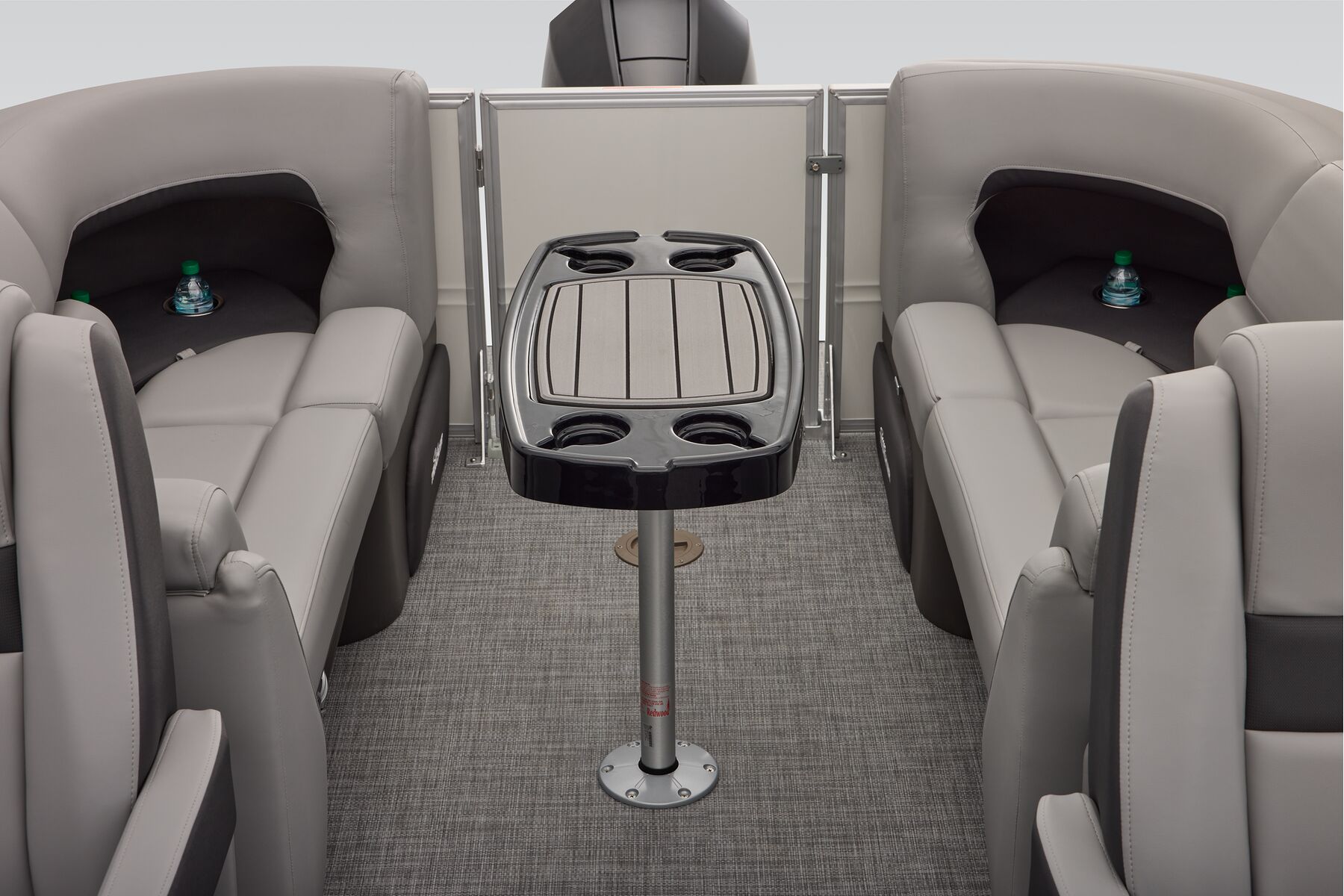

- Removable table w/soft-touch insert; 4 molded-in drink holders; & 2 pedestal base locations

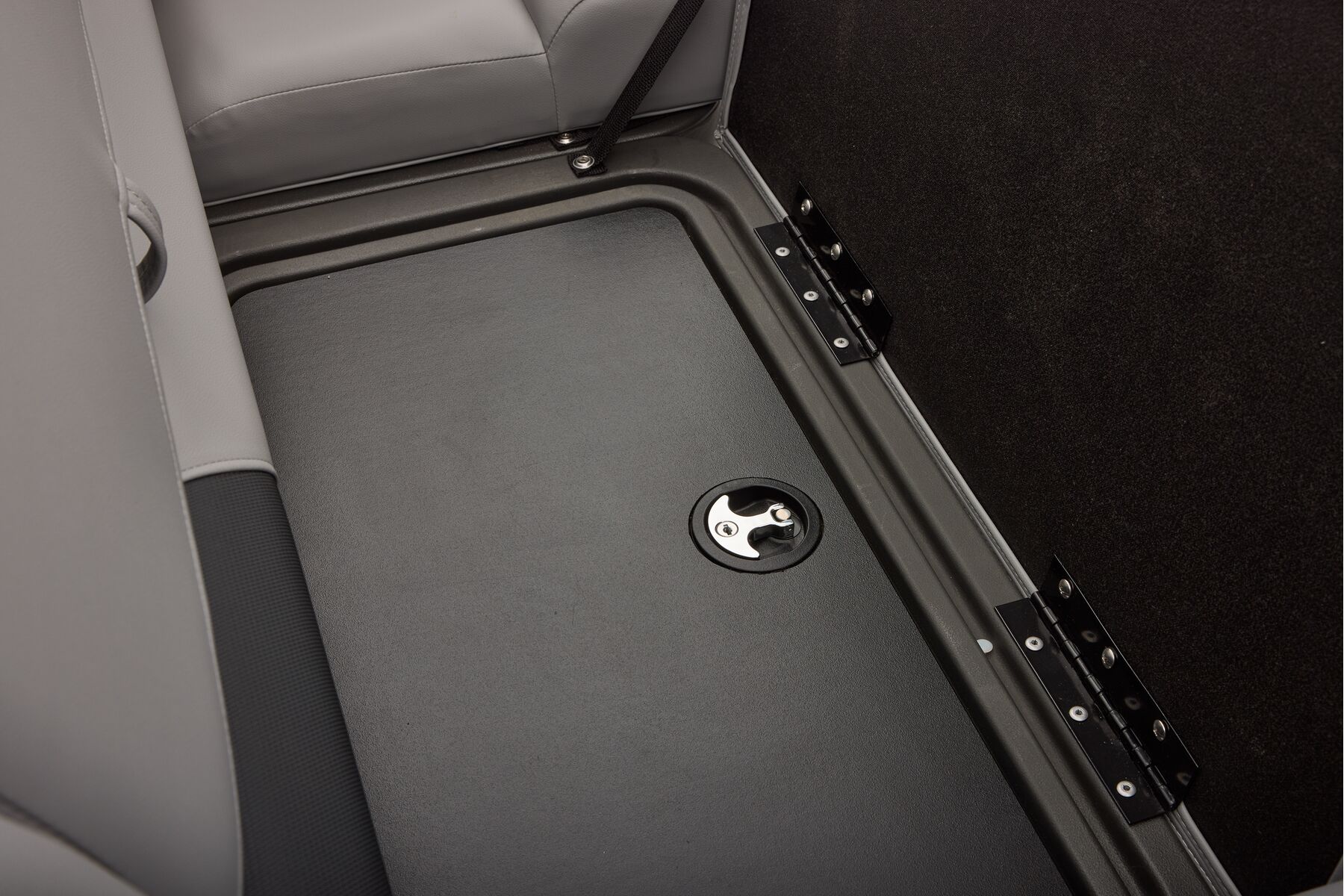

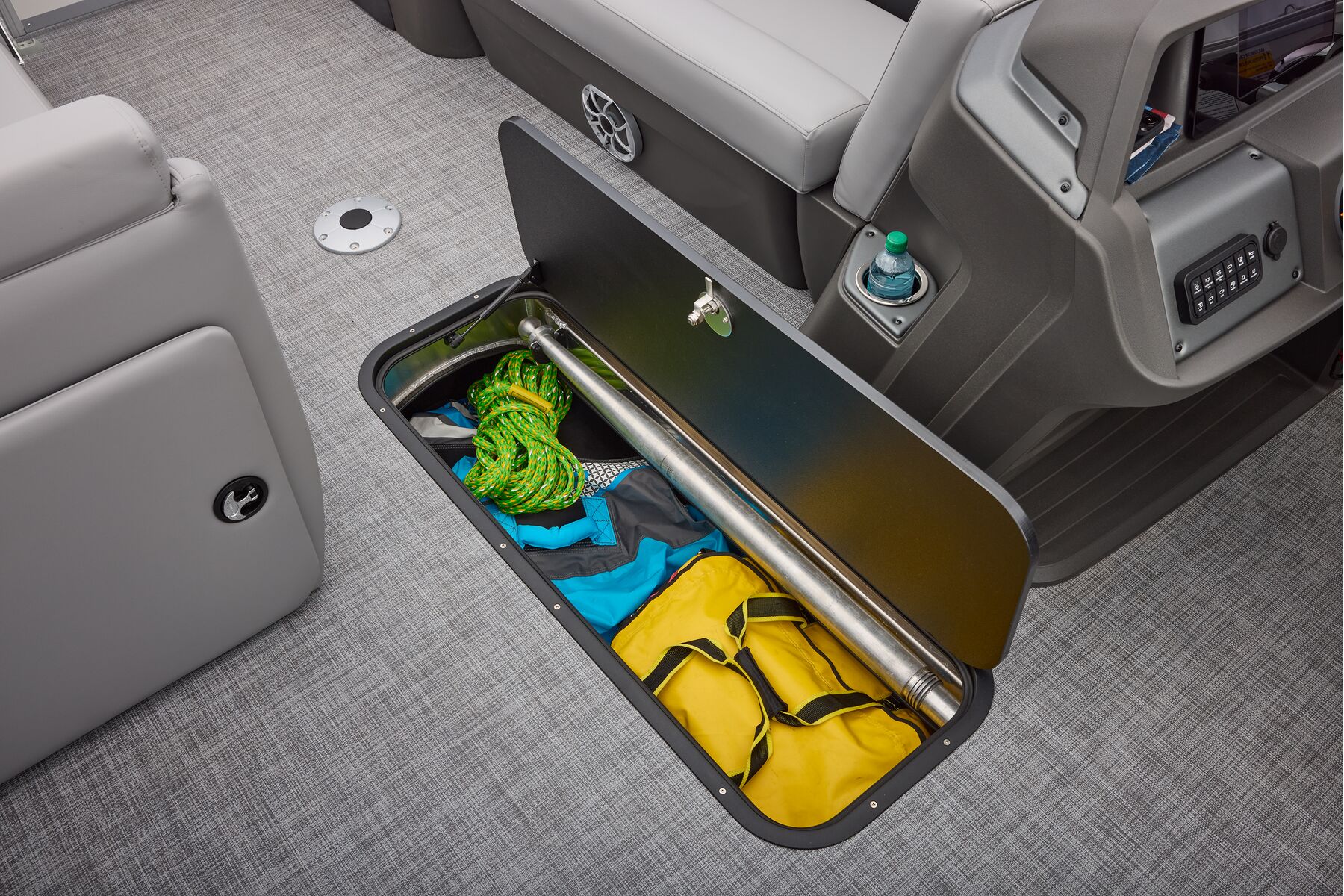

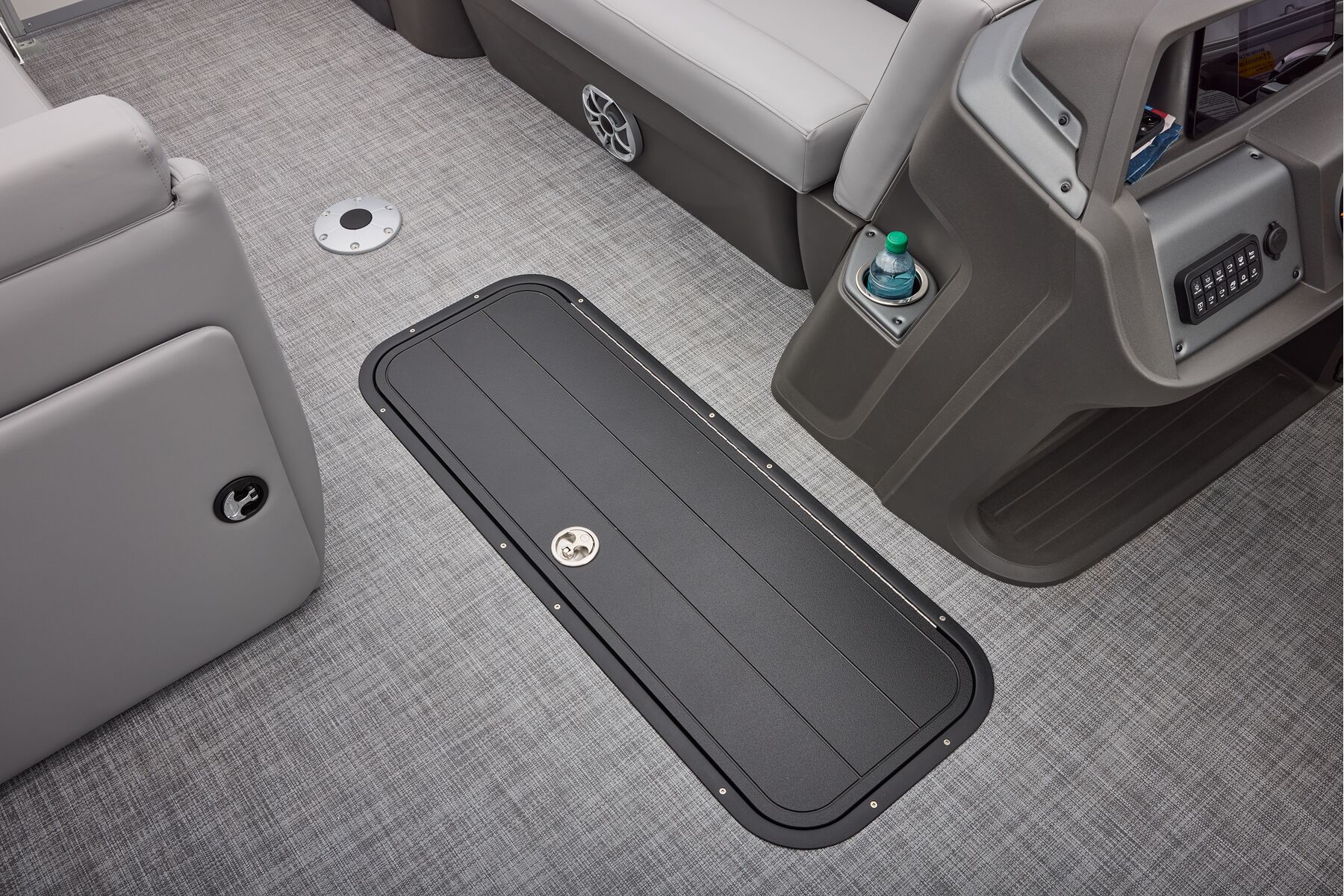

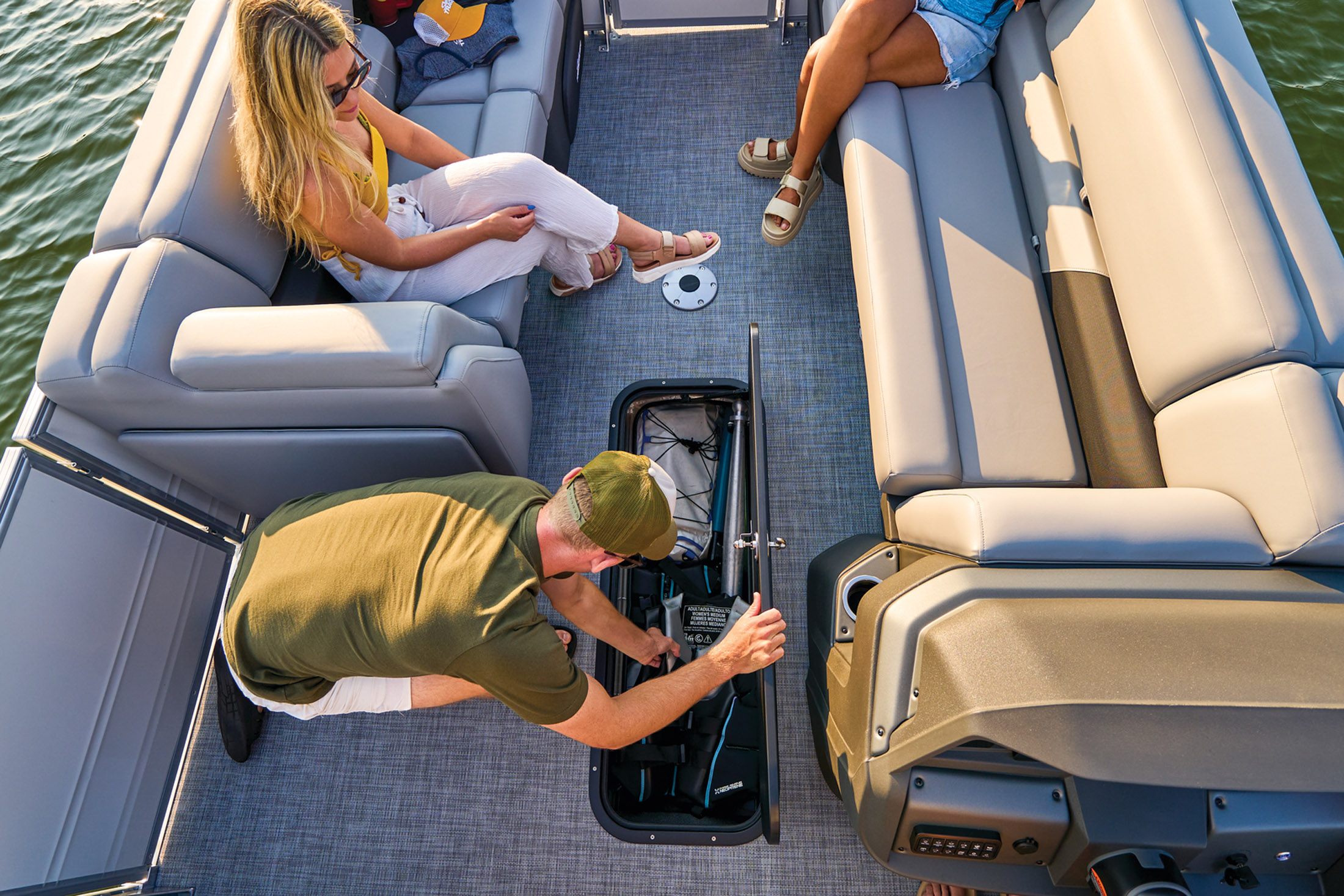

- In-floor lighted storage compartment — 88" (2.24 m) long, 23" (58.42 cm) deep — w/bilge pump in center log

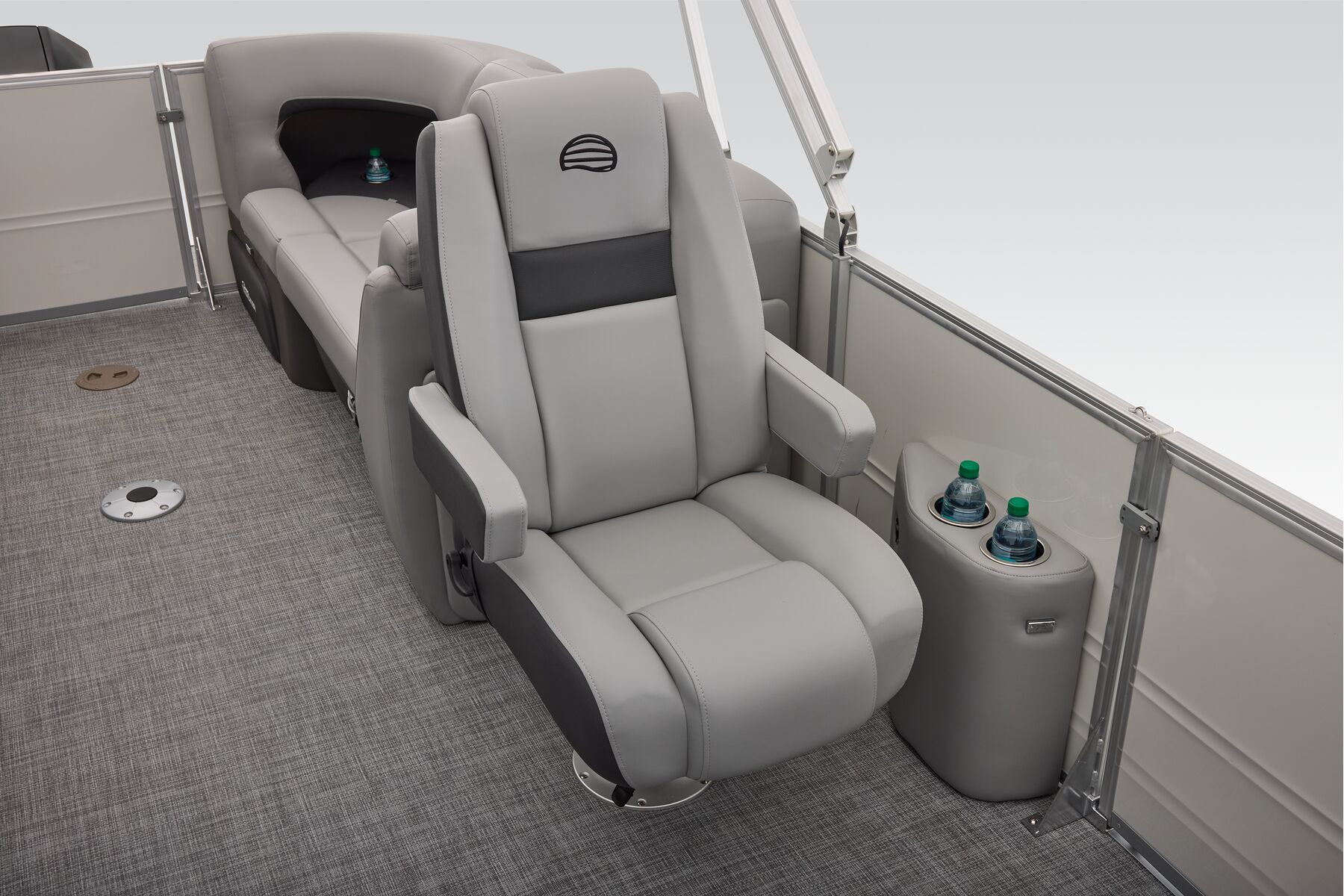

- Reclining, high-back swiveling port & helm bucket seats w/self-leveling armrests
- Aft port couch w/STOW MORE™ & underseat storage
- Aft starboard couch w/STOW MORE™ & underseat, lockable storage

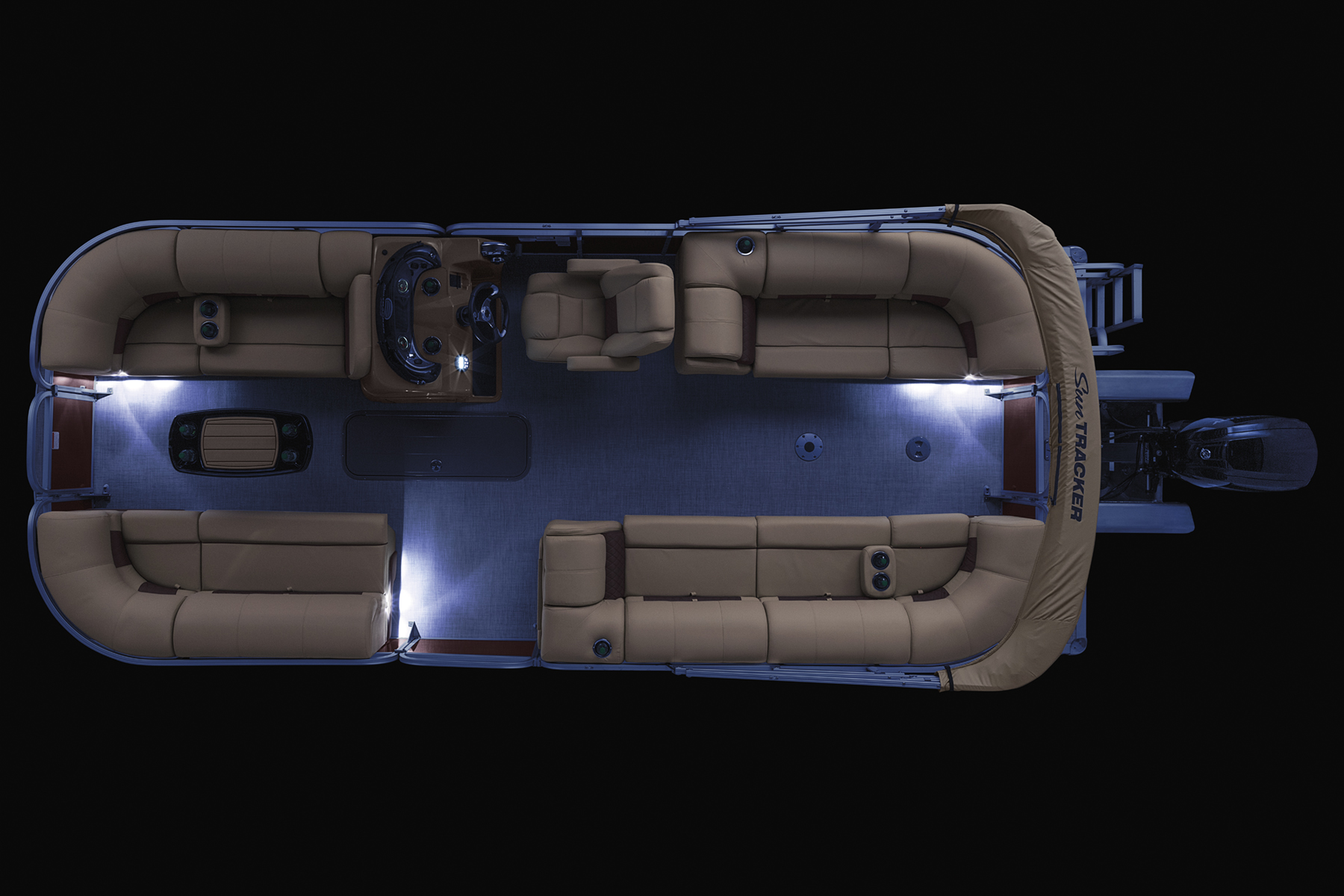

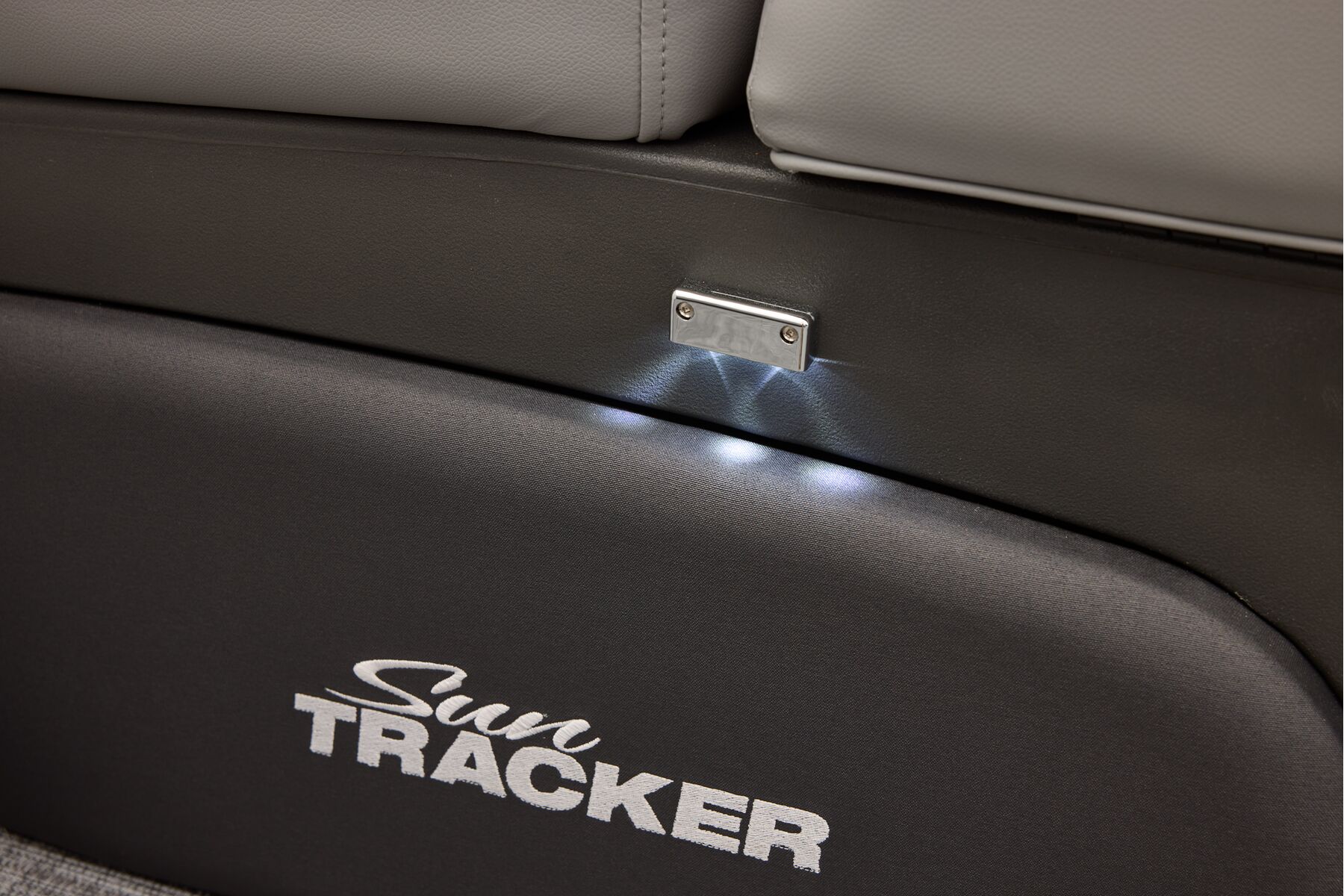

- Interior courtesy lighting
- Full-width aft swim deck

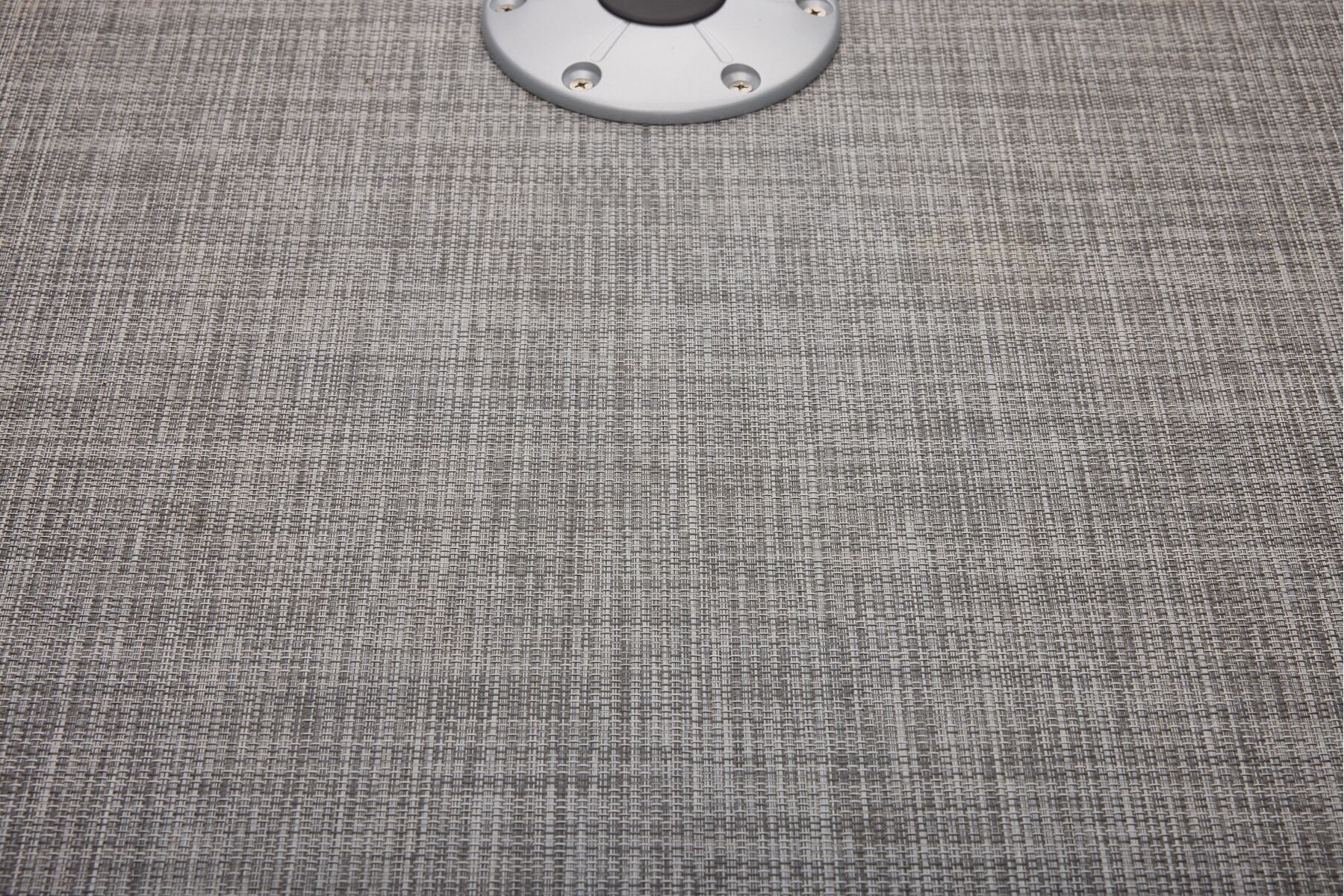

- Woven 16-oz. (.45 kg) marine-grade flooring throughout

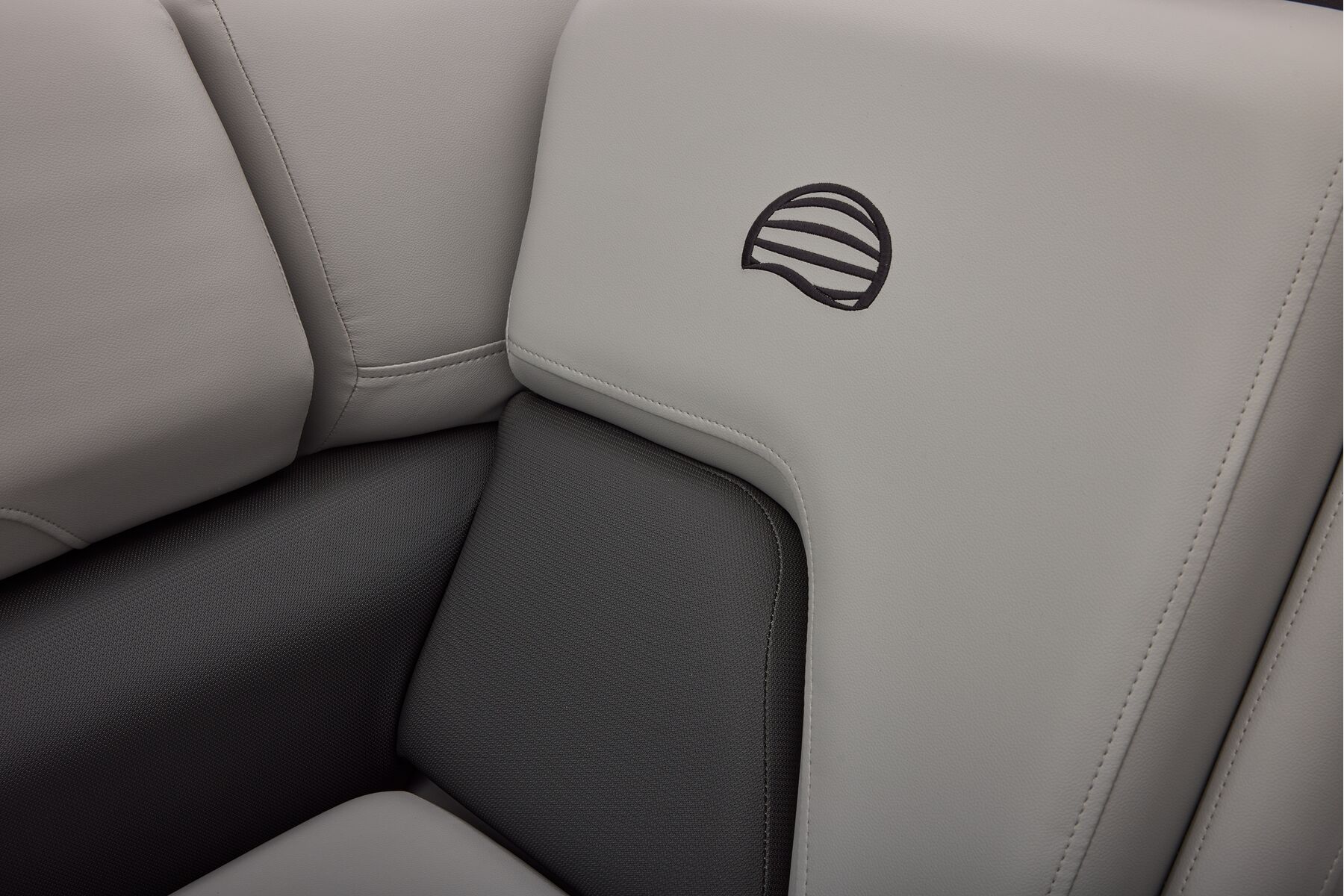

- Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
Performance

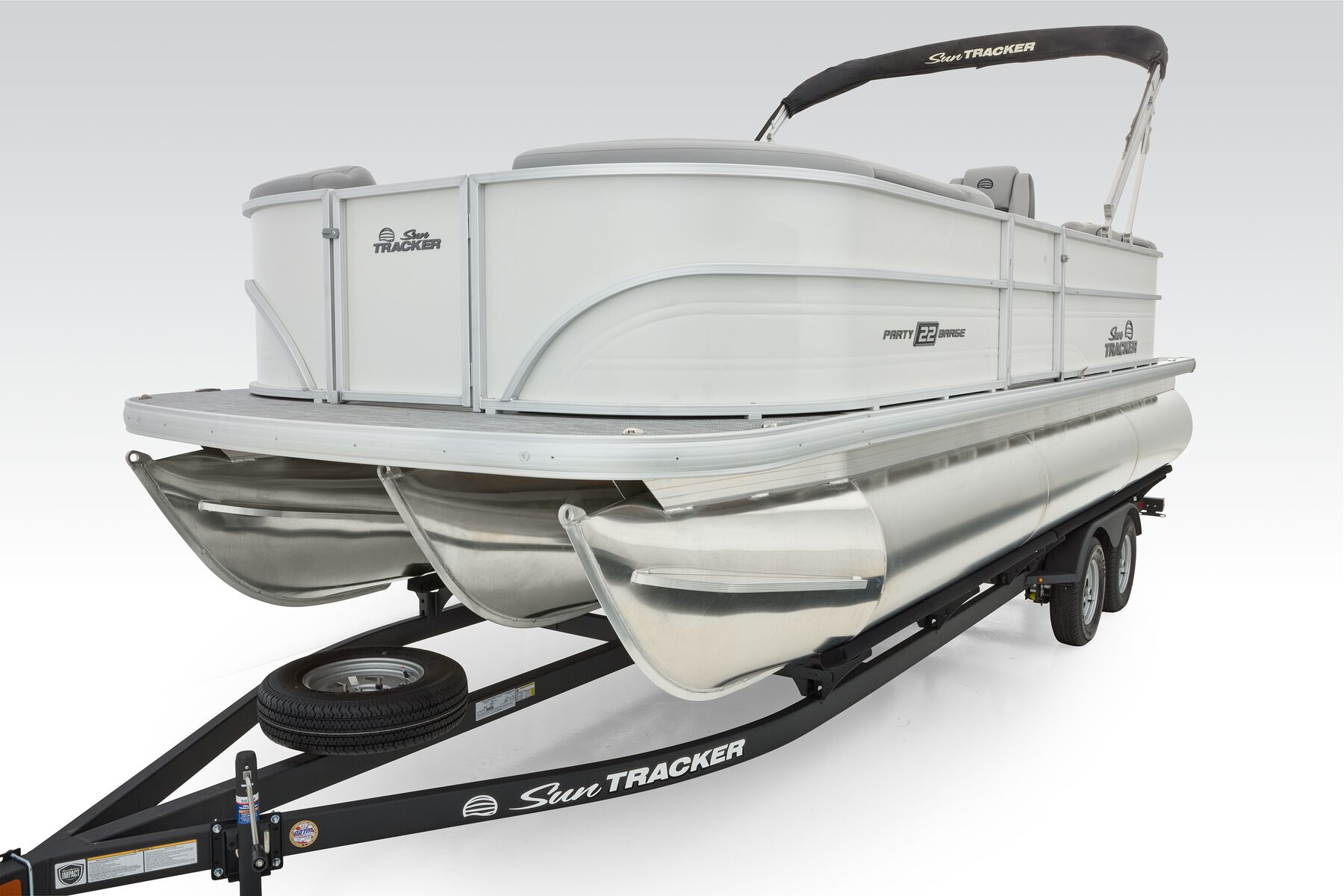

- Three 26" (66.04 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
- XP3 performance strakes & wave-deflecting nose cone for maximum performance
- Full-length, 1-piece longitudinal M-bracket deck supports
- Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
- Heavy-duty aluminum U-channel reinforcement behind bow deck trim
- Reinforced bow & stern structures
- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- All-aluminum box-beam transom for strength & longevity
- Factory-installed underpinning (under-deck shielding) for improved performance
- Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
- 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails
- Sound- & vibration-deadening fence insulation for a quiet ride
- Extruded & anodized aluminum deck edging w/polished aft corner covers
- Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
- Rotomolded storage, furniture & console for superior strength & longevity

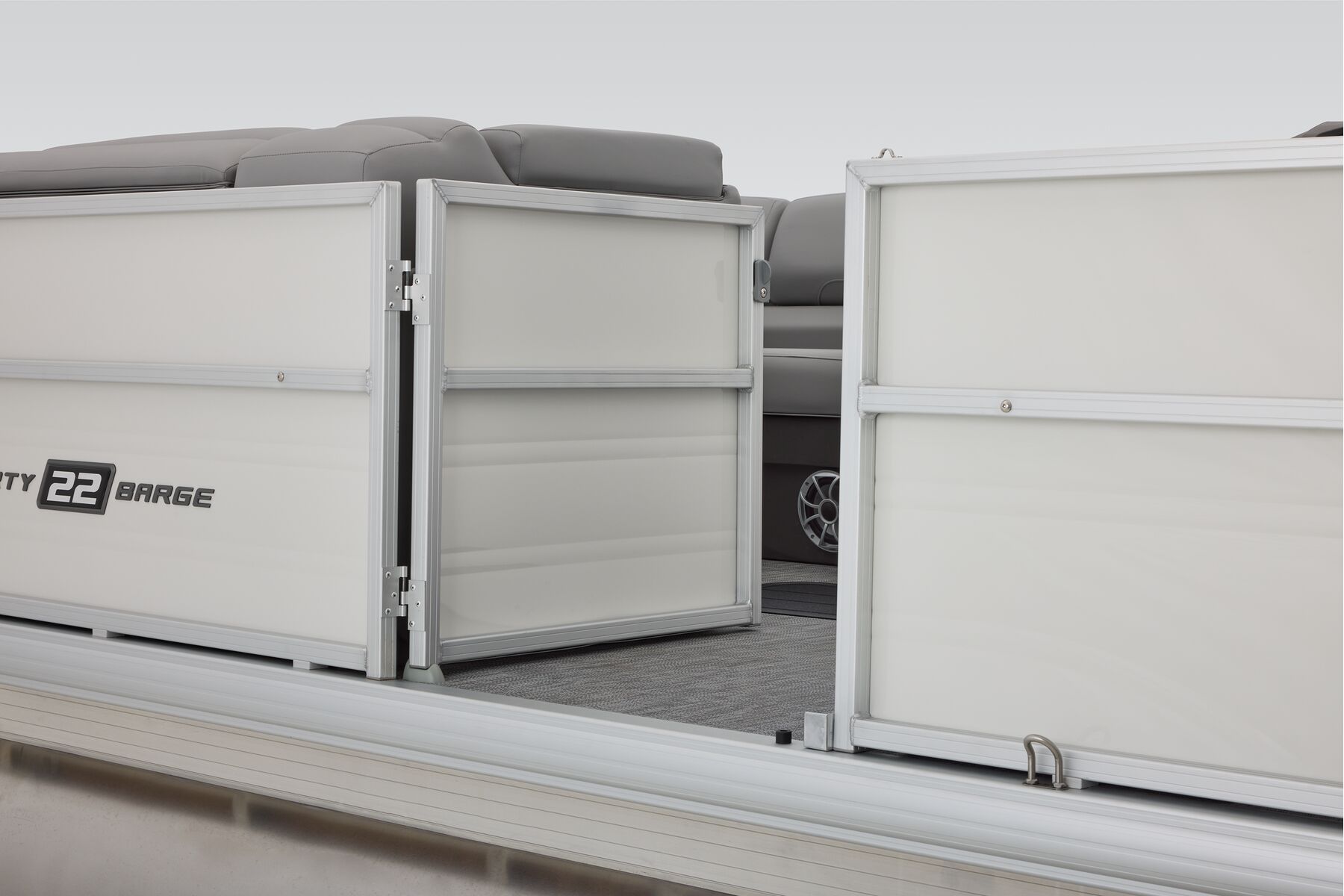

- Nylon gate latches & heavy-duty hinges that open inward
- Stainless or coated corrosion-resistant fasteners
- Factory-matched aluminum propeller
Exterior
- Color: Charcoal or Copper Red fencing

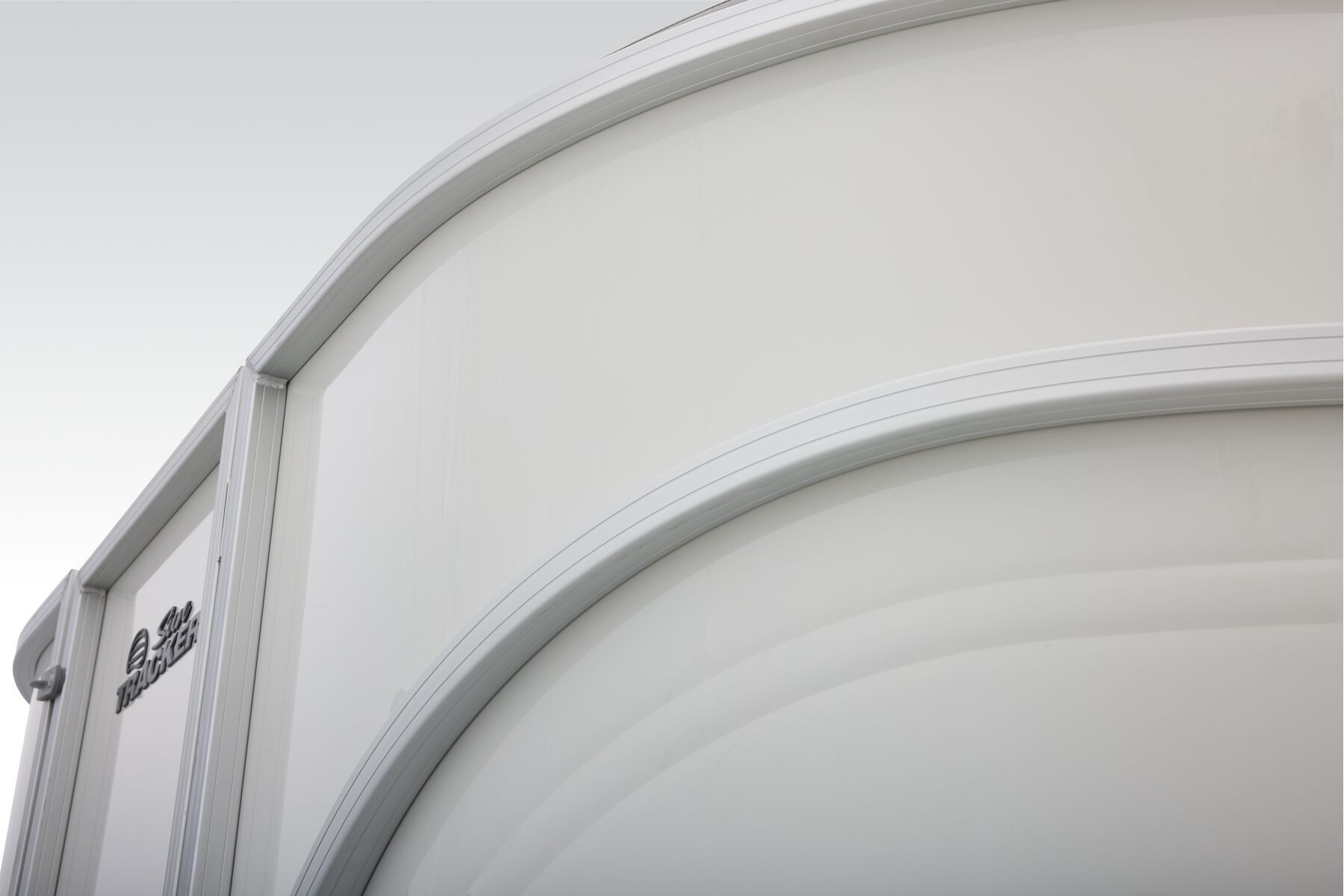

- TRACK FORMED™ fence design w/high-sheen finish for long-lasting cosmetics

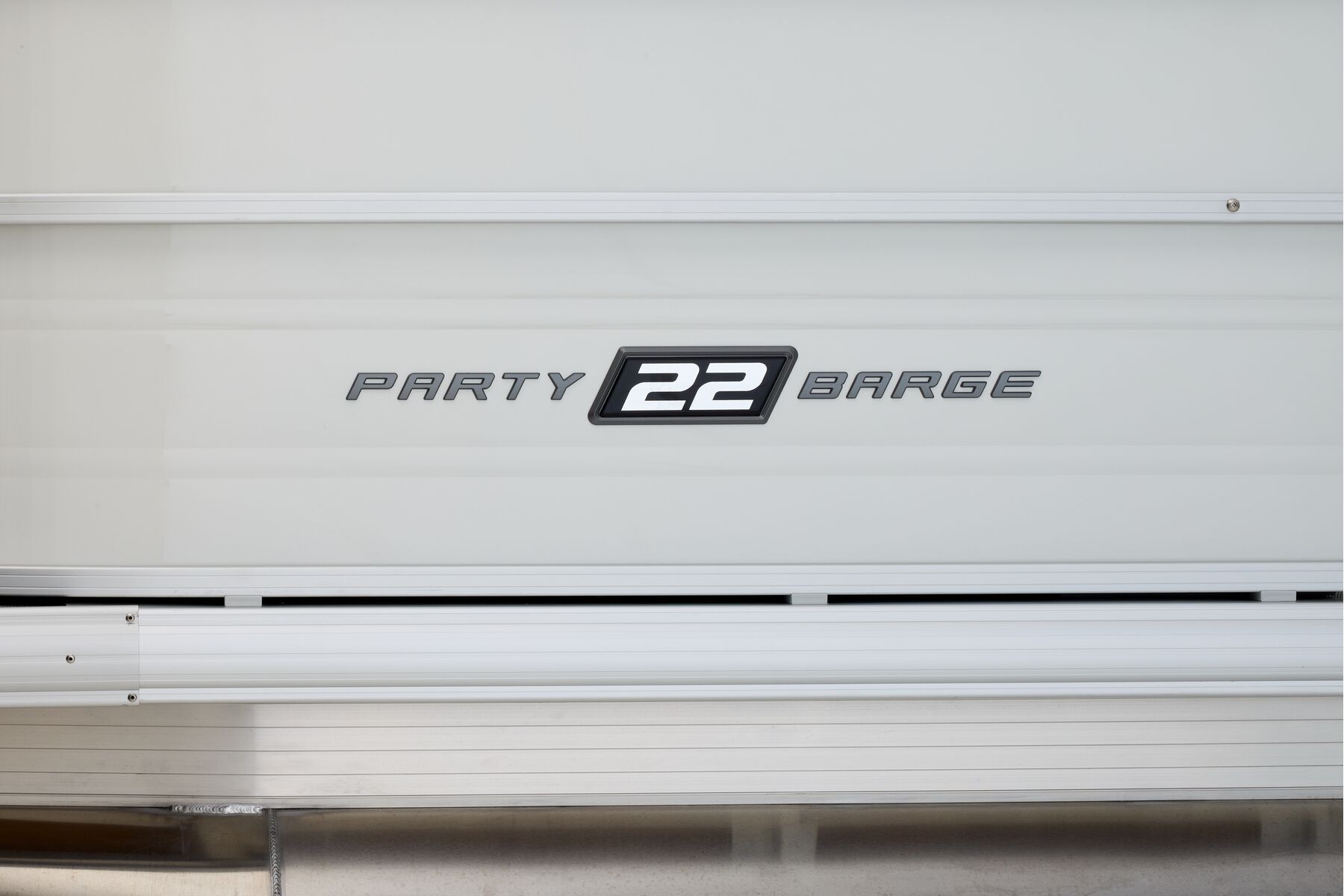

- Exterior styling w/XP3 graphics package
- Elevated fence panels for deck drainage & ventilation
Electrical
- 500 GPH (1892.71 LPH) Ultima automatic bilge pump

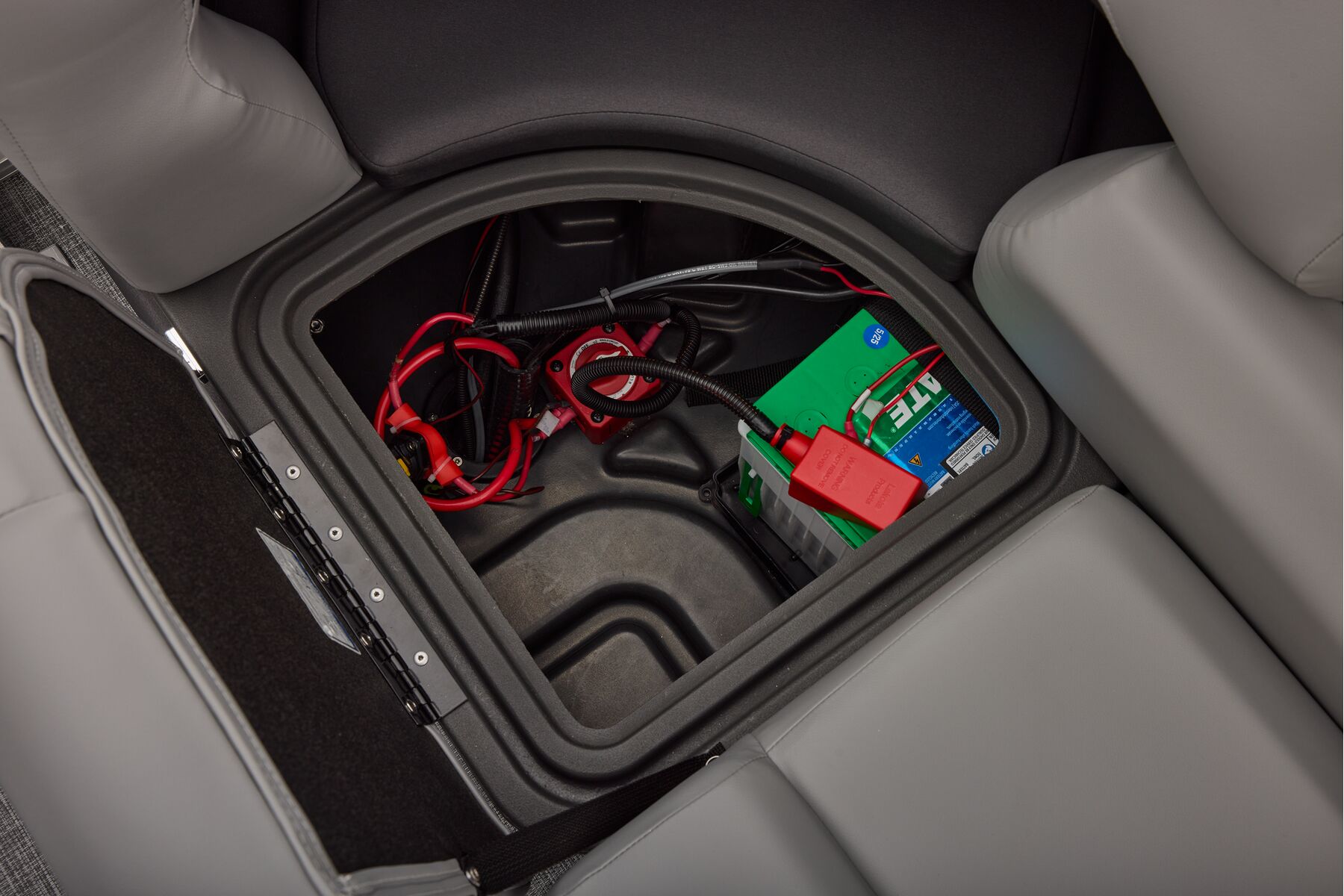

- Battery disconnect switch
- Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors
Options
Note: SunTracker’s innovative new FLARE touchscreen gauge display relies on proprietary digital engine data not available from all engines. Boats equipped with optional Mercury 9.9ELPT FourStroke or 20ELPT FourStroke engines will experience limited monitoring capability. See dealer for details.
