Limited 2024 Availability
Party Barge 22 RF DLX
2025

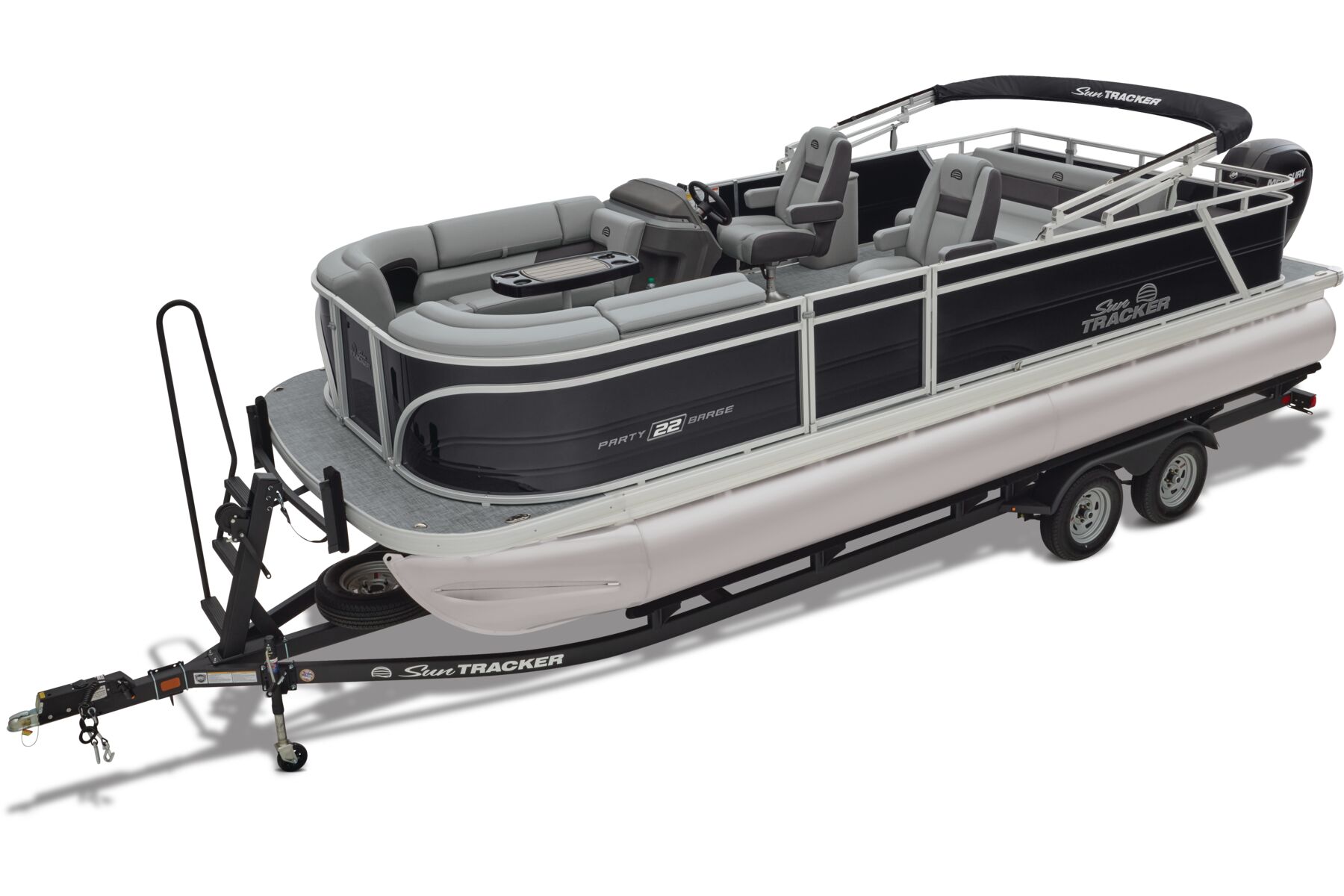

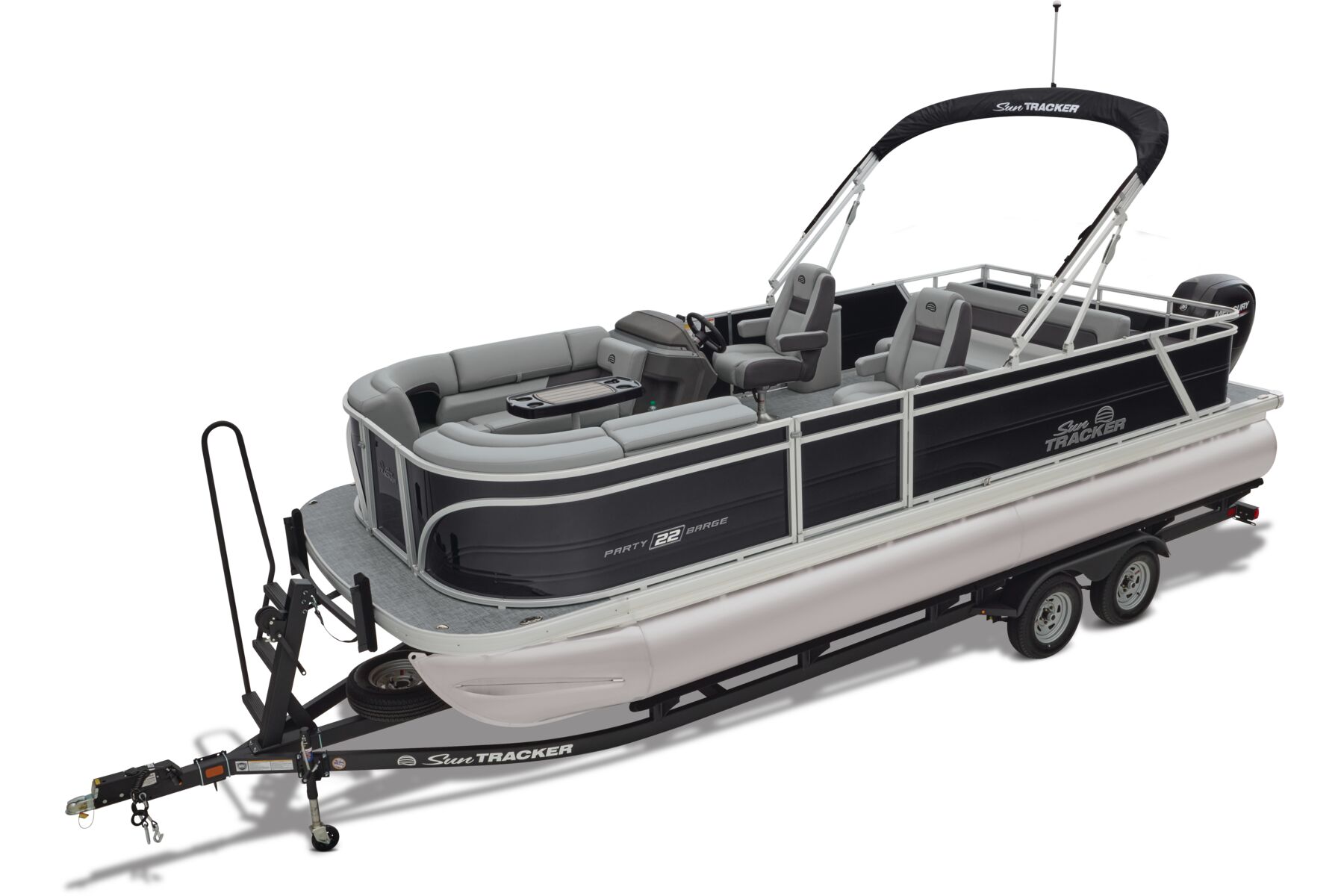

PARTY BARGE® 22 RF DLX
w/ 90 ELPT FourStroke Command Thrust Mercury® FourStroke
Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$37995
USD
|
Overview

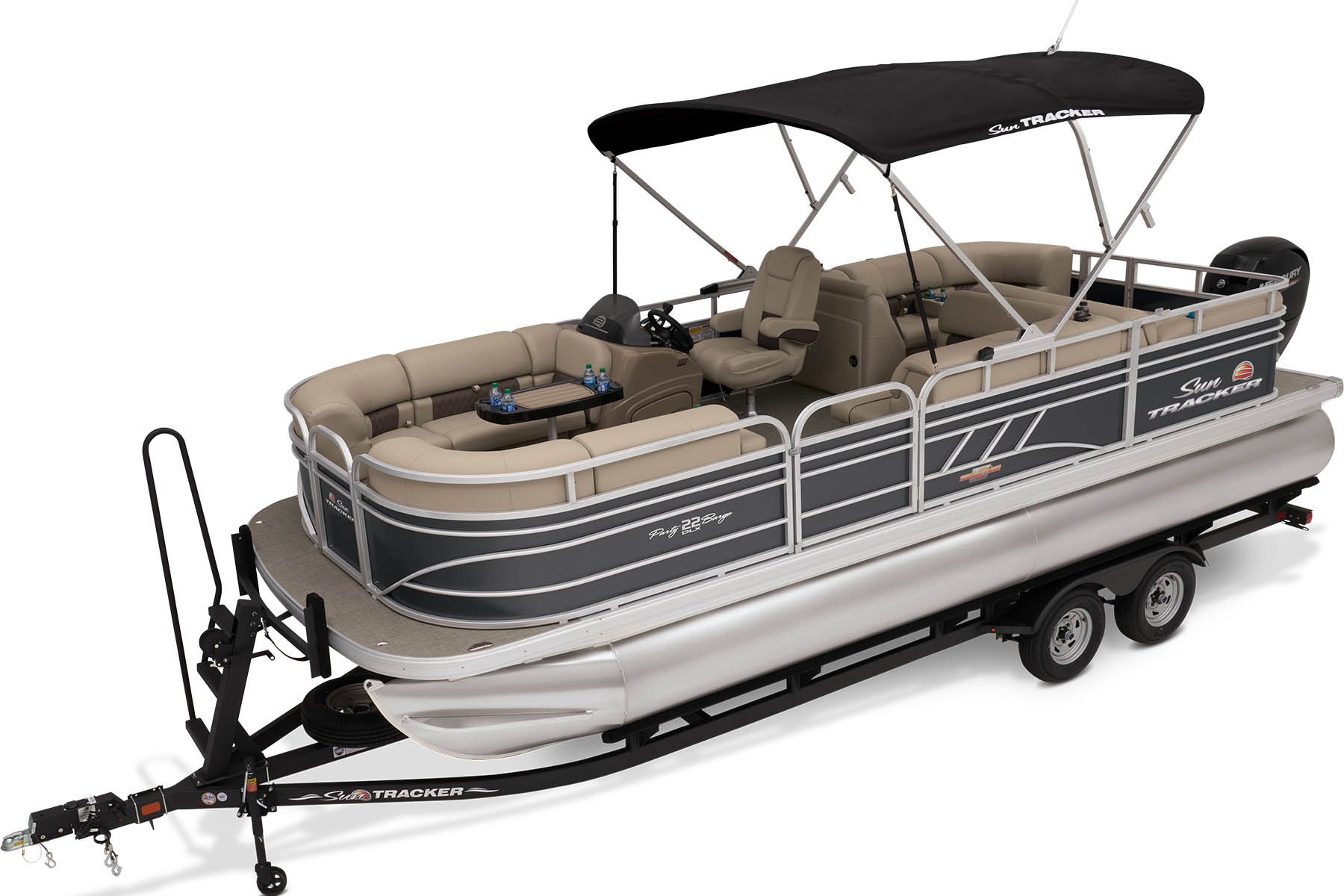

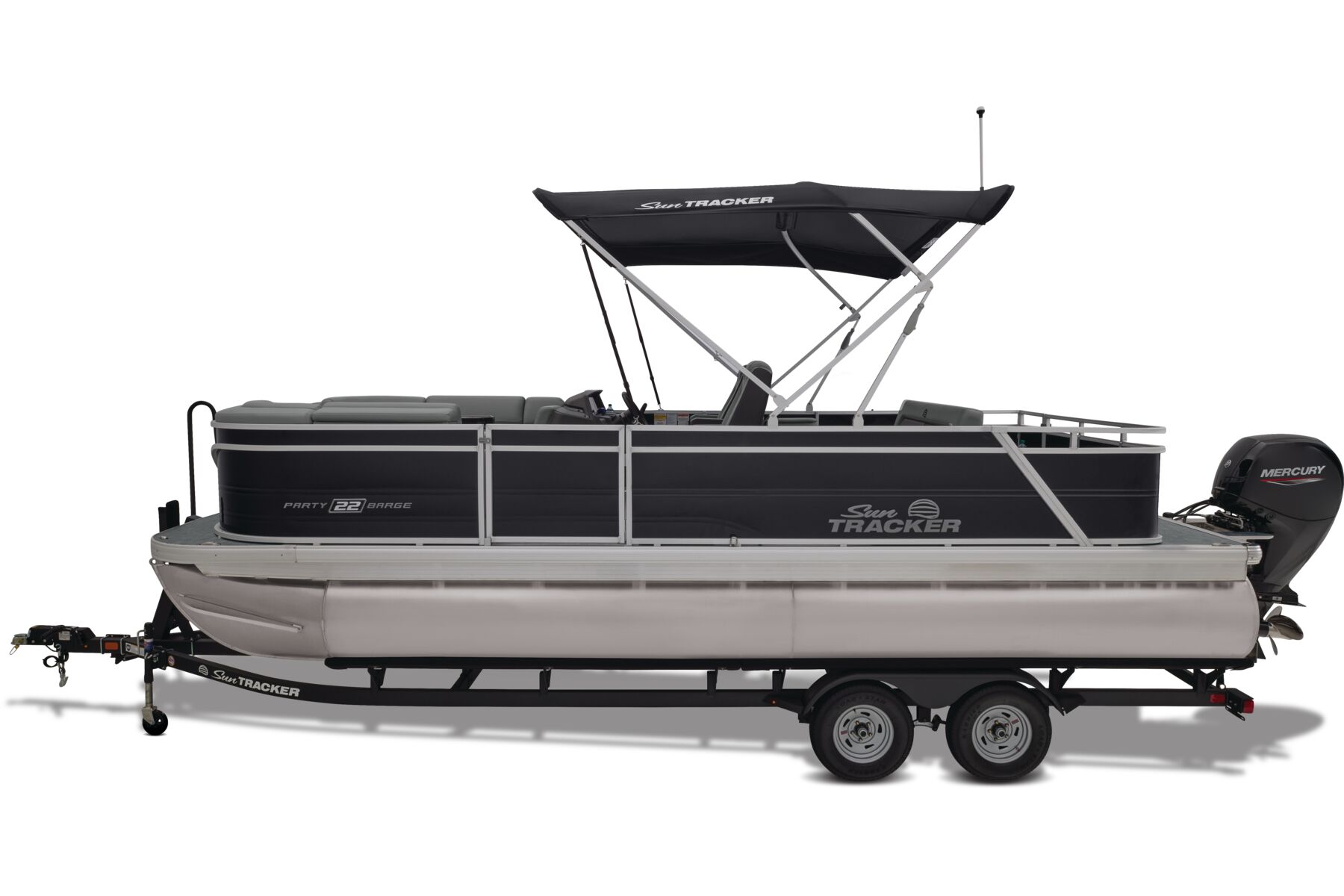

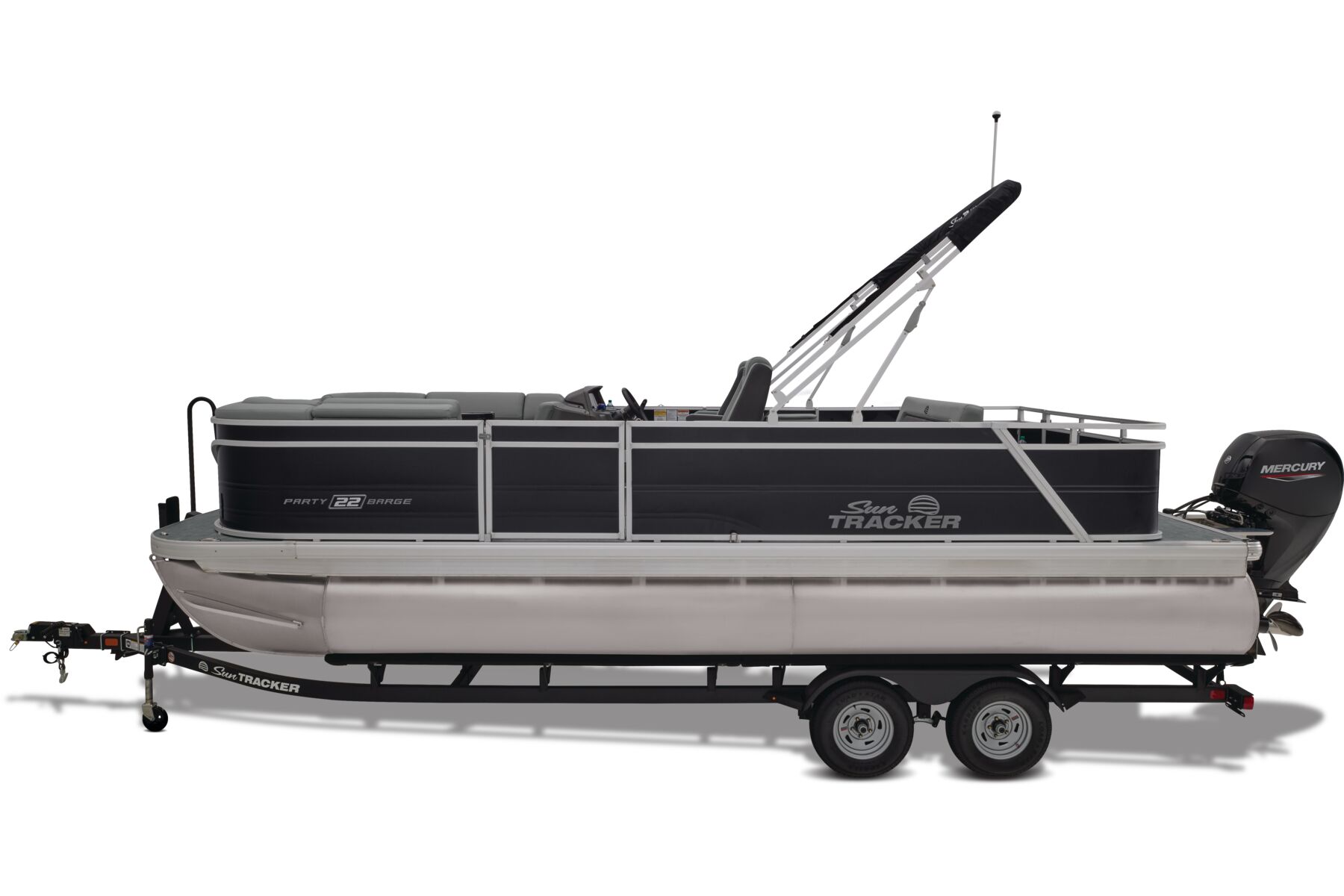

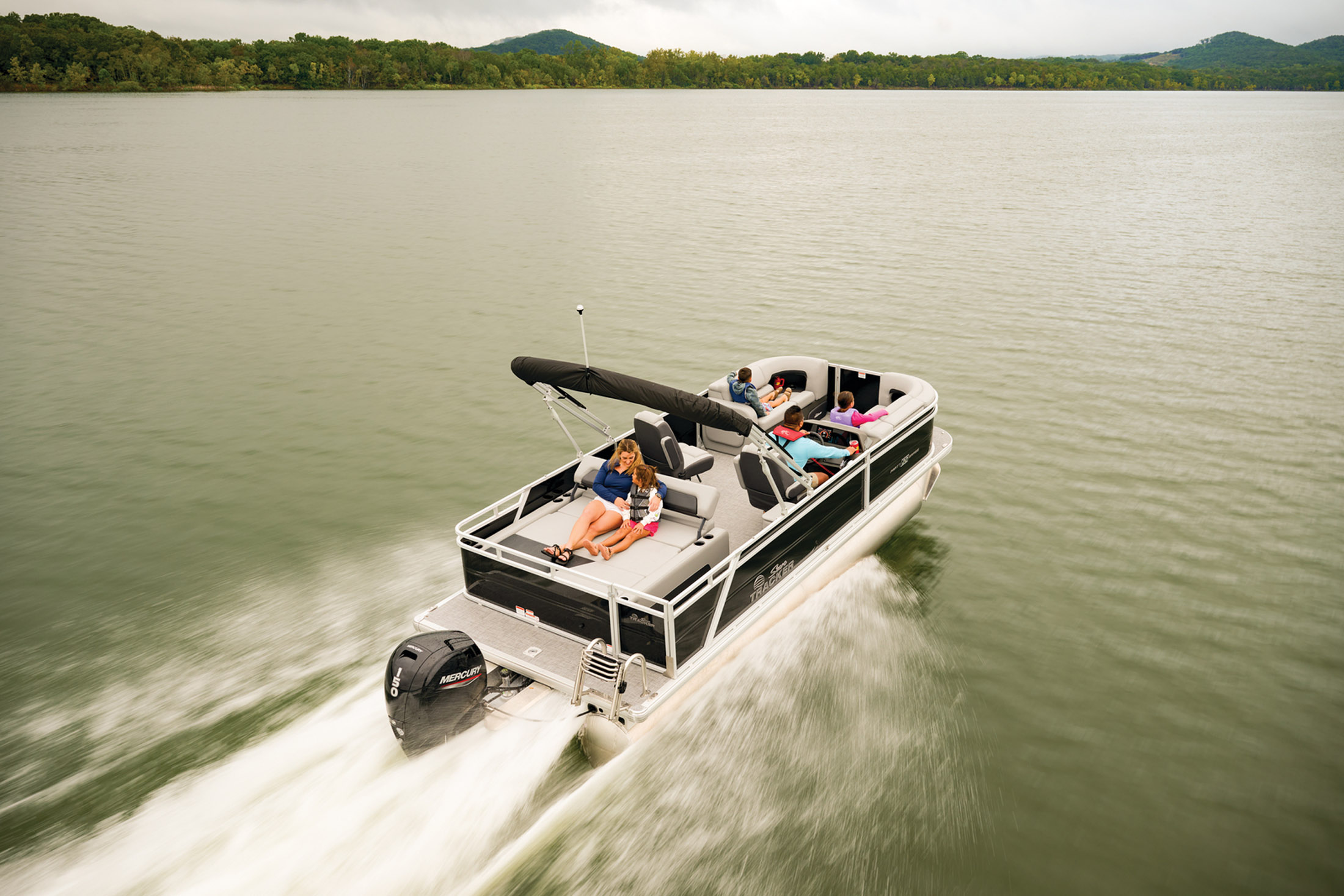

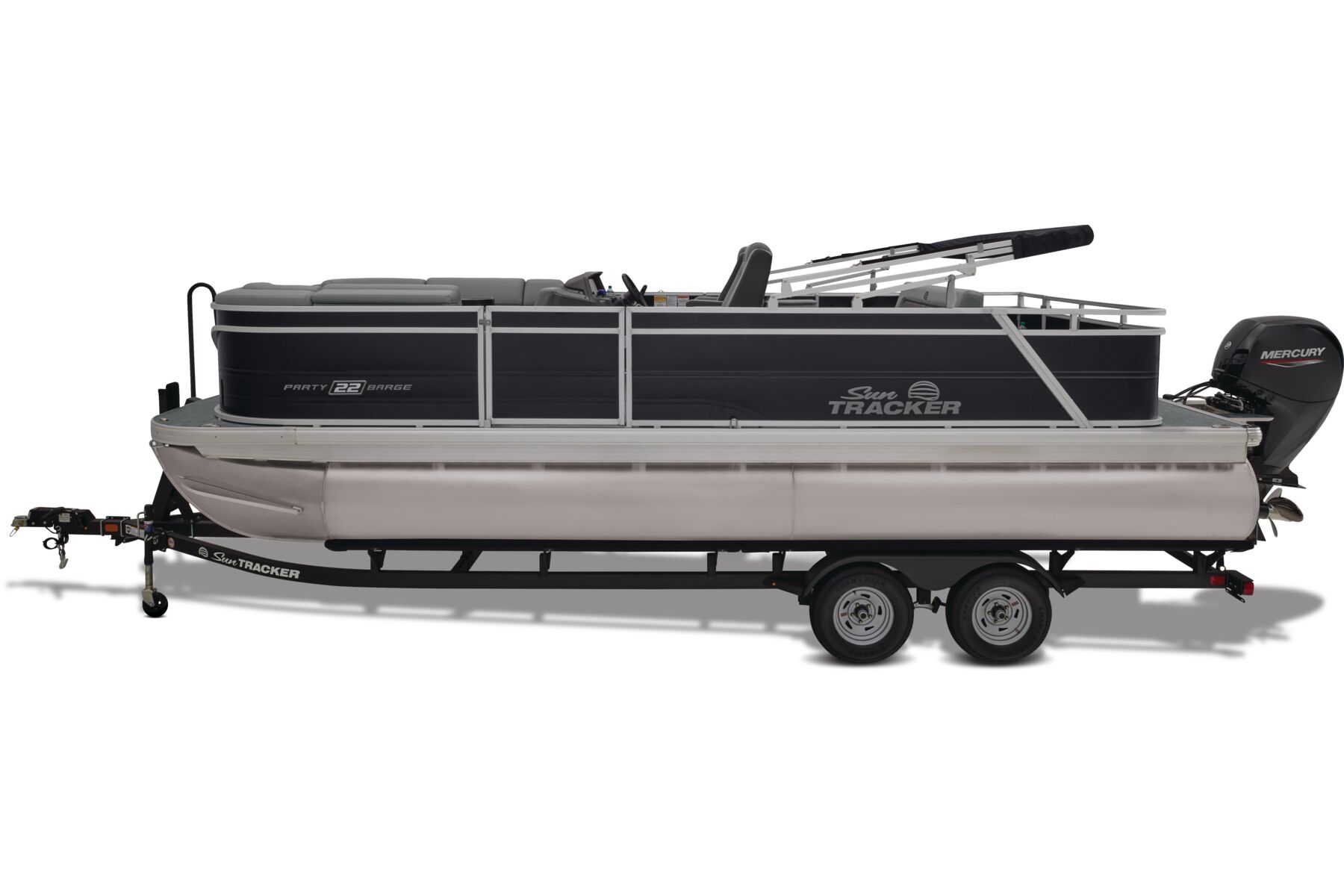

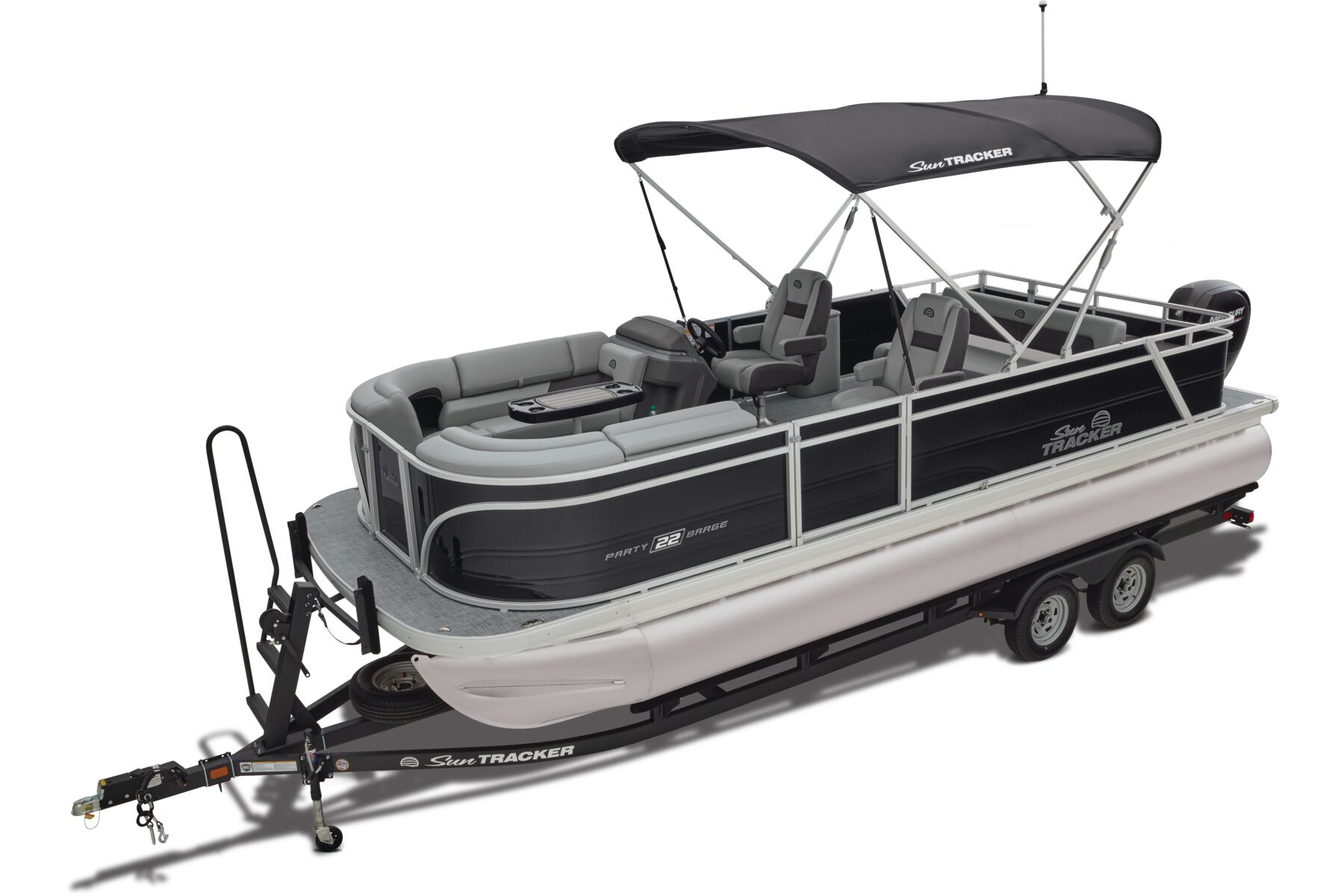

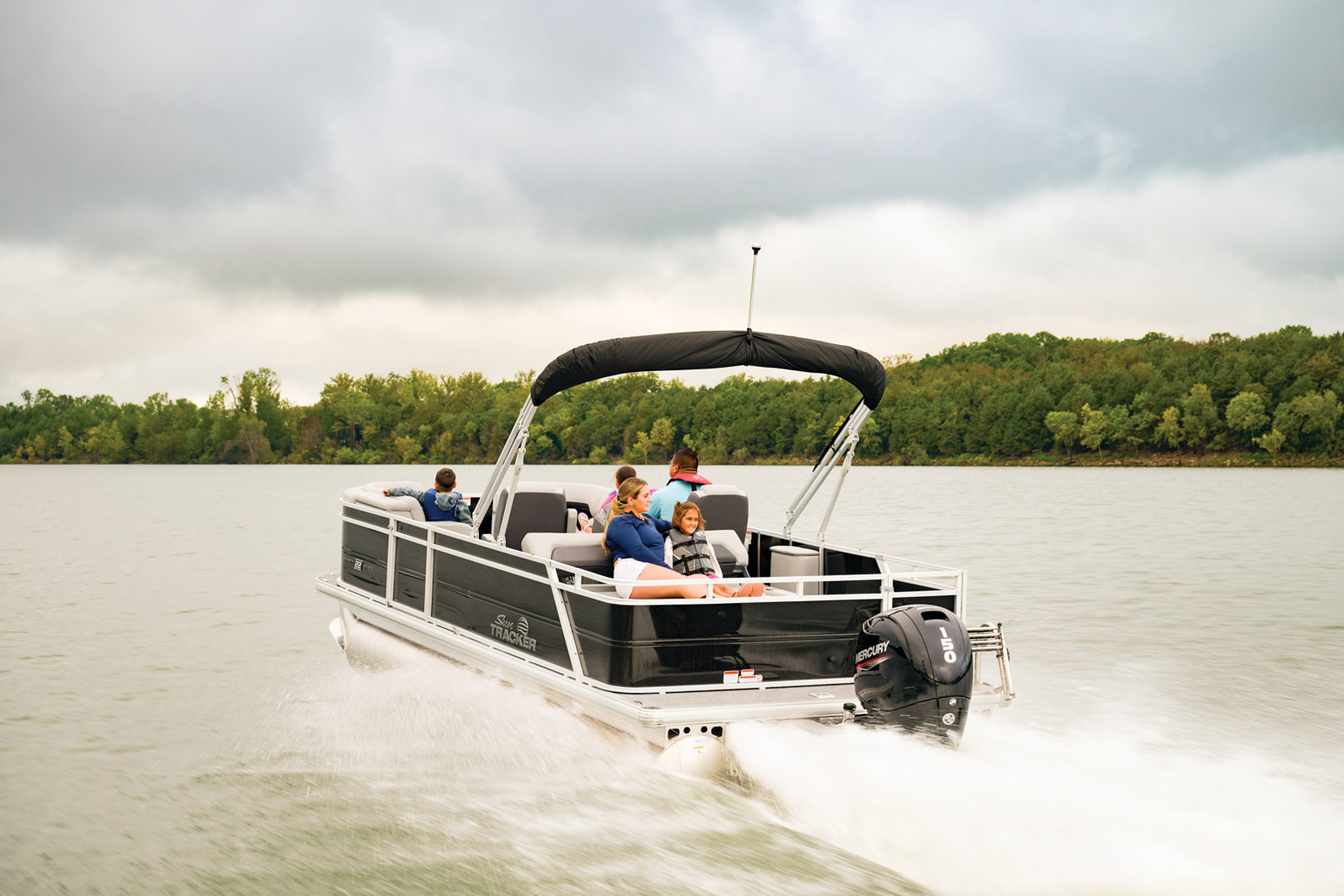

The PARTY BARGE® 22 RF DLX delivers all the exciting features of the base 22 DLX but ramps up the power and adds rear-facing – or "RF" – seating.

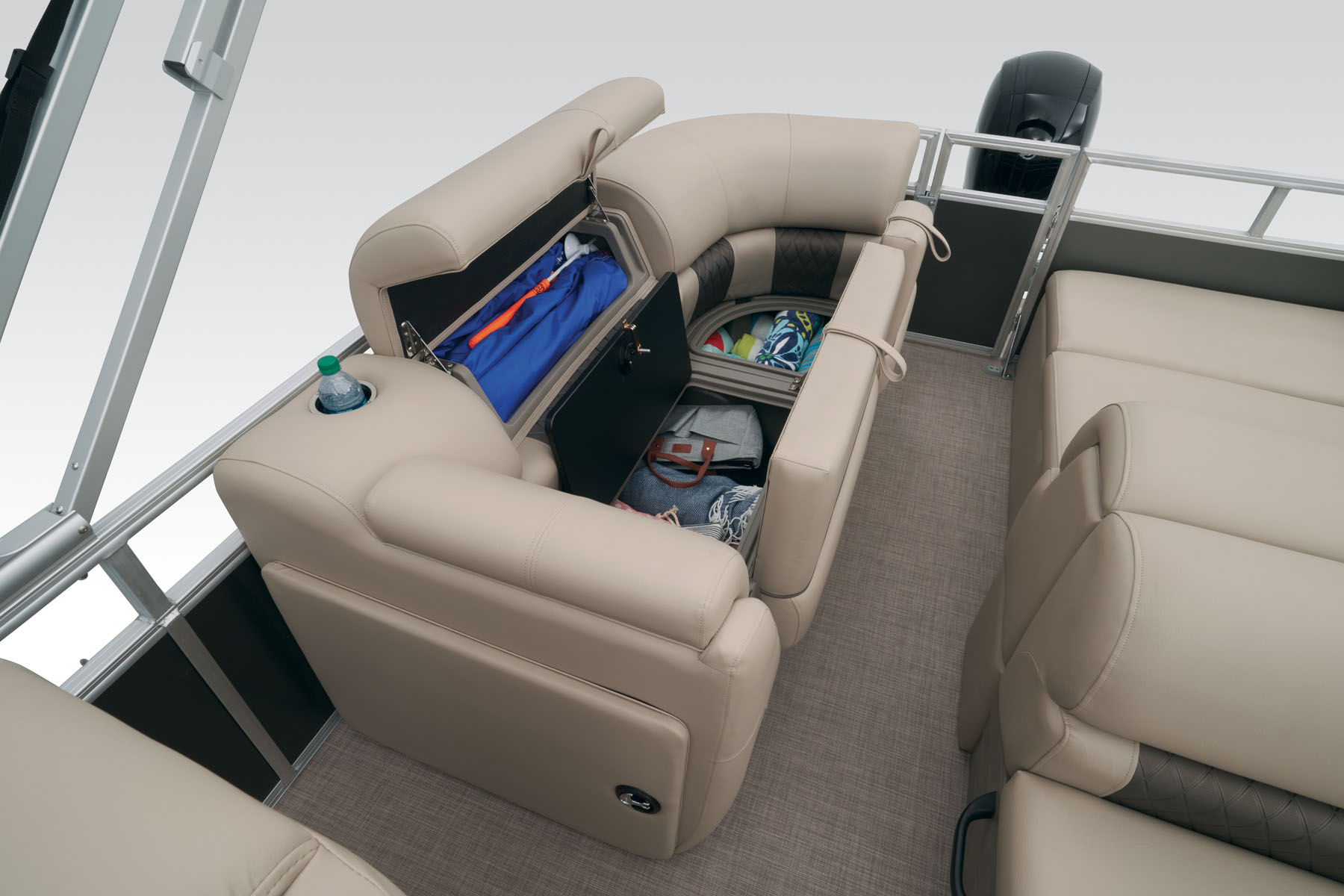

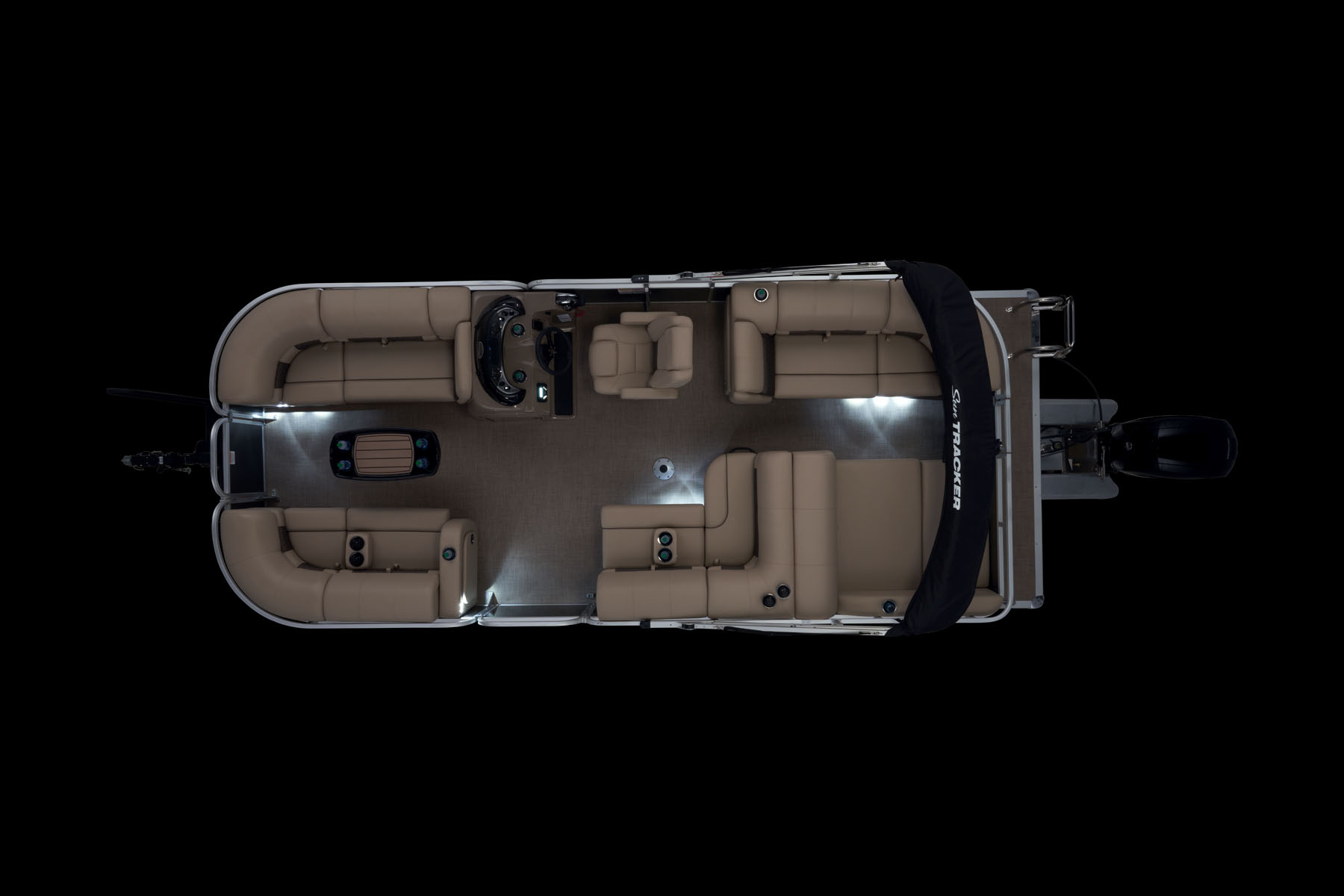

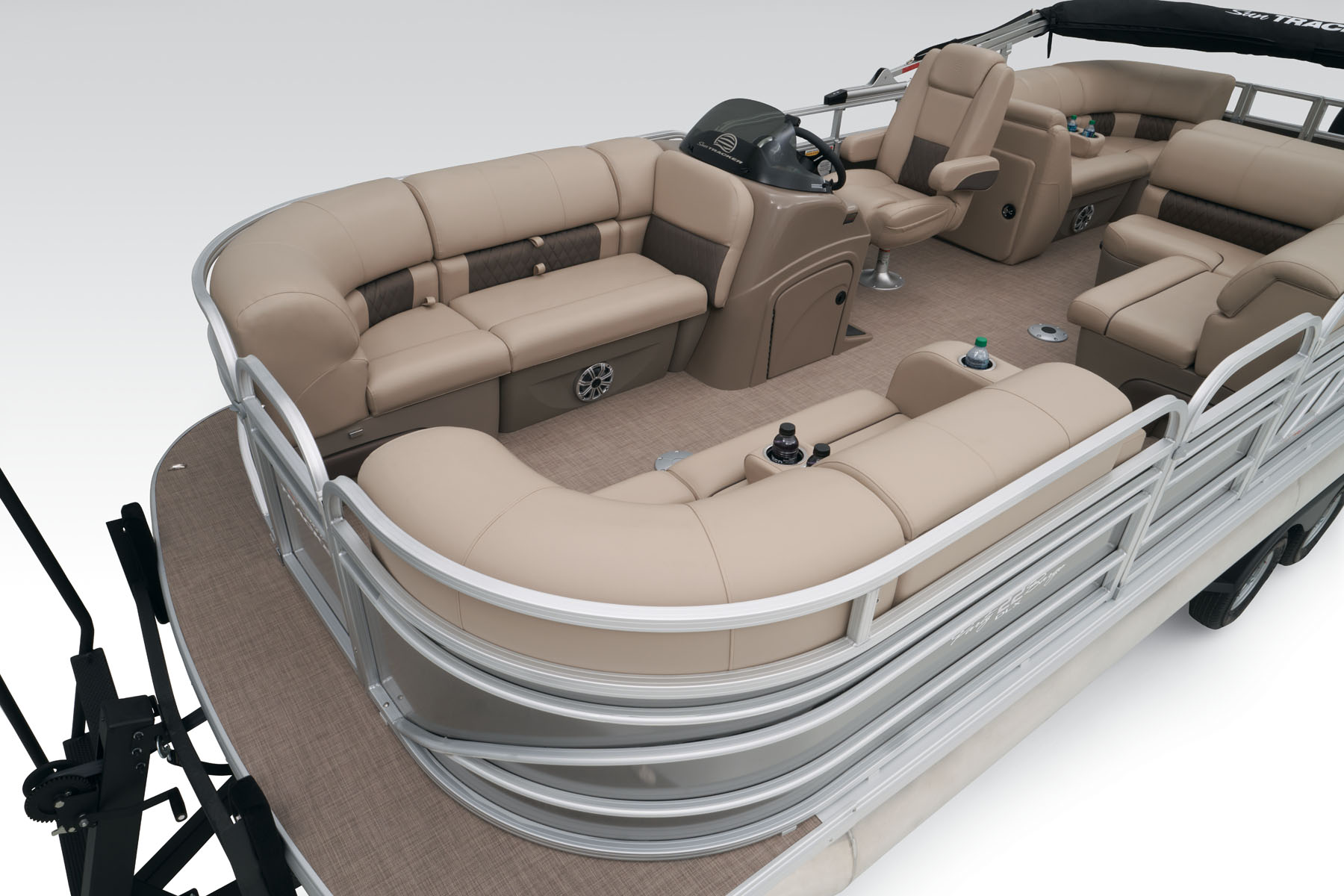

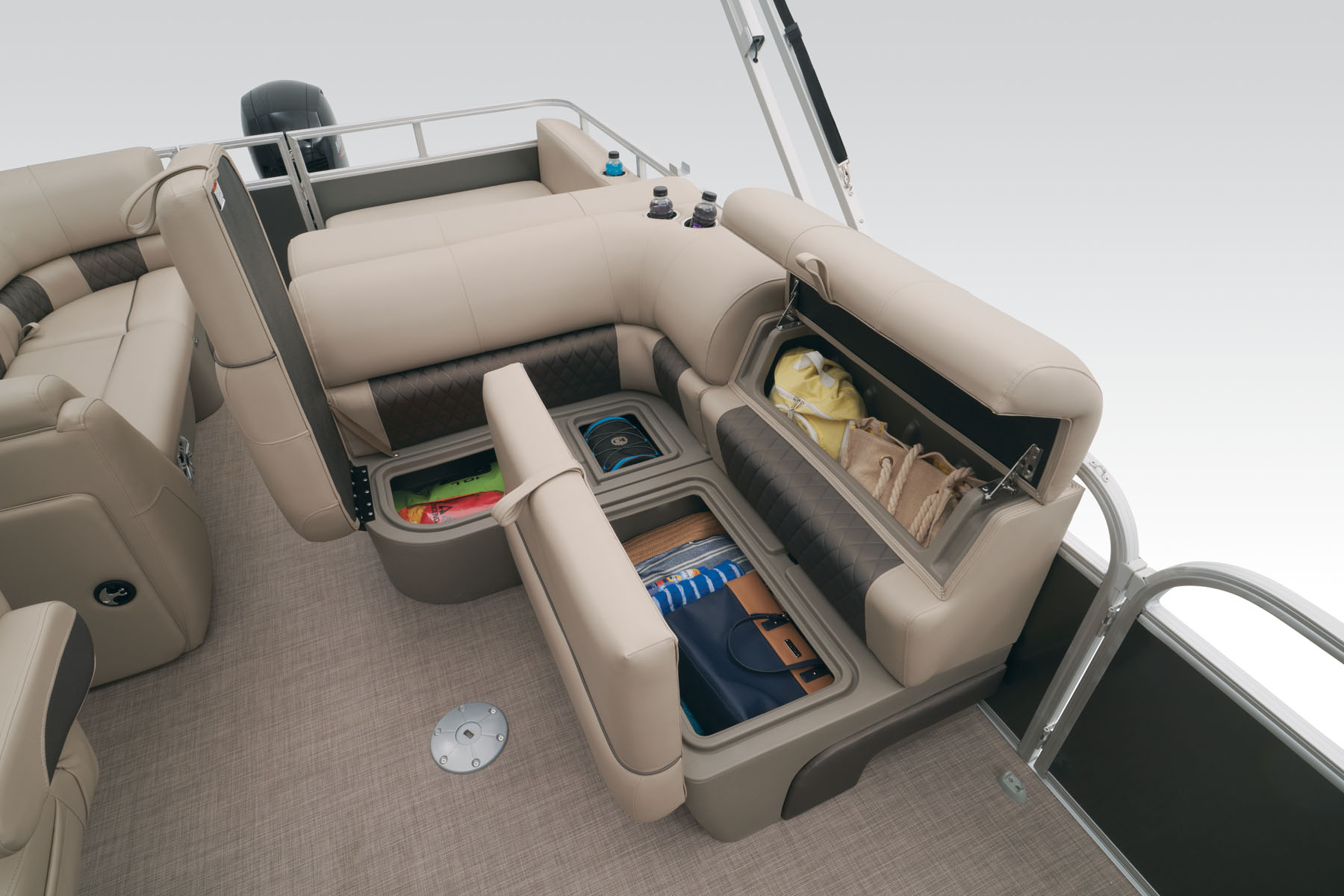

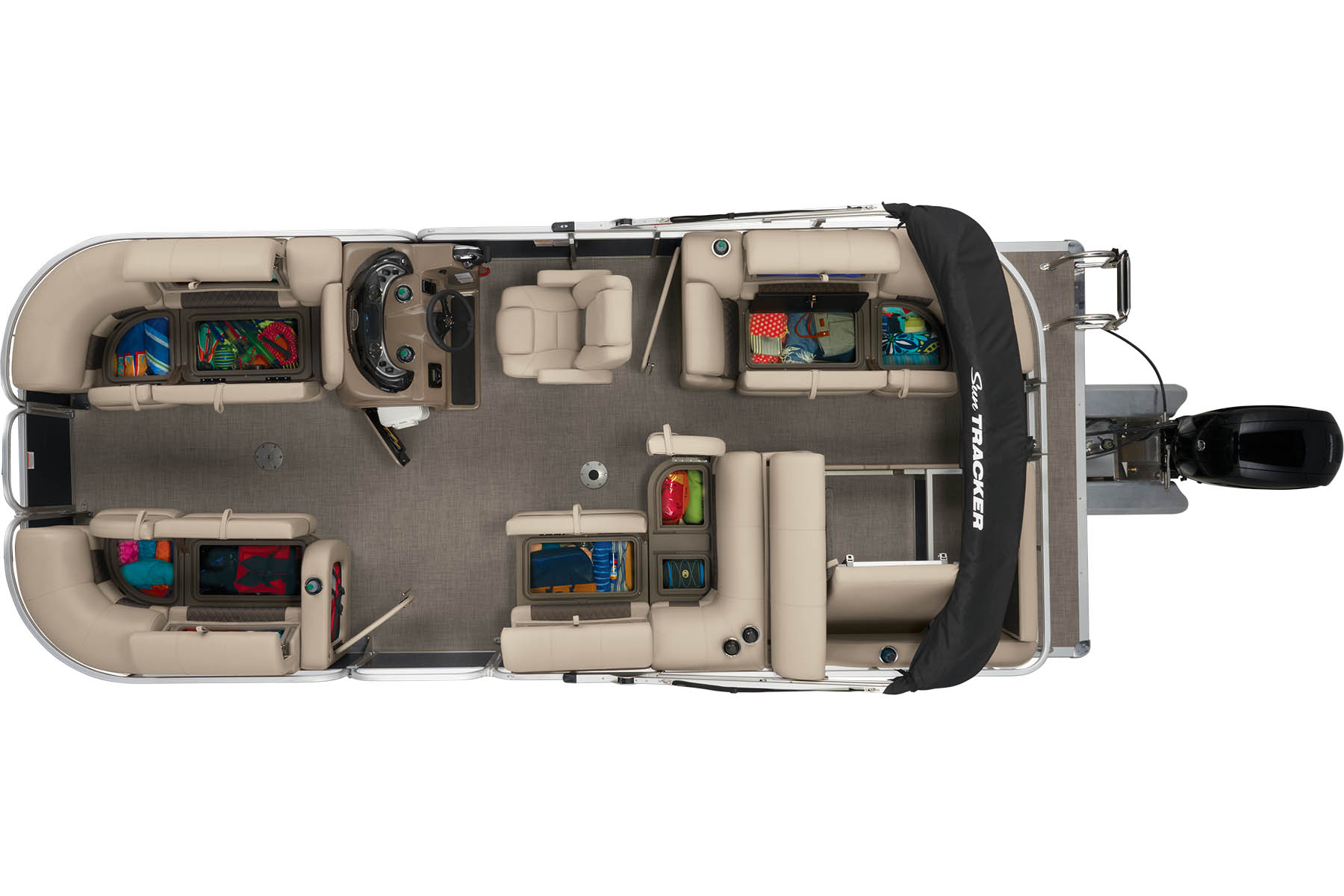

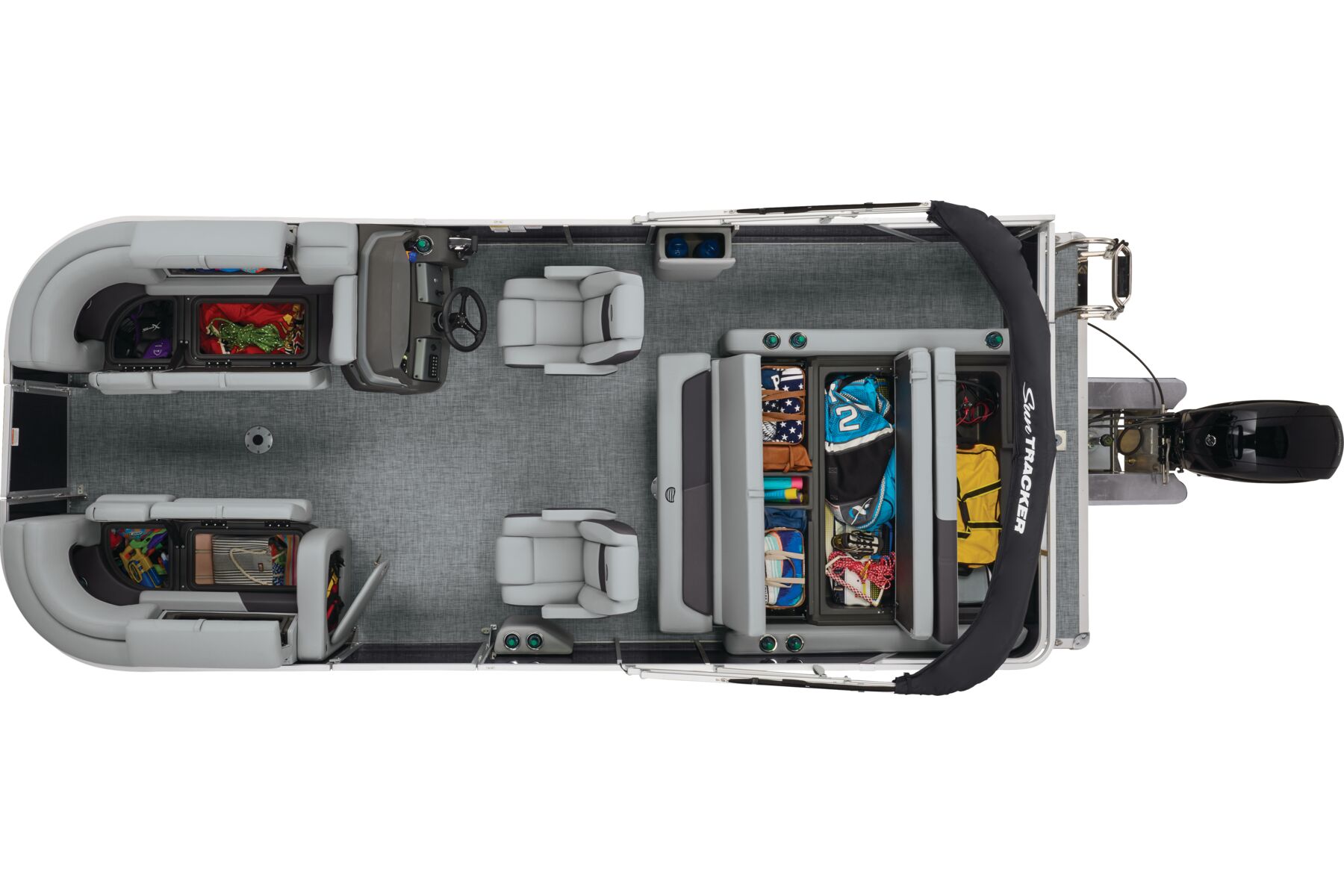

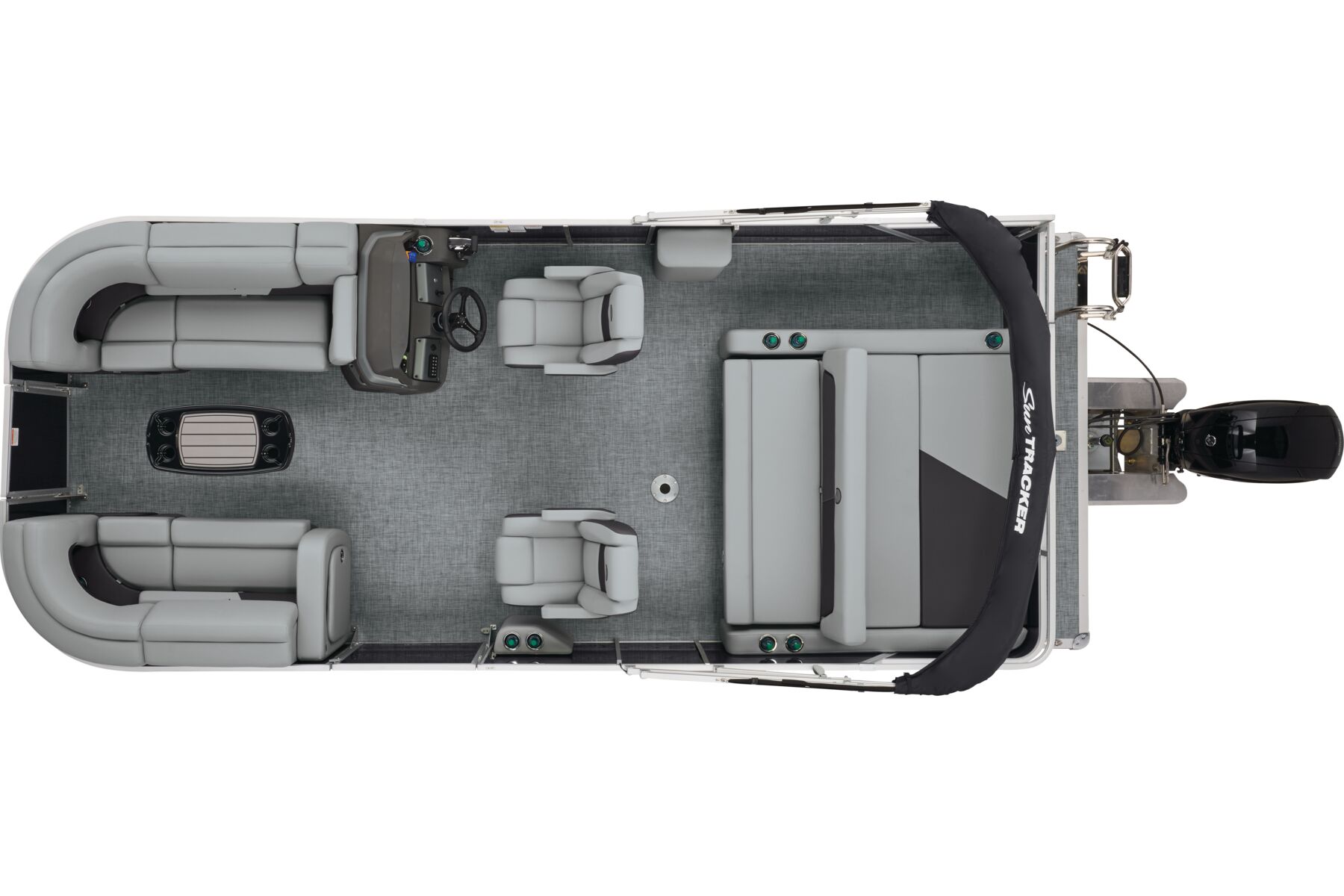

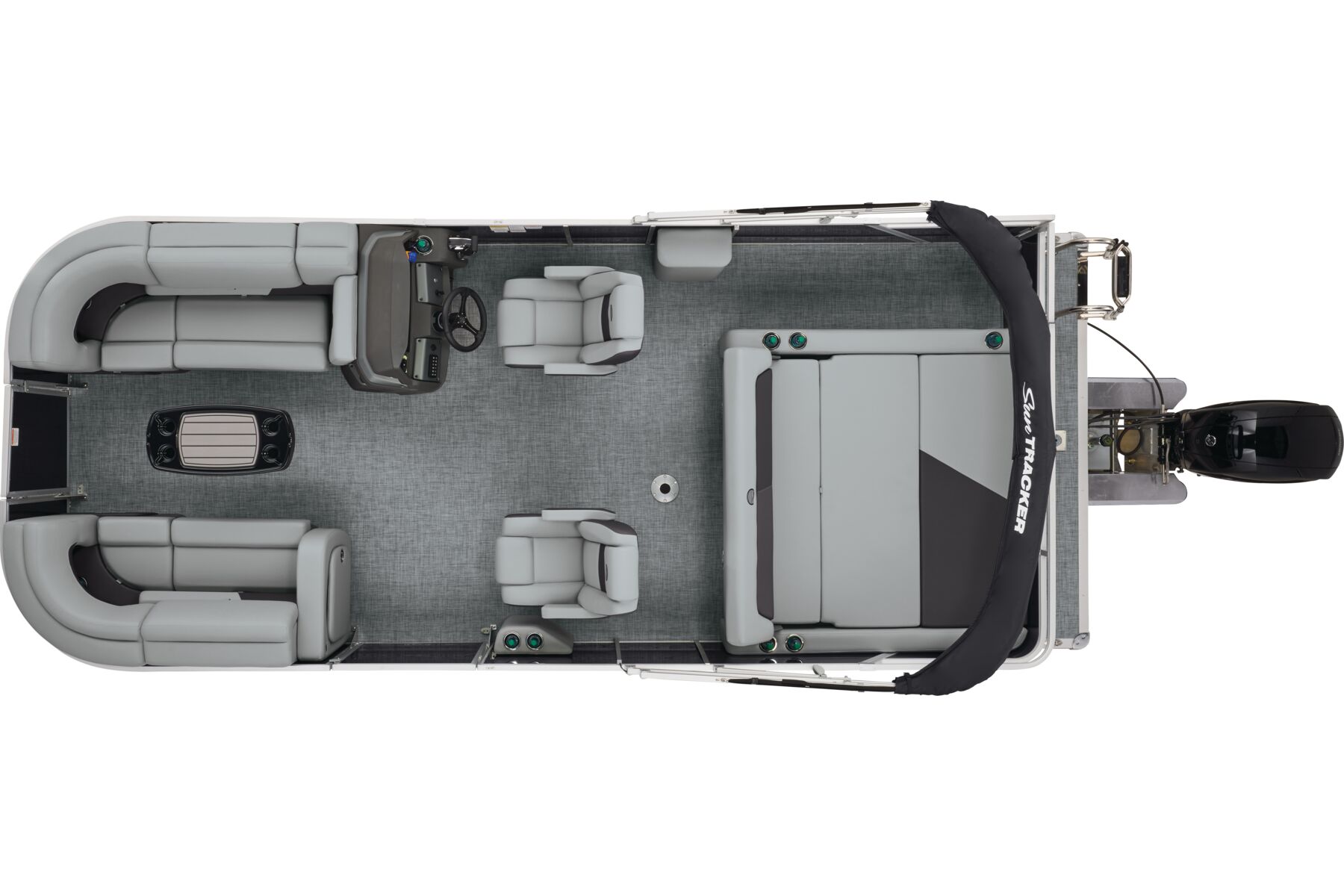

Up to 11 passengers can enjoy the great space this SUN TRACKER® has to offer. Relax in the double-wide aft lounge area, next to the swiveling captain's chair in the mid-deck L-shaped couch, or up front on the 2 couches. Each lounge and couch has seat cushions that hide extra storage space. The seat backs lift up to reveal even more space for your party gear, supplies, and safety equipment. This model also features a pop-up changing room for privacy.

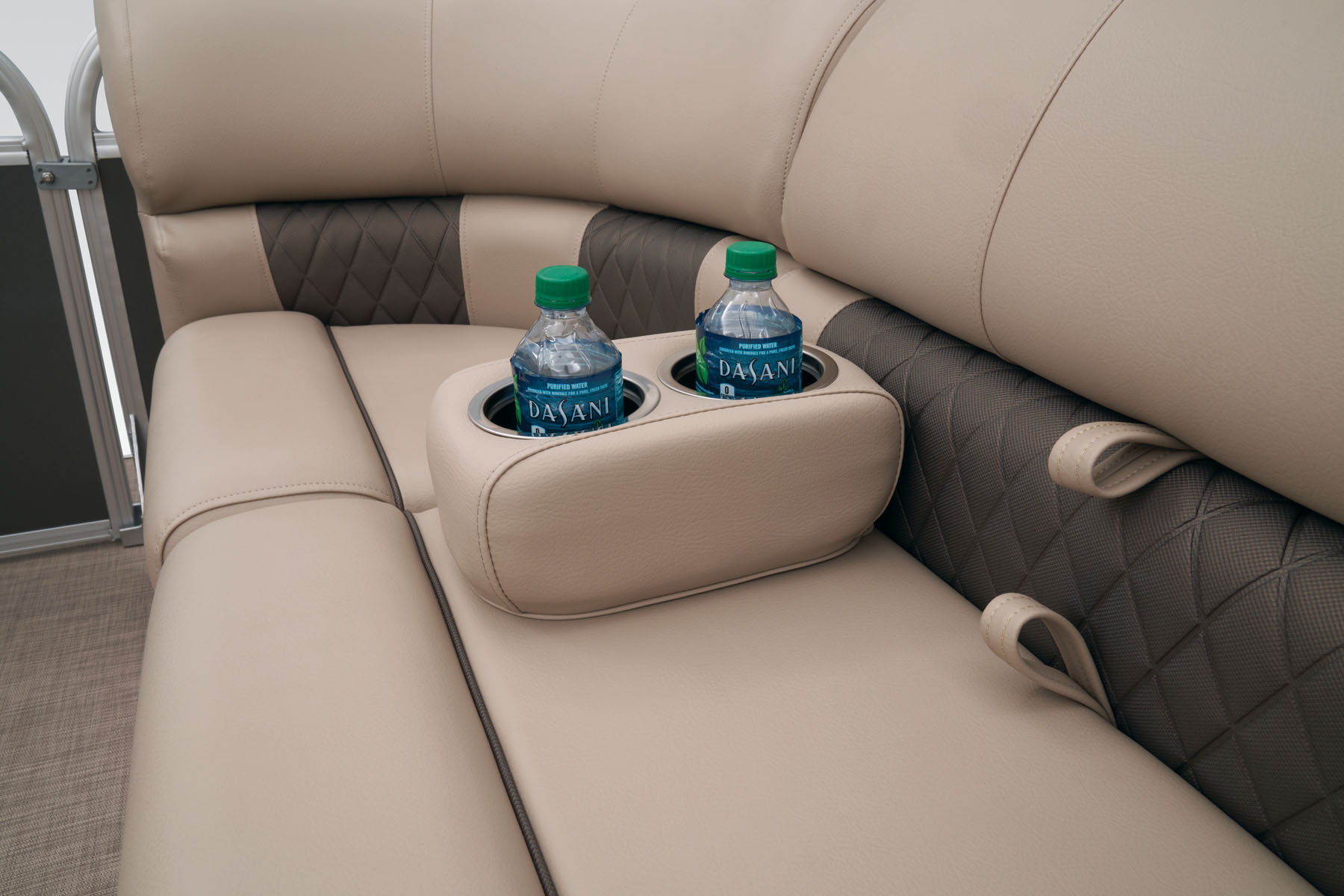

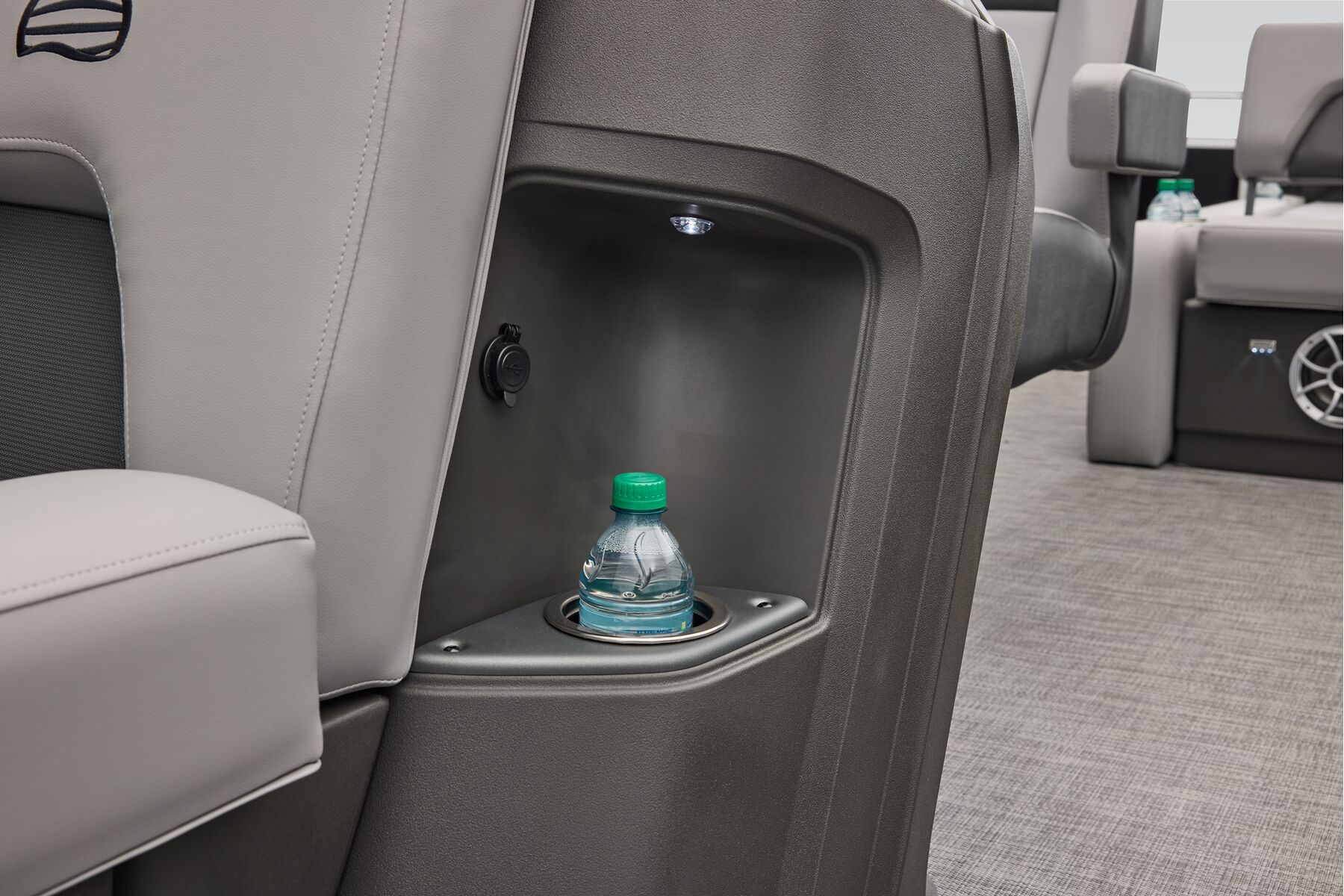

Customize your floating living room with the 2 movable drink holders that clamp into the seat backs or the table that you can place in 1 of 2 floor anchors. Take it easy under the 10' bimini top while listening to your favorite tunes through the standard Bluetooth®-compatible Wet Sounds® stereo with 4 upholstery speakers. Spend the day hanging out by the water by the full-width swim deck!

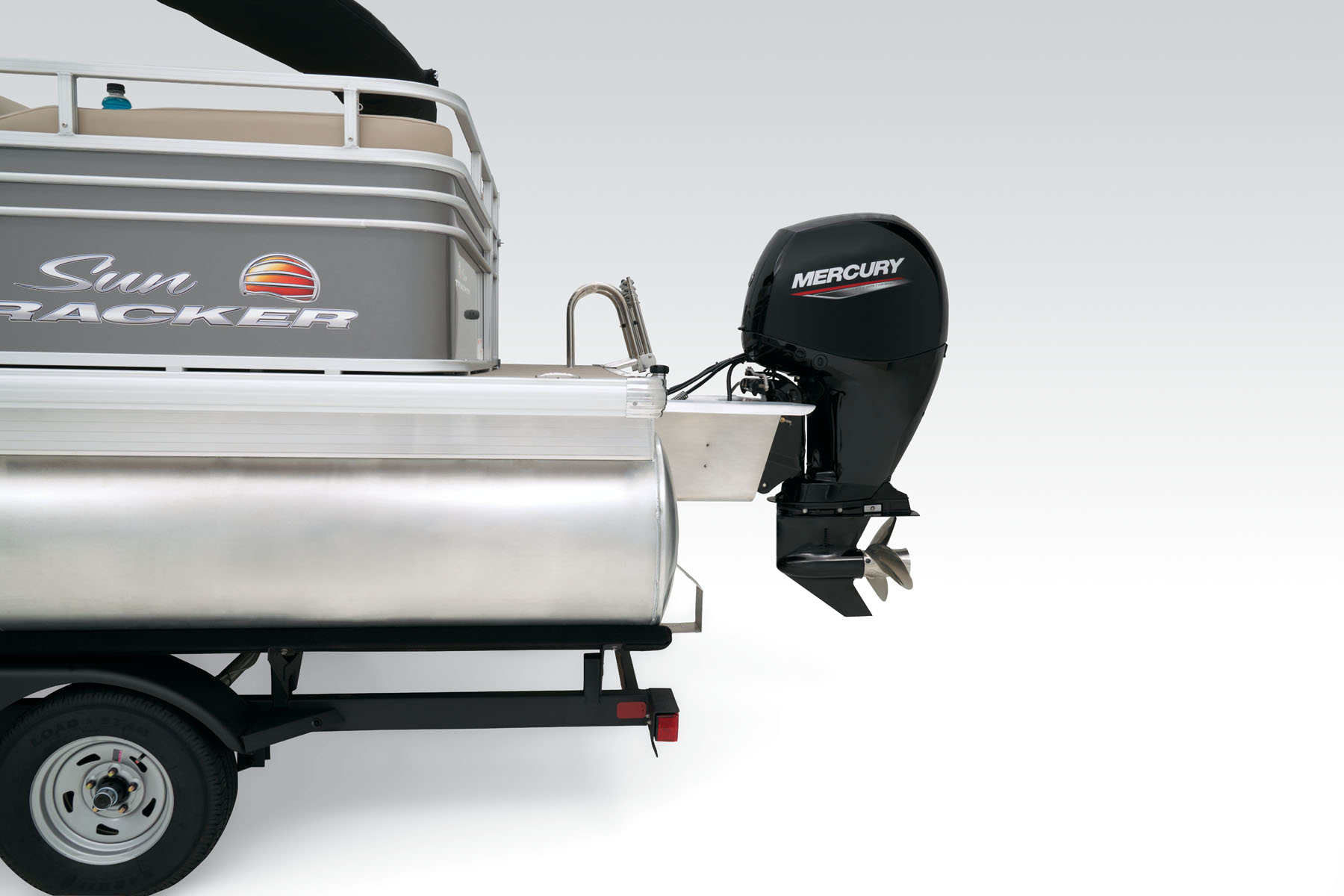

The PARTY BARGE® 22 RF DLX comes standard with a 115hp Mercury® ELPT FourStroke outboard motor and has a recommended maximum 150hp rating.
Key Features

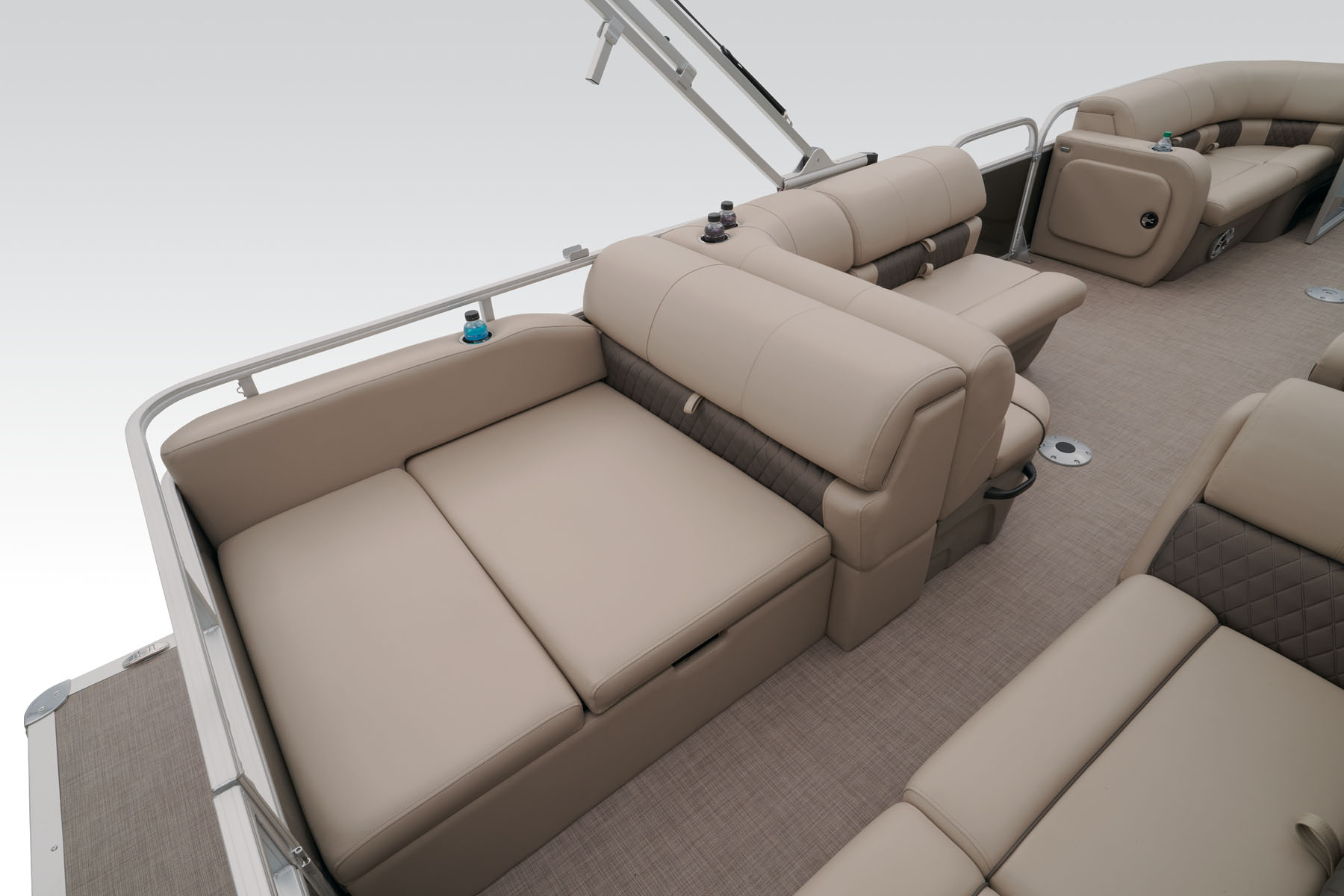

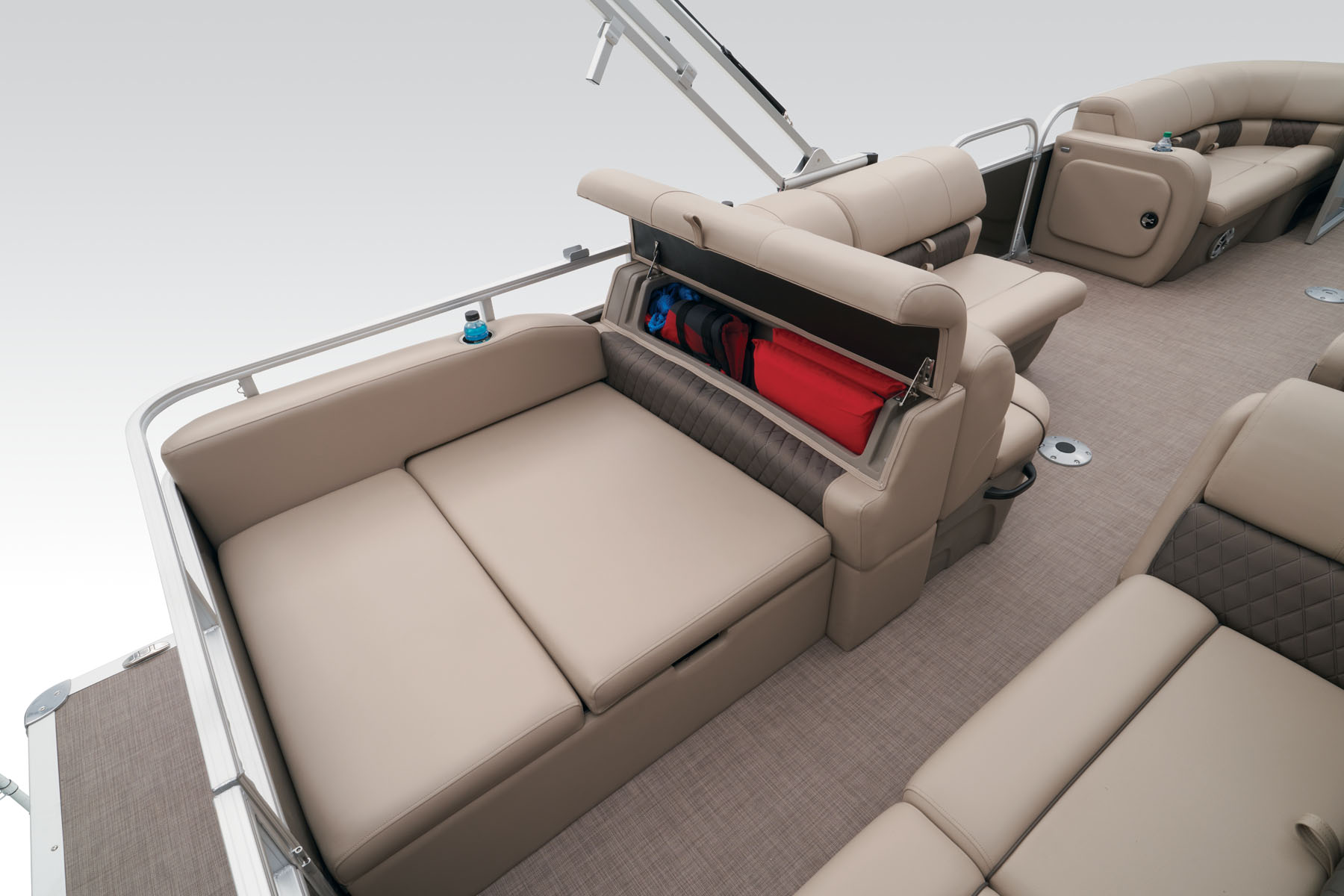

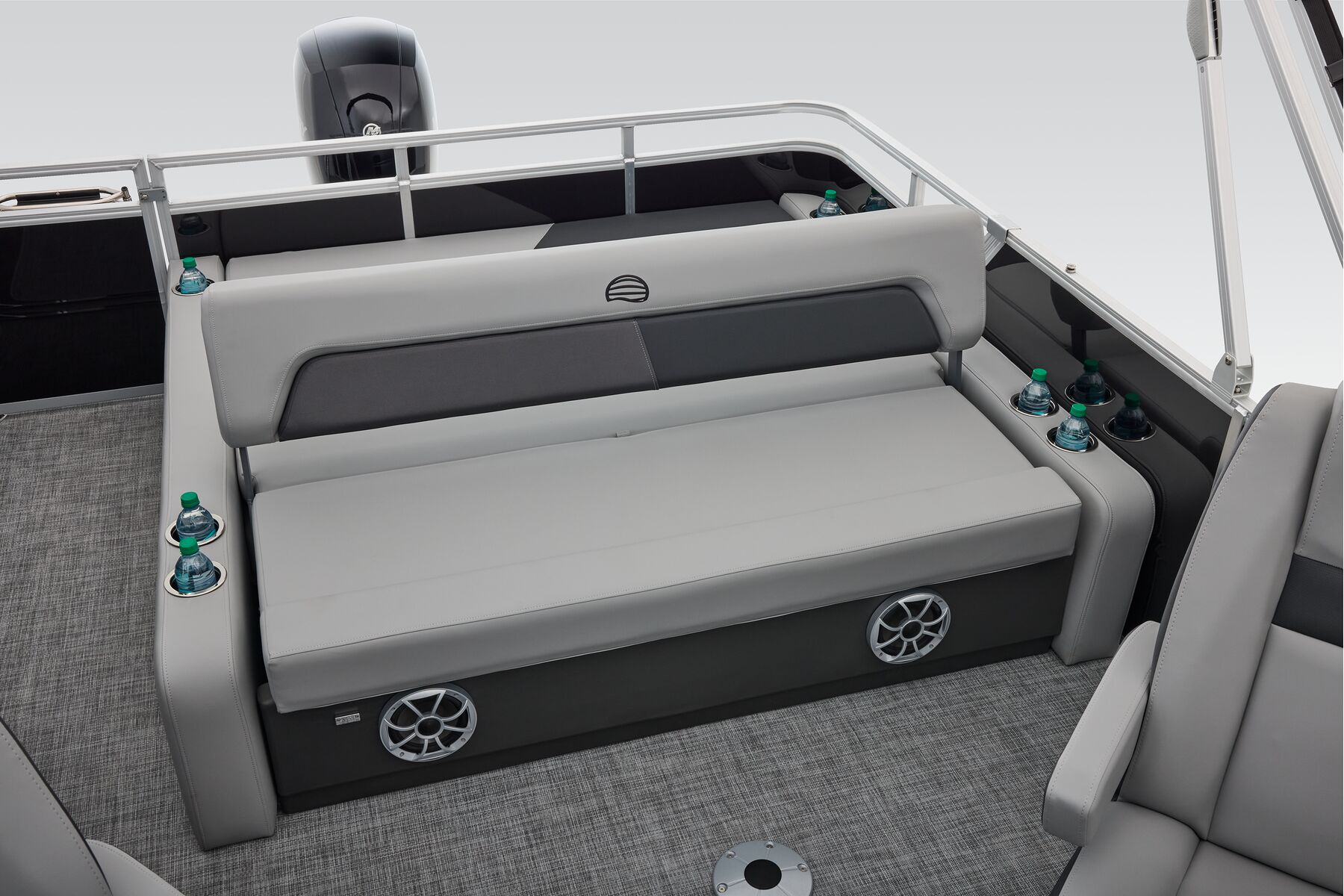

Aft lounge
The rear-facing (RF) lounge is double wide so two can lie back and watch the perfect sunset.

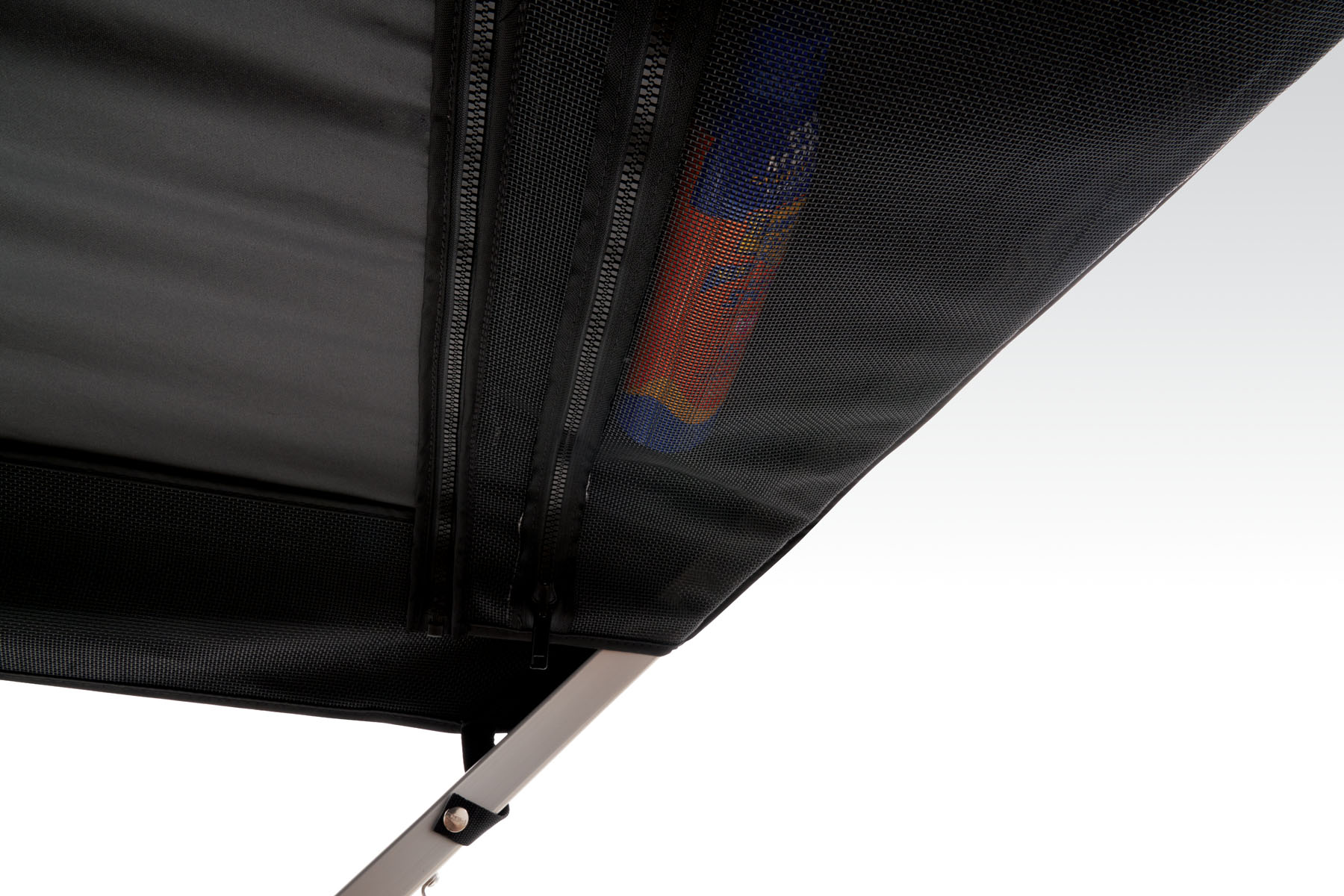

Bimini top storage pockets
The storage pockets in the Bimini top let you quickly store and retrieve convenient items.

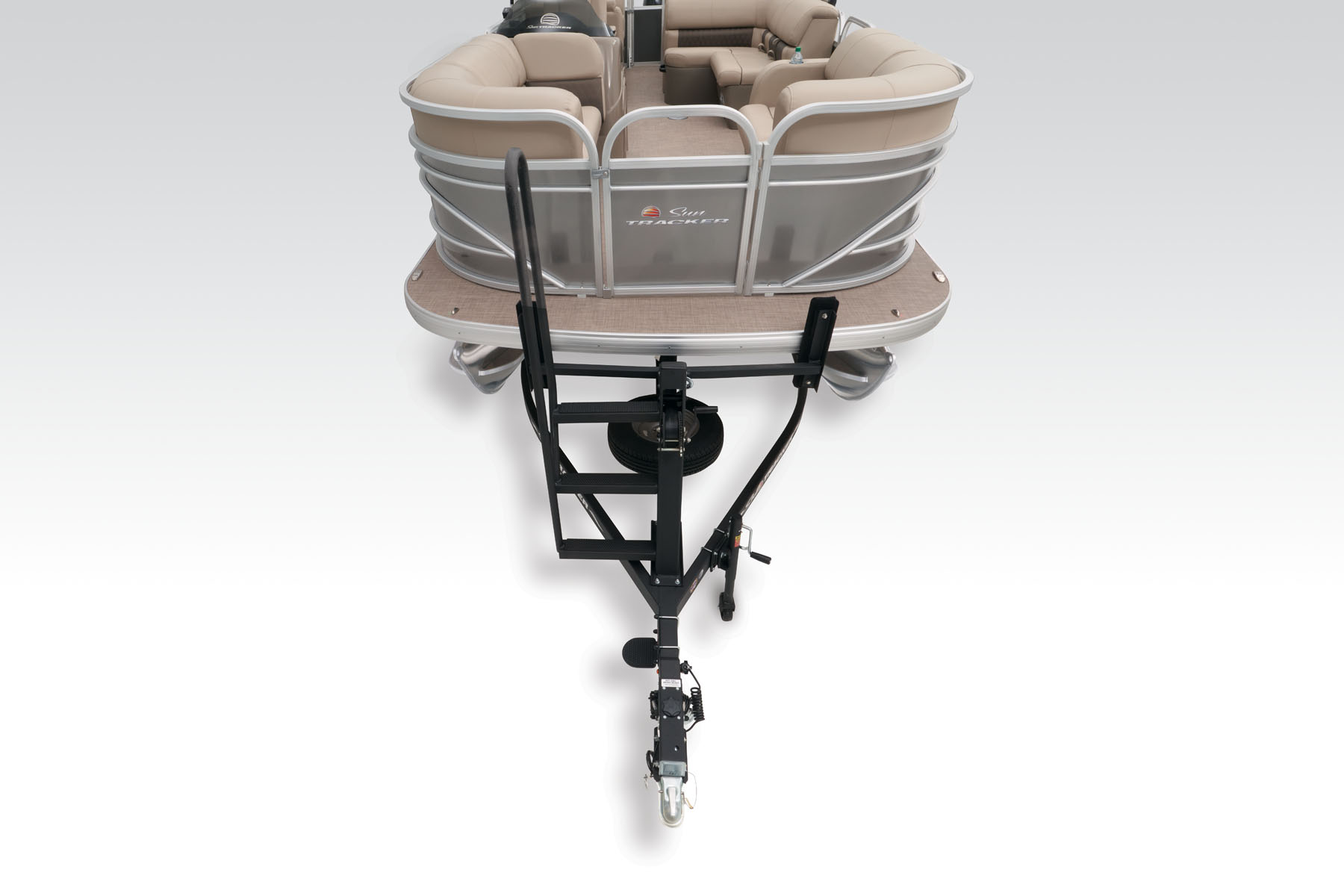

Bow platform
The bow platform is wide enough for sitting on with your feet in the water, or even laying towels on to dry.
Gallery
Specifications
| Length | 7.37 m | 24' 2'' |
| Deck Length | 6.73 m | 22' 1'' |
| Deck Width | 2.59 m | 8' 6'' |
| Max. Recommended HP | 150 HP | |
| Fuel Capacity | 121.5 L | 32.1 gal. |
| Pontoon Log Length | 6.78 m | 22' 3'' |
| Pontoon Log Diameter | 60.96 cm | 24'' |
| Pontoon Log Material | 0.080 5052 marine alloy | |
| Max. Person Capacity | 11 persons |
| Max. Person Weight | 680.39 kg | 1500 lbs. |
| Max. Person, Motor & Gear Weight | 997.9 kg | 2200 lbs. |
| Interior Depth | 74.93 cm | 29.5'' |
| Average Dry Weight | 1043.26 kg | 2300 lbs. |
| Average Package Weight | 1875.6 kg | 4135 lbs. |
| Package Height | 2.69 m | 8' 10'' |
| Package Width | 2.59 m | 8' 6'' |
| Towing Length | 9.86 m | 32' 4'' |
| Storage Length | 9.86 m | 32' 4'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 9.9 ELPT FourStroke Command Thrust ProKicker | - |
$31560 USD
|
Select Dealer | ||
| 25 ELPT FourStroke | - |
$33150 USD
|
Select Dealer | ||
| 90 ELPT FourStroke Command Thrust | - |
$37995 USD
|
Select Dealer | ||
| 115 ELPT FourStroke Command Thrust | 23-33 mph |
$38865 USD
|
Select Dealer | ||
| 150 L FourStroke | 29-38 mph |
$42065 USD
|
Select Dealer | ||
| Mercury® Pro XS® | |||||
| 115 ELPT Pro XS® FourStroke Command Thrust | - |
$39715 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
- NMMA® certified

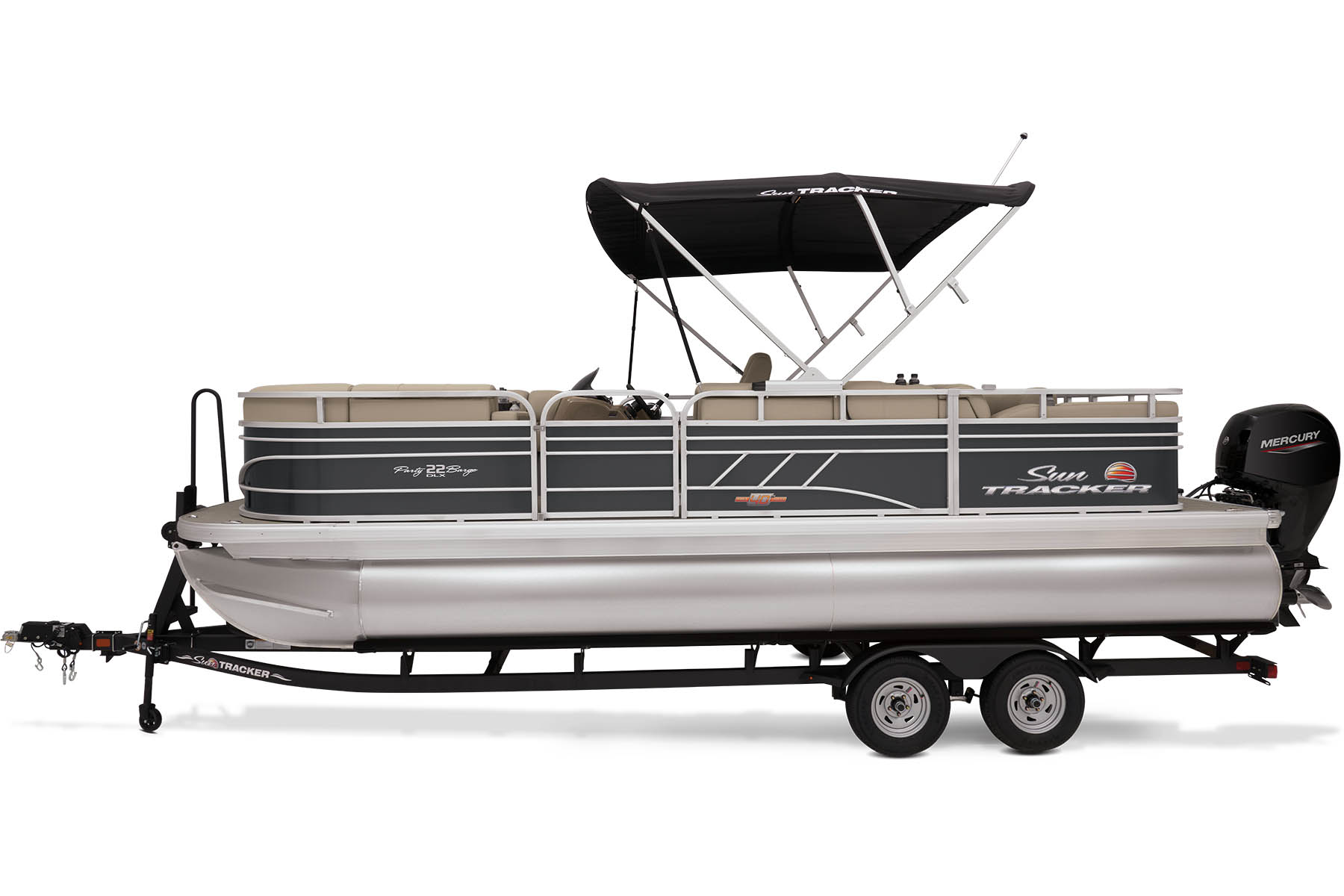

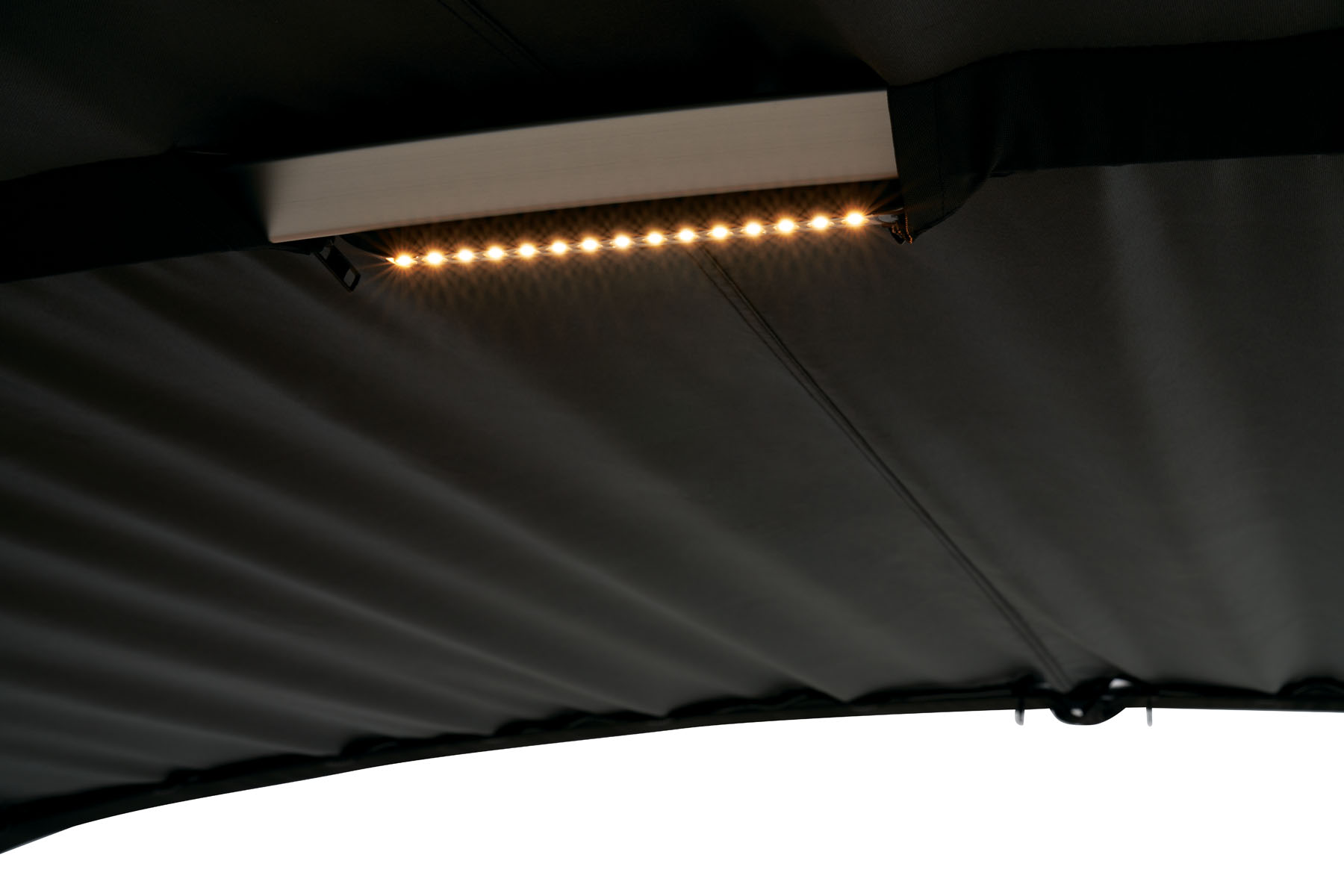

- 10' (3.05 m) SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot (color-coordinated Black w/Charcoal fencing or Sand w/Copper Red fencing)

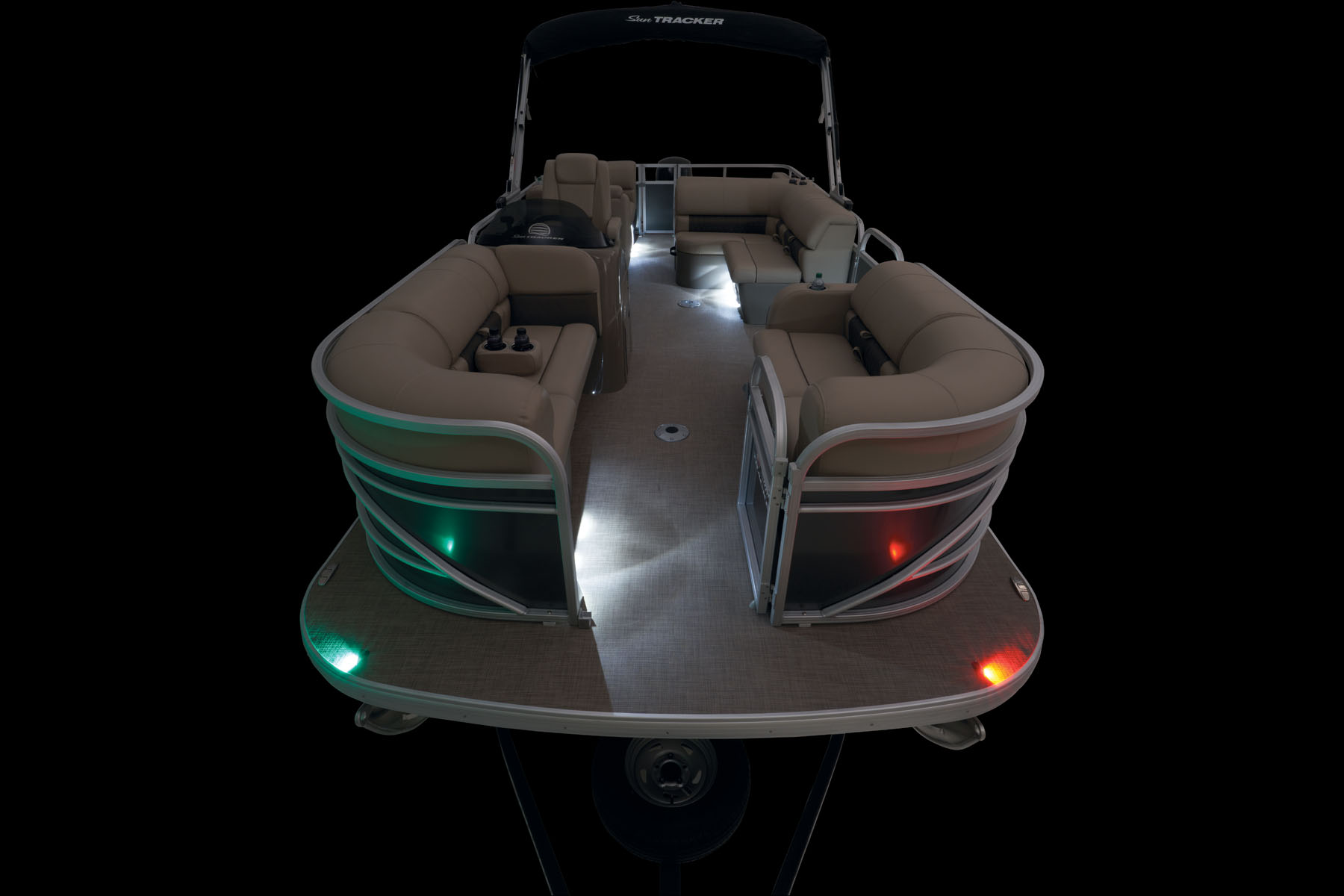

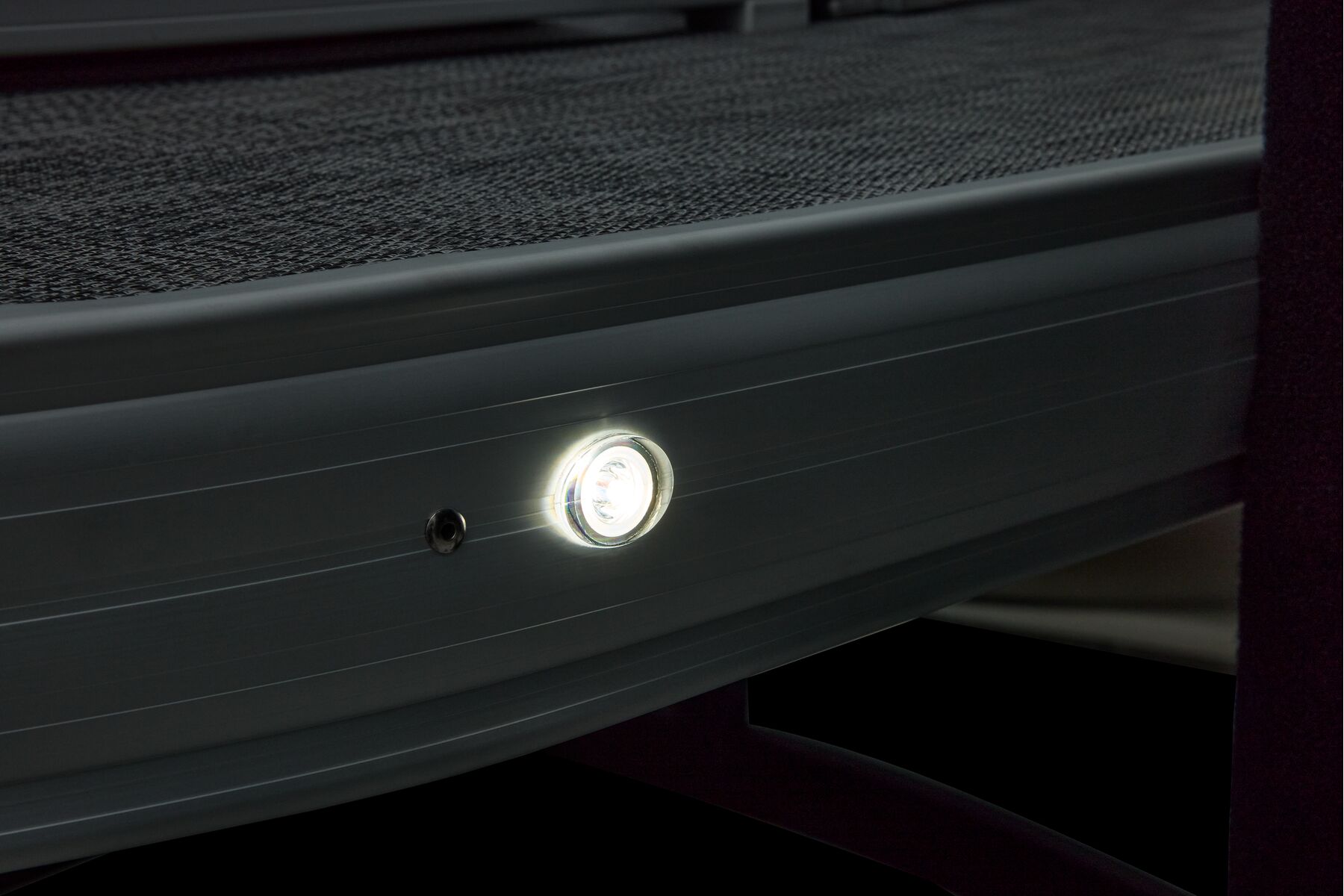

- Built-in LED docking lights

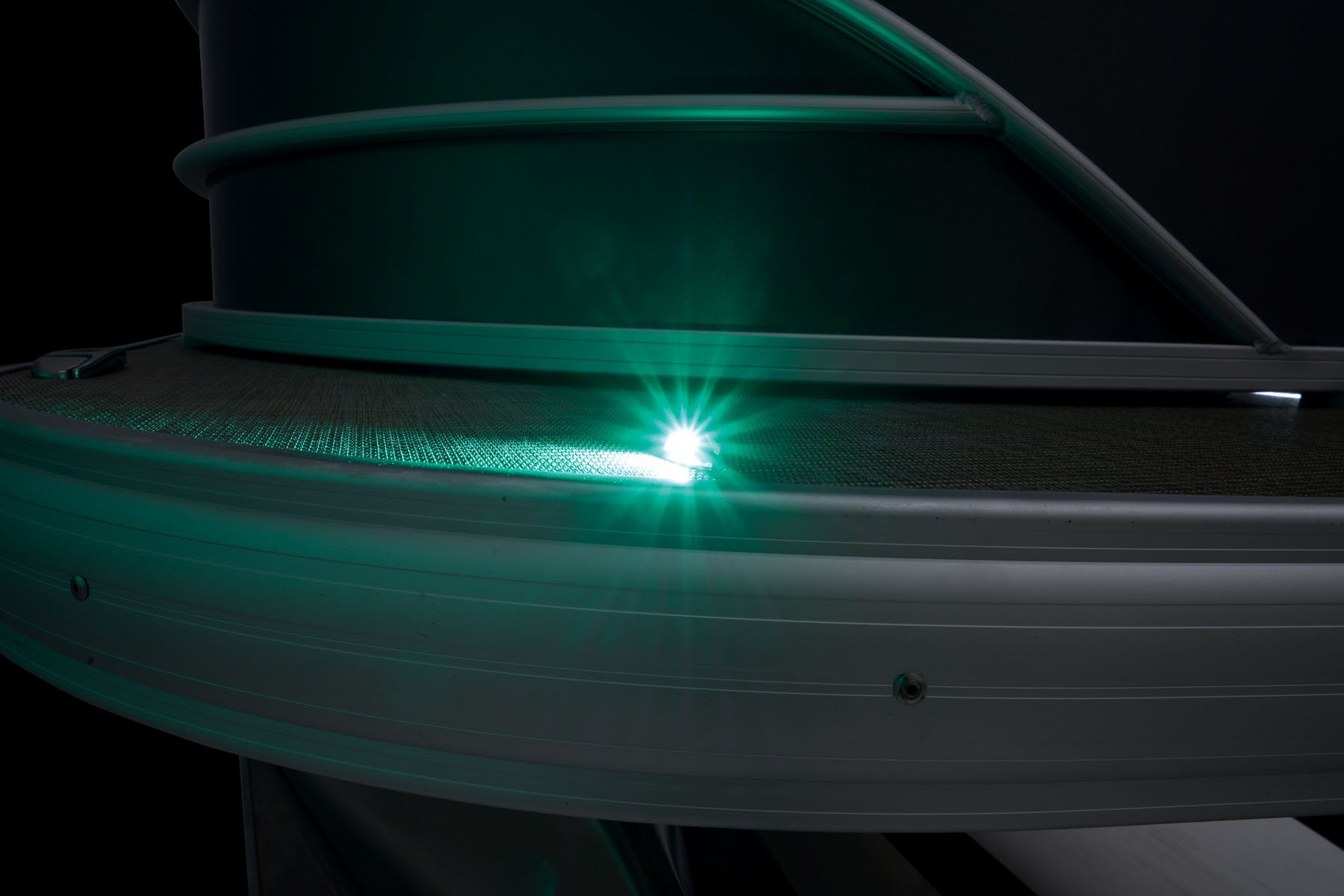

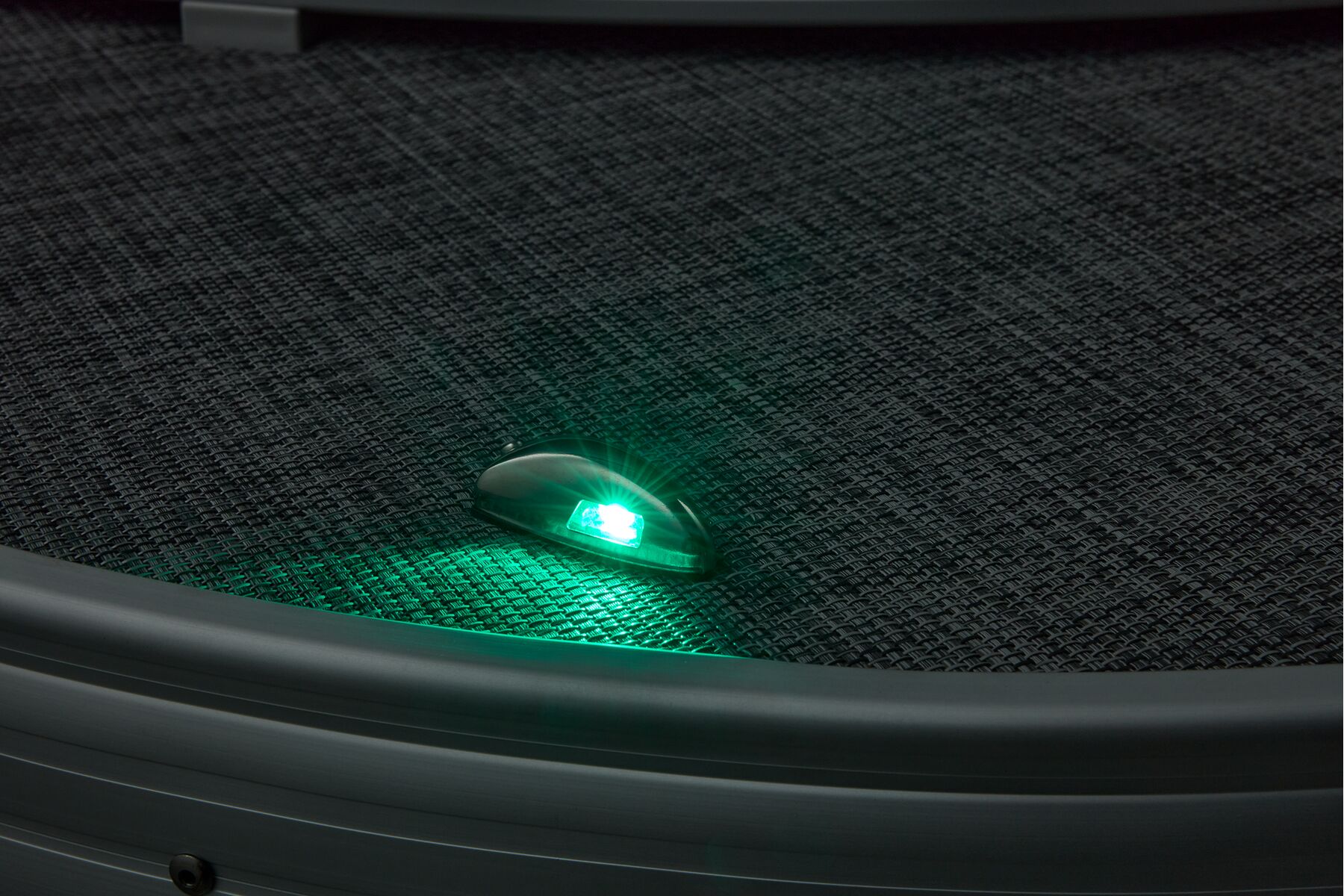

- Built-in LED navigation & anchor lights

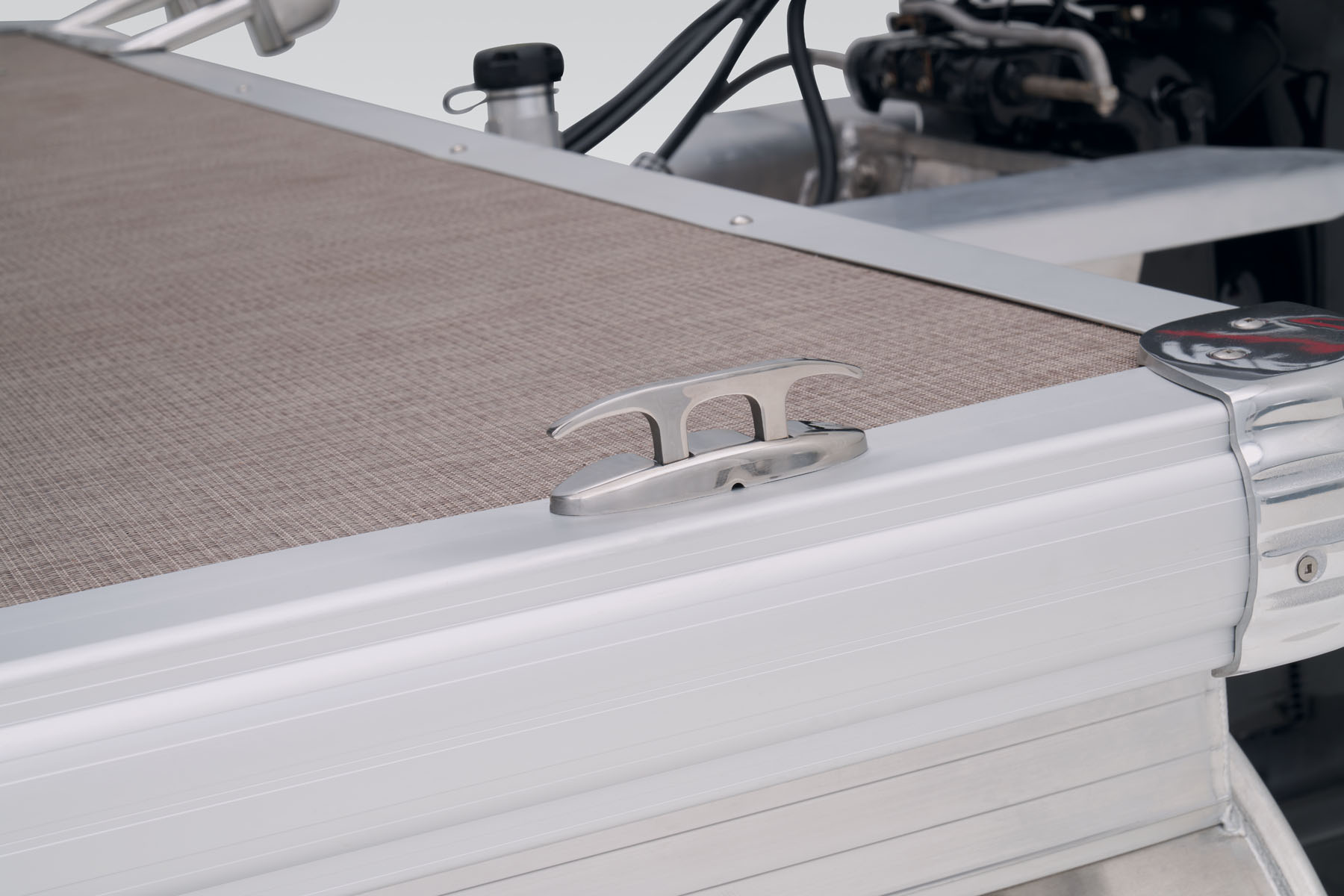

- 4 folding mooring cleats & starboard side tie-off mooring eye

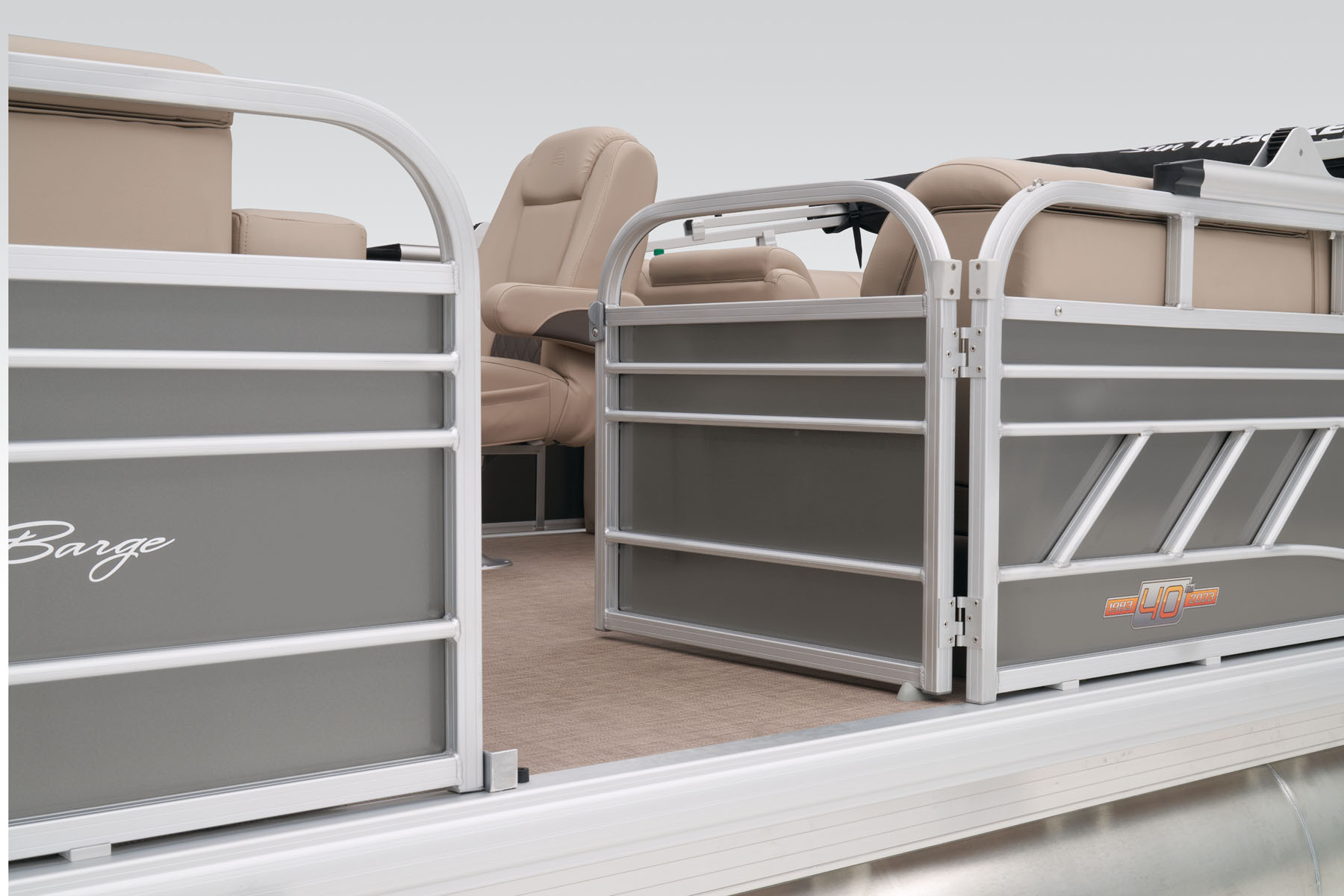

- Port wheelchair-accessible gate

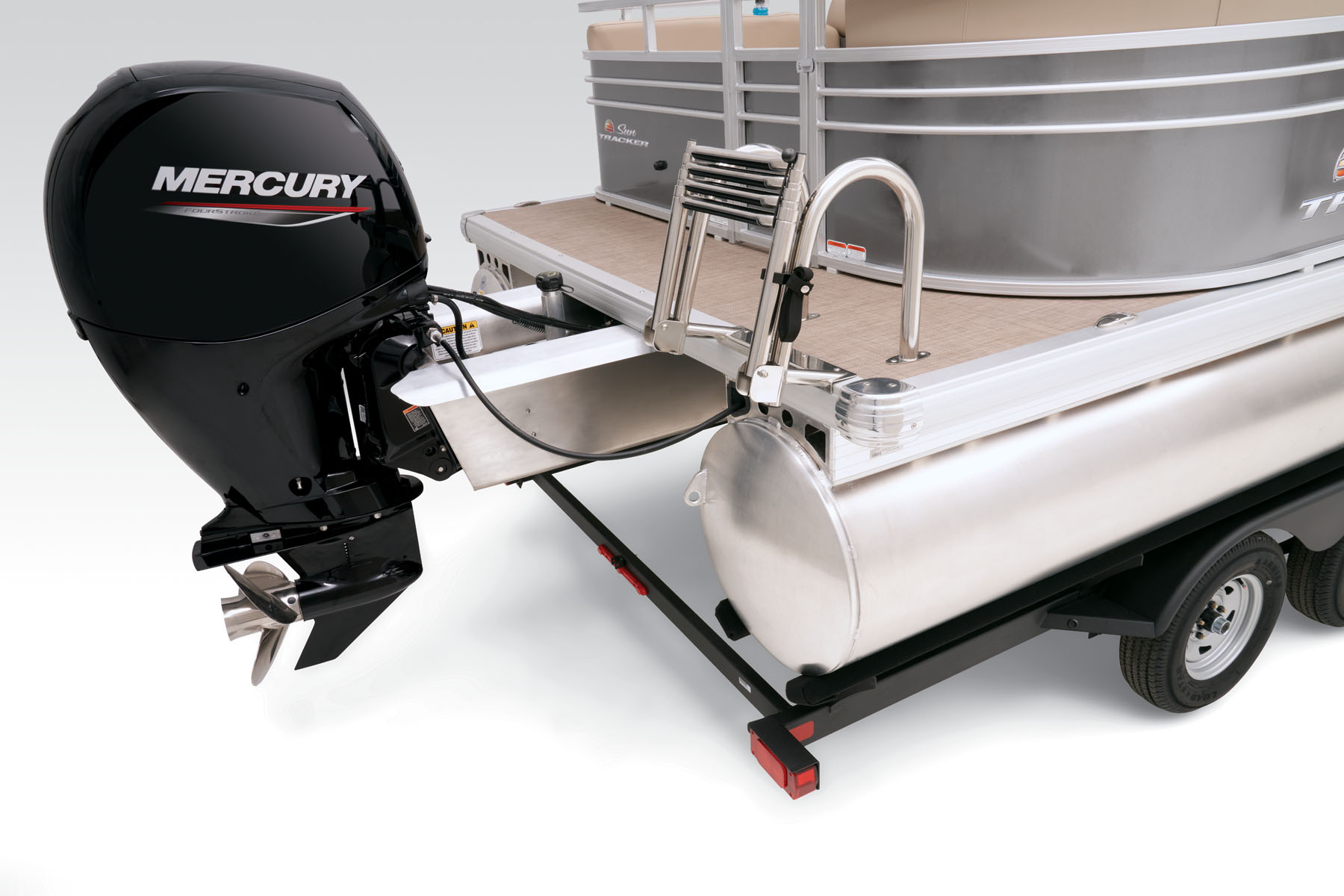

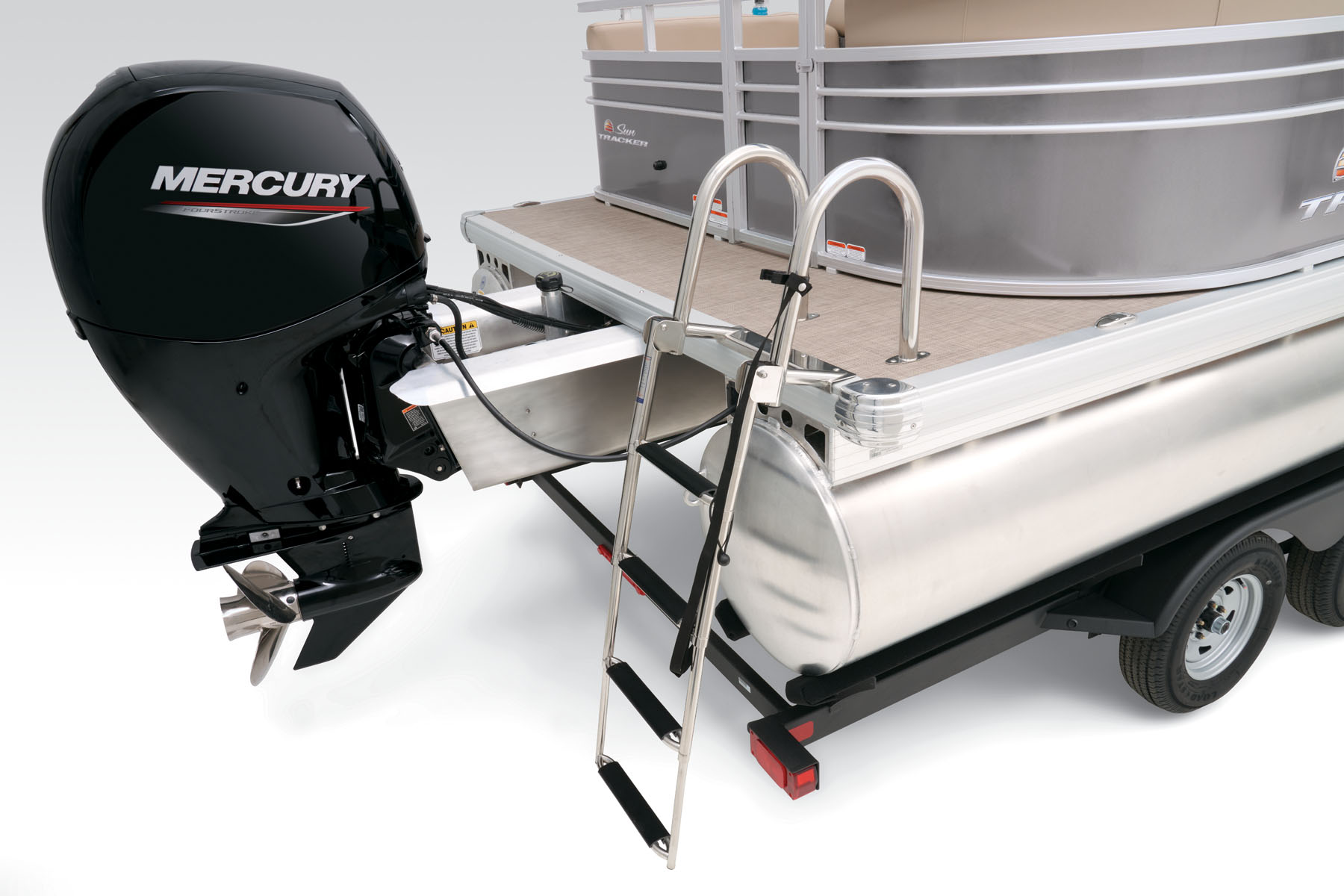

- Rear boarding platform w/4-step telescoping boarding ladder & grab rails
- Aft receptacle base for optional ski tow pylon
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
Console

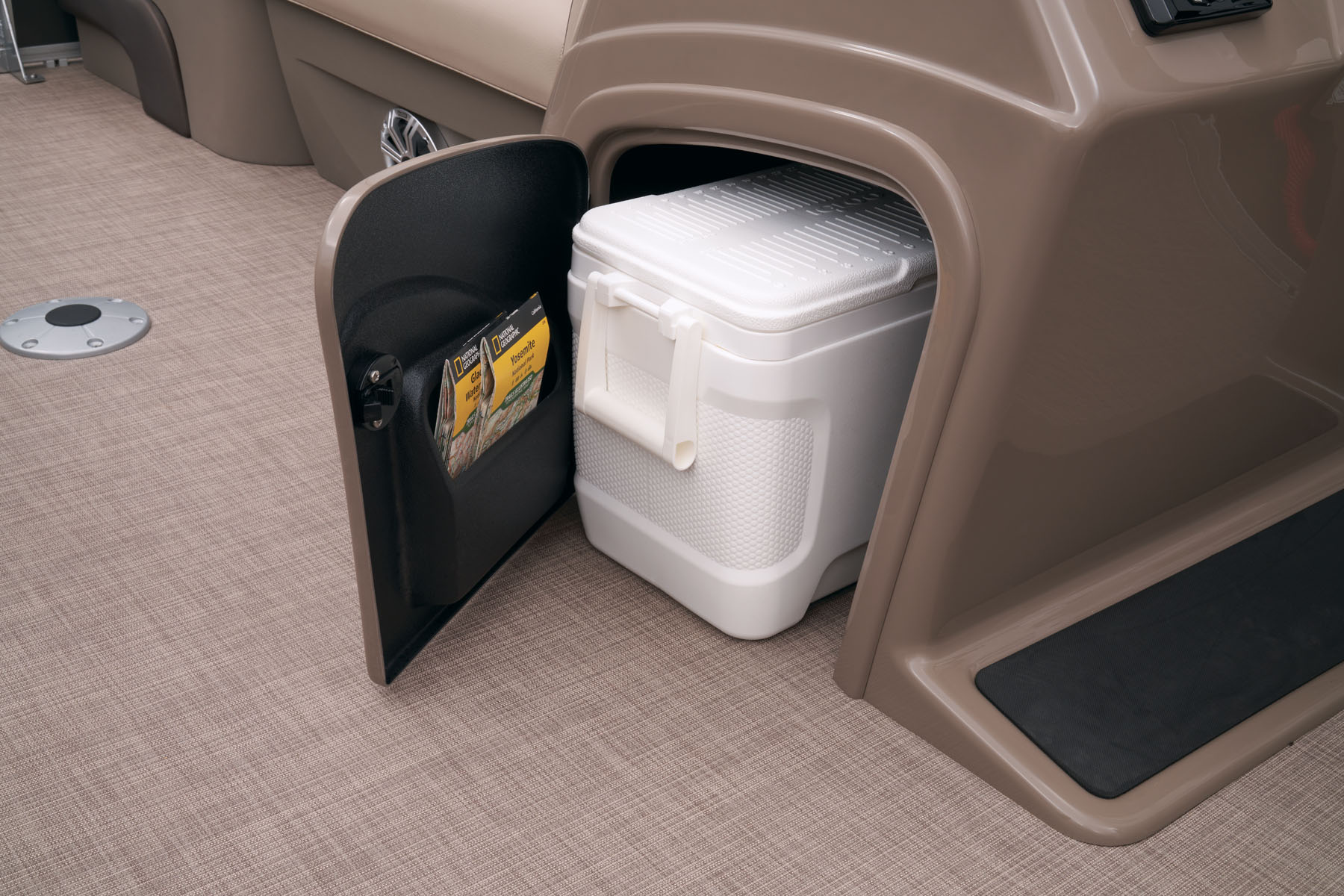

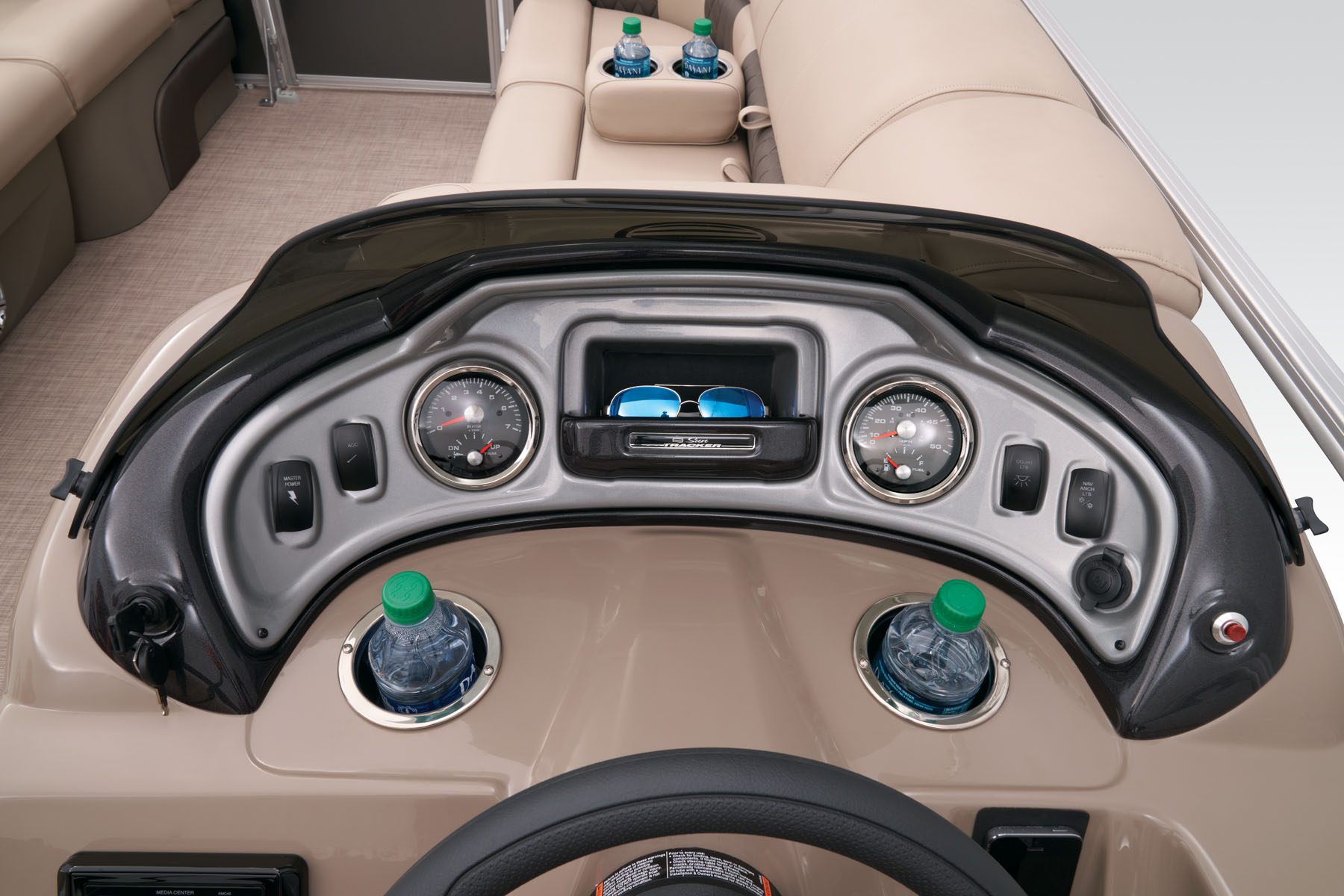

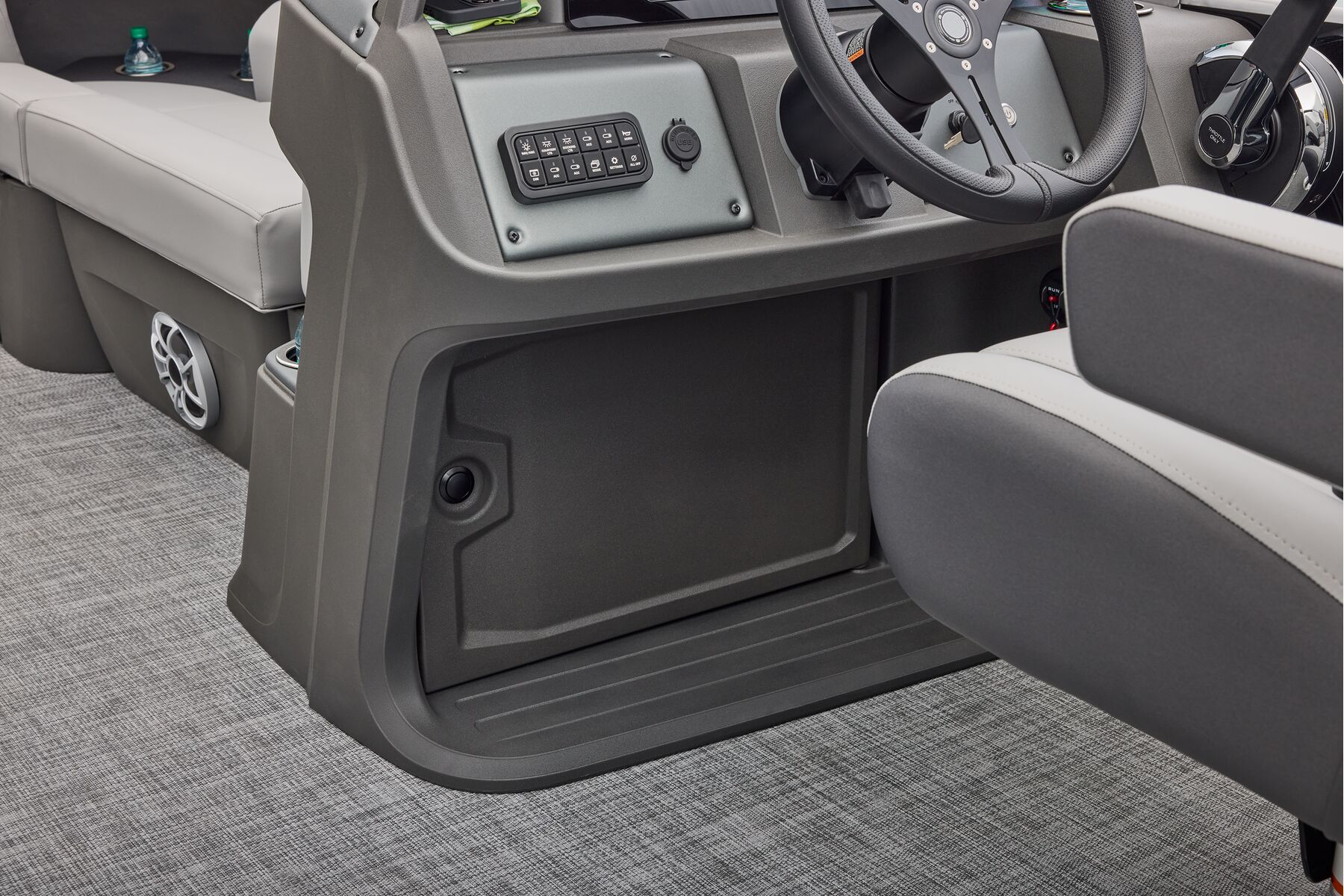

- Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls

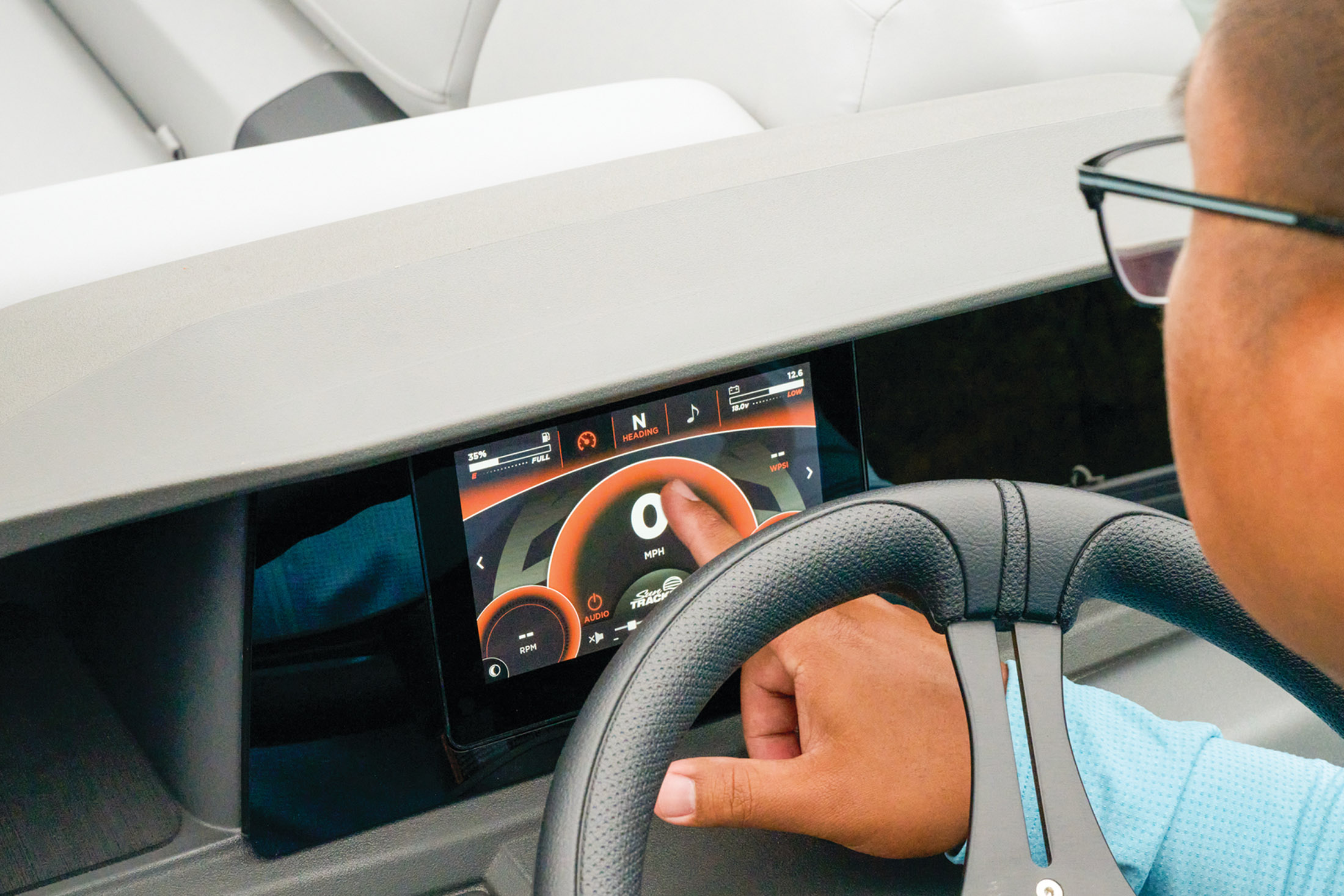

- SUN TRACKER FLARE™ touchscreen gauge display & 12-button switch panel

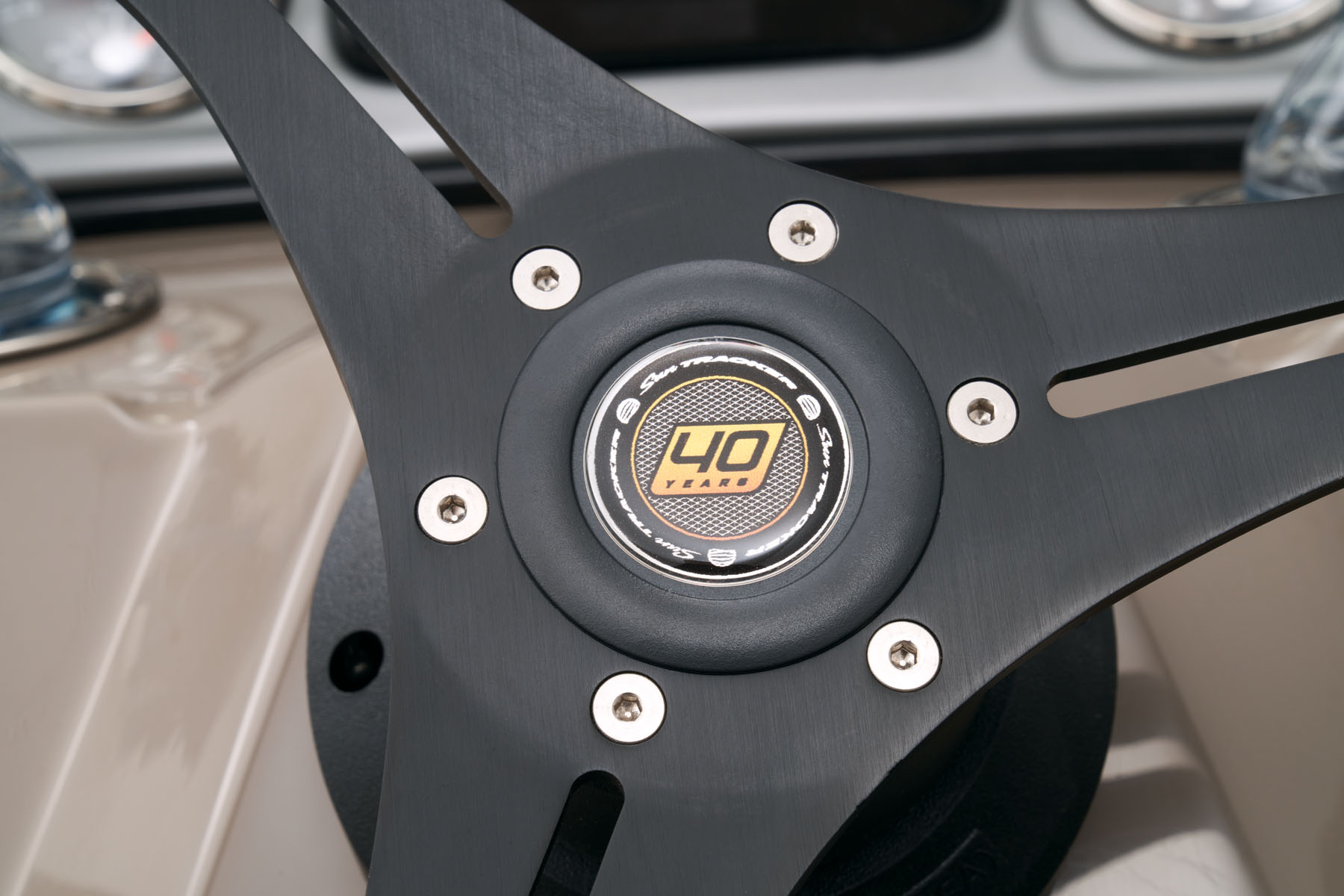

- Tilt steering w/deluxe soft-touch steering wheel

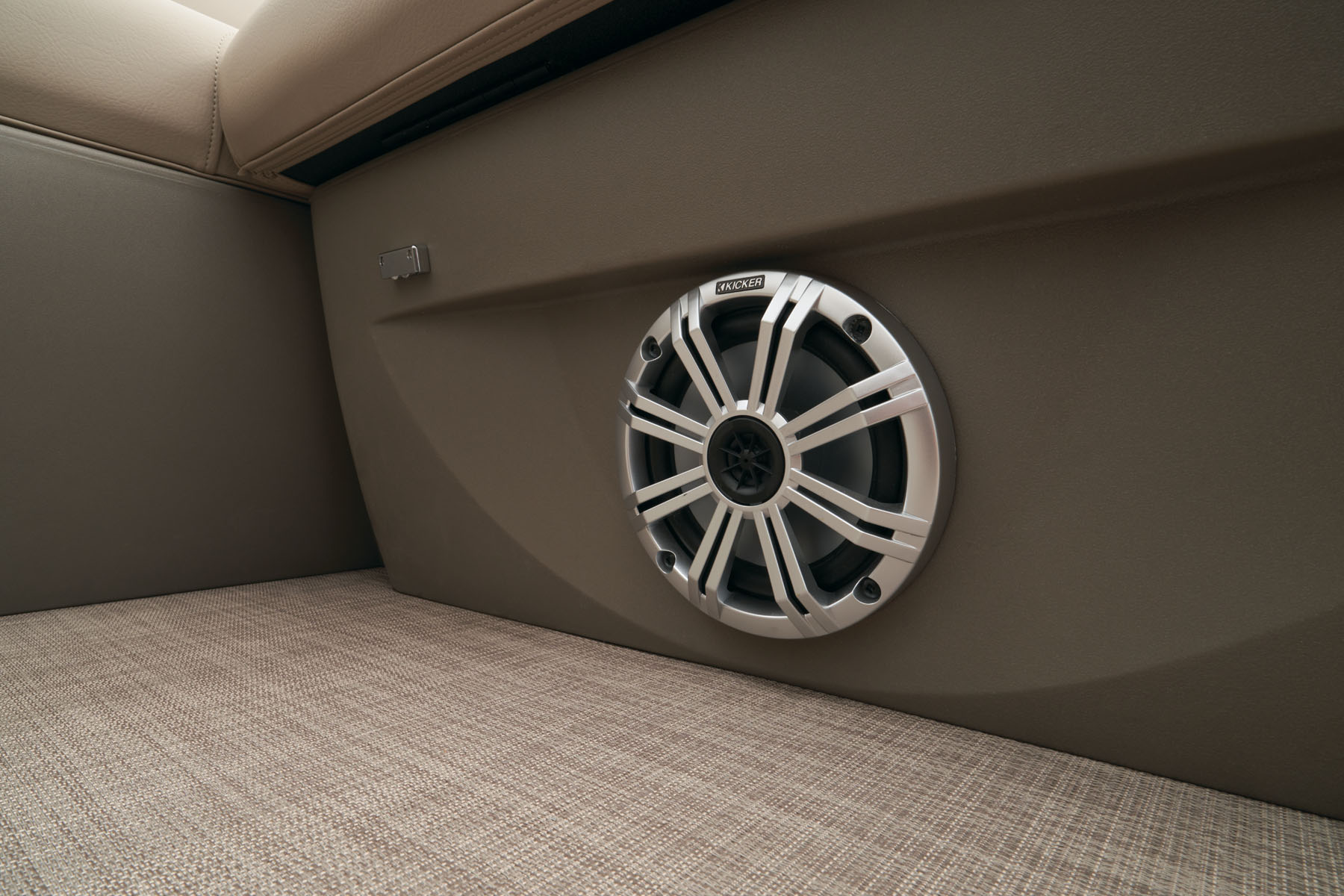

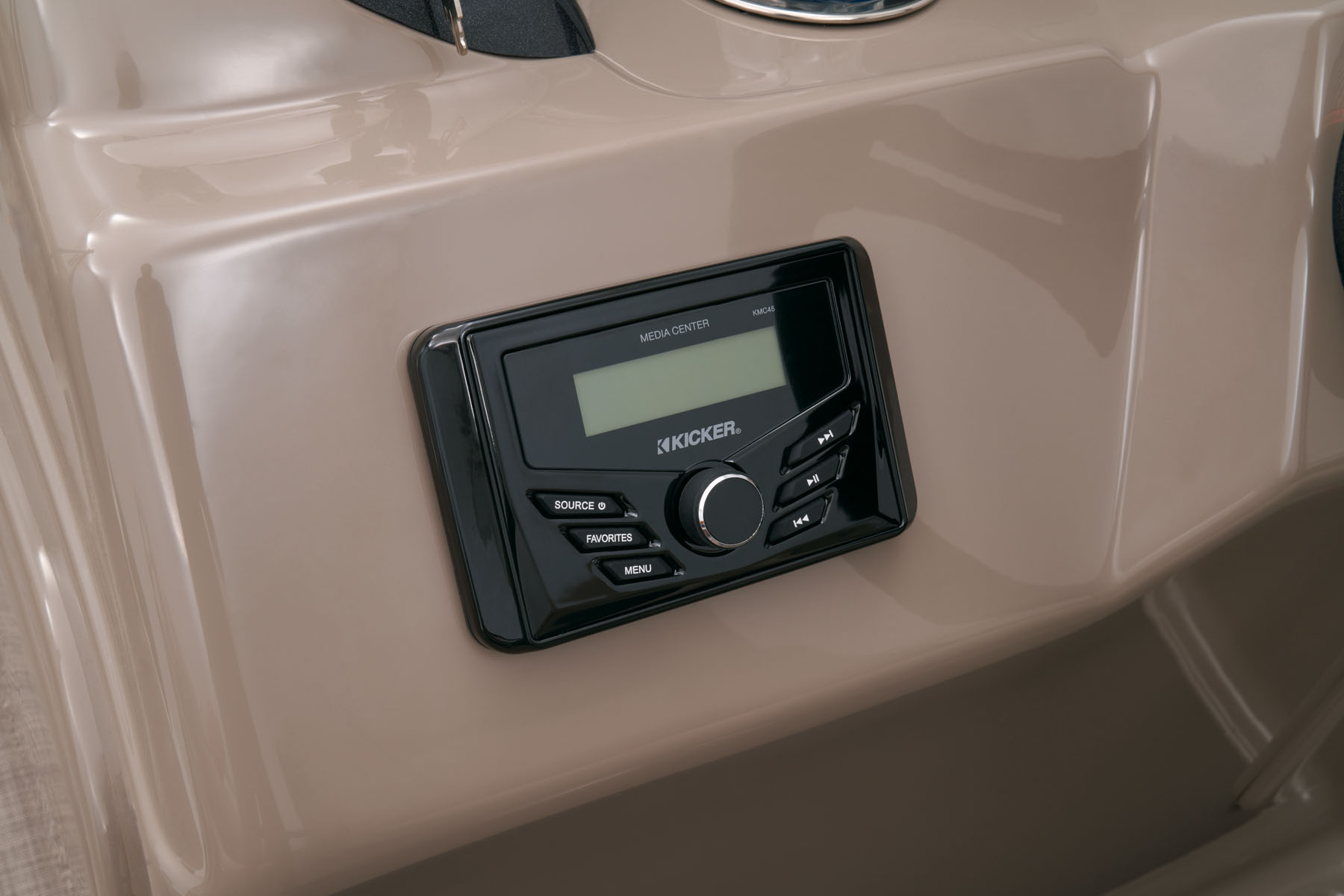

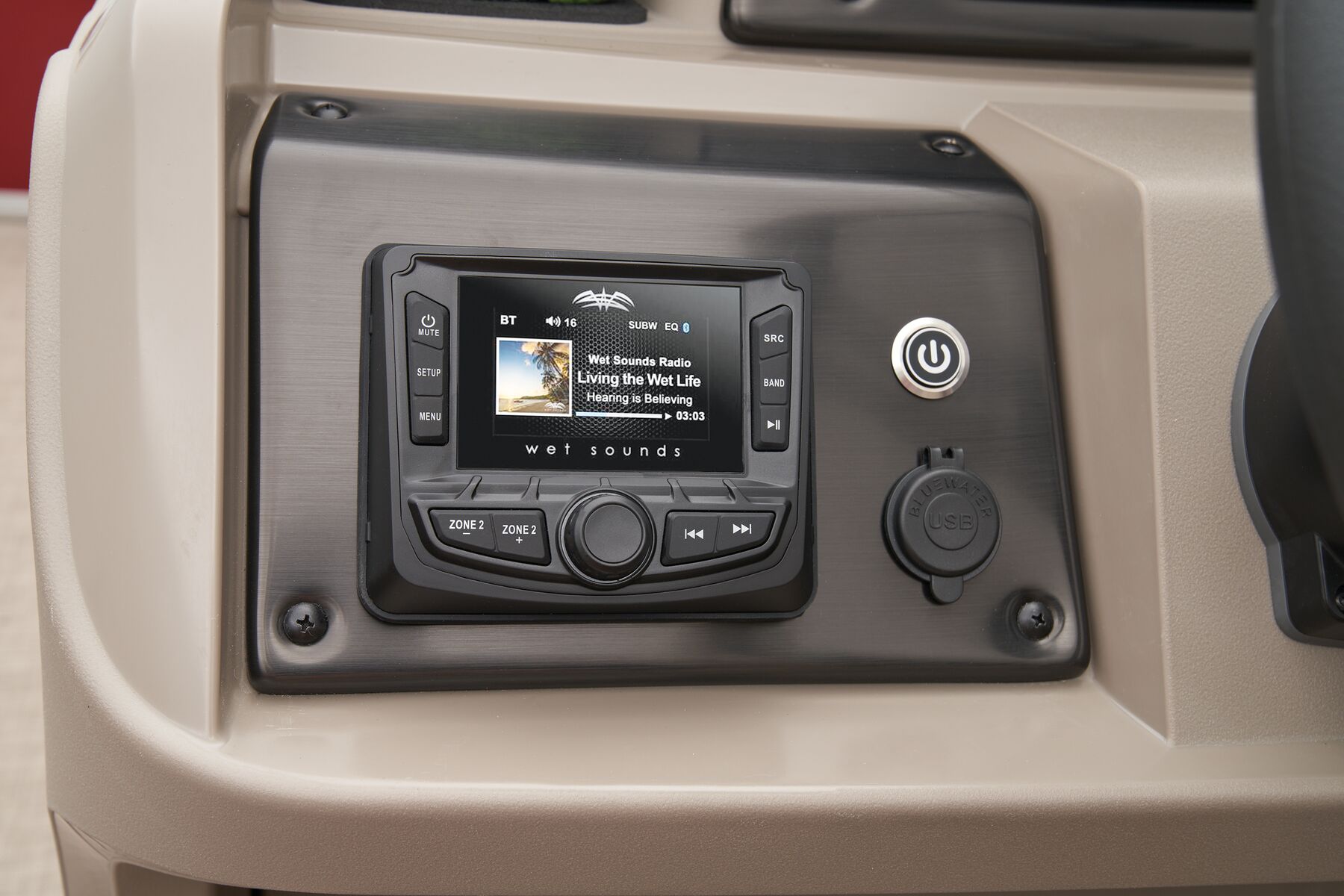

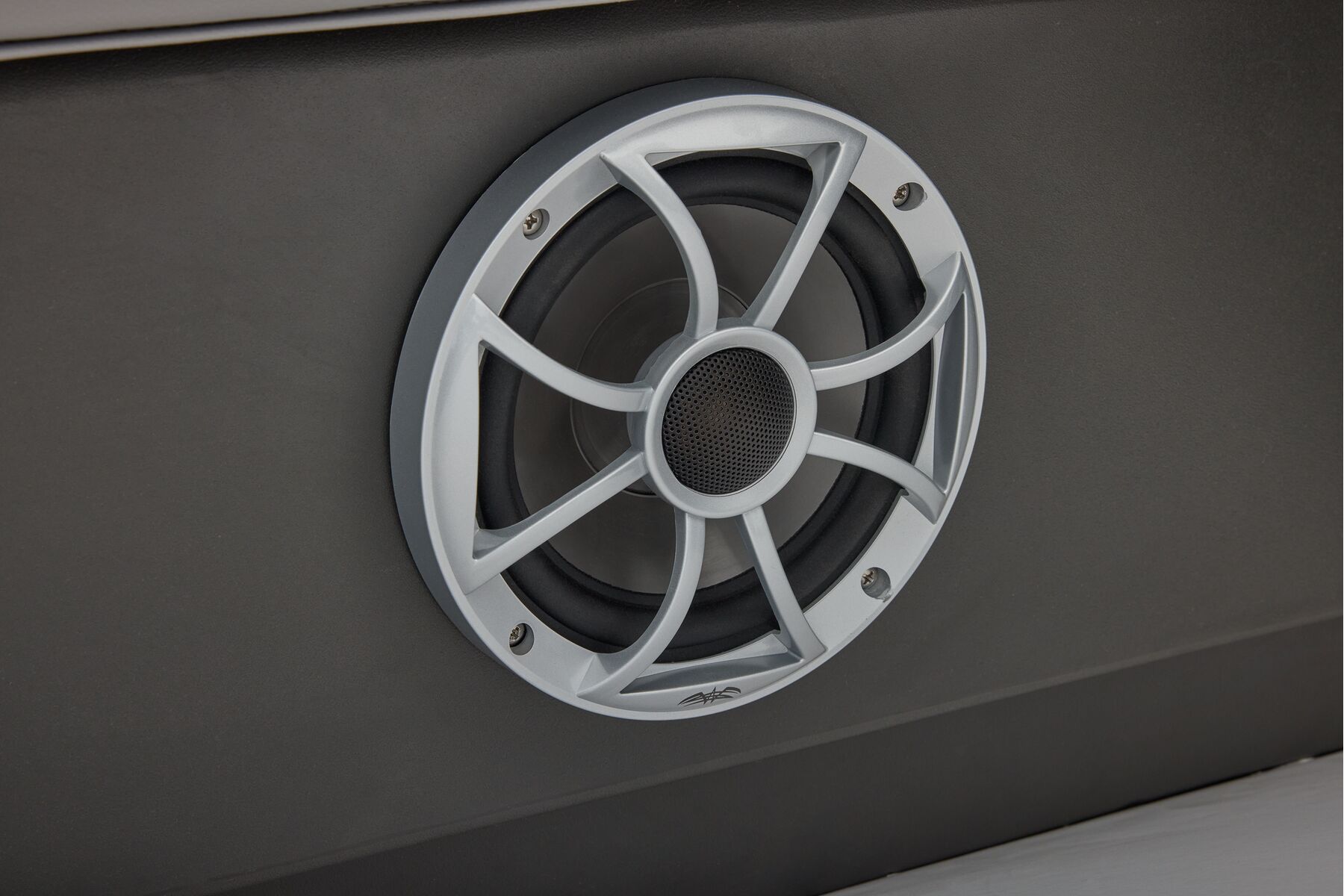

- Wet Sounds® stereo w/Bluetooth® & four 6.5" (16.51 cm) speakers, strategically located & shielded within the seat bases
- Master power on/off switch
- Recessed mobile phone cubbies
- USB charging receptacle
Interior

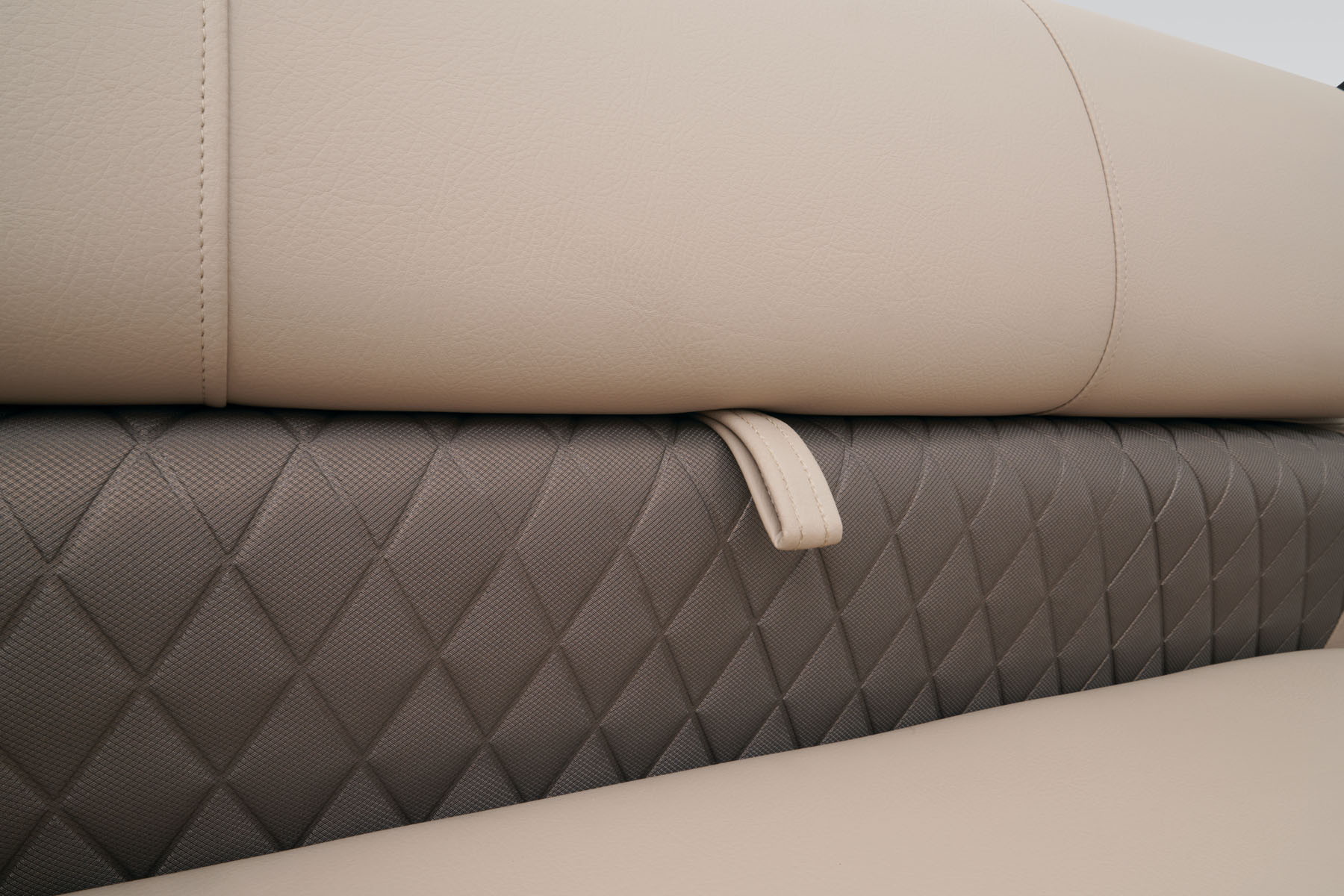

- Patented built-in STOW MORE™ seat-back storage system for all couches

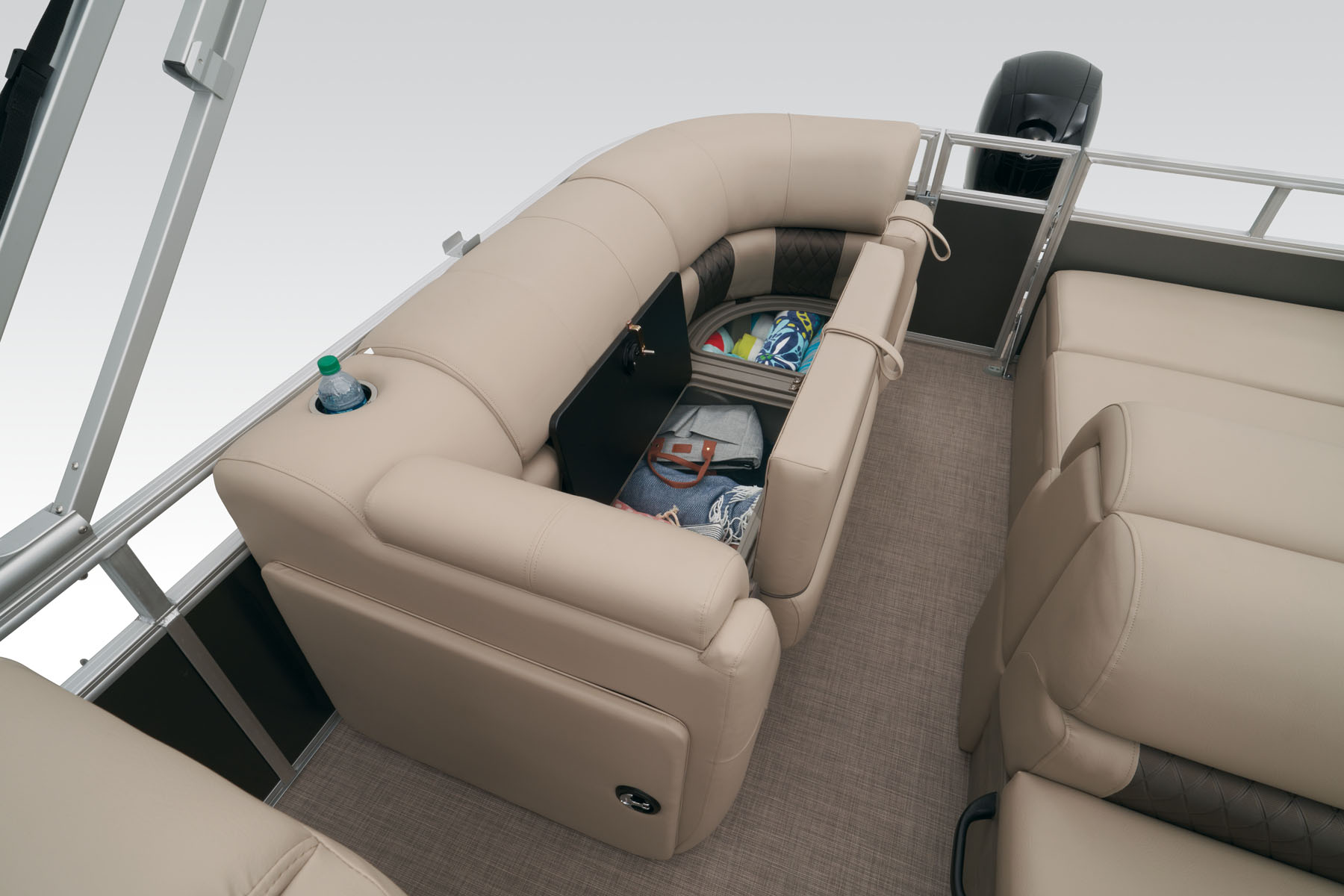

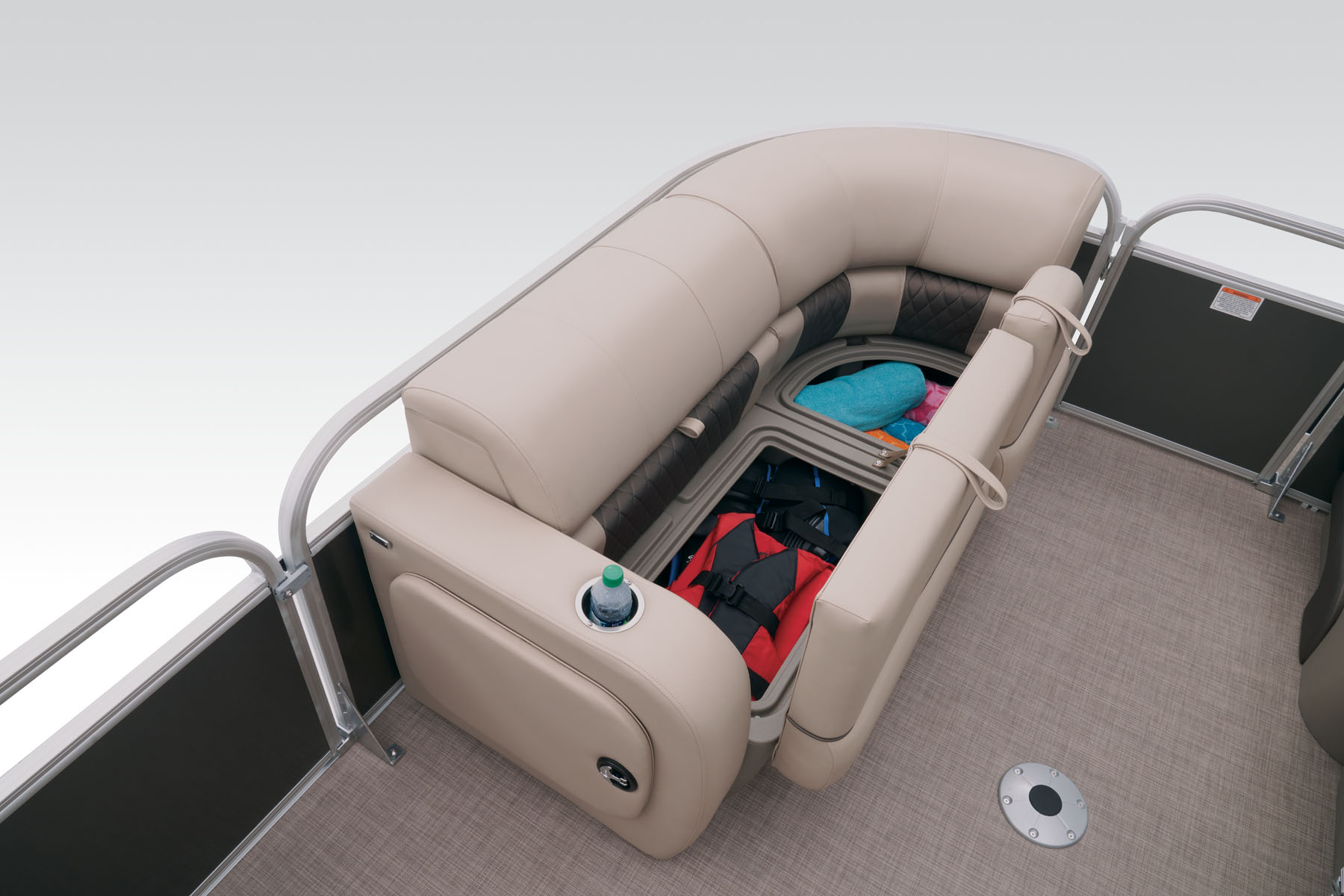

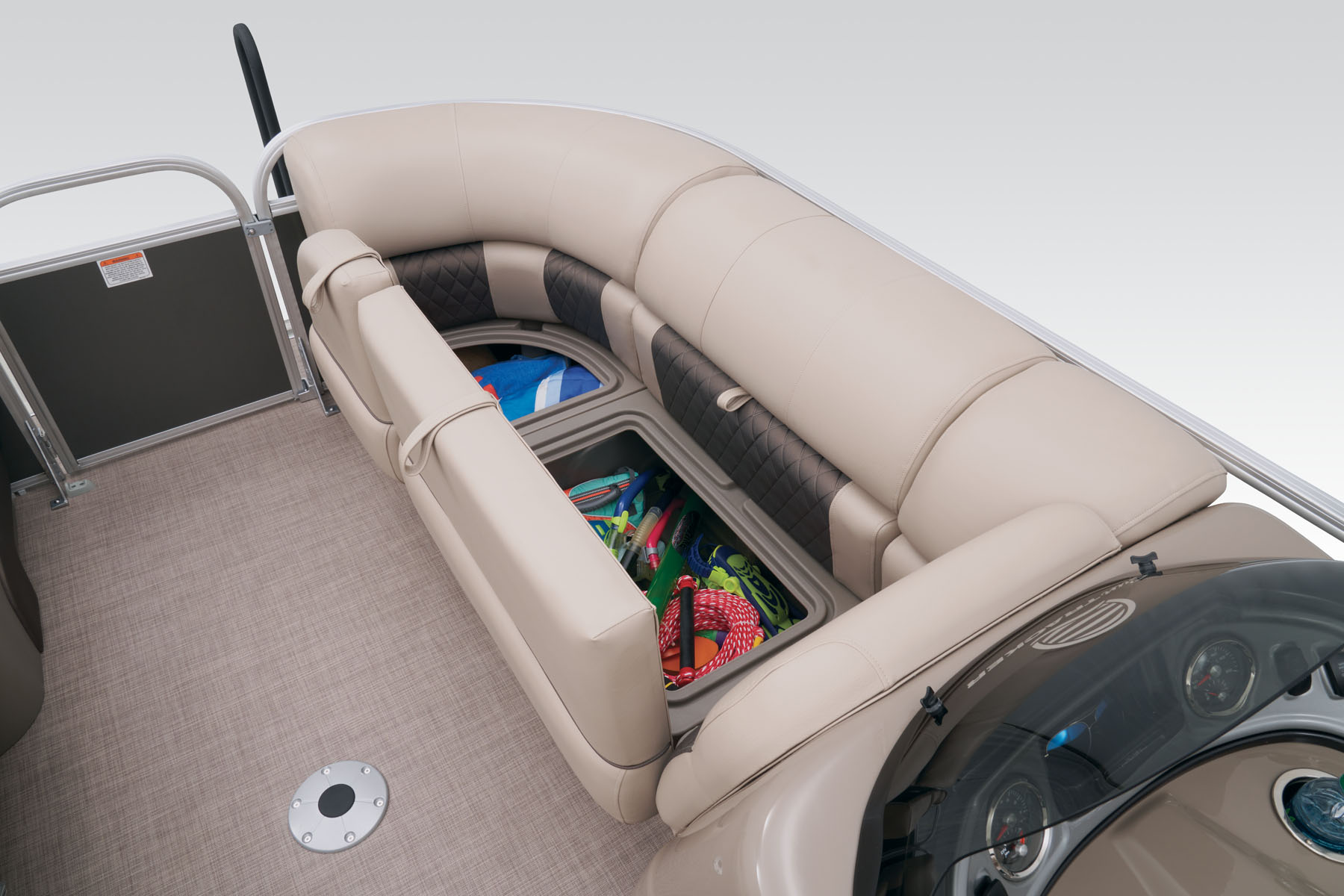

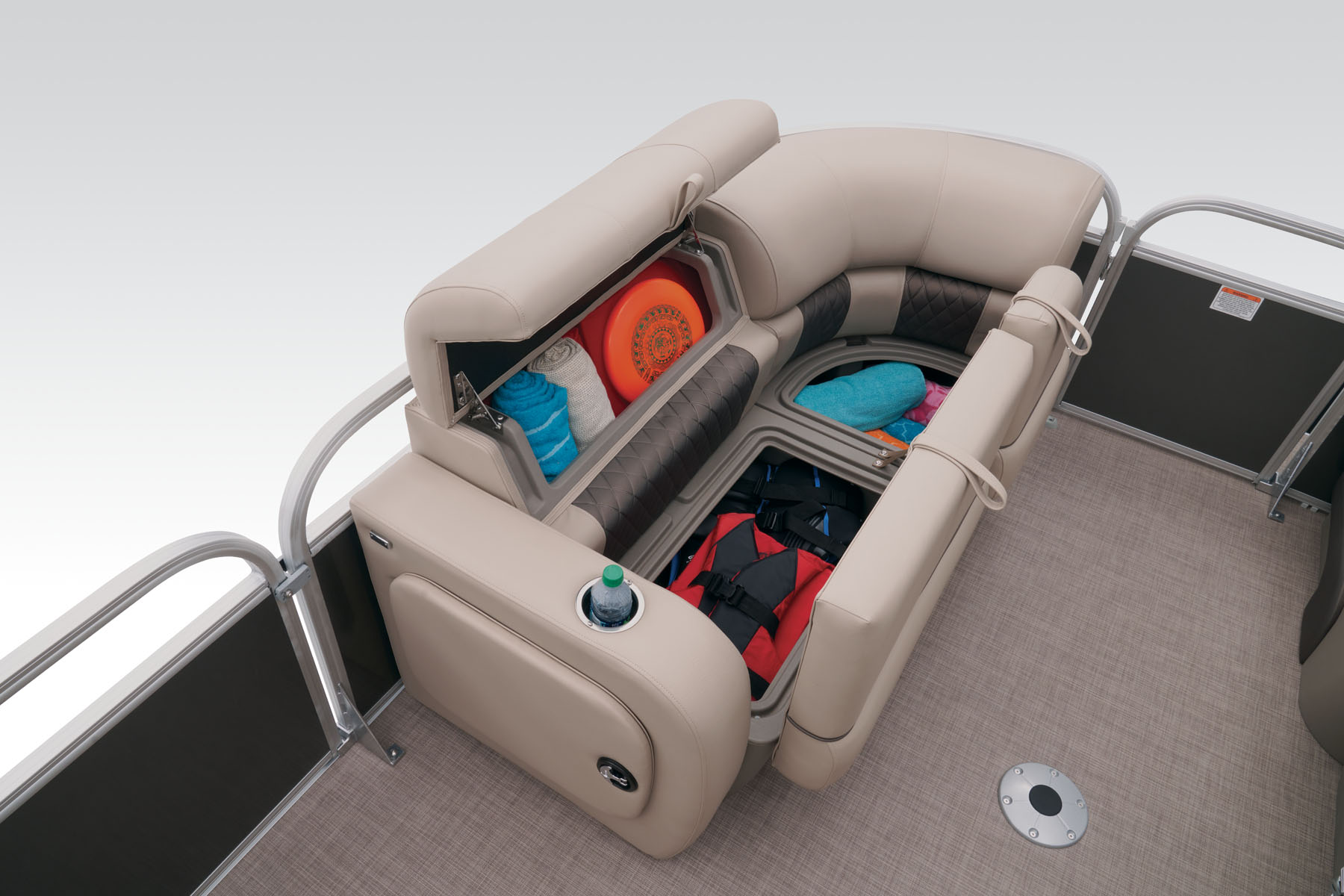

- Bow port couch w/STOW MORE™, underseat storage & armrest w/drink holder

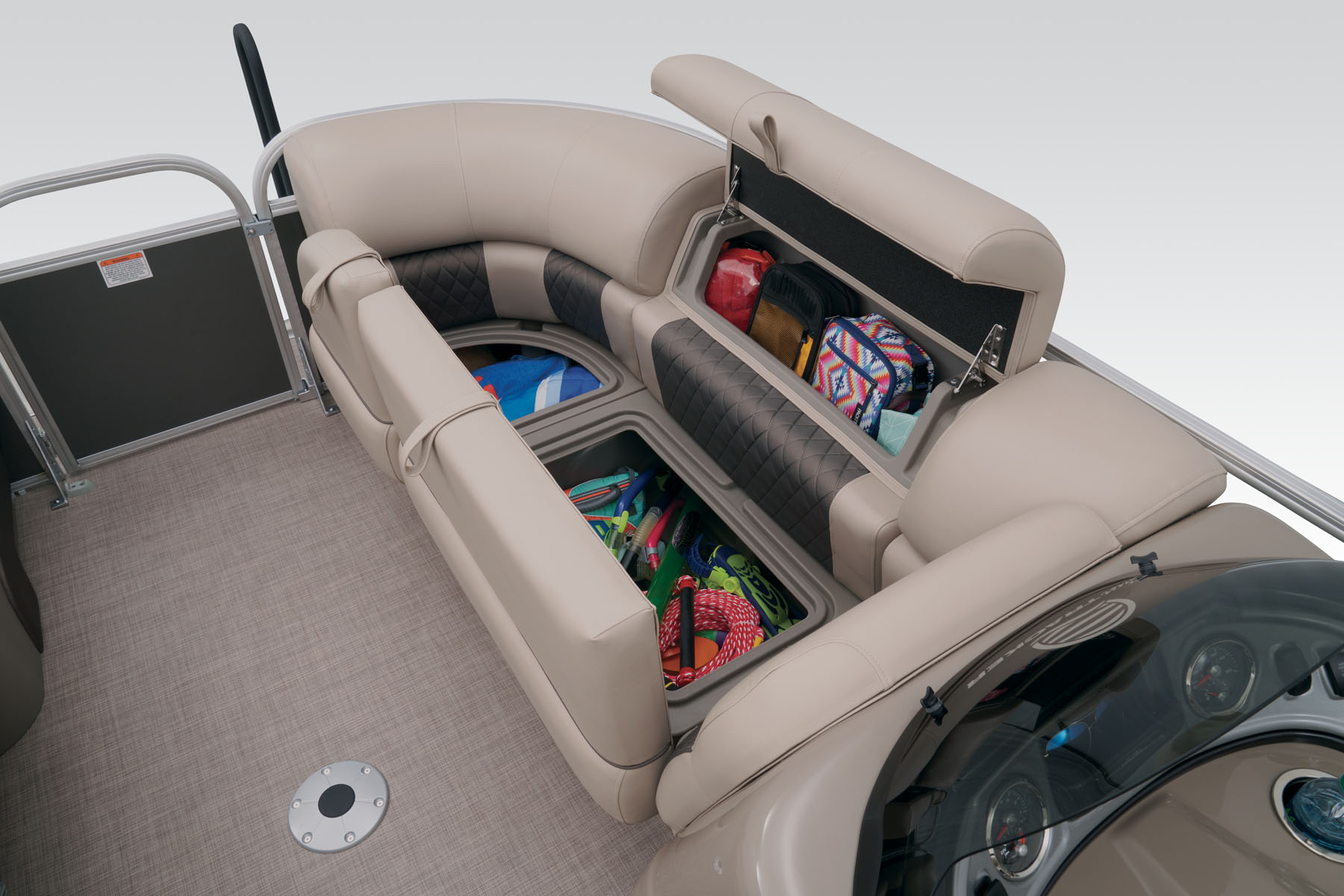

- Bow starboard console couch w/STOW MORE™ & underseat storage

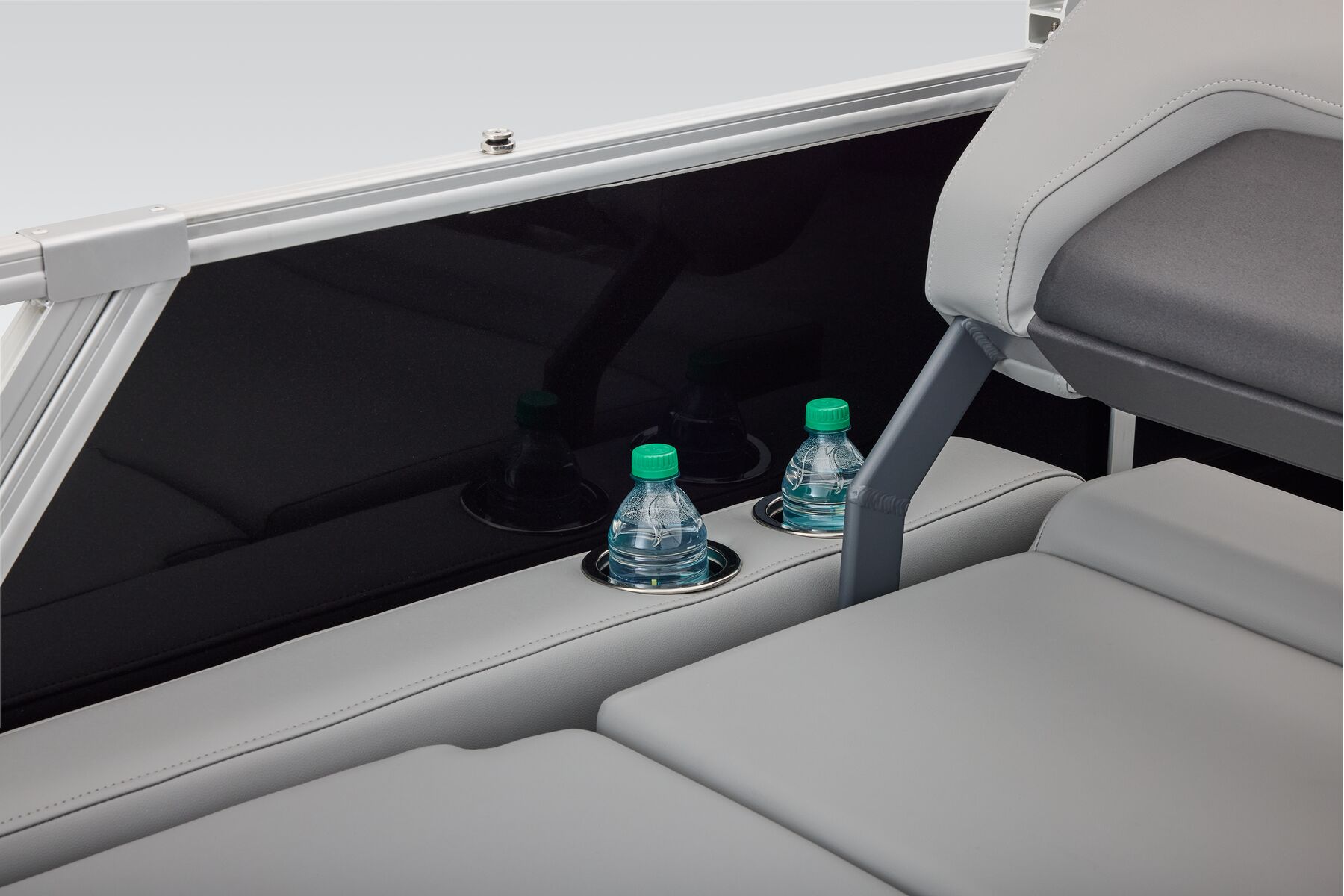

- 2 movable drink holders/armrests for couch seating

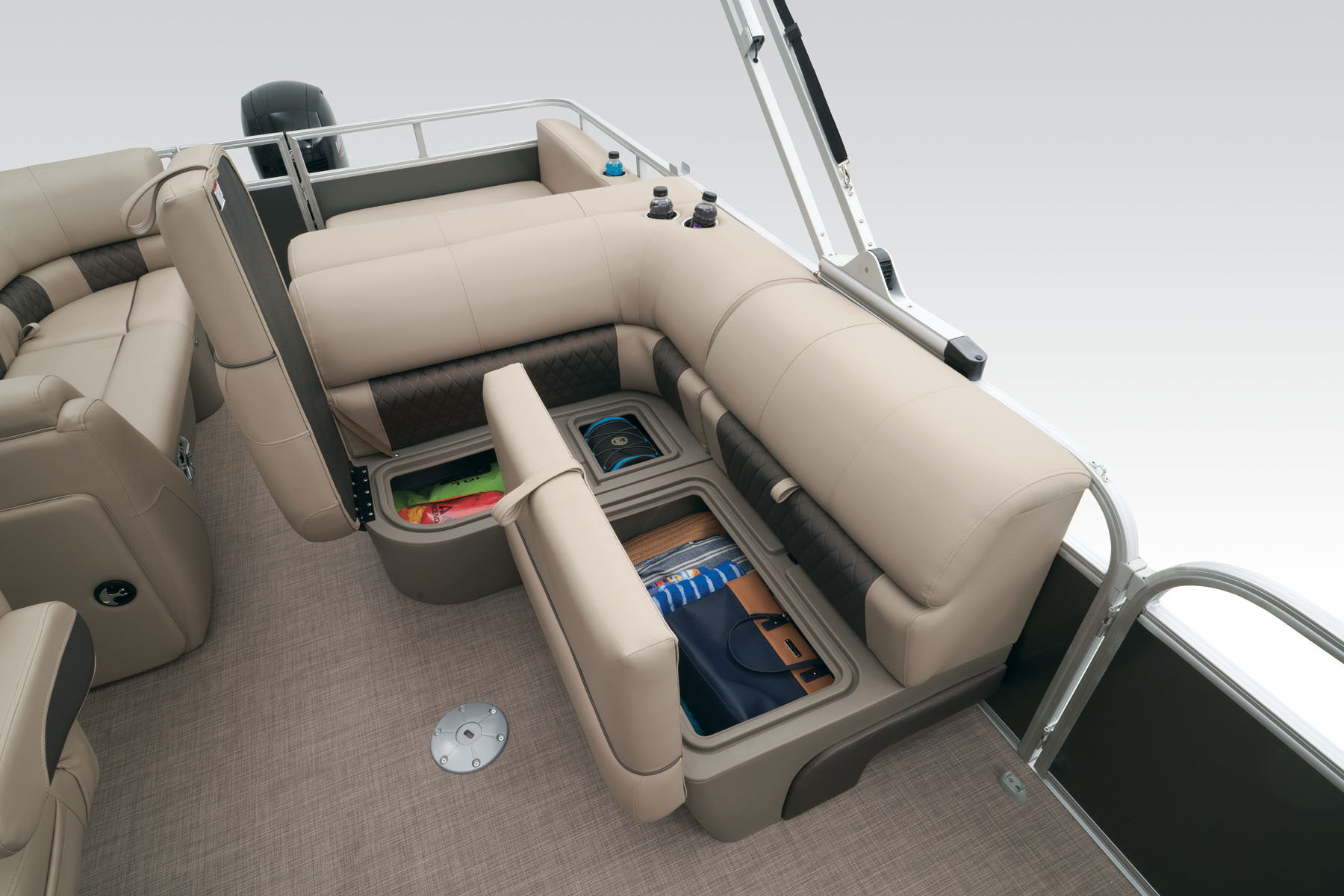

- Midship L-lounge couches w/STOW MORE™ & underseat storage

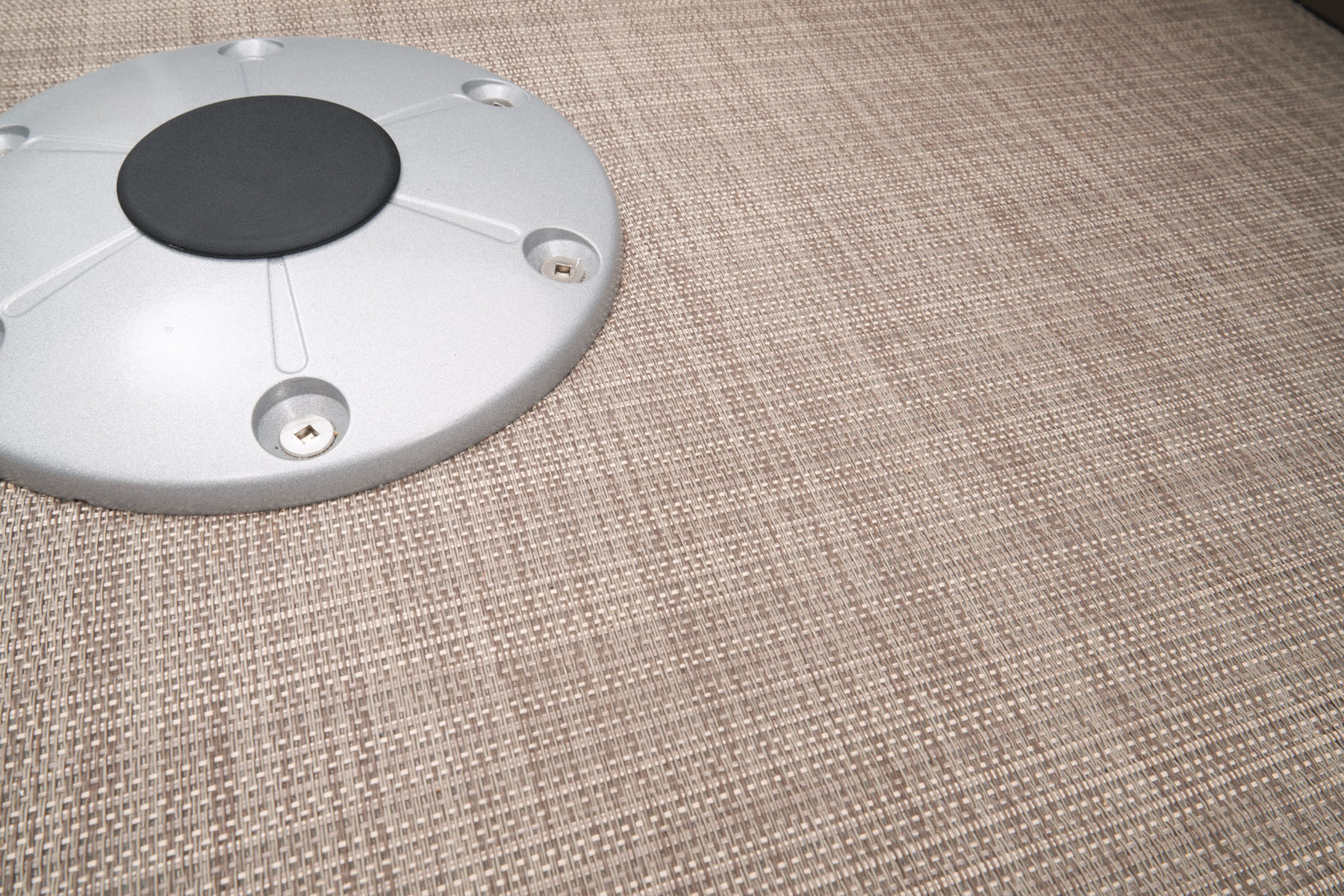

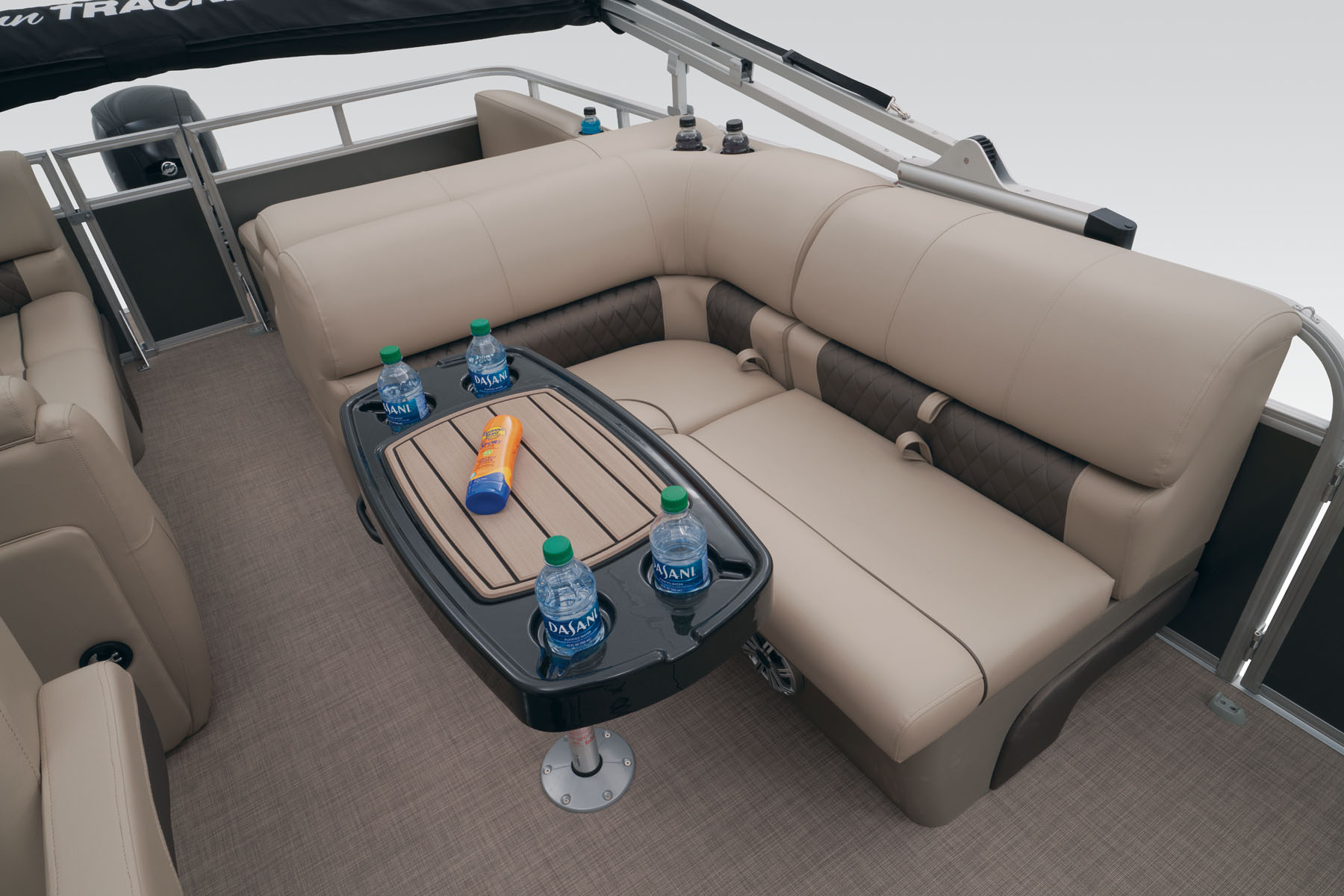

- Removable table w/soft-touch insert; 4 molded-in drink holders; & 2 pedestal base locations

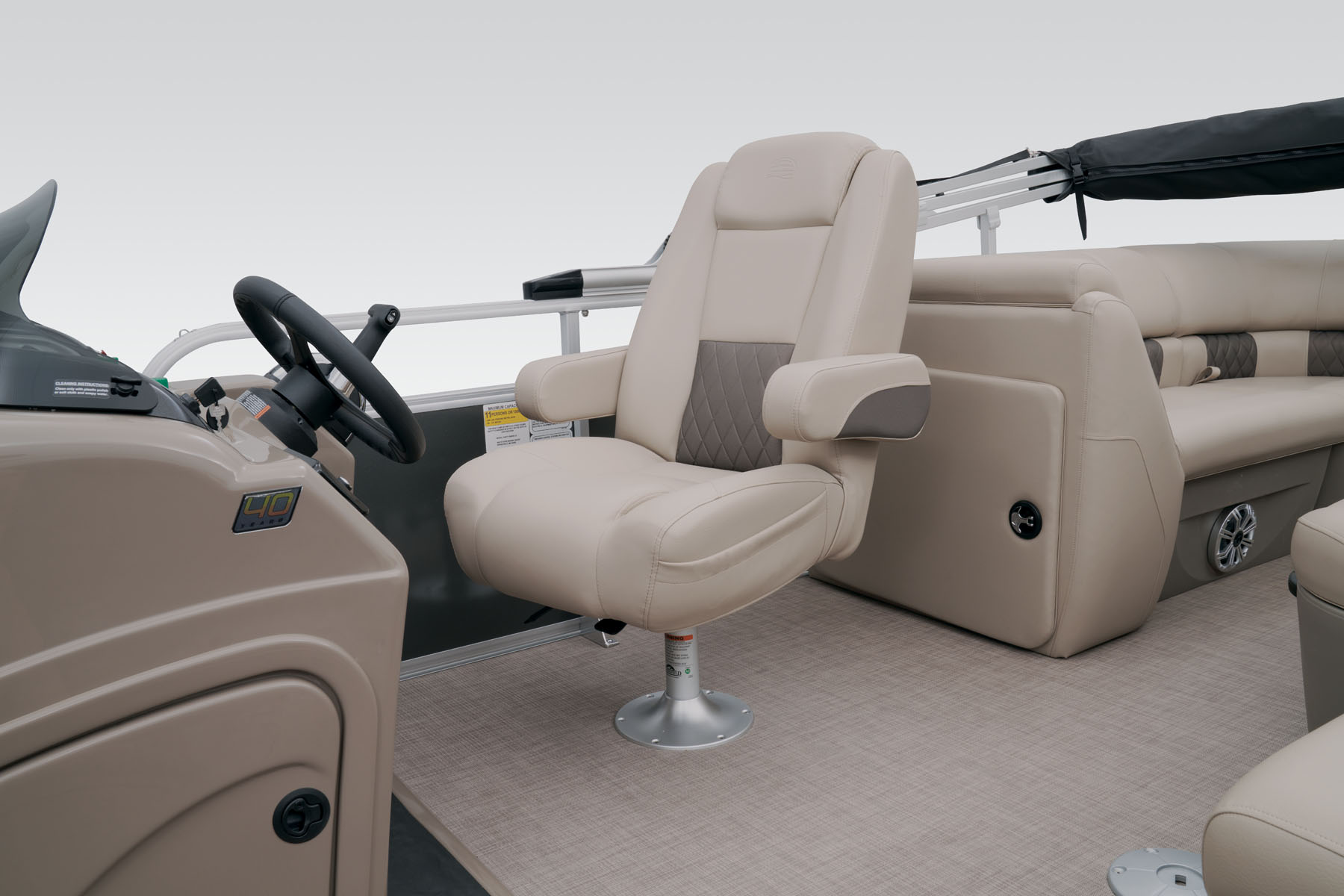

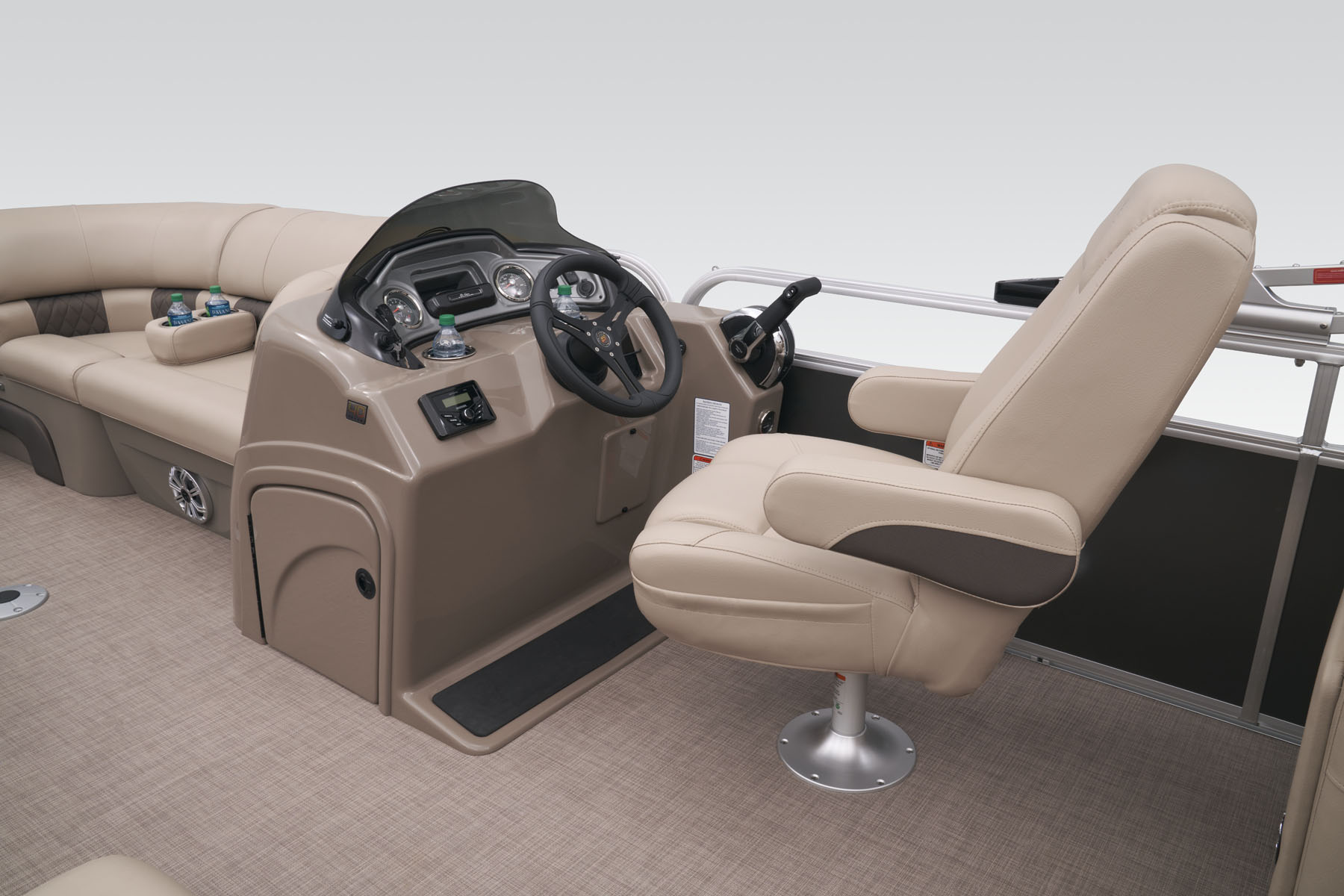

- Reclining, high-back swiveling helm bucket seat w/self-leveling armrests

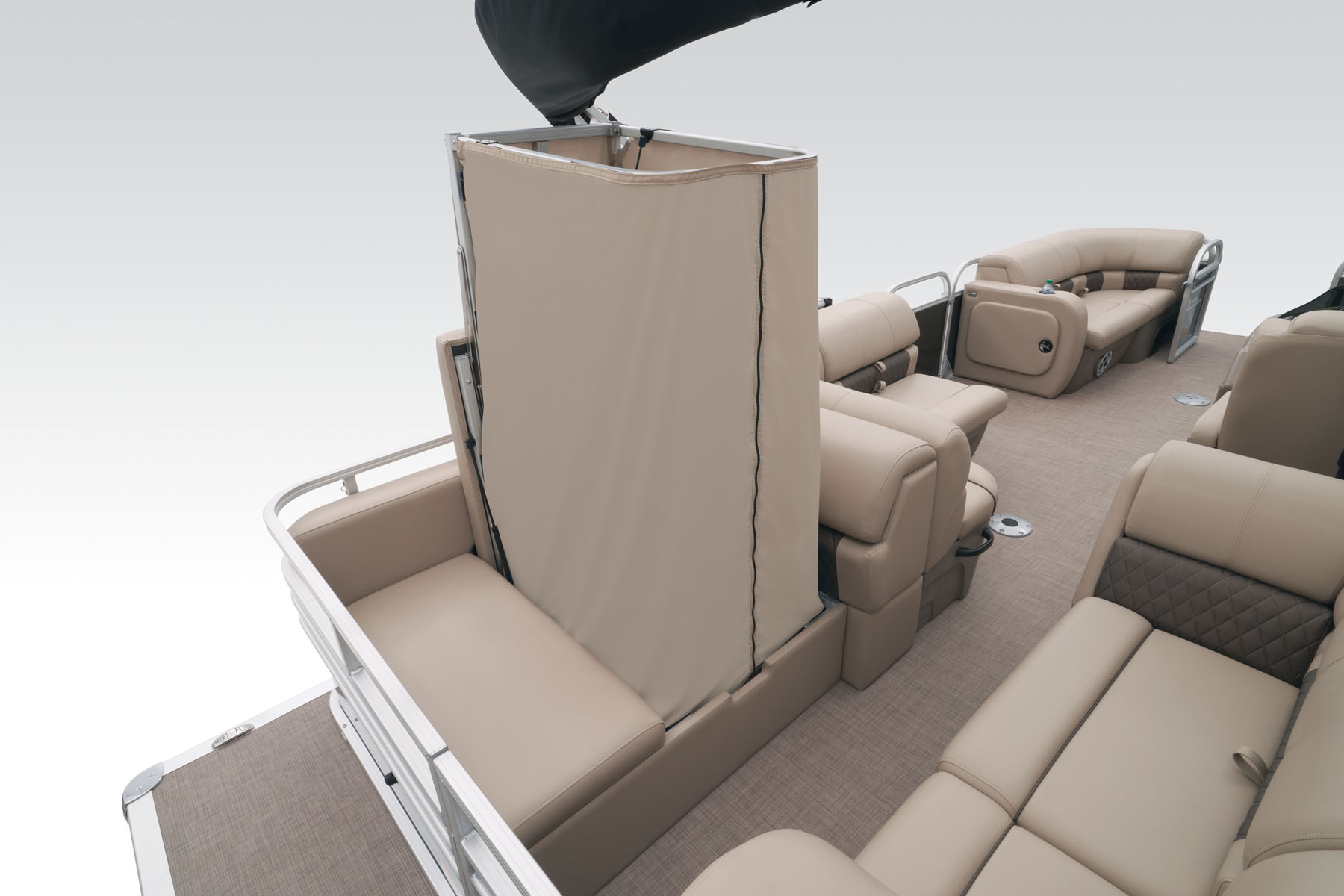

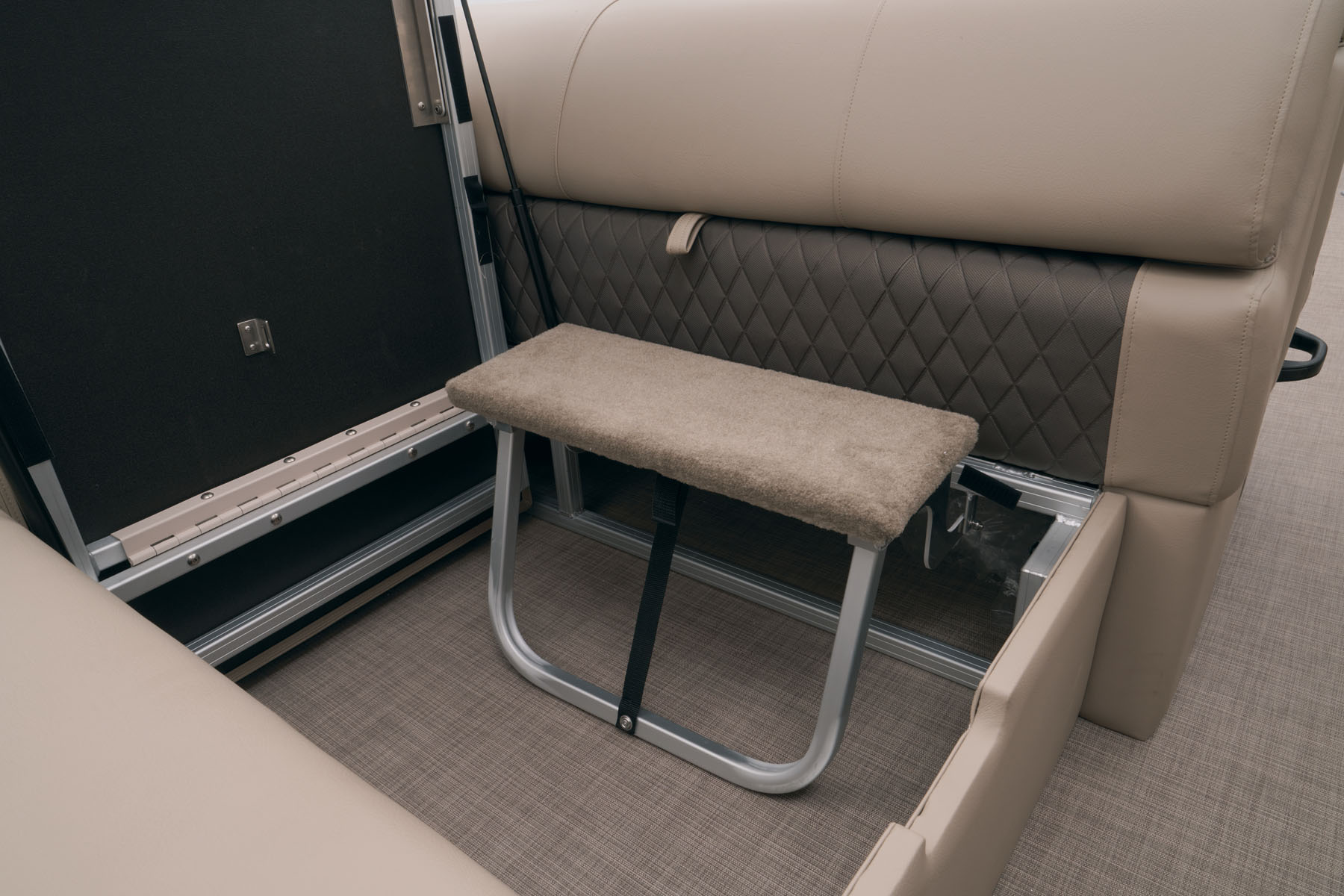

- Aft port rear-facing double lounge w/STOW MORE™, underseat storage & pop-up changing room

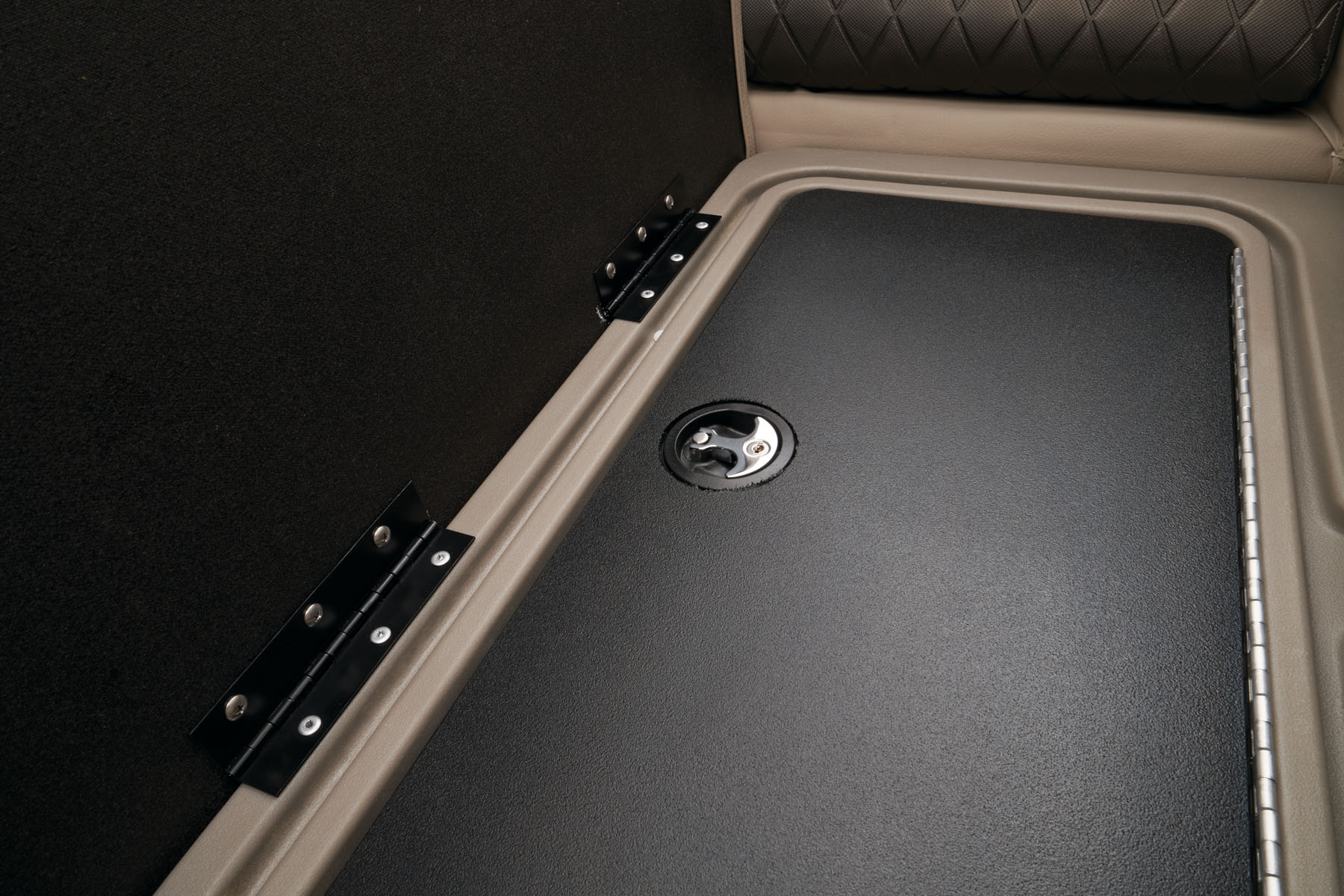

- Aft starboard couch w/STOW MORE™ & underseat, lockable storage
- Interior courtesy lighting
- Full-width aft swim deck

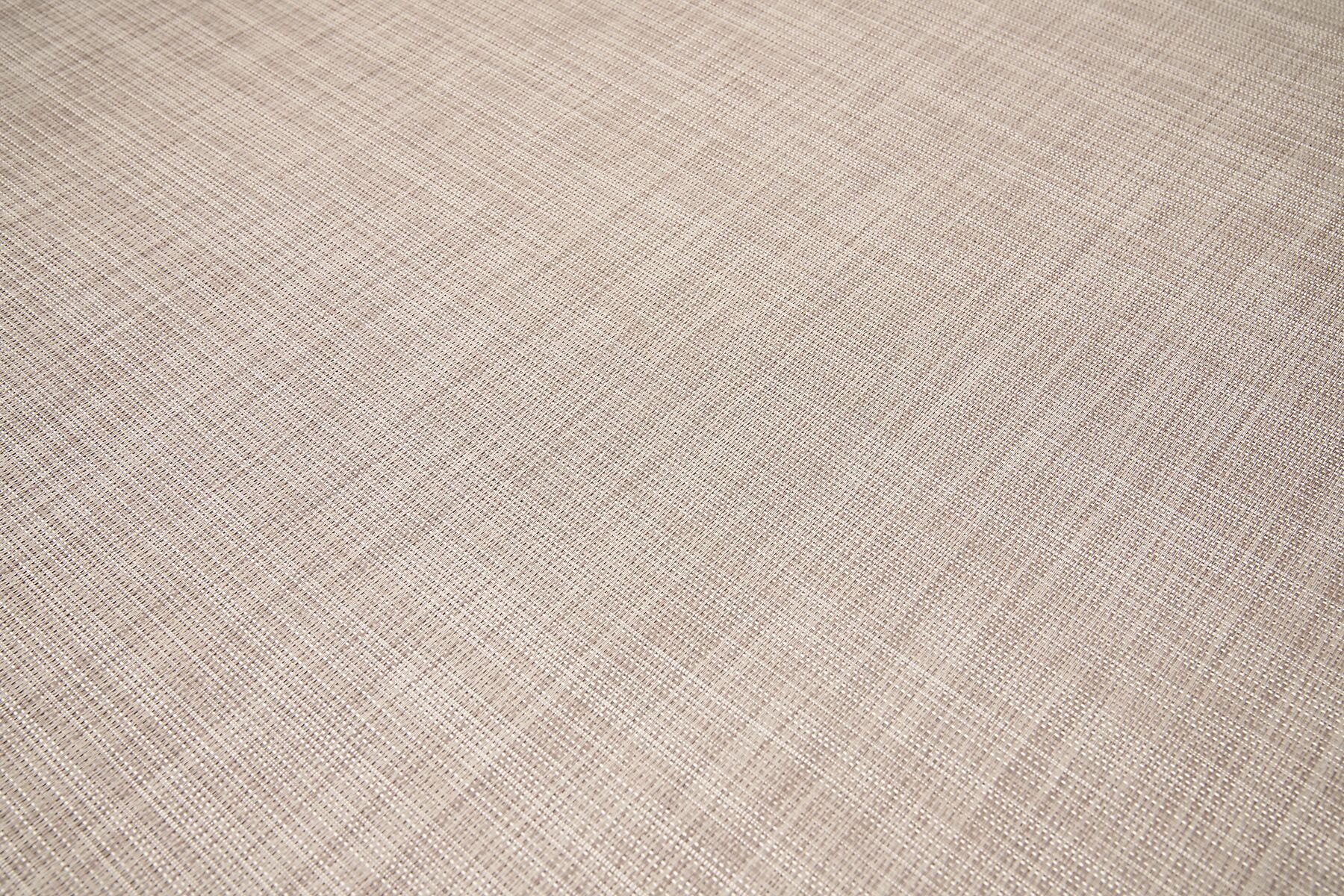

- Woven 16-oz. (.45 kg) marine-grade flooring throughout

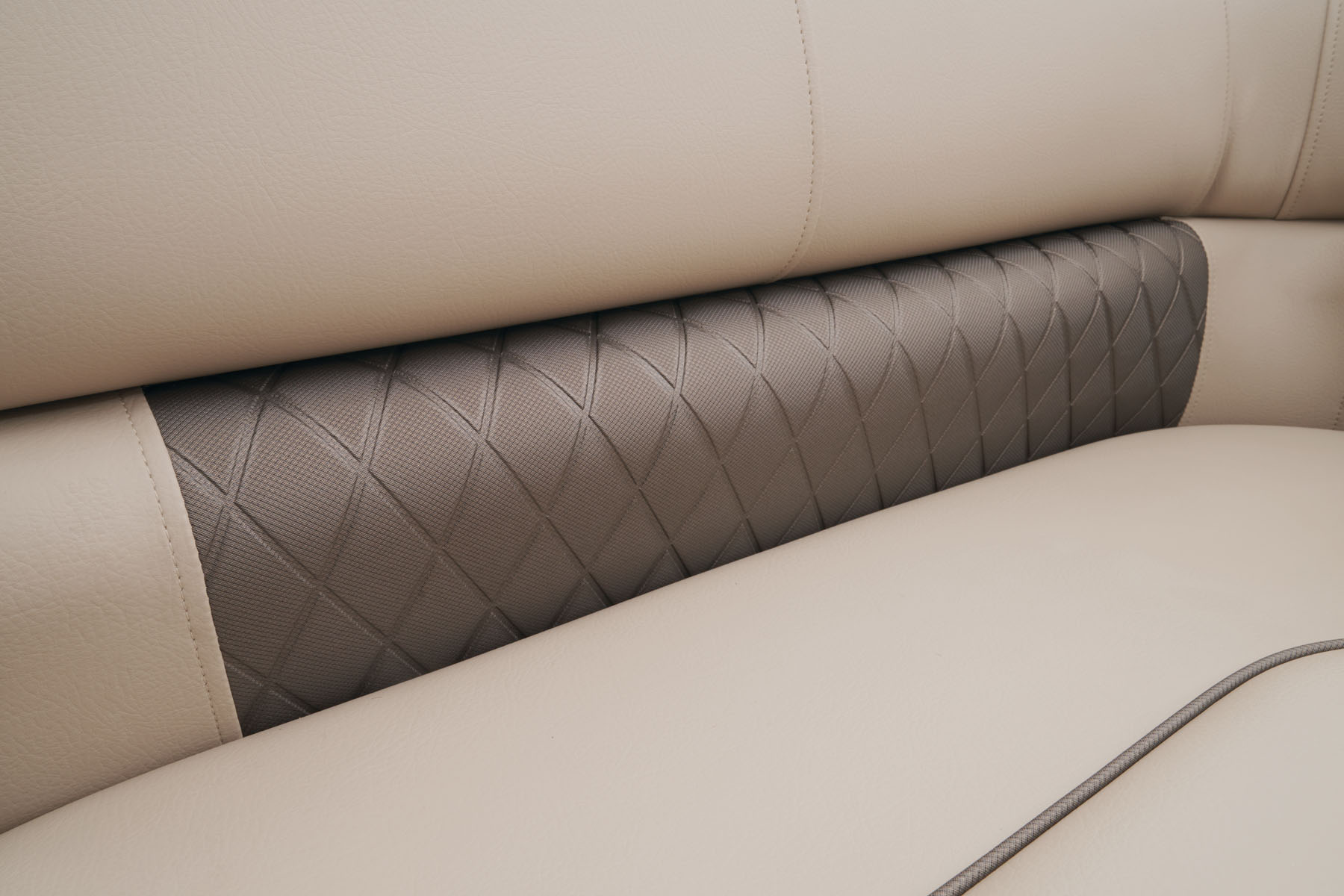

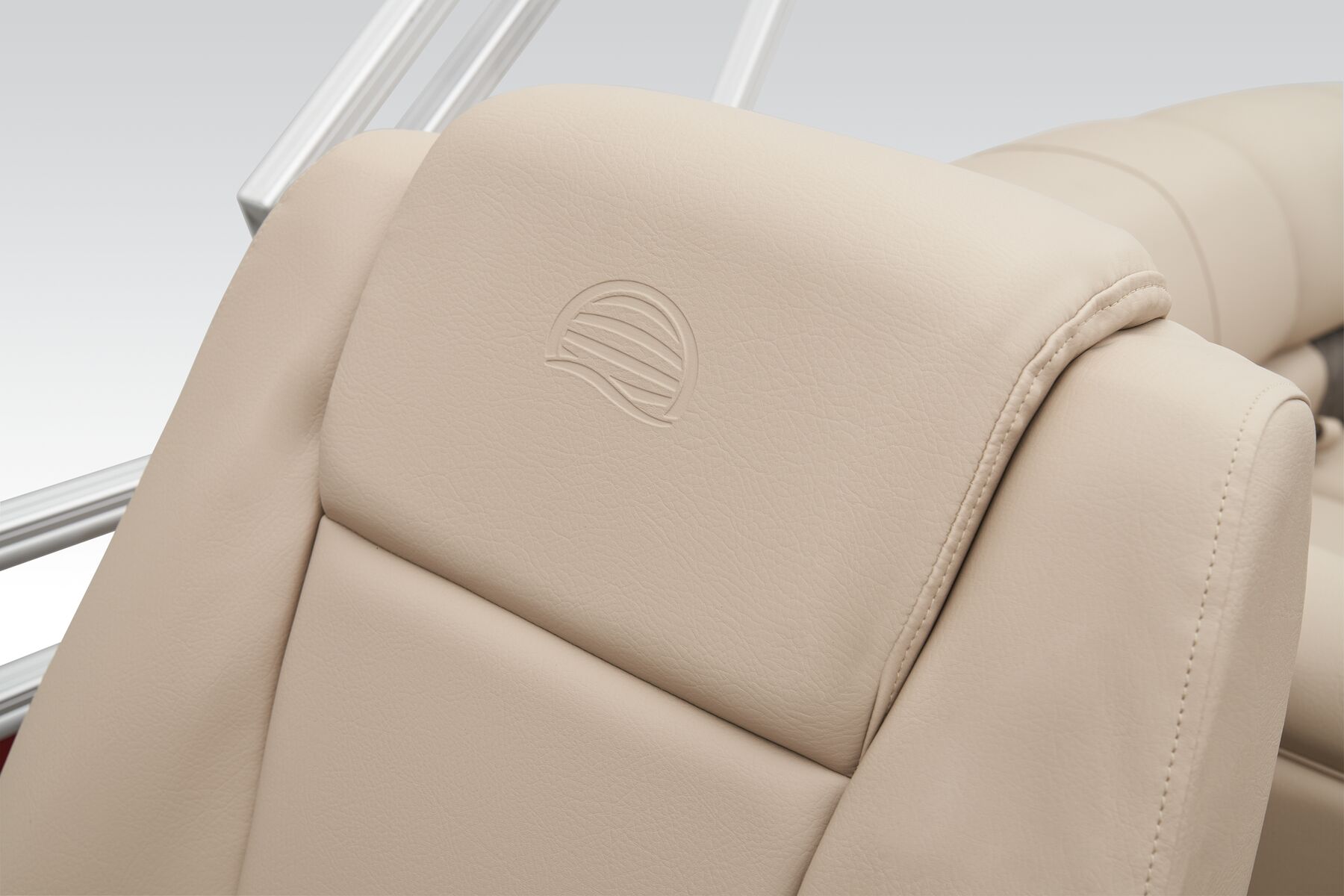

- Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
Performance

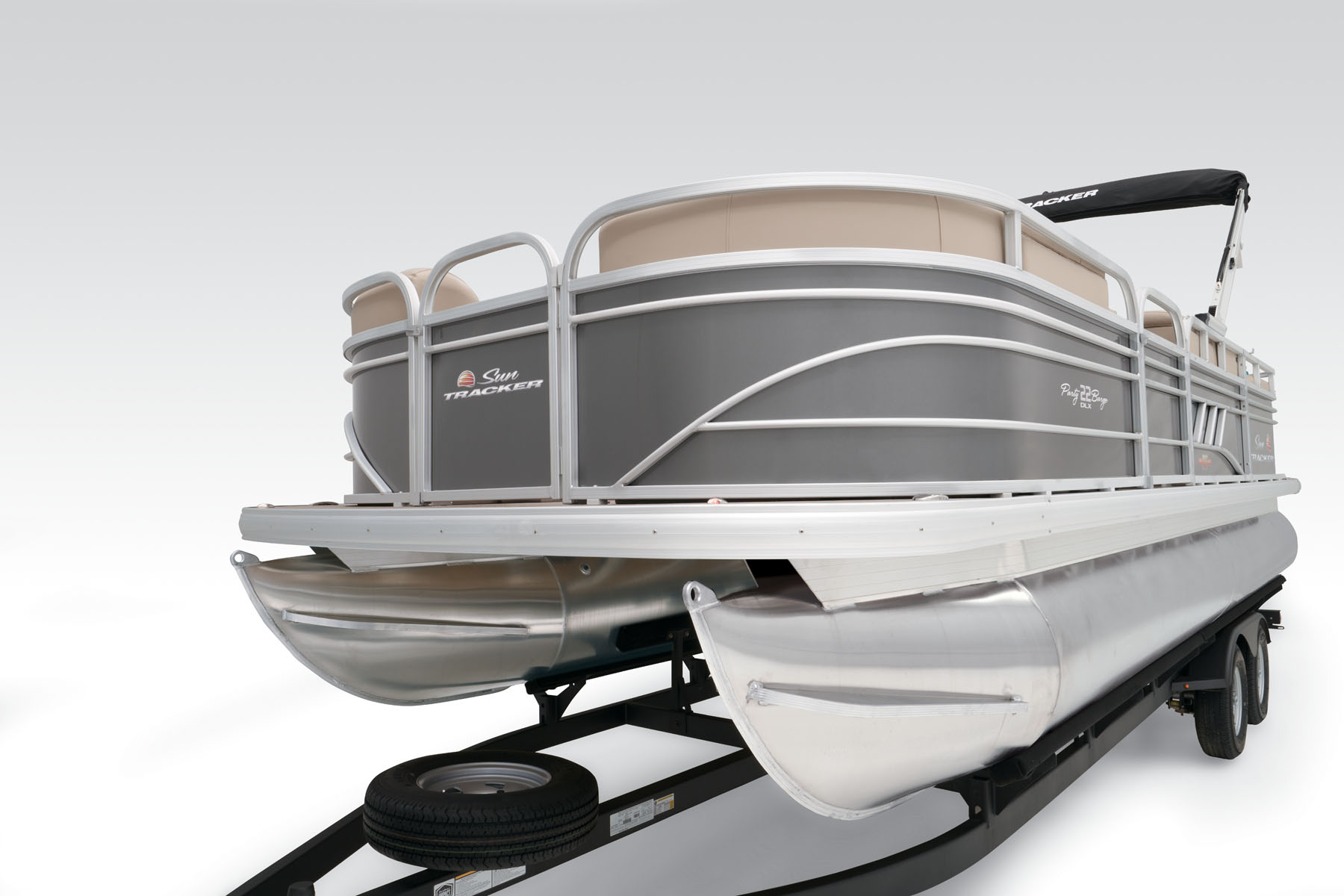

- 24" (60.96 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
- Full-length, 1-piece longitudinal M-bracket deck supports
- Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
- Heavy-duty aluminum U-channel reinforcement behind bow deck trim
- Reinforced bow structure
- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- All-aluminum box-beam transom for strength & longevity
- Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
- 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails
- Sound- & vibration-deadening fence insulation for a quiet ride
- Extruded & anodized aluminum deck edging w/polished aft corner covers
- Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
- Rotomolded storage, furniture & console for superior strength & longevity
- Nylon gate latches & heavy-duty hinges that open inward
- Stainless or coated corrosion-resistant fasteners
- Factory-matched aluminum propeller
Exterior
- Color: Charcoal or Copper Red fencing

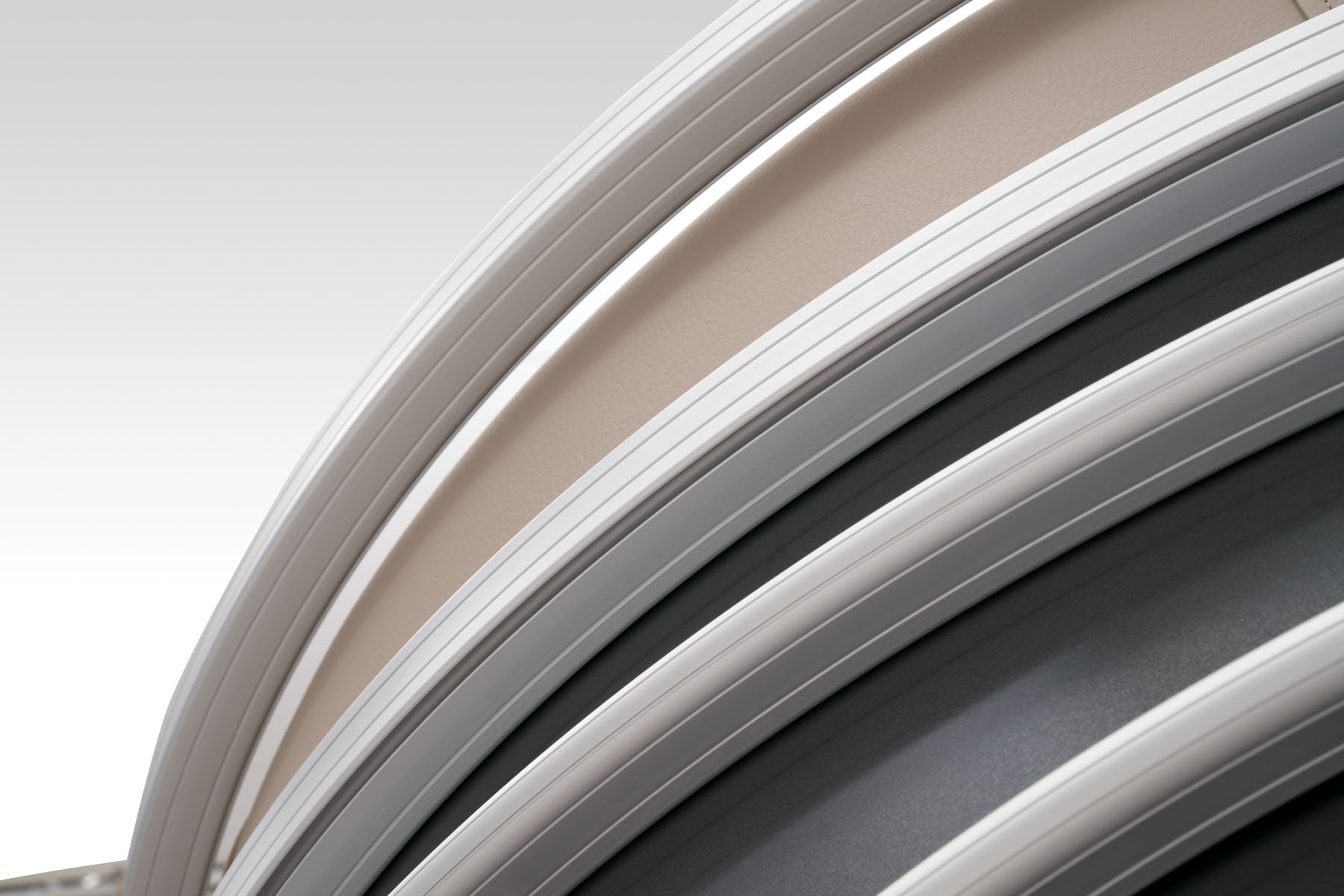

- TRACK FORMED™ fence design w/high-sheen finish for long-lasting cosmetics
- Elevated fence panels for deck drainage & ventilation
Electrical
- Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors
Options
Note: SunTracker’s innovative new FLARE touchscreen gauge display relies on proprietary digital engine data not available from all engines. Boats equipped with optional Mercury 9.9ELPT FourStroke or 20ELPT FourStroke engines will experience limited monitoring capability. See dealer for details.
