2023
SPORTFISH™ 24 XP3
w/ 150 L FourStroke Mercury® FourStroke
Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$52995
USD
|
Overview
The biggest SPORTFISH™ is custom made for landing a limit of fish, towing a tube full of kids, or touring the lake with your closest friends. The 24’ 1” deck features the best of cruising and entertaining features with angler-savvy niceties. When it’s time to wet a line, you’ll find a lockable rod box that carries sticks up to 7’ 6”, a recirculating livewell, and a pre-wired harness that lets you mount a Minn Kota® trolling motor found in the optional Fish Package.
Plush seating conceals a world of storage below benches and inside seatbacks with our clever STOW MORE™ storage solution. At the helm is a reclining, swiveling, overstuffed helm seat that offers a commanding view of the lake with an equally impressive fully featured console with smooth no-feedback steering. Motivation comes by way of Mercury® FourStroke power with up to 250 horses on tap for exhilarating performance. Every inch of the SPORTFISH™ 24 XP3 gives you more comfort and capability that deliver richer experiences every time you hit the water.
Key Features
Helm Seats
Twin low-back fishing seats are idea for casting or chilling.
Optional Fishing Package
A 24V trolling motor combine with rod and tool holders for fishing perfection.
Rear-Facing Bed
Spread out and relax after a long day of fishing.
Specifications
| Length | 7.98 m | 26' 2'' |
| Deck Length | 7.34 m | 24' 1'' |
| Deck Width | 2.59 m | 8' 6'' |
| Max. Recommended HP | 250 HP | |
| Fuel Capacity | 196.82 L | 52 gal. |
| Pontoon Log Length | 7.59 m | 24' 11'' |
| Pontoon Log Diameter | 66.04 cm | 26'' |
| Pontoon Log Material | 0.100 5052 marine alloy | |
| Max. Person Capacity | 12 persons |
| Max. Person Weight | 952.54 kg | 2100 lbs. |
| Max. Person, Motor & Gear Weight | 1344.9 kg | 2965 lbs. |
| Interior Depth | 60.96 cm | 24'' |
| Average Dry Weight | 1342.63 kg | 2960 lbs. |
| Average Package Weight | 2394.97 kg | 5280 lbs. |
| Package Height | 2.69 m | 8' 10'' |
| Package Width | 2.59 m | 8' 6'' |
| Towing Length | 10.46 m | 34' 4'' |
| Storage Length | 10.46 m | 34' 4'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 150 L FourStroke | 33-37 mph |
$52995 USD
|
Select Dealer | ||
| 200 L FourStroke | - |
$56975 USD
|
Select Dealer | ||
| 250 L FourStroke | - |
$61125 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- 10+LIFE™ Limited Lifetime Warranty
- NMMA® certified
- 10' (3.05 m) EasyLift™ canopy system by Dowco®, LED courtesy lights & protective boot (Bimini top will be Black w/Black or Charcoal fencing colors & will be Sand w/Caribou, Copper Red or Indigo Blue fencing colors)
- Storage pockets in Bimini top
- Nylon gate latches & heavy-duty hinges that open inward
- Port & starboard LED navigation lights
- Bimini-mounted anchor/navigation light
- Mooring eye on starboard side for tie off
- Four 4.5" (11.43 cm) fold-down mooring cleats
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
Livewell System
- Bow port 16-gal. (60.57 L) rotomolded & aerated livewell w/shutoff valve & composite lid w/ruler

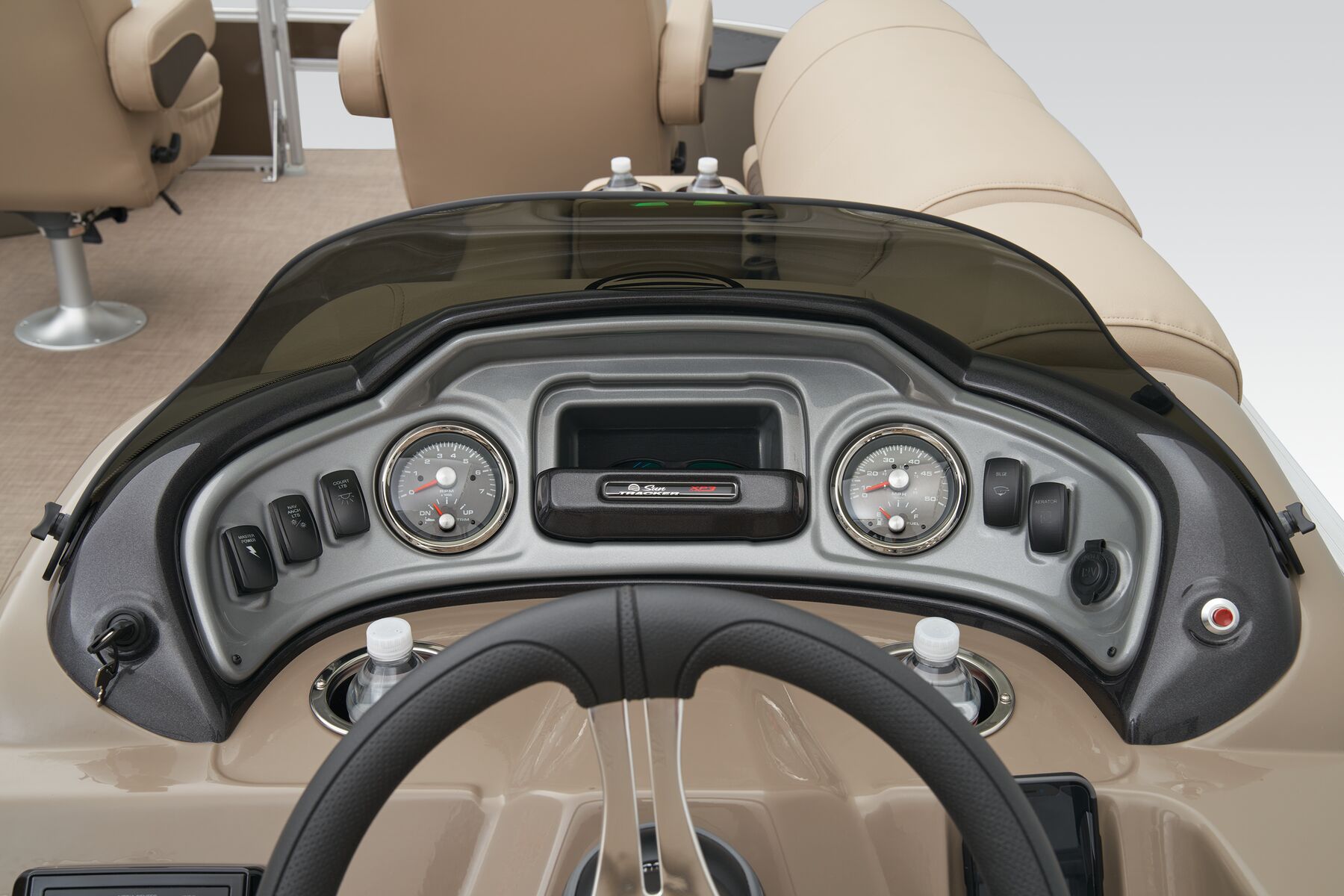

Console
- Deluxe soft-touch sport steering wheel
- Tilt hydraulic steering
- Wraparound sport console shroud & tinted, removable windscreen
- Below-console cooler/storage space w/door & integrated pouch
- Small items tray
- Drink holders
- Built-in footrest w/non-skid pad
- AM/FM Bluetooth®-capable stereo head unit w/integrated low voltage alarm & 4 upholstery speakers
- USB/3.5 mm auxiliary input ports on console for direct stereo connection
- Tachometer, trim meter/speedometer & fuel & hour gauges
- Lighted rocker switches w/bilge switch
- Ergonomically positioned Mercury® binnacle control box w/trim
- 12V outlet
- Dark console color
Interior
- The patented STOW MORE™ system features an added compartment in the seat back for increased storage
- Large bow starboard rotomolded box w/storage, ruler, drink holders & lid, pre-wired for 24V total battery capacity
- Bow swiveling helm bucket seats, reclining & w/self-leveling arms & port side drink holder
- Bow rail-mounted vertical rod & tool holders
- Bow starboard couch w/STOW MORE™ system & underseat storage
- 88" (2.24 m) long, 23" (58.42 cm) deep lighted in-floor storage compartment w/bilge pump in center log
- Aft L-lounge w/STOW MORE™ system, underseat storage, lockable storage compartment & arm
- High-back swiveling helm bucket seat, reclining & w/self-leveling arms
- Aft port rear-facing double lounge w/STOW MORE™ system & underseat storage
- Molded aft starboard lockable rod box for 6 rods to 7' 6" (2.29 m) w/lid, rod tube holders & organizer
- Receptacle for optional ski tow pylon
- Woven 16-oz. (.45 kg) marine-grade flooring throughout
- Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

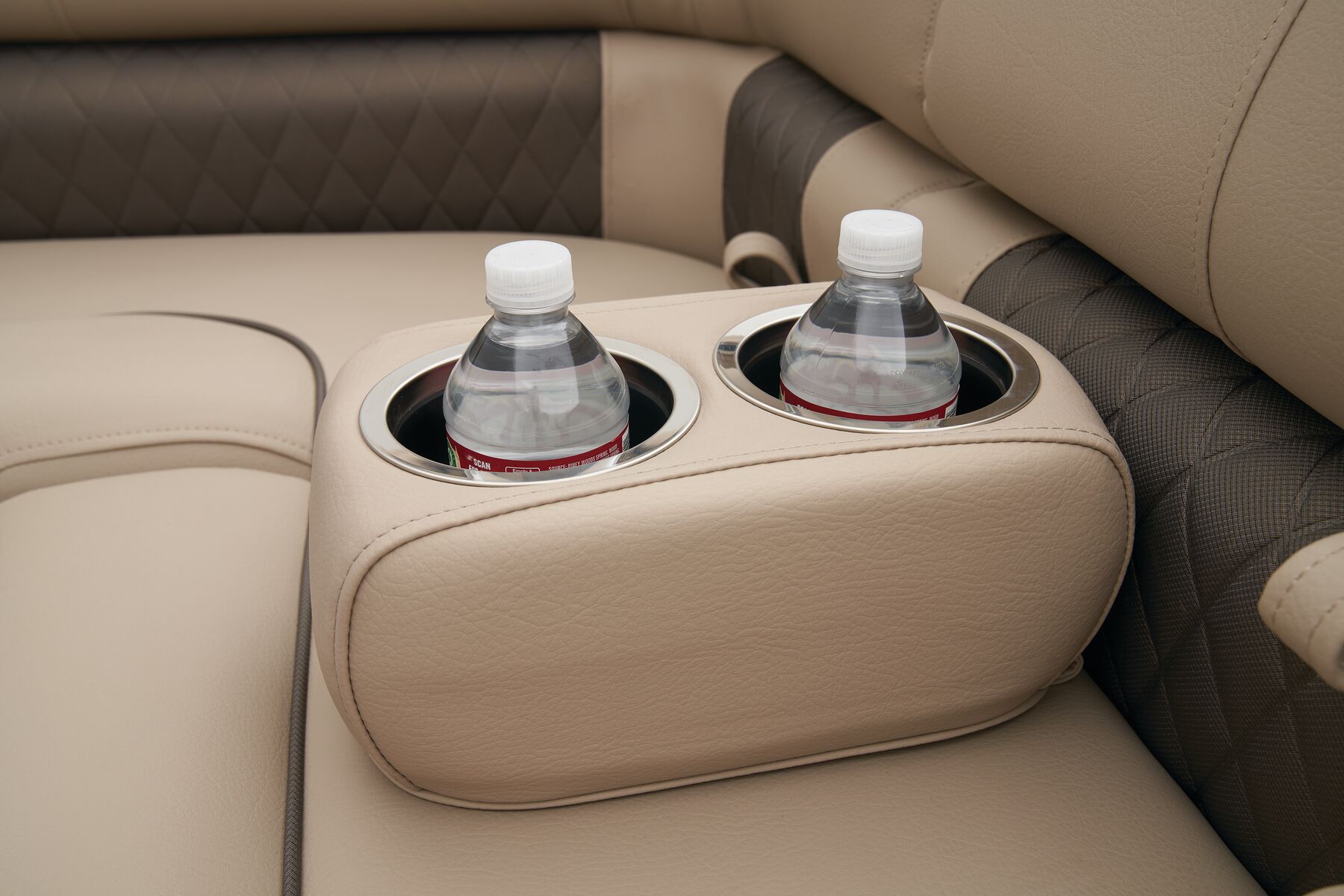

- 2 movable drink holders/armrests
- Removable table w/padded insert, 4 molded-in drink holders & 1 pedestal base location
Exterior
- XP3 performance package – strakes on inboard side of outer logs & both sides of center tube
- Nose cone & motor pod wave/spray deflectors for a drier ride
- Factory-matched aluminum propeller
Construction & Exterior
- Color: Black or Caribou fencing
- Exterior styling w/XP3 graphics package
- Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
- Rotomolded couches & backs for furniture w/Diamante Pepper accent
- Fishing seats w/Diamante Pepper accent
- Heavy-duty bow U-channel reinforcement behind deck trim
- Three 26" (66.04 cm) diameter XP3 high-performance multichambered pontoon logs w/welded-on lifting strakes & internal bracing for additional strength
- 1-piece full-length M-bracket deck supports
- Protective exoskeleton rail & panel system for durability & a quieter ride
- High-sheen fence finish for long-lasting good looks

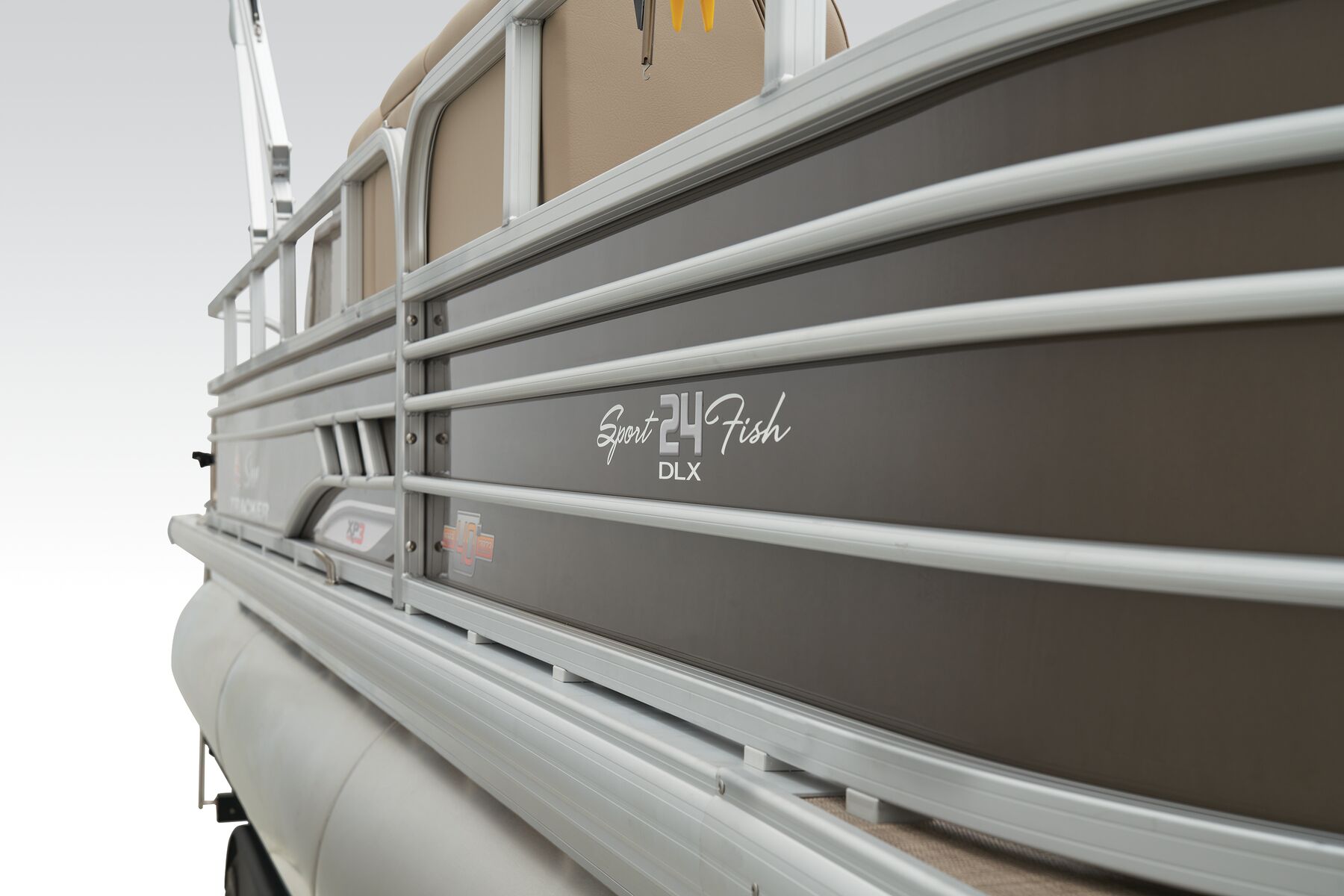

- 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
- Factory-installed underpinning (under-deck shielding) for improved performance
- Extruded anodized aluminum deck edging w/polished aft corner covers
- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- Stainless or coated corrosion-resistant fasteners
- Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
- Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
- Elevated fence panels for deck drainage & ventilation
- Sound- & vibration-deadening fence insulation for a quiet ride
- Box-beam all-aluminum transom for strength & longevity
- Port wheelchair-access gate
- Rear boarding platform w/4-step telescoping boarding ladder & grab rails
Electrical
- 500 GPH (1892.71 LPH) Ultima auto bilge pump
- Interior courtesy lighting
- Battery disconnect switch
- Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors
