Party Barge 20 DLX
2023
PARTY BARGE® 20 DLX
w/ 60 ELPT FourStroke Command Thrust Mercury® FourStroke
Price Excludes Optional Trailer
| View Price w/ Prep & Freight: | Select Dealer |
|
NO HAGGLE NO HASSLE® National Price
Base Price
|
$29995
USD
|
Overview
The PARTY BARGE® 20 DLX is perfect for those who want a spacious recreation pontoon boat that’s big enough to handle a crew of up to 10, but isn’t so big it can’t be towed and launched by just two.
Regardless your crew’s size, this pontoon boat packs the right amount of features for a full day of fun. To start, check out the dual bow couches and midship L-lounge, all with the STOW MORE™ seat storage system to provide plenty of space for gear (the seat-back compartments can even be accessed safely while cruising!). Or, crank up the Bluetooth® stereo and take a cooling dive off the full-width swim platform—there’s even an extra-large ladder for easy reboarding.
So, load it up with gear, load up the family and head to your favorite lake for some quality family time.
Key Features

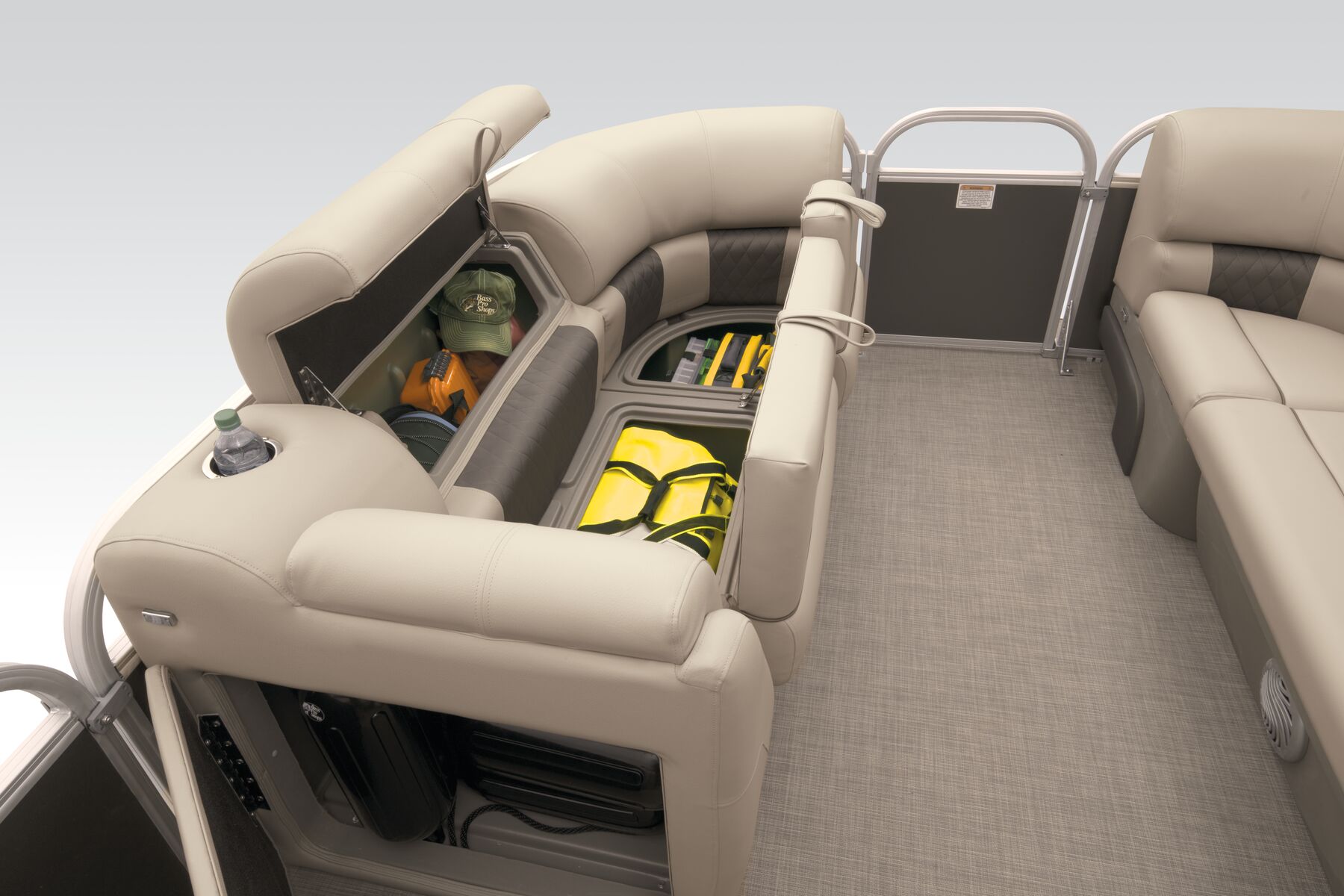

STOW MORE™ system
STOW MORE seat-back compartments expand seating in equipped couches by 50%.
Drink holders
Two movable drink holders/armrests allow you keep you drinks handy wherever you're lounging.
Helm chair
The captain's chair is outfitted for comfort. It reclines and has self-levelling arms!
Specifications
| Length | 6.68 m | 21' 11'' |
| Deck Length | 6.05 m | 19' 10'' |
| Deck Width | 2.59 m | 8' 6'' |
| Max. Recommended HP | 90 HP | |
| Fuel Capacity | 121.5 L | 32.1 gal. |
| Pontoon Log Length | 6.2 m | 20' 4'' |
| Pontoon Log Diameter | 60.96 cm | 24'' |
| Pontoon Log Material | 0.080 5052 marine alloy | |
| Max. Person Capacity | 10 persons |
| Max. Person Weight | 621.42 kg | 1370 lbs. |
| Max. Person, Motor & Gear Weight | 861.83 kg | 1900 lbs. |
| Interior Depth | 66.04 cm | 26'' |
| Average Dry Weight | 943.47 kg | 2080 lbs. |
| Average Package Weight | 1698.7 kg | 3745 lbs. |
| Package Height | 2.67 m | 8' 9'' |
| Package Width | 2.59 m | 8' 6'' |
| Towing Length | 9.19 m | 30' 2'' |
| Storage Length | 9.19 m | 30' 2'' |
Motor Options
| AVAILABLE MOTOR | ESTIMATED SPEEDS | PACKAGE PRICE | PRICE W/ PREP & FREIGHT | ||
|---|---|---|---|---|---|
| Mercury® FourStroke | |||||
| 9.9 ELPT FourStroke Command Thrust ProKicker | - |
$25375 USD
|
Select Dealer | ||
| 20 ELPT FourStroke | - |
$26255 USD
|
Select Dealer | ||
| 60 ELPT FourStroke Command Thrust | 18-23 mph |
$29995 USD
|
Select Dealer | ||
| 90 ELPT FourStroke Command Thrust | 23-29 mph |
$31995 USD
|
Select Dealer | ||
Features
Comfort, Convenience & Peace of Mind
- 10+LIFE™ Limited Lifetime Warranty
- NMMA® certified
- 10' (3.05 m) SureShade® powered Bimini top w/push-button stow & deploy, LED courtesy lights & protective boot (Bimini top will be Black w/Black or Charcoal fencing colors & will be Sand w/Caribou, Copper Red or Indigo Blue fencing colors)
- Storage pockets in Bimini top
- Nylon gate latches & heavy-duty hinges that open inward
- Port & starboard LED navigation lights
- Bimini-mounted anchor/navigation light
- Four 4.5" (11.43 cm) fold-down mooring cleats
- Motor-stop safety lanyard
- Fire extinguisher
- Horn
Console
- Deluxe soft-touch sport steering wheel
- 4:2 ratio no-feedback steering for responsive, easy turning
- Wraparound sport shroud & tinted windscreen
- Below-console cooler/storage space
- Small items tray
- Drink holders
- Built-in footrest w/non-skid pad
- AM/FM Bluetooth®-capable stereo head unit w/integrated low voltage alarm & 4 upholstery speakers
- USB/3.5 mm auxiliary input ports on console for direct stereo connection

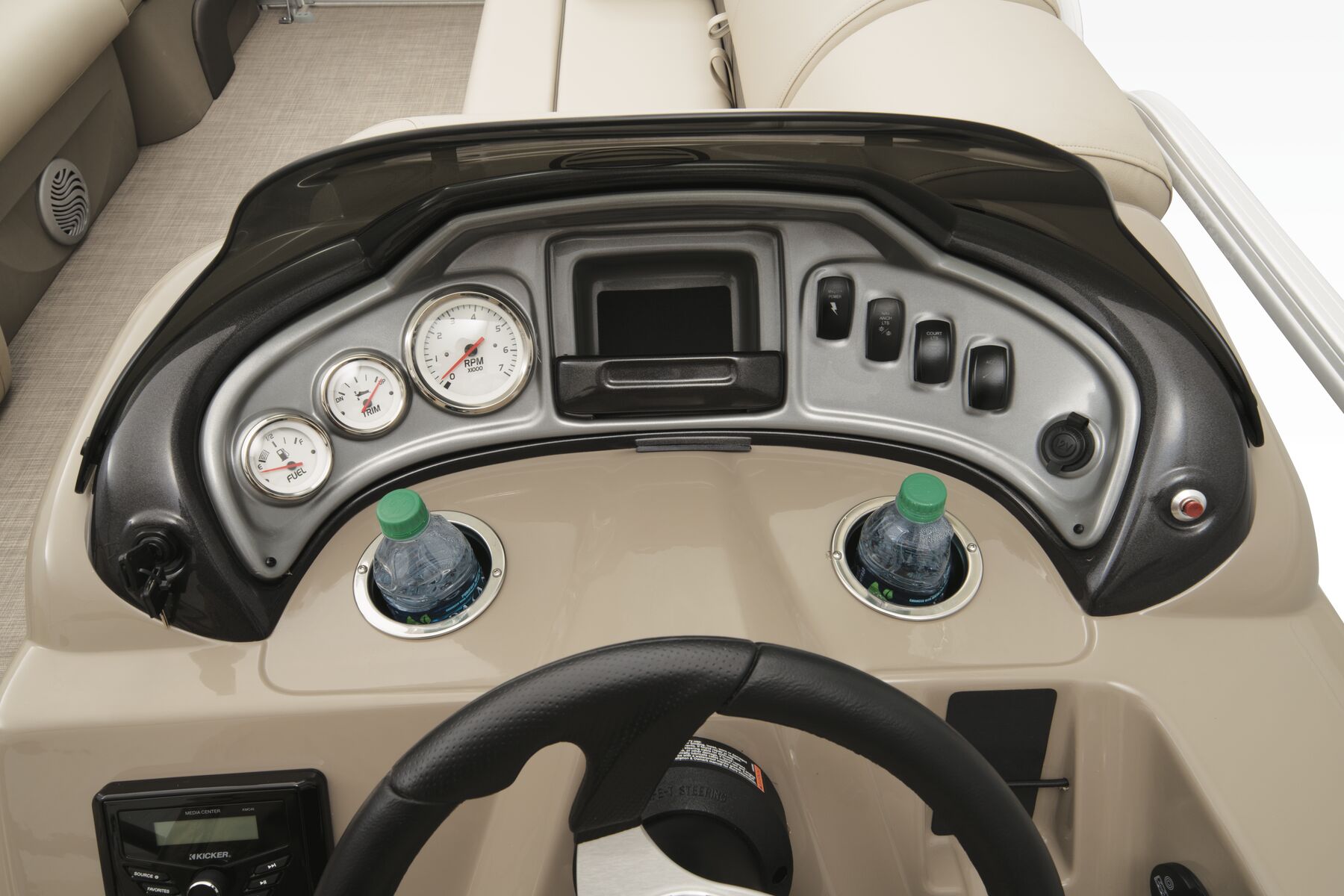

- Illuminated tachometer, trim & fuel gauges
- Lighted rocker switches
- Ergonomically positioned Mercury® binnacle control box w/trim
- 12V outlet
- Dark console color
Interior
- The patented STOW MORE™ system features an added compartment in the seat back for increased storage

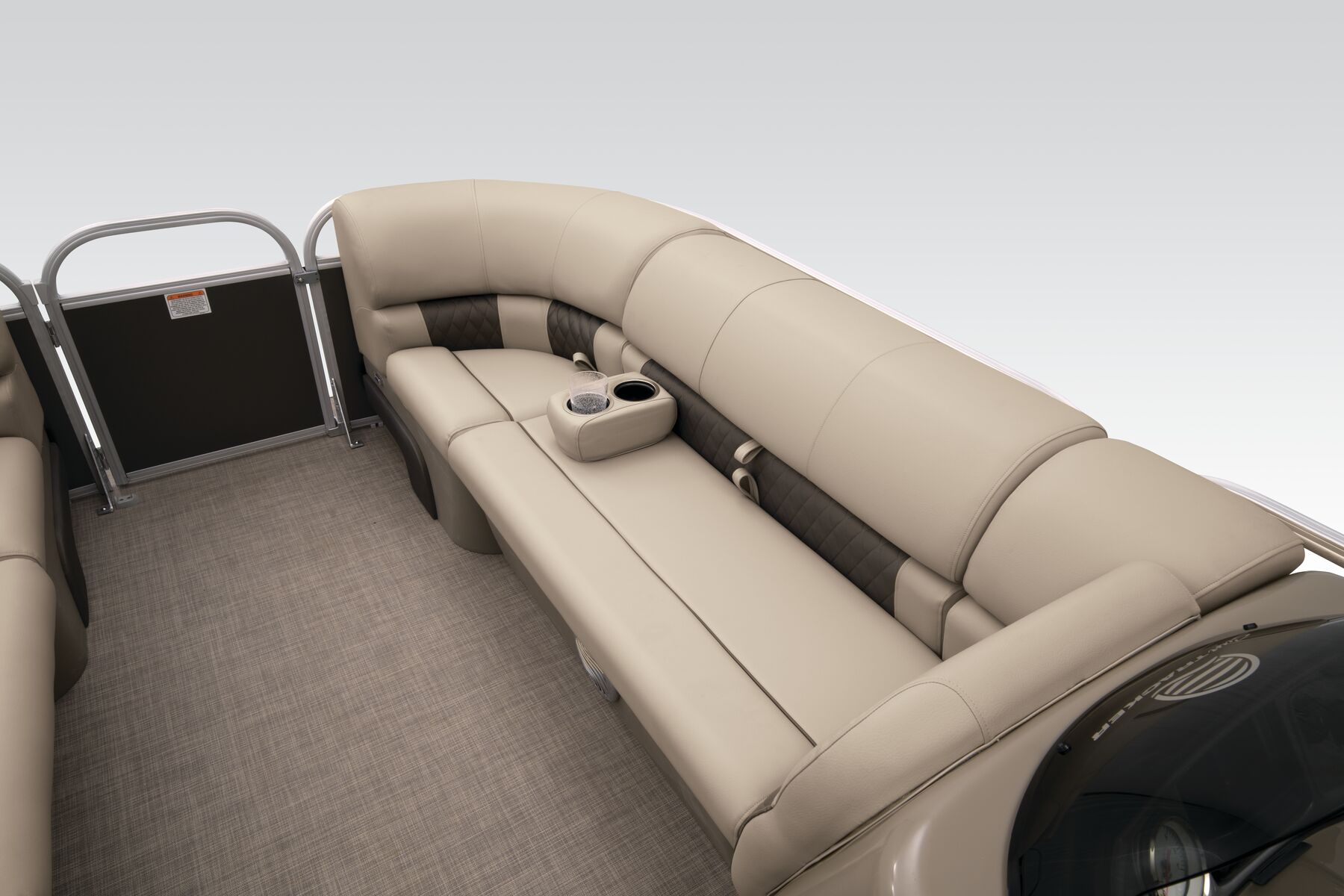

- Bow port couch w/STOW MORE™ system, underseat storage & armrest w/drink holder
- Bow starboard couch w/STOW MORE™ system & underseat storage

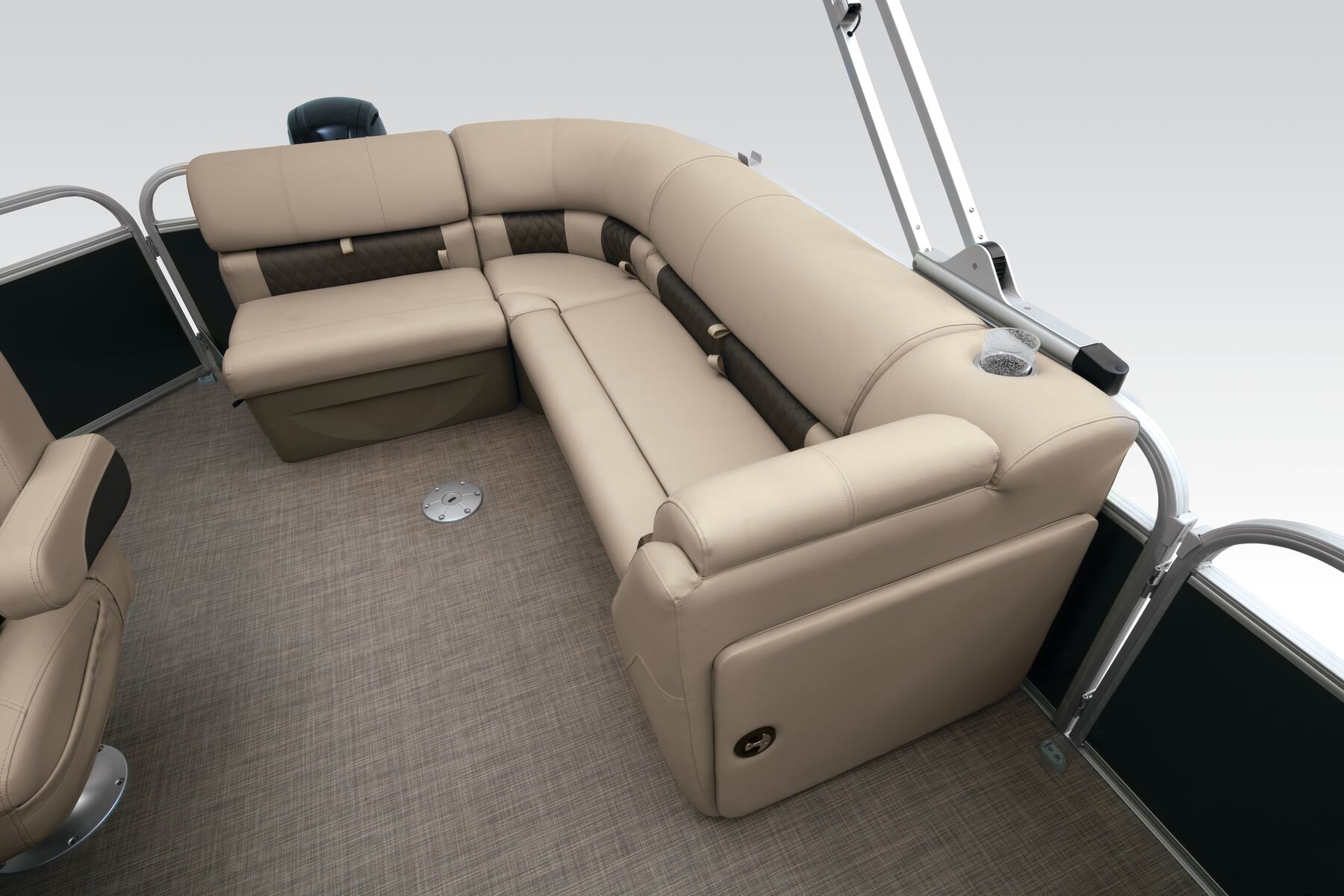

- Aft L-lounge w/STOW MORE™ system, underseat storage, lockable storage compartment & arm

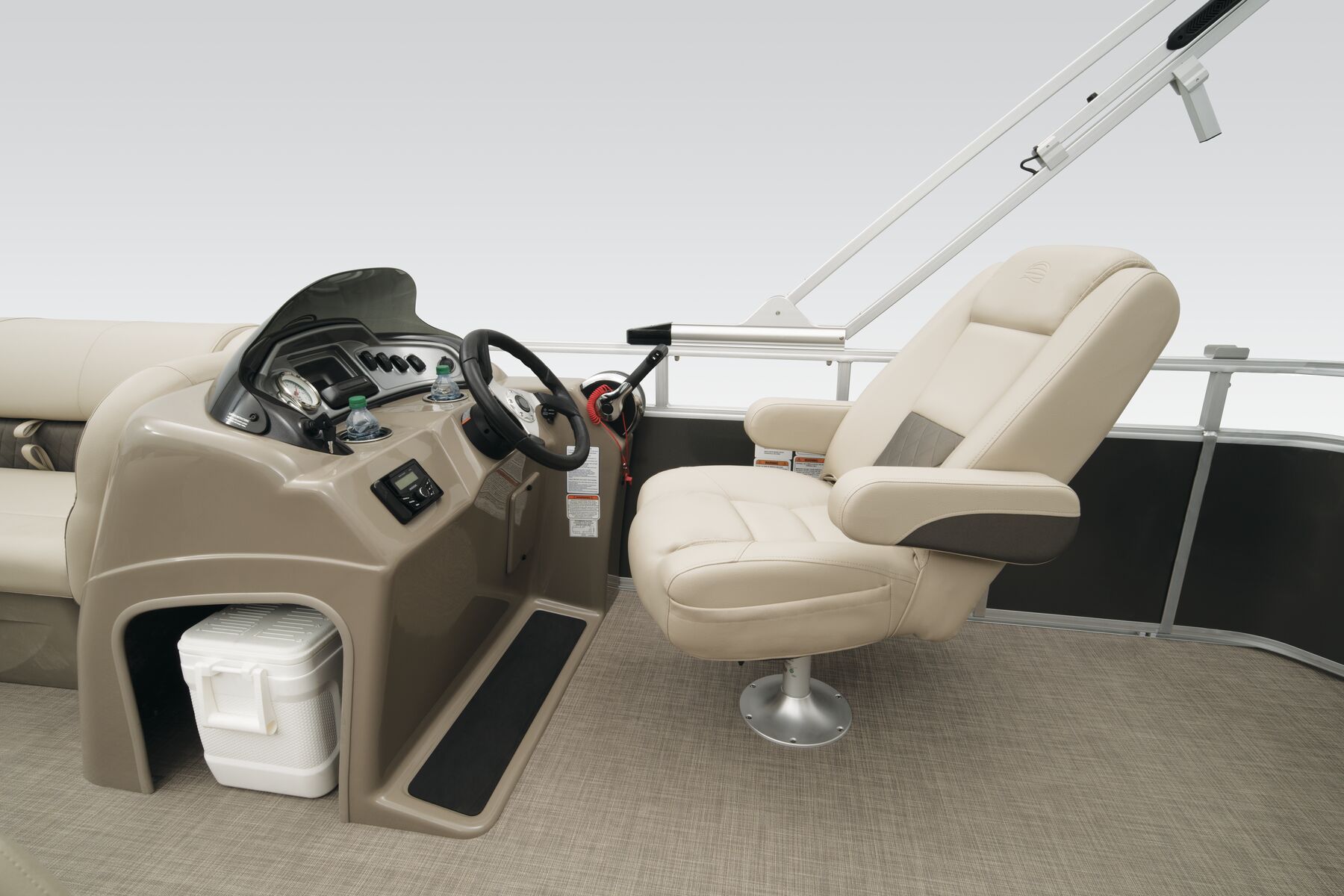

- High-back swiveling helm bucket seat, reclining & w/self-leveling arms
- Full-width aft swim deck
- Woven 16-oz. (.45 kg) marine-grade flooring throughout
- Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam
- 2 movable drink holders/armrests
- Removable table w/padded insert, 4 molded-in drink holders & 1 pedestal base location
Exterior
- Nose cone & motor pod wave/spray deflectors for a drier ride
- Factory-matched aluminum propeller
Construction & Exterior
- Color: Charcoal or NEW Copper Red fencing
- Plasma & laser cutters & robotic welding help ensure precise fit & finish throughout
- Rotomolded couches & backs for furniture w/Diamante Pepper accent
- Heavy-duty bow U-channel reinforcement behind deck trim

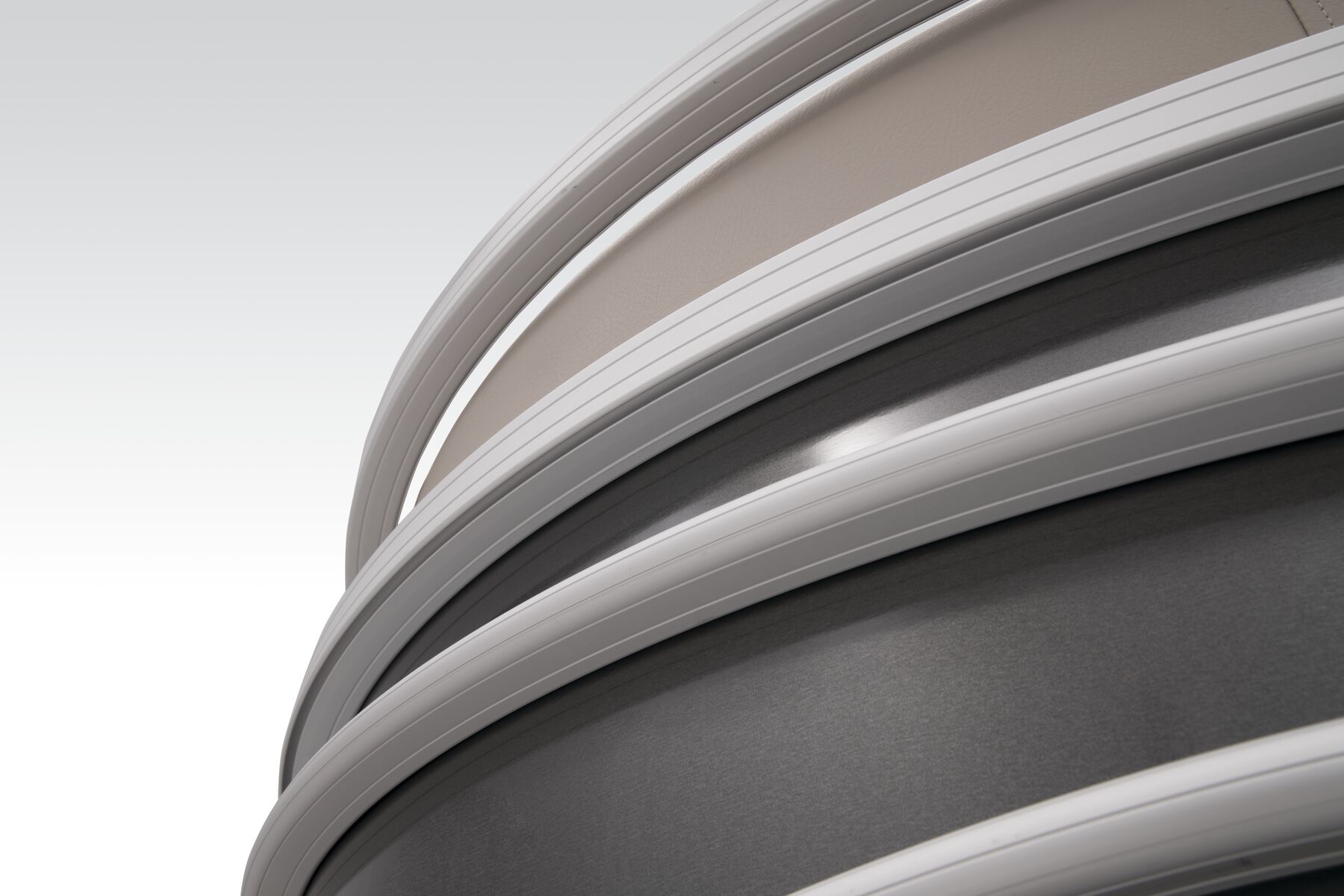

- 24" (60.96 cm) diameter high-buoyancy multichambered pontoons w/internal bracing for additional strength
- 1-piece full-length M-bracket deck supports
- Protective exoskeleton rail & panel system for durability & a quieter ride
- High-sheen fence finish for long-lasting good looks
- 1-1/4" (3.18 cm), .090" (.23 cm) thick anodized aluminum fence rails w/decorative styling
- Reinforced bow structure
- Extruded anodized aluminum deck edging w/polished aft corner covers
- All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
- Stainless or coated corrosion-resistant fasteners
- Pressure-treated 3/4" (1.91 cm) deck w/Limited Lifetime Warranty
- Full-width heavy-duty extruded Z-bar deck supports that are thru-bolted to M-brackets
- Elevated fence panels for deck drainage & ventilation
- Sound- & vibration-deadening fence insulation for a quiet ride
- Box-beam all-aluminum transom for strength & longevity
- Port wheelchair-access gate
- Rear boarding platform w/NEW 4-step telescoping boarding ladder & grab rails
Electrical
- Interior courtesy lighting
- Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
- Protective abrasion-resistant wire wrap
- Water-resistant connectors
Options
